Chapter 1: Characteristic Explain

MFSC 2000W-3000W (Chassis Type) Single Module CW Fiber Laser is developed by Maxphotonics, provide a wide range of wavelength from 1060nm to 1100nm. The lasers are water-cooled and maintenance-free and with the efficiency is more than 30%.

Maxphotonics’ MFSC 2000W-3000W (Chassis Type) Single Module CW Fiber Laser are Class 4 laser products and are designed and tested with safety. By following this User Guide and applying sound laser safety practices, it will be a safe and reliable device.

Laser light exhibits unique characteristics that may pose safety hazards.

Therefore, the laser light can’t be normally associated with other light sources and all operators and people near the laser must be aware of these special hazards.

In order to ensure the safe operation and optimal performance of the product, please follow all warnings and safety instructions in this guide during process of operation, maintenance and service.

For ensuring the safety of operators, operators are urged not to open the equipment privately at all times. There are no user serviceable parts, equipment or assemblies associated with this product. Lasers of unauthorized disassembly shall not be subject to warranty.

2000W 3000W Fiber Laser Source Krrass
2000W 3000W Fiber Laser Source Krrass

Chapter 2: General Safety Information

1-Safety Conventions

QQ截图20240509142149

WARNING: Refers to a potential Electrical Hazard to human body. It requires a procedure that, if not correctly followed, may result in bodily harm to you and/or others.

Do not proceed beyond the WARNING sign until you completely understand and meet the required conditions.

QQ截图20240509142248

CAUTION:Refers to a potential hazard on product. It requires a procedure that, if not correctly followed, may result in damage to the product or components. In order to ensure normal use of equipment, do not violate the requirement of the CAUTION sign.

NOTE :

◎ This device is classified as a high power Class IV laser instrument. It may emit up to 3000W average power from 1060nm to 1100nm. This level of light may cause damage to the eye and skin. Despite the radiation being invisible, the beam may cause irreversible damage to the retina. Laser safety eyewear is not provided with this instrument, but must be worn at all times while the laser is operational.

WARNING:Refers to a potential Laser Hazard.The symbol
represents laser radiation. The symbol is pasted on laser
output end.

WARNING:Refers to a potential Laser Hazard.The symbol represents laser radiation. The symbol is pasted on laser output end.

NO SYMBOL

IMPORTANT:Refers to any information regarding the operation of the product. Please do not overlook this information.

2-Laser Protection

1、Laser Protecddtion Requirements

You must wear the safety protective glasses while operating the laser, and rationally select the safety protective glasses according to the lasing wavelength of the laser. If the device is a tunable laser or Raman product, it emits light over a range of wavelengths and the end user should confirm the laser safety eyewear used protects against light emitted by the device over its entire range of wavelength.

2、Laser Protective Equipment Suppliers

Maxphotonics recommends material or equipments provided by following laser protective equipment suppliers for you, including LaserVision USA, Kentek Corporation, Rochwell Laser Industries, etc. All the supplier information is provided by Maxphotonics only for the convenience to use, so Maxphotonics assumes no responsibility for any problem caused by using the products of abovementioned suppliers.

3-Reference Standard

Anti-interference Performance on Electromagnetic Compatibility

EN 61000-6-4:2007 + A1:2011

EN 61000-6-2:2005 + AC: 2005

EN 61000-3-2:2014

EN 61000-3-3:2013

Power Supply Security:

EN 61010-1:2010

EN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

Laser Security:

EN 60825-1:2014

CDRH 21 CFR 1040.10

NOTE :

◎ In accordance with relevant EU and national standards and requirements, the

laser must be classified according to its output power and laser wavelength. All

MFSC-2000W-4000W-Series laser products with high power belong to Class 4

products (according to article 8, EN 60825-1)

4-General Safety Instructions

1、Specular Reflection

There are often numerous secondary laser beams produced at various angles in the output port of the laser. These divergent beams are produced when the primary beam of laser reflects off a smooth surface, and they are called specular reflections. Although these secondary beams may be less powerful than the total power emitted from the primary beam, the intensity may be great enough to cause damage to the eyes and skin as well as surface of materials.

WARNING:

◎ You must exercise caution to avoid/minimize specular reflections as these laser radiations are invisible!

2、Safety Instructions of Accessories

The photosensitive elements integrated in laser-related optical accessories may be damaged by laser exposure, such as video cameras, photomultiplier tubes, and photodiodes. Attention should be paid to related device protection.

WARNING :

◎ The Maxphotonics MFSC laser light is strong enough to cut or weld metal, burn skin, clothing and paint. In addition, this light can ignite volatile substances such as alcohol, gasoline, ether and other solvents. During the operating process, the flammable materials around the laser must be isolated.

3、Optical Operating Instructions

We strongly recommend that you read the following procedures before operating the laser:

1、Never look directly into the laser output port when the power is turned on.

2、Avoid positioning the laser and all optical output components at eye level.

3、Equip with laser beam casing.

4、Make sure to remove the tail cover of the laser output head before the laser is turned on, otherwise it will cause irreversible damage to the laser fiber output head.

5、Ensure that all personal protective equipment is suitable for the output power and wavelength range of the laser.

6、Use the laser in a room with access controlled by door interlocks. Post warning signs. Limit the safety areas to operate the laser.

7、Please do not operate the laser in darkened environments.

8、Do not turn on the laser without an optical coupling fiber or an optical output connector.

9、Carry out commissioning, calibration and focusing at low output power and then increase the output power gradually when the calibrating and focusing work is done.

10、Do not install or detach cutting heads or collimators when the laser is active

11、Make sure that the laser is shut down and the power is off before you install or detach cutting heads or collimators.

12、If the equipment is operated in a manner not specified in this document, the protection devices and performance of the equipment may be impaired and the warranty will be voided.

WARNING:

◎ Make sure that the individual protective equipment meets the output power and wavelength range of the laser.

◎ Never look directly into the optical fiber or the collimator, and make sure you wear the safety protective glasses in each operation.

4、Electrical Operating Instructions

We strongly recommend that you read the following procedures before operating the laser:

1、Make sure the shell of this equipment is properly grounded. Any interruption of the ground loop may result in personal injury.

2、Make sure the power source connecting equipment is properly grounded.

3、In order to further reduce fire hazard, replace the line fuses (if applicable) with the same types and ratings. The use of other fuses or material is prohibited.

4、Make sure that the input AC voltage of the laser is the voltage of the normal AC mains (Three-phase four-wire 360-440VAC), and wires are connected accurately. Any incorrect wiring method may cause damage to people or 12 instrument.

5、The equipment does not have any part which can be maintained by operators, and all the maintenance operations must be finished by the professionals of Maxphotonics Co., Ltd.

6、To prevent electrical shock, do not remove enclosure, detach the laser without permission and damage the relevant signs. Any product with unauthorized dismounting shall not be subject to warranty.

WARNING:

◎ The input voltage of the laser is triple-phase AC current (360-440VAC), which may cause risk of electric shock. All the relevant cables and connection wires have potential hazards.

5、Environment Conditions and Precautions

For ensuring the safety of the laser working area, suitable enclosures shall be applied, including but not limited the laser safety signs and the interlocking devices. Corresponding operators must be trained and examined and know the normal safety specifications for operating the laser.

Meanwhile, it is important that the output components shall not be installed at eye level.

Because of interaction of the laser and the metal material, the radiation of high level ultraviolet light or visible light may be produced. Make sure that the laser is provided with the protective cover to prevent the eyes or other parts of human bodies from damage by radiation.

We recommend that you comply with the following operating measures to prolong the service life of the laser:

1、Do not expose the laser to a high moisture environment.

2、Operation at higher temperature will accelerate aging, increase threshold current and lower slop efficiency. If the device is overheated, stop operations and contact Maxphotonics.

3、Ensure that the work surface is properly vented. There may be gases, sparks and debris generated from the interaction between the laser and the work surface, and they could pose additional safety hazard.

CAUTION :

◎ The device may be damaged with incautious operation

5-Additional Safety Information

For additional information regarding Laser Safety, please refer to the list below:

Laser Institute of America(LIA)

13501 Ingenuity Drive, Suite 128

Orlando,Florida 32826

Phone:407 380 1553,Fax: 407 380 5588

Toll Free:1 800 34 LASER

American National Standards Institute

ANSI Z136.1, American National Standard for the Safe Use of Lasers

(Available through LIA)

International Electro-technical Commission

IEC 60825-1,Edition 1.2

Center for Devices and Radiological Health

21 CFR 1040.10 – Performance Standards for Light-Emitting Products

US Department of Labor – OSHA

Publication 8-1.7 – Guidelines for Laser Safety and Hazard Assessment.

Laser Safety Equipment

Laurin Publishing

Laser safety equipment and Buyer’s Guides

Chapter 3: Product Description

1-Features

MFSC Series CW fiber lasers are compact and efficient and high-quality laser output lasers developed for industrial application. They are mainly applied to the fields of puching, welding, cutting, etc.

Main Features:

1、High-quality laser output

2、High power, high efficiency

3、High reliability, long service life

4、Compact, rugged package

5、Extension programming interface

Applications:

1、Industrial applications

2、Scientific research

2-Module Configuration

Maxphotonics offers many configurable modes. This manual will give complete instructions for all modes, please refer to section 6.3-6.6.

3-Laser Model Designation Codes

M – F – S – C – XXX – XX
1 – 2 – 3 – 4 – 5 – 6
1Manufacturer’s codeM means Maxphotonics
2Gain media of the
laser
F means Fiber Laser
3Laser modeS means Single Mode
4Laser stateC means Continue Wave
5Maximum output
power
XXXX W means the maximum output power of
the laser
6Additional messageCan be nul

4 – Certification

Maxphotonics certifies that this equipment has been thoroughly tested and inspected and meets published specifications prior to shipping. Upon receiving your equipment, check whether the packaging and accessories have been damaged in transit. If damage is apparent, please contact Maxphotonics immediately.

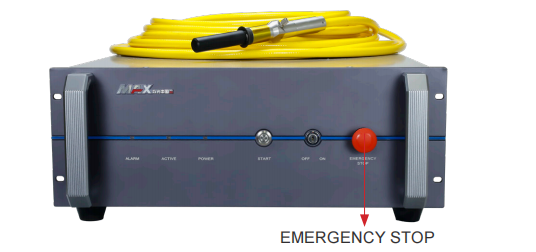

5- Front Panel Description

QQ截图20240510123530
ItemsFunction Description
OFF ON) Key SwitchPower switch of laser
(EMERGENCY STOP)
Emergency Stop Switch
Emergency stop
(Start) Start SwitchStart laser (on-off signal of hardware)
ALARMAbnormal situation light of laser
ACTIVENormal situation light of laser
POWERPower light of laser

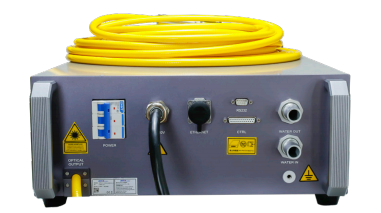

6-Back Panel Description

6 Back Panel Description
ItemsFunction Description
CTRLExternal control connector
RS232RS232 connector
ETHERNETEthernet interface
AC 380V360-440VAC power input
POWER360-440VAC power switch
WATER OUTWater cooling output port(3/4 inch)
WATER INWater cooling input port(3/4 inch)
WATER OUTLaser output connector

7-Optical Output Terminal

1、Optical Output Head

The fiber head is used in conjunction with the protection window and can be replaced after damage. Be sure to remove the QBH head and tail cap before use, which is usually placed with the laser. Refer to “Fiber Connector Inspection and Cleaning Guide” for protective window cleaning supplies and methods.

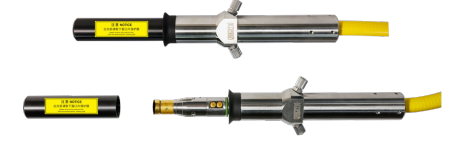

Optical Output Head (QBH head)
Optical Output Head (QBH head)

Chapter 4: Specification

1-Optical Characteristic Parameters

No.CharacteristicsTest conditionsMin.Nom.Max.Unit
1Operation modeCW/Modulated
2PolarizationRandom
3Output power MFSC-2000W100% CW2000W
Output power MFSC-3000W100% CW3000W
4Tuning range of output power10100%
5Emission wavelength100% CW107010801090nm
6Spectrum width(3dB)100% CW35nm
7Short-term power instability100% CW>1h±1±2%
8Long-term power instability100% CW>24h±3±5%
9Beam quality BPP50um-QBH
Output
1.11.5mm x
mrad
100um-QBH
Output
2.83.6mm x
mrad
10Laser switching ON time100150μs
11Laser switching OFF time100150μs
12Modulation rate100%Output5KHz
13Red guide laser power100%Output200μW
14Feeding fiber cable length
MFSC-2000W
50um-QBH
Output
15m
Feeding fiber cable length
MFSC-3000W
50um-QBH
Output
20m
15Feeding fiber core size50( 100、200 optional )μm
16Feeding fiber cable bending
radius
200mm
17Output formStandard QBH(LOC)

2-General Characteristic Parameters

No.CharacteristicsTest conditionsMin.Nom.Max.Unit
1Operating voltage360400440VAC
2Input Power MFSC-2000W100% Output6.5KW
Input Power MFSC-3000W100% Output10KW
3Operating ambient
temperature
1040
4Operating ambient
relative humidity
1085%
5Cooling methodWater-cooling
6Storage temperature-1060
7Dimensions482.6*850*172 (W*D*H)mm
8Weight MFSC-2000W72 ±3kg
Weight MFSC-3000W80 ±3kg

3-Water Cooling Condition

No.CharacteristicsMin.Unit
1Cooling MethodWater Cooling
2Ambient Temperature≥ 30< 30
Chiller Set TemperatureSummer26Winter22
3Hydraulic pressure≥ 4bar
4MFSC-2000W Water Flow Requirements20L/
min
MFSC-3000W Water Flow Requirements25
5MFSC-2000W Chiller Rated Cooling
Capacity Requirements
6.5kw
MFSC-3000W Chiller Rated Cooling
Capacity Requirements
7.5kw

CAUTION :

◎ The Chiller needs to meet the requirements of the above table under the conditions of a circulating temperature of 40 ° C and an outlet temperature of 22 ° C.

◎ The above recommended water pressure requires the pressure drop of the main line Δp ≤ 0.5bar. If this value is exceeded, the main circuit water pressure should be increased accordingly.

◎ The cooling water and filter element need to be replaced once a month; before winter (referring to low temperature environment of 0° C and below), the cooling water should be replaced with a suitable antifreeze (for example, glycol antifreeze, excessive addition is strictly prohibited, antifreeze thermal conductivity coefficient)

Low, excessive addition may cause poor heat dissipation). After the winter is over, the antifreeze should be replaced with distilled water and the filter element should be replaced to restore the maintenance frequency once a month

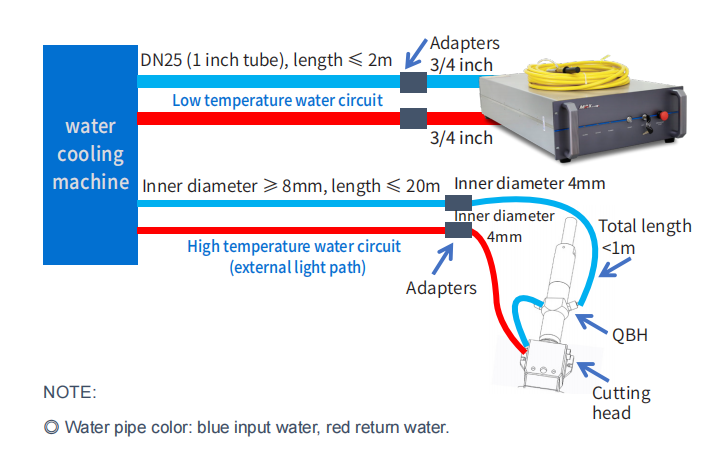

4-QBH Water Cooling Condition

Cooling MethodWater pipe size
requirement
Water Flow
Rate
(L/min)
Hydraulic
pressure
(bar)
Cooling
Temperature
(℃)
Water coolingOuter
diameter* inner
diameter=Φ6*Φ4
≥2≥328-30

NOTE:

◎ External light path tube inner diameter ≥ 8mm, length ≤ 20m;

◎ The length of the Φ6 pipe connected to the LOE after switching from the external light path is ≤ 1m;

◎ QBH is connected in series with the cutting head;

◎The above recommended external light path water pressure requires the pressure drop of the cutting head Δp ≤ 1.5bar. If this value is exceeded, the external light path water pressure should be increased accordingly.

water cooling machine

NOTE:

◎ Water pipe color: blue input water, red return water.

5-Installation Environment Requirements

1.The ambient air cleanliness grade requirement for optical fiber output head installation: 1000 or more stringent grade. Suggestions for Configuration of Standard Purification Workbench;

2.laser working environment temperature:10°C–40°C;

3.laser working environment humidity:10%-85%;

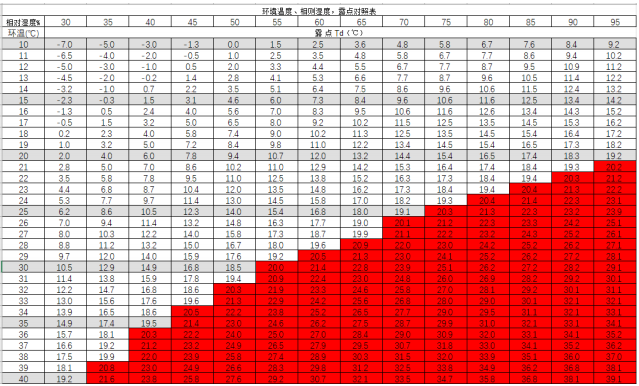

4.Avoid the condensation environment,the specific control standards are as follows:

QQ截图20240509145151

NOTE :

◎ In order to ensure a good operating environment of the laser, to reduce the probability of failure due to condensation. We recommende to prepare an air conditioned room for the laser, so that the temperature in the air-conditioned room is ≤ 28 ° C, and the relative humidity is ≤ 50%. The water cooler should be placed in a different space from the laser. It is forbidden to place the water cooler in the air conditioned room;

◎ The laser head works at circulating temperature. In order to avoid condensation on the laser head, it is necessary to adjust the temperature of the cooling water of the external light path to room temperature. It is forbidden to cool the laser head with low-temperature cooling water.

6-Structural Layout

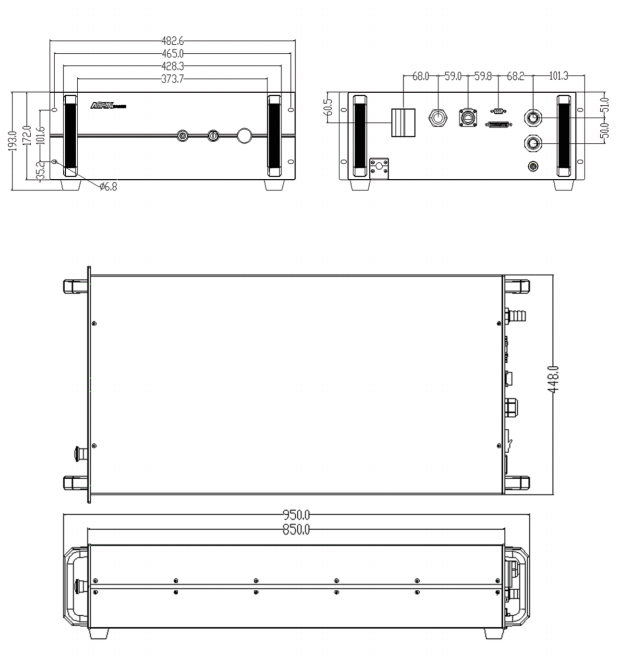

Laser Three Views.(Unit:mm)

QQ截图20240510141318

Chapter 5: Disassembly Guide

1-Disassembly Step

The laser belongs to the precise valuables, so Maxphotonics recommends the following steps to unpack the packing box.

Please unpack according to the following steps:

1. Place the package containing the laser equipment on a horizontal platform, such as a floor or a large table.

2. Open the primary box and remove the foam cover,take out the fittings.

3. Check the fittings according to the ”Packing List”.

4. QBH and fiber optic cable are placed on the top plate of the laser. Please take it out carefully to ensure that the minimum bending radius of the fiber optic cable is >200mm. When taking out, it is recommended that the three people cooperate to operate, two people lift the laser body, and the other person is responsible for taking out the cable.

5. Please ensure that the laser is in a dry, ventilated, dust-free environment. The space around the laser is unobstructed. The front of the laser and the operator’s position are unobstructed. There is no obstruction under the laser. There is no dripping on the laser. The laser is located. The position of the drainage is smooth and convenient, and there is no water accumulation.

6. Keep all objects after unpacking for future transportation or storage needs.

CAUTION:

◎ If any damage of the external package and internal parts has been found upon receipt of product, please contact Maxphotonics Co., Ltd. or designated agent immediately.

◎ When the laser is turned off, the water cooler should also be turned off to prevent condensation from occurring due to excessive temperature difference.

RECOMMENDATION:

Change the working temperature or humidity of the laser to keep the laser away from the dew point. (For example, install the laser in an air-conditioned room.)

2 -Packing List

No.Names of fittingsDescriptionUnitQuantity
1Fiber LaserMFSC-xxxxpc1
2External signal wirepc1
3Power keyspc2
4Lens cleaning paperpc4
5Sample of water
pipe of laser
Ф19.1*Ф29mmpc1
6QBH water pipe sample
tube
Ф6x4mmpc1
7Cable10mpc1
8Hose clampAmerican hose clamp,
clamping range Ф26-Ф38
pc2

Chapter 6: Operation Guide

1-Notice

CAUTION:

◎ Please refer to Chapter 4 “Specification” for proper electrical power.

◎ Please refer to Chapter 2 “General Safety Information” for inspecting whether the configuration environment of peripheral work of the laser

meets the requirements.

2-Electrical Power Connection

The laser power input line needs to be connected to three-phase four-wire AC.

Make sure that the live wire is properly connected according to the wire mark and the ground wire is well connected. Poor contact of the ground wire may cause potential damage to the laser.

For ensuring the safety feature, Maxphotonics recommends you connect a 32A circuit breaker (air switch) in series between the power supply unit and the laser.

This electric power shall be in close proximity to the power supply unit of the equipment and can be easily disconnected.

Refer to Section “Detail Specification Table” to determine your electrical specification if you have any problem about wiring.

3-Extension Interface

Laser The CTRL interface is a high quality DB25 interface that provides a variety of signals for functional control of the laser, as described below:

2000W-3000W DB25 interface

Ctrl
Interface
Pin
Wire
Color
English logoNotes
18RedEnable input +HIGH:20VDC ≤ V ≤24VDC
LOW:0VDC ≤ V ≤ 5VDC
5mA ≤ I ≤15mA
5Red And WhiteEnable input –
17BlackModulation input +HIGH:20VDC ≤ V ≤24VDC
LOW:0VDC ≤ V ≤ 5VDC
5mA ≤ I ≤15mA
4Black And WhiteModulation input –
16YellowExternal light +HIGH:20VDC ≤ V ≤24VDC
LOW:0VDC ≤ V ≤ 5VDC
5mA ≤ I ≤15mA
3Yellow BlackExternal light —
15GreenDA (0-10V) input +Control laser output power
(1V-10%, 10V-100%)
2Green And WhiteDA (0-10V) input –
14brownFault output 1Dry contact output, ON
fault, OFF- normal, (contact
voltage V ≤ 30VDC, contact
current I ≤ 100mA)
1brown and whiteFault output 2
8OrangeEX LOCK+±Short connection: the laser
normally controls the light
output
±Disconnected: the laser is
locked and cannot emit light
19Orange blackEX LOCK-
Ground wireGreen YellowGround wire

4-Start Steps

WARNING:

◎ Make sure that all the electrical connections (including cooling water connections) are connected prior to use. All the connectors must be held steady with screws if possible.

◎ When operating the laser, do not directly look at the output fiber and wear safety glasses. When wiring, please turn off all power switches of the laser.

Start steps are as follows:

1、Start the Chiller;

2、Remove the end cap of the collimator;

3、Make sure that the end surface of the collimator is clean and not covered with impurities;

4、Make sure that the emergency stop switch is turned on;

5、 Turn the rear panel power switch (POWER) to the ON position;

6、Place the Key Switch of the front panel on position “ON”;

7、Press the START button on the front panel.

5-Mode Description

The working modes of the laser are as follows:

1. Continuous mode: the emitted light is continuous and can be used for cutting.

2. Pulse mode: The emitted light is pulsed. When the pulse frequency is greater than a certain value, the actual application is used to control the average output power of the laser (pulse width adjustment, when the external control, the modulation signal corresponds to the mode).

3, external control: specific parameter settings through the board software interface.

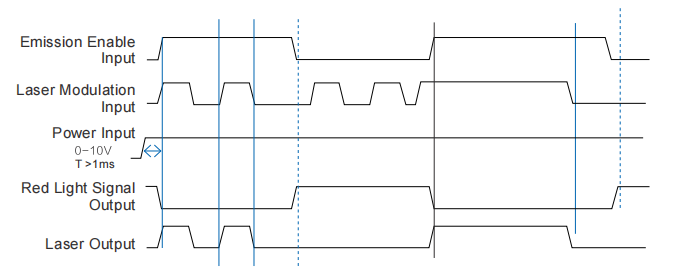

External Control Signal Timing
External Control Signal Timing

6-Software Description

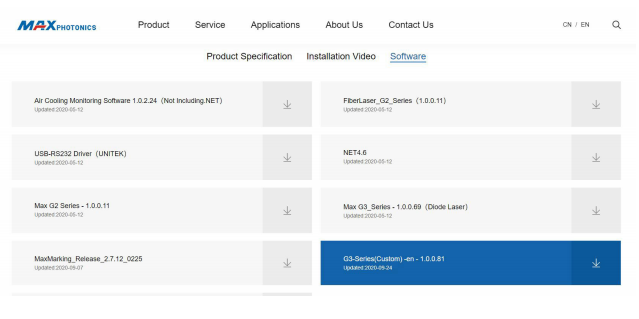

(1) Enter “Chuangxin Laser Official Website”-“Download Center”-“Install Software”, and download “G3 Series-Software Installation Guide”, “NET4.6”, “G3-Series-n.n.n.n”. (The version is updated from time to time, subject to the official website announcement without notice.)

QQ截图20240510144331

(2) Decompress the downloaded compressed package, and install the operating environment (NET4.6) and monitoring software (G3-Series-n.n.n.n) referring to the “G3 Series-Software Installation Guide”. (Win10 system or system with .NET 4.6 installed, no need to install NET4.6).

(3) After installing the operating environment and monitoring software, a “G3-Series” shortcut will appear on the desktop.

QQ截图20240510144629

(4) Check whether the communication interface of the laser backplane is RS232 or EtherNet, connect it to the computer, and power on the laser.

(5) Double-click the desktop “G3-Series” shortcut to open the monitoring software and enter the following connection interface.

QQ截图20240510144707

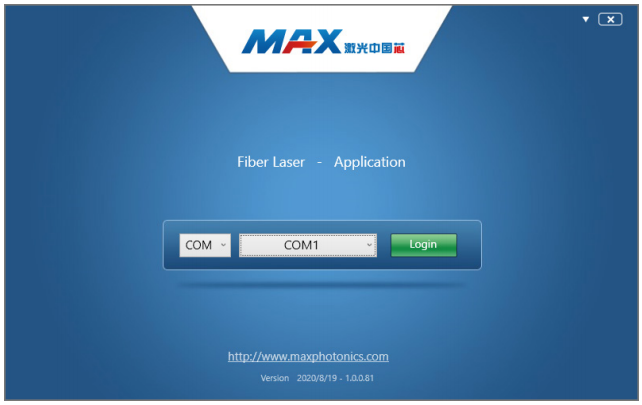

(6) If the laser backplane is an RS232 interface, the monitoring software communication mode is selected as COM (the default is COM), and the

corresponding COM number is selected, and then click the “Login” button to try to connect with the laser.

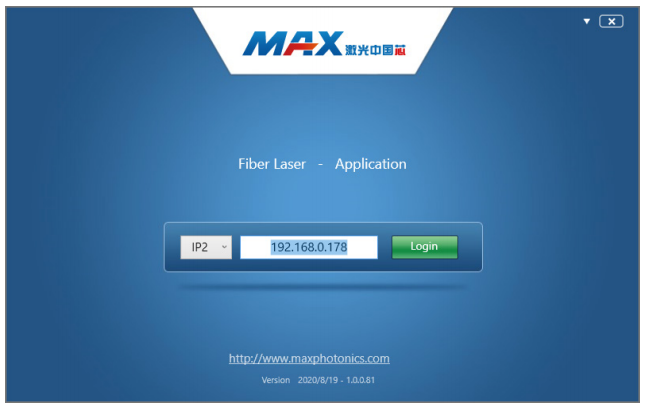

(7) If the laser backplane is an EtherNet interface, select the communication mode of the monitoring software as IP2, enter the laser IP address (default is 192.168.0.178), and click the “Login” button to try to connect with the laser.

QQ截图20240510144754

If the laser is powered on and the model can match the monitoring software, it will enter the following monitoring interface.

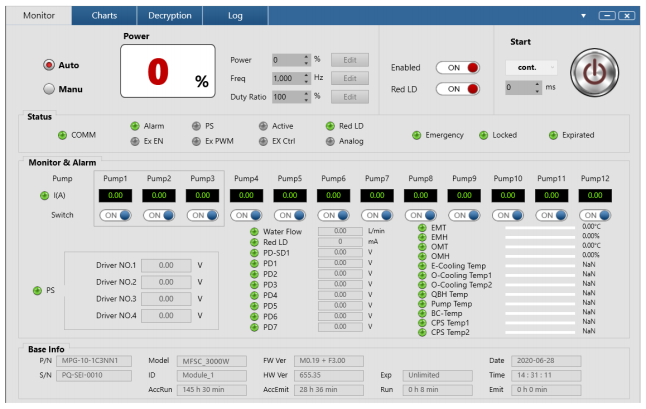

(8) Click the “Login” button to connect the laser and enter the following monitoring interface.

QQ截图20240510145236

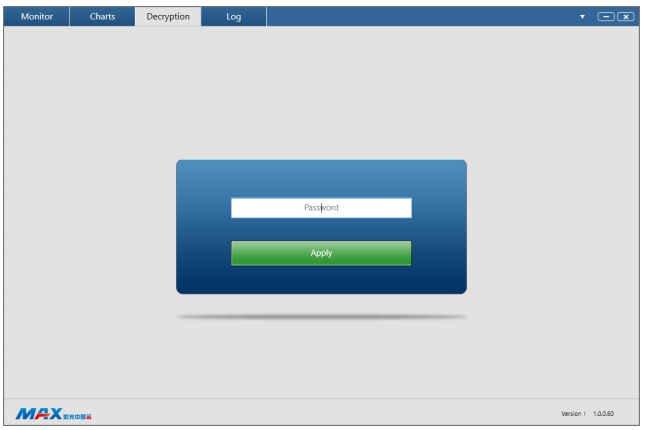

(9) Decrypt the page.

QQ截图20240510145416

Tips: For the specific details of software installation and instructions, please refer to the relevant instructions of the official website software.

7-Error List

The fault alarm points set by the laser include:

NO.MessageDescriptionTrouble shooting
1PD alarmLaser internal
light path testing
fault
Operation leads to low output power of
laser such as low modulation frequency,
low peak power, low cutting power.
2Water flow
warning of the
chiller
The chiller is
not started or
water flow is not
sufficient
Start the chiller and make sure that
there is sufficient water flow in the
water line.
3Overheat alarmOverheat fault of
the laser
For the internal overheat fault of the
laser, please check whether the pre
set temperature of the chiller meets
the requirements. Shut down the
laser and do not restart it until the
heat accumulated during operation
dissipates thoroughly.
4Overcurrent
alarm
Overcurrent fault
of the laser
If ”0-10V” DA value exceeds the pre
set value, the internal overcurrent fault
will occur.
5QBH installation
alarm
Install error of the
QBH
The fault will be produced when QBH
head is not inserted into the cutting
head or at the wrong place.
6Emergency stop
alarm
The emergency
stop switch is
pressed
Release the emergency stop switch,
the laser will work again after being
restarted.
7Communication
error of RS232
Communication
error between the
laser and the PC
Check the RS232 interface and cable
of the computer.

Note:

◎ All the alarm message will be displayed on the Monitor Software. Please pay attention and contact our service personnel if you need.

Chapter 7: Fiber Connector Inspection and Cleaning Guide

1-Notice

It is imperative that the fiber connector is checked for dust, dirt, or damage every time it is connected to any optical device, before use. The use of a

dirty or damaged fiber connector can result in serious injury and/or laser damage. Maxphotonics is not responsible for any damage due to contaminated connectors.

For cleaning a fiber connector, you need the following materials:

1、Powder-free rubber gloves or fingerstall

2、Lint free optical cleaning wipes and/or swabs

3、Ahydrous ethanol (Optical level, pure >99.5%)

4、Acetone (Optical level, pure >99.5%)

5、Compressed air (oil free, water free)

6、Microscope

7、Light source

IMPORTANT :

◎ It is imperative that you wear powder-free rubber gloves during this cleaning procedure! It is hereby stated that damage to the fiber connector can occur due to mishandling, the use of incorrect cleaning procedures, or chemicals for cleaning. This is not covered by the Maxphotonics’ warranty. Ahydrous ethanol and acetone should be managed and stored according to the local law and instructions.

2-Operating Procedures

Clean and maintain the fiber laser according to the following procedures:

1、Switch off the laser power, and place the key switch on position of “OFF”

2、Remove the black outer protective sleeve and leave the white inner cap on and clean the fiber connector exterior with optical cleaner, wipe it with a clean optical wipe and dry it with compressed air;

3、Place fiber connector in the holder of the microscope;(7-1)

4、Remove the protective inner cap from the connector;(7-2)

5、Focus the microscope onto the connector surface;

6、Use a light source to illuminate the face of the fiber connector so that the light is reflected off the surface of the endface. This is achieved if you see a bright golden shine from the QBH connector endface.

7、Inspect the endface surface carefully. Contamination will lead to dark spots/burns on the surface and possibly damage to the fiber and/or laser. If contamination is visible on the endface, cleaning is necessary.

8、Take out the cap and sleeve, then connect the fiber connector with the cutting head quickly and fasten them. (Place the cap face down on a clean surface or a lint-free wipe.)

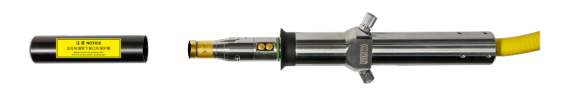

7-1 Remove the fiber protective sleeve and protective film
7-1 Remove the fiber protective sleeve and protective film

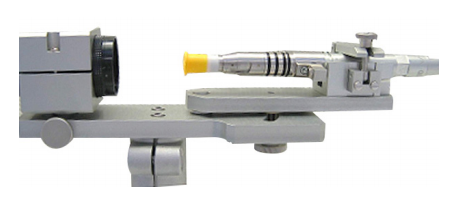

7-2 Install the fiber connector under microscope
7-2 Install the fiber connector under microscope

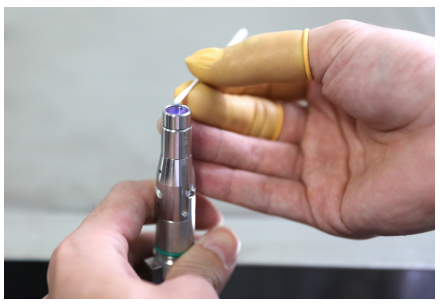

7-3 Cleaning protective lens with swabs
7-3 Cleaning protective lens with swabs
7-4 Actual image of the fiber
7-4 Actual image of the fiber

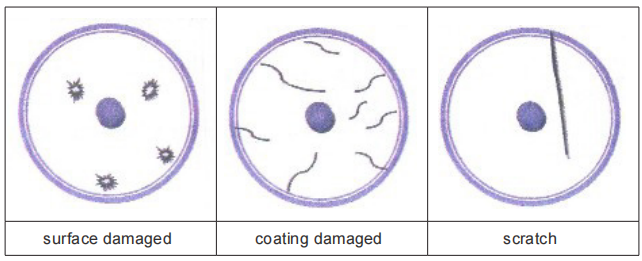

7-5 Endface may be damaged
7-5 Endface may be damaged

IMPROTANT :

◎ Do not reuse a lint-free optical wipe or swab.

◎ Do not touch the protective lens of the fiber connector.

◎ Do not blow directly, or else new dirty will be brought.

◎ Do not touch the tip of the cleaning swab with your fingers.

◎ Cleaning is necessary before place the protective cover and sleeve.

◎ Never blow air directly at the surface, because you could imbed contaminants into the surface. Always blow across the surface!

◎ If the fiber connector could not be installed in optical system immediately, please cover it with the protective cap cleaned with compressed air.

CAUTION :

◎ It is hereby stated that damage to the fiber connector can occur due to mishandling, the use of incorrect cleaning procedures, or chemicals for cleaning.

This is not covered by the Maxphotonics’ warranty.

Chapter 8: Service and Maintenance

1-Maintenance Notes

CAUTION :

◎ No operator serviceable parts inside. Refer all servicing to qualified Maxphotonics personnel.

◎ For ensuring that the repairs or replacement within the warranty scope can be carried out, and perfectly maintaining your interests, please submit application to the Maxphotonics or the local representative after finding the faults. Upon receiving our authorization, you need to pack the product in a suitable package and return it.

◎ You should keep the proof when finding any damage after receiving the product, so as to claim the rights to shippers.

IMPORTANT :

◎ Do not send any product to Maxphotonics without RMA.

◎ If the product is beyond the warranty period or the warranty scope, customers shall be responsible for the repairing cost.

CHANGE :

◎ We have the rights to change any design or structure of our product, and the information is subject to change without notice.

2-Service Statements

More problems regarding the safety, set-up, operation or maintenance please reading this “User Guide” carefully and flowing the operation steps stictly. Please call the Customer Service Department for other questions.

Your problems will be follow-up by our technical support group after verified.

If the problems cannot be solved , you may need to return the product to Maxphotonics for further troubleshooting.

How useful was this post?

Click on a star to rate it!

Average rating / 5. Vote count:

No votes so far! Be the first to rate this post.

Leave a Comment


en_USEnglish
