What Is 4 Roll Plate Bending Machine
The roll plate bending machine is a kind of special forging machine equipment that can bend non-metallic sheets into cones, spheres, cylinders or other shapes. Machine building, etc. The 4 roll plate bending machine is suitable for the bending and forming of metal plates. It can roll circular, arc and conical workpieces within a certain range, and it also has the function of pre-bending the end of the plate with small remaining straight edge and high working efficiency. Sheet metal can be roughly leveled on this machine. The straight edge and roundness of the pre-bending of the 4 roll plate bending machine are better than that of the three roll bending.
The position of the upper roller is fixed, and the lower roller moves straight upward to clamp the steel plate. The rollers on both sides move toward the upper rollers in a straight line or in an arc to adjust the radius of curvature of the roll. The four and three roll plate bending machine have different rolling motions, but the working principle is the same. They all use the principle of three-point circle to roll with different radii. The 4 roll plate bending machine has good comprehensive mechanical properties, high strength, strong wear resistance, suitable for high-load work and long service life.
What’s the Benefits of 4 Roll Plate Bending Machine
1. The work bearing of the 4 roll plate bending machine adopts rolling bearing, which has a small friction coefficient, reduces reactive power loss and saves energy.
2. The upper roller is rotated and installed with an encoder, which can pinpoint the rotation position of the roller and is easy to find the seam of the coiled tube.
3. The lifting and lowering displacement of the lower and side rollers of the 4 roll cnc plate bending machine is controlled by the computer, with automatic leveling, digital display on the screen, and synchronization accuracy of ±0.2mm. The coiling has high precision and easy operation.
4. The 4 roll plate bending machine is equipped with a movable operating table, which is more convenient for operators to use. The touch screen displays the positions of the three work rolls, so that the operator can see at a glance.

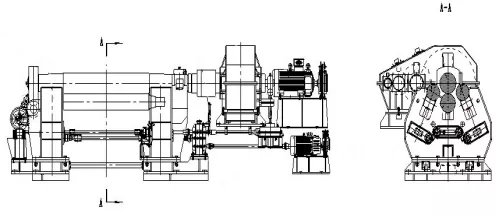

The 4 roll plate bending machine consists of four rollers. The upper roller is the main drive and the position of the upper roller is fixed. The two ends of the lower roller are driven up and down by hydraulic cylinders. The lower roller can be raised so that it can clamp the head of the sheet with the upper roller, and the head of both ends of the sheet can be bent by changing the distance between the side roller and the upper roller as required. Then the lower roller is lowered, the two side rollers are raised, and the sheet is bent into a cylindrical shape.
Krrass 4 roller plate rolling machine for sale is convenient for the centering of the sheet during rolling, and the process is versatile, which can correct the defects such as skew and misalignment during rolling; at the same time, the end pre-bending and rolling of the sheet can be completed in one feeding. the remaining straight edge is small, which is an ideal equipment for rolling round and arc workpieces.
4 Roll’s Superiority Compared to 3 Roll Plate Bending Machine
Normal three-roll plate rolling machine such as W11 series complete arc bending has a long straight edge, will have more waste on the plate, W12 four-roll plate rolling machine has a great improvement, so what are its advantages? First look at the structure:

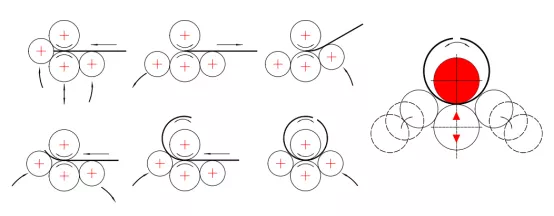

As the name suggests, the main action of the four-roll plate rolling machine consists of four rollers up and down,left and right. The working procedure is that the position of the upper roll is fixed, and the lower roll moves up in a straight line to clamp the steel plate. The straight line or arc of rollers on both sides move up the roller to adjust the radius of curvature of the drum. The rollers of the four-roll and three-roll plate rolling machines have different forms of motion, but the working principle is the same. They all use the principle of three-point circle to roll with different radius.

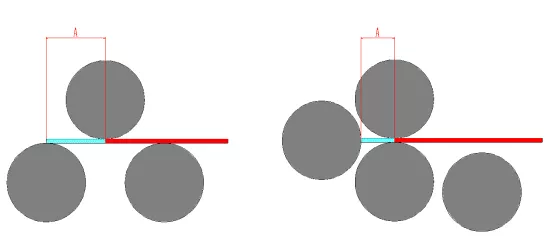

By comparison, it can be seen that the straight edge A of three rolls is long while that of four rolls is much shorter
This is the most direct advantage of the four-roll rolling machine, and even if the four rolls are so short, the straight edge can still be shortened by the late action of the rollers to achieve the requirements of cutting almost no further processing.
Find Best 4 Roll Plate Bending Machine In Krrass
Krrass stands at the forefront of metal fabrication technology, offering a wide range of innovative machinery solutions. Among its impressive lineup, the 4 roll plate bending machines shine as versatile and high-performance tools. Designed to meet the demanding requirements of modern fabrication, these machines combine precision, efficiency, and durability to deliver exceptional results.
