The 8000W Fiber Laser Cutting Machine stands as a pinnacle of modern industrial laser technology, combining unparalleled power with exceptional precision. With its high wattage output, this cutting-edge machine offers superior performance for a wide range of metal cutting applications, from thin sheets to thick plates.
Equipped with advanced fiber laser technology, this machine delivers precise and efficient cutting, allowing for intricate designs and complex shapes with remarkable accuracy. Its high-power capability enables swift cutting speeds, ensuring optimal productivity and throughput in metal fabrication processes.

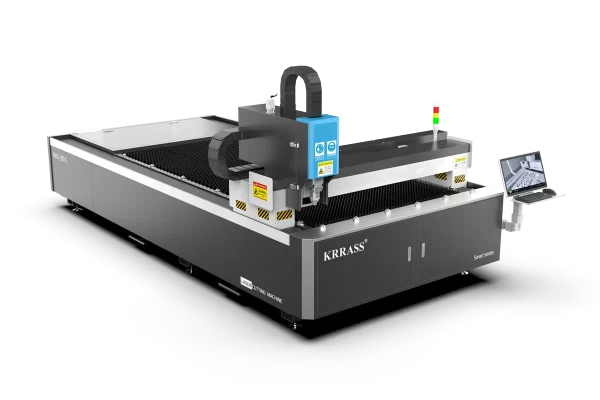

Overview of Krrass 8000W Fiber Laser Cutting Machine
| Cutting speed: | Max 150 m/min |
| Positioning: | 180 m/min |
| Accelerations: | 2.5G |
| Laser sources: | IPG YLS-8000W Ytterbium Laser Resonator |
The 8kw fiber source and optics chain engineered by IPG produce a laser beam with exceptional power density, enabling rapid cutting speeds of up to 180 m/min on medium and thin materials. This high-power density ensures superior quality cuts even on thicker materials, without compromising precision or efficiency.
Innovative Solutions Provided By Fiber Lasers
- Perfect results on variety of material
- Efficient and precise cuts on thick and thin material
- Low investment and operating costs
- Modern and compact design
- Fast service with remote control
Standard ＆ Optional Equipments
Standard Equipment
- Laser Head : Raytools Manual focus
- Servo Motor : Fuji Japan
- Servo driver : Fuji Japan
- Slideway : Hiwin TAIWAN
- Rack : YYC TAIWAN
- Gear :YYC TAIWAN
- Reducer : Shimpo Japan
- Control system : Cypcut FSCUT 1000
- Proportional valve : Japan SMC
- Electrical : France Schneider
- Laser source: China Max
Optional Equipment
- Control system: Cypcut FSCUT 2000
- Laser Head: Auto focus
- Laser source: Germany IPG / China Raycus / USA N-light

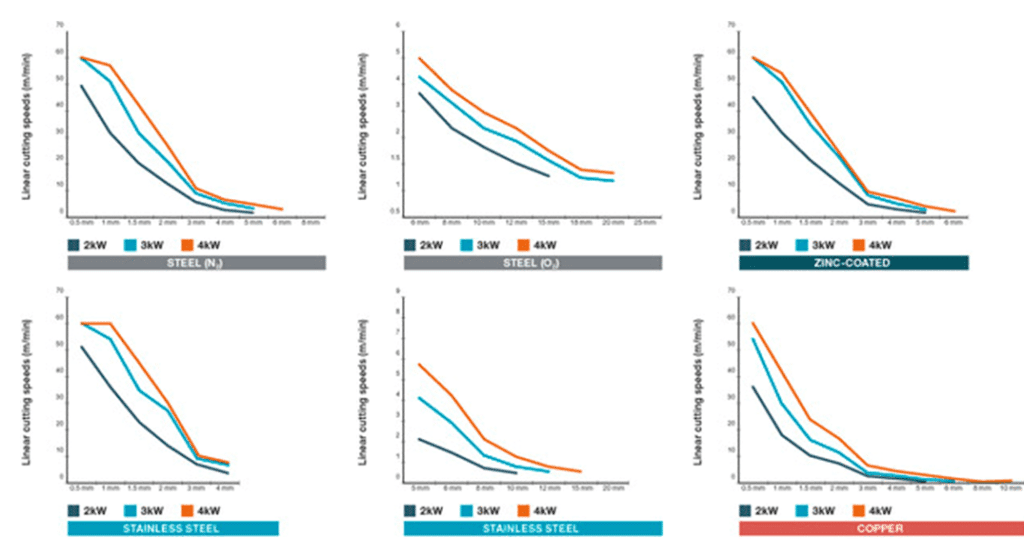

Cutting Parameters of 8KW Fiber Laser Cutter
| available laser sources (1,07μm) | 3kW | 4kW | 5kW | 6kW | 8kW | 10kW | 12kW | |
| carbon steel | [mm] | 20 | 20 | 25 | 30* | 40* | 50* | 60* |
| stainless steel | [mm] | 15 | 20 | 25 | 30* | 40* | 50* | 60* |
| aluminium | [mm] | 12 | 15 | 20 | 30* | 35* | 40* | 50* |
| brass | [mm] | 6 | 8 | 10 | 12 | 15 | 20 | 30* |
| cooper | [mm] | 6 | 6 | 8 | 10 | 15 | 20 | 25 |
| Material | Mild Steel (O2) | |||||||||||||||
| Thickness (mm) | 1 | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 25 | 30 | 40 |
| Power | – | 4000W | 6000W | 7500W | 8000W | |||||||||||
| Speed m/min | – | 2.5 | 2.3 | 2 | 1.8 | 1.6 | 1.4 | 1.2 | 0.45 | 0.25 | 0.15 | |||||
Power from 8000W onwards restricts low thickness MS material. But on the other hand maximum cutting thickness also increase with increase in power. Here, the maximum thickness is 40mm and only provides a wide range from 8mm to 40mm cutting of material.
| Material | Mild Steel (N2) | |||||||||||||||
| Thickness (mm) | 1 | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 25 | 30 | 40 |
| Power | 8000W | |||||||||||||||
| Speed m/min | 45 | 35 | 25 | 18 | 12 | 9 | 5.5 | – | – | – | – | – | – | – | – | – |
| Material | Stainless Steel (N2) | |||||||||||||||
| Thickness (mm) | 1 | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 25 | 30 | 40 |
| Power | 8000W | |||||||||||||||
| Speed m/min | 50 | 35 | 24 | 15 | 10 | 8 | 5 | 3.5 | 2.5 | 2 | 1.5 | 1 | 0.8 | 0.4 | 0.2 | – |
| Material | Stainless Steel (AIR) | |||||||||||||||
| Thickness (mm) | 1 | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 25 | 30 | 40 |
| Power | 8000W | |||||||||||||||
| Speed m/min | 50 | 35 | 25 | 16 | 10 | 8 | 5.5 | 3.5 | 2.5 | 2 | 1 | 0.8 | 0.7 | 0.5 | 0.25 | – |
| Material | Stainless Steel (AIR) | |||||||||||||||
| Thickness (mm) | 1 | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 25 | 30 | 40 |
| Power | 8000W | |||||||||||||||
| Speed m/min | 50 | 35 | 25 | 16 | 10 | 8 | 5.5 | 3.5 | 2.5 | 2 | 1 | 0.8 | 0.7 | 0.5 | 0.25 | – |
| Material | Brass (N2) | |||||||||||||||
| Thickness (mm) | 1 | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 25 | 30 | 40 |
| Power | 8000W | |||||||||||||||
| Speed m/min | 40 | 27 | 18 | 11 | 8 | 6.5 | 3 | 1.5 | 1 | 0.8 | 0.6 | – | – | – | – | – |
| Material | Copper (O2) | |||||||||||||||
| Thickness (mm) | 1 | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 25 | 30 | 40 |
| Power | 8000W | |||||||||||||||
| Speed m/min | 30 | 20 | 14 | 8 | 5 | 3 | 1.5 | 0.7 | – | – | – | – | – | – | – | – |
Similarly, for other materials with 8000W fiber laser cutting machine the maximum thickness level between 10mm to 30mm of material. Speed limit remains same between 0.2 to 50 m/min.

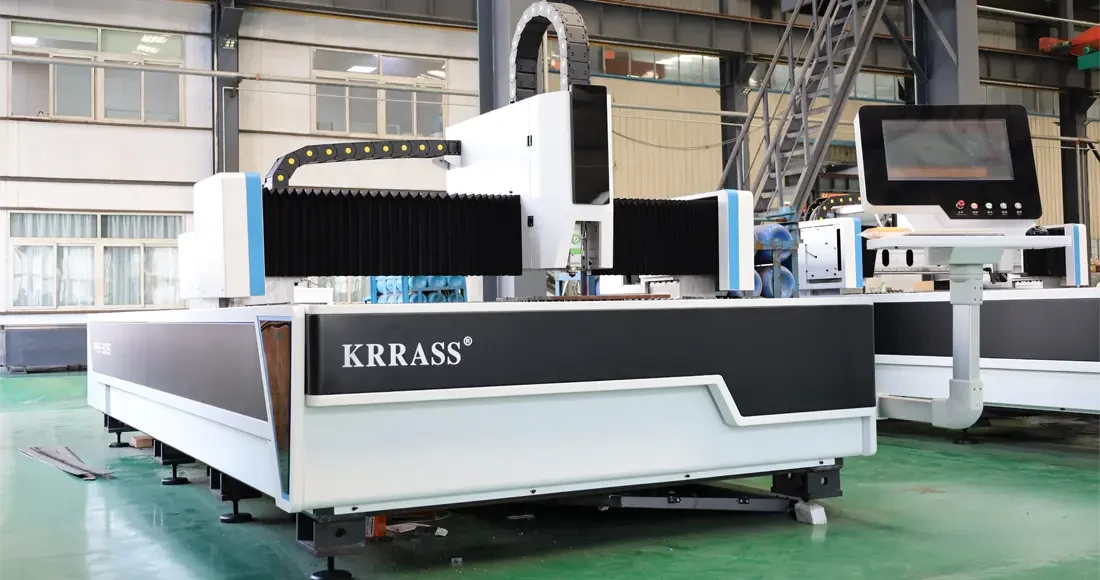

Choose A High Power Laser Cutter For Your Shop
When it comes to evaluating the overall expenses associated with acquiring, maintaining, and operating sheet metal equipment, opting for a sheet metal fabrication service like a fiber laser cutting machine proves to be the optimal choice. KRRASS stands out in the industry due to its unwavering commitment to consistency and quality, all while offering the most competitive prices.
Whether you require a fiber laser cutting machine or any other machine, our team of seasoned professionals possesses the perfect blend of industry expertise and cutting-edge tools to deliver top-notch products and services. What sets us apart is our state-of-the-art online system, which streamlines the entire process. Simply share your product requirements, Request a quote, and kick-start the journey towards fulfilling your needs.
