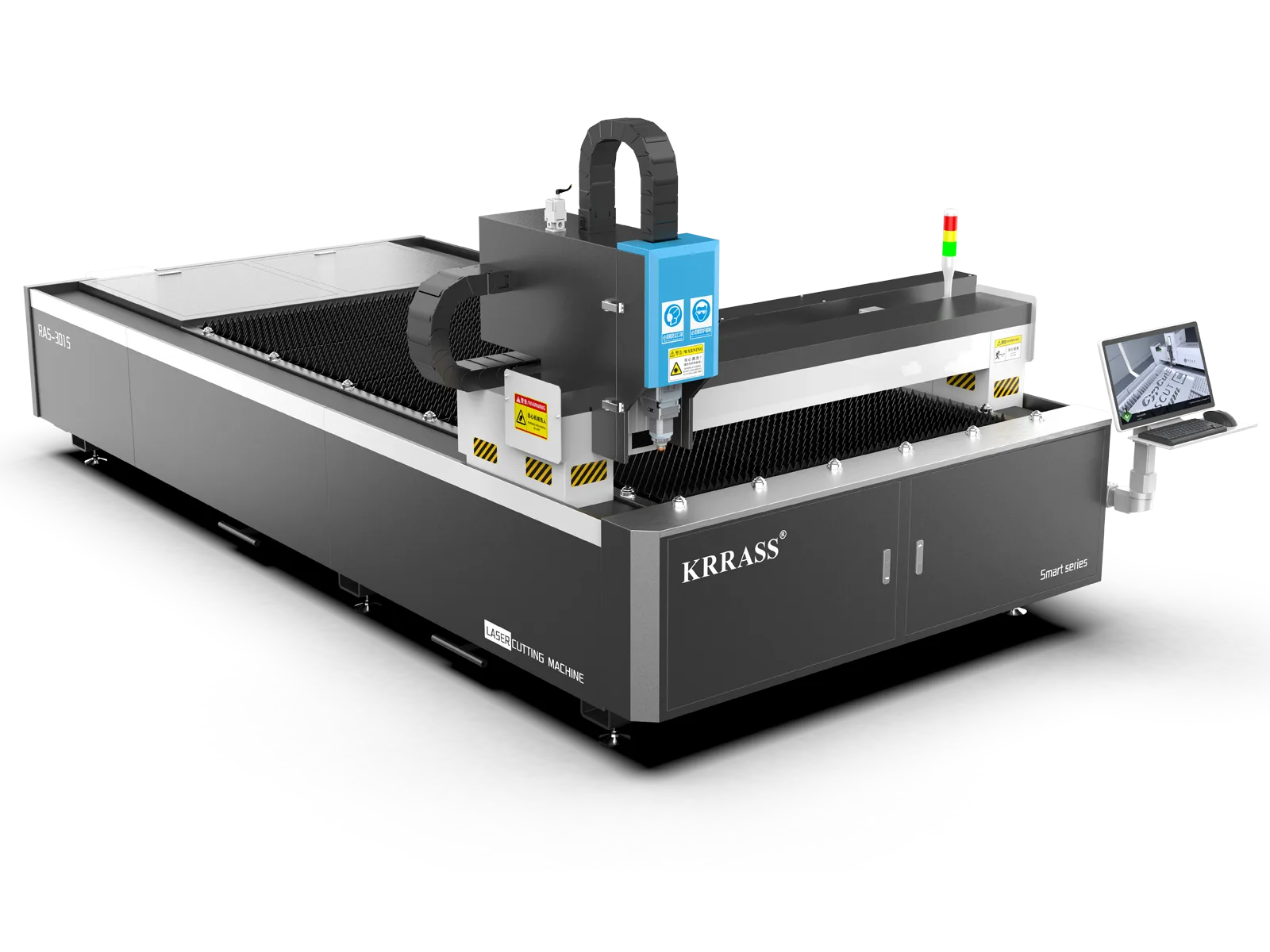

In the dynamic world of metal fabrication, precision and efficiency are paramount. The latest 6000W laser cutting machine with a 50μm single-mode laser source is designed to meet these demands, offering unparalleled cutting capabilities. This article explores the cutting parameters of our advanced 6000W laser cutter, providing you with the detailed information needed to optimize your operations and achieve superior results.

The cutting parameters for a 6000W laser cutting machine are essential to achieving high-quality cuts with minimal waste. These parameters include cutting speed, focal position, gas pressure, and power settings, which vary based on the material type and thickness. Below, we present a comprehensive table of cutting parameters for different materials to help you achieve optimal results.

Material	Thicknes (mm)	Speed (m/min)	Power (W)	Gas	Pressure (bar)	Nozzles (mm)	Focus Point (mm)	Cutting Height (mm)	Remark
Carbon Steel	1	60-80	6000	N2 / Air	8	2.0 Single	0	0.6	1
Carbon Steel	2	50-60	6000	N2 / Air	8	3.0 Single	-0.5	0.5	1
Carbon Steel	3	23-28	6000	N2 / Air	8	3.0 Single	-1.5	0.5	1
Carbon Steel	4	17-20	6000	N2 / Air	10	3.0 Single	-3	0.5	1
Carbon Steel	5	10-14	6000	N2 / Air	10	3.5 Single	-3.5	0.5	1
Carbon Steel	6	8-12	6000	N2 / Air	12	3.5 Single	-4	0.5	1
Carbon Steel	3	3.6-4.5	4000	O2	0.6	1.0 Single	6.5	0.6	2
Carbon Steel	4	3.5-4.0	4000	O2	0.6	1.0 Single	6.5	0.6	2
Carbon Steel	5	2.8-3.0	4000	O2	0.6	1.0 Single	6	0.6	2
Carbon Steel	6	2.6-2.8	4000	O2	0.6	1.0 Single	6	0.6	2
Carbon Steel	8	2.2-2.6	5000	O2	0.6	1.2 Single	6	0.6	2
Carbon Steel	10	2.0-2.2	6000	O2	0.6	1.2 Single	7	0.6	2
Carbon Steel	12	1.8-2.0	6000	O2	0.6	1.2 Single	9	0.6	2
Carbon Steel	14	1.4-1.6	6000	O2	0.5	1.4 Single	12	0.6	2
Carbon Steel	16	1.0-1.3	6000	O2	0.6	1.4 Double	14	0.3	2
Carbon Steel	18	0.8-1.1	6000	O2	0.6	1.6 Single	14	0.3	2
Carbon Steel	20	0.6-1.0	6000	O2	0.6	1.6 Single	15	0.3	2
Carbon Steel	22	0.55-0.6	6000	O2	0.65	1.6 Single	15	0.3	2
Carbon Steel	25	0.5-0.6	6000	O2	0.8	1.7 Single	16	0.3	2
Carbon Steel	30	0.4-0.5	6000	O2	0.8	1.7 Single	18	0.3	2
Carbon Steel	35	0.3-0.4	6000	O2	1	1.7 Single	19	0.3	2
Carbon Steel	40 *	0.2-0.3 *	6000	O2	1	1.7 Single *	+19 *	0.3 *	2
Stainless Steel	1	50-60	6000	N2	8	2.0 Single	0	0.6
Stainless Steel	2	30-40	6000	N2	8	3.0 Single	0	0.5
Stainless Steel	3	25-30	6000	N2	8	3.0 Single	-1	0.5
Stainless Steel	4	20-21	6000	N2	8	3.0 Single	-2	0.5
Stainless Steel	5	13-15	6000	N2	8	3.0 Single	-1.5	0.5
Stainless Steel	6	10-12	6000	N2	8	4.0 Single	-2	0.5
Stainless Steel	8	7.0-8.0	6000	N2	8	5.0 Single	-4	0.5
Stainless Steel	10	2.5-3.0	6000	N2	16	4.5 Single	-7.5	0.5
Stainless Steel	12	1.5-2.0	6000	N2	16	4.5 Single	-8	0.5
Stainless Steel	14	1.0-1.3	6000	N2	16	4.5 Single	-10	0.5
Stainless Steel	16	0.8-1.0	6000	N2	18	4.5 Single	-11.5	0.5
Stainless Steel	18	0.6-0.7	6000	N2	18	5.0 Single	-12.5	0.5
Stainless Steel	20	0.5-0.65	6000	N2	18	5.0 Single	-13	0.5
Stainless Steel	22	0.4-0.5	6000	N2	20	6.0 Single	-13	0.5
Stainless Steel	25 *	0.15-0.2 *	6000	N2	25 *	6.0 Single *	6 *	0.5 *
Stainless Steel	35 *	0.1 *	6000	N2	25 *	6.0 Single *	6 *	0.5 *
Aluminium Alloy	1	60-80	6000	N2	10	2.0 Single	0	0.6
Aluminium Alloy	2	55-60	6000	N2	10	3.0 Single	-1	0.5
Aluminium Alloy	3	24-28	6000	N2	10	3.0 Single	-1	0.6
Aluminium Alloy	4	16-19	6000	N2	10	3.0 Single	-1.5	0.5
Aluminium Alloy	5	12-14	6000	N2	10	3.5 Single	-2	0.5
Aluminium Alloy	6	10-12	6000	N2	10	5.0 Single	-2	0.5
Aluminium Alloy	8	3.0-4.0	6000	N2	14	5.0 Single	-3	0.5
Aluminium Alloy	10	2.0-2.5	6000	N2	15	5.0 Single	-3.5	0.5
Aluminium Alloy	12	1.4-1.7	6000	N2	15	5.0 Single	-4	0.5
Aluminium Alloy	14	1.0-1.2	6000	N2	18	5.0 Single	-5 (2000/98)	0.5
Aluminium Alloy	16	0.8-1.0	6000	N2	20	5.0 Single	-6 (2000/98)	0.5
Aluminium Alloy	18 *	0.7-0.9 *	6000	N2	20 *	5.0 Single *	-7 (2000/98) *	0.5 *
Aluminium Alloy	20 *	0.6-0.8 *	6000	N2	20 *	5.0 Single *	-7 (2000/98) *	0.5 *
Brass	1	60-80	6000	N2	10	2.0 Single	0	0.6
Brass	2	50-60	6000	N2	10	3.0 Single	0	0.5
Brass	3	25-30	6000	N2	10	3.5 Single	0	0.5
Brass	4	16-20	6000	N2	12	3.5 Single	-1.5	0.5
Brass	5	12-14	6000	N2	14	4.0 Single	-2	0.5
Brass	6	8-10	6000	N2	14	5.0 Single	-2.5	0.5
Brass	8	5.0-7.0	6000	N2	16	4.0 Single	-3	0.5
Brass	10	2.0-2.5	6000	N2	16	4.0 Single	-3	0.5
Brass	12	1.5-1.9	6000	N2	16	5.0 Single	-4.5	0.5
Brass	16 *	0.5-0.8 *	6000	N2	20 *	5.0 Single *	-9 *	0.5 *
Brass	20 *	0.1-0.2 *	6000	N2	20 *	5.0 Single *	-10 *	0.5 *
Copper	1	50-60	6000	O2	10	3.0 Single	-1	0.5	3
Copper	2	30-36	6000	O2	10	3.0 Single	-1	0.5	3
Copper	3	15-18	6000	O2	12	3.0 Single	-2	0.5	3
Copper	4	8-10	6000	O2	12	3.5 Single	-3	0.5	3
Copper	5	6.0-7.0	6000	O2	13	4.5 Single	-4	0.5	3
Copper	6	4.0-5.0	6000	O2	14	5.0 Single	-5	0.5	3
Copper	8 *	1.5-1.8 *	6000	O2	14	5.0 Single *	-5 *	0.5 *	3
Copper	10 *	0.8-1.2 *	6000	O2	14	5.0 Single *	-6 *	0.5 *	3

Remark 1: It is recommended to use air or nitrogen for cutting carbon steel 1-6mm. The cutting speed is faster than using oxygen, and there will be slight slag hanging.
Remark 2: Depending on the on-site gas purity, plate quality, etc., the power used for debugging and the speed of debugging will also be different.
Remark 3: Copper needs to be cut with high-pressure oxygen. Using other gases for cutting may risk damaging the laser.

Note: The actual batch cutting, affected by machine tools, systems, cutting head, air pressure, materials and other factors, the data may be changed, the asterisks marked parameters in the table are proofing parameters, in the actual processing is greatly affected by various factors, only suitable for small batch production, mass production and processing is not recommended, it is recommended to use higher power laser.

Understanding and applying the correct 6000W laser cutting parameters is essential for achieving high-quality, precise cuts. By fine-tuning power output, cutting speed, focus position, gas pressure, and pulse frequency, you can optimize your laser cutting operations to meet specific material requirements. Our latest 6000W laser cutting machine, with its advanced features and customizable parameters, ensures superior performance and efficiency.
