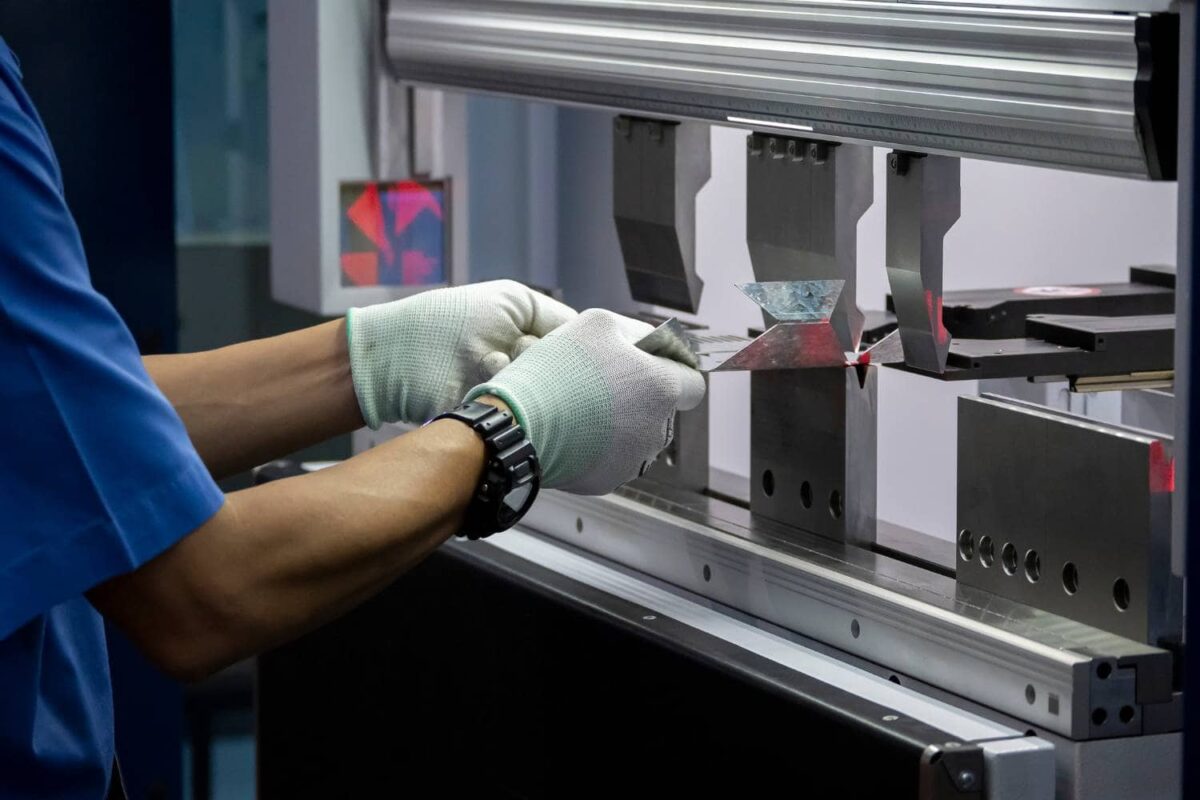

When performing aluminum sheet bending, you are essentially shaping the material into various forms using mechanical force. This guide covers the essential factors to keep in mind when bending aluminum, including the choice of appropriate alloys, the key elements that influence the bending process, different bending techniques, and the wide range of applications for aluminum sheet bending. Whether you are a beginner or an experienced professional, understanding these fundamental aspects is crucial to achieving the best results. Before you begin your next project, be sure to review this guide for helpful insights and tips on aluminum sheet bending.
Factors Affecting Aluminum Sheet Bending Process
Aluminum Material Formability
Formability describes aluminum’s ability to bend without experiencing any cracks or breakages.
Aluminum alloys have good formability, which makes them good materials to bend.
However, different aluminum alloys have varying levels of formability. In fact, some alloys may be difficult to bend than others.
Level of Elongation
Elongation refers to the extent aluminum can stretch before braking. Aluminum alloys with a higher level of elongation are generally easier to bend than those with a lower level of elongation.

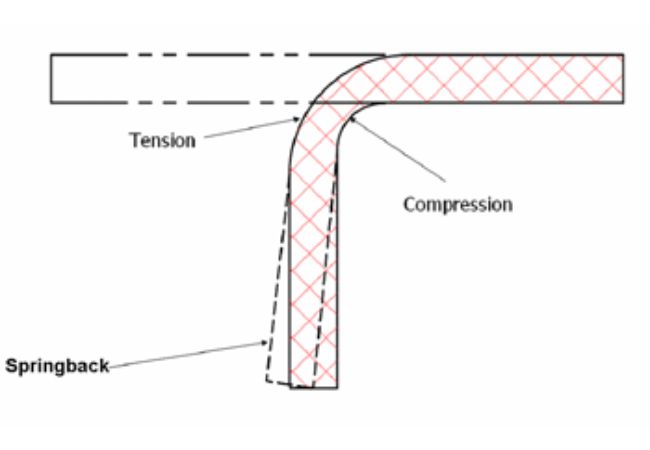

Bend Radius and Aluminum Thickness
Materials thickness determines the degree of bending.
Also, it will determine the bending radius of the aluminum alloy. This same concept is applicable to the aluminum alloy.
Thicker aluminum and smaller bend radii will require more force to bend. On the other hand thinner aluminum and larger bend radii will be easier to bend.
Advantages of Using Aluminum for Custom Shapes
Aluminum has many advantages over other materials for custom shapes. Here are some of the most notable advantages:
- Adaptability to complex shapes: Aluminum is a highly malleable material, which means it can be bent and shaped into complex shapes while maintaining its strength and durability. Combined with an industrial machining service or industrial machinery design service, aluminum bending offers a multitude of possibilities.
- Lightweight: Since it is particularly light, aluminum is an ideal choice for reducing the overall weight of a piece by avoiding unnecessary thickness.
- Durability and resistance to corrosion: Aluminum is naturally resistant to corrosion, making it an ideal choice for parts exposed to harsh environmental conditions.
- Economical: The production cost of aluminum is generally lower than that of other materials such as steel or copper. In addition, bending aluminum using the right process means avoiding unnecessary material waste, which reduces production costs.
- Aesthetics: Aluminum offers a high-quality aesthetic finish, with a smooth and uniform surface that can be easily polished or anodized to achieve different colors and textures according to your needs.
- Environmentally friendly: Aluminum is 100% recyclable, making it an environmentally friendly option for industrial projects and more.
Aluminum Alloys Suitable for Bending Process
Examples of aluminum alloys that you can bend easily are:
3003 Series Aluminum Alloy
The 3003 aluminum alloy series is one of the most widely used alloy. Manganese element is mostly present in this alloy.
In fact, you can twist this aluminum alloy without necessarily heating it to get a suitable shape. In addition, it has suitable characteristics that make it easy to form.
You can use this alloy in applications such as:
- Roofing
- Chemical machinery
- Storage tanks
- Sidings
5052 Series Aluminum Alloy
This version of aluminum alloy has more magnesium content in it. Aluminum alloy 5052 is stronger than aluminum alloy 3003.
This makes it suitable for applications that require more rigidity since it can retain its shape after bending.
Besides, aluminum alloy 5052 is suitable for use in salty environments. It exhibits greater resistance to salt water. Aluminum alloy 5052 finds its application in the following areas:
- Hardware signage
- Marine tool
- Medical equipment
- Hydraulic tubes
6061 Series Aluminum alloy
6061 is the most rigid form of aluminum compared to aluminum alloy 5052 and 3003. Its main composition entails silicon and magnesium.
In essence, this rigidity means bending the alloy will be a difficult task.
Aluminum alloy 6061 finds its applications in the following areas:
- Aerospace industries
- Automotive industries
- Structural components

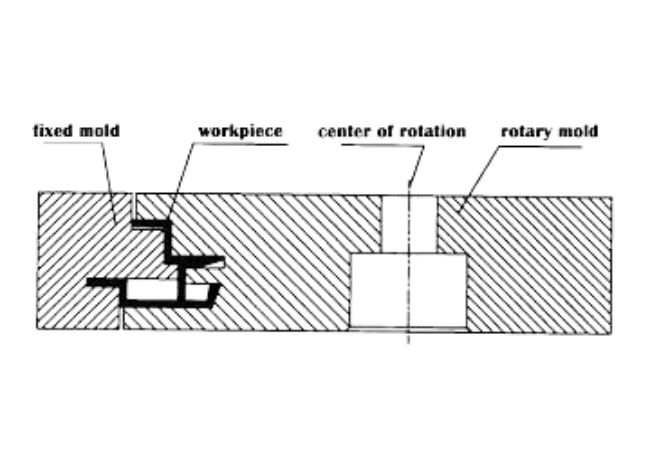

Main Aluminum Sheet Bending Methods
When it comes to bending aluminum, there are many techniques you can use depending the material cross-section. Whether you wish to bend aluminum sheet, tube, pipe or bar – it is important to adopt an efficient and reliable technique. Some common options you can consider here are:

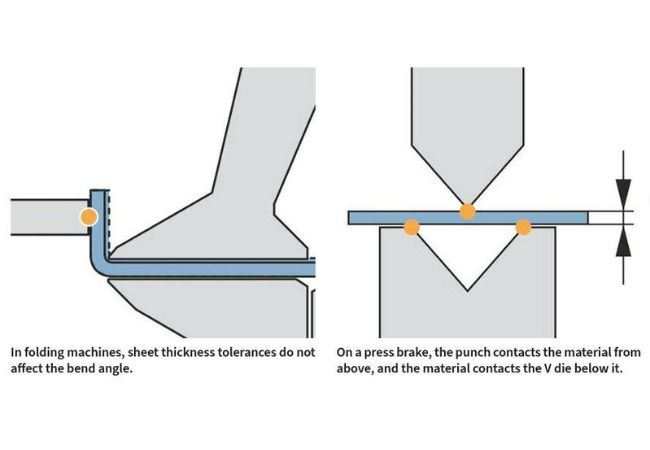

1. Press Brake Bending Aluminum
This method involves using a press brake machine to apply mechanical force to shape the aluminum.
How Press Break Bending Aluminum Works
- The operator positions the aluminum between the punch and die.
- Afterward, they set the desired bend angle and depth.
- They then activate the press brake machine.
- Finally, the punch applies pressure to the aluminum, bending it around the die.
Benefits of Press Break Bending Aluminum
Press brake bending is precise, fast, and can produce consistent, high-quality bends. It is also suitable for bending large, thick pieces of aluminum.
Disadvantages of Press Break Bending Aluminum
Press brake bending requires specialized equipment, which can be expensive to purchase or operate. It may also not be suitable for very small or thin pieces of aluminum.
2. Roll Bending Aluminum
This method involves using rolls to shape the aluminum into the desired shape.
How Aluminum Roll Bending Works
- First, the operator positions the aluminum between the rolls.
- Thereafter, the set the desired bend angle and depth.
- The operator activates the roll bending machine.
- Finally, the aluminum is passed through the rolls, which apply pressure and bend the aluminum.
Benefits of Roll Bending Aluminum
It is fast, consistent, and produces high-quality bends. It can also bend large, thick pieces of aluminum.
Disadvantages of Roll Bending Aluminum
This process needs specialized equipment that tend to be costly to buy or operate. It may also not be suitable for very small or thin pieces of aluminum.
3. Ram/Push Bending Aluminum Bending Process
This method involves using a ram or push tool to apply mechanical force to bend the aluminum.
How Ram/Push Bending Aluminum Works
- The operator begins by positioning the aluminum in a jig or fixture.
- Thereafter, they will activate the ram or push tool.
- Finally, the tool applies pressure to the aluminum, bending it into the desired shape.
Benefits of Push/Ram Bending Aluminum
This process is suitable for the production of aluminum with tight bends.
Disadvantages of Ram/Push Bending Aluminum
Ram/push bending may not be suitable for large or thick pieces of aluminum.
4. Rotary Draw Bending Aluminum
This method involves using a rotary draw bender to apply mechanical force to bend the aluminum.
How Rotary Draw Bending Aluminum Works
- Firstly, the operator positions the aluminum between the mandrel and die.
- Afterward, they will activate the rotary draw bender.
- The mandrel applies pressure to the aluminum, bending it around the die.
Benefits of Rotary Draw Bending Aluminum
The process can produce aluminum with a tight radius, accurate angles, and smooth transitions. It is also suitable for bending large, thick pieces of aluminum.
Disadvantages of Rotary Draw Bending Aluminum
It requires specialized equipment, which may mean you will spend a lot to buy and even operate. Besides, it may also not be suitable for very small or thin pieces of aluminum.
5. Three-Roller Bending Aluminum
This method involves using three rolls to bend the aluminum into the desired shape.
How Three-roller Bending Aluminum Works
- It begins by positioning the aluminum between the rolls.
- The operator activates the three-roller bending machine.
- Finally, the aluminum is passes through the rolls, which apply pressure and bend the aluminum.
Benefits of Three-roller Bending Aluminum
Three-roller bending is suitable for the production of architectural components or construction usages.
Disadvantages Three Roller Bending Process
This process needs unique equipment that may cost you a lot to purchase or even operate. Furthermore, it may not be suitable for very small or thin pieces of aluminum.
6. Compression Bending Aluminum
This method involves using a punch and die to apply mechanical force to bend the aluminum.
How Compression Bending Aluminum Works
- The operator positions the aluminum between the punch and die.
- Afterward, they will activate the compression bending machine.
- The punch applies pressure to the aluminum, bending it around the die.
Benefits of Compression Bending
This process will enable you make aluminum products whose bends on either side is similar.
Disadvantages of Compression Bending
The machine can be costly to purchase and may also not be suitable for large or thick pieces of aluminum.
7. Stretch Forming Aluminum
This method involves using mechanical force to stretch the aluminum into the desired shape.
How Stretch Forming Aluminum Works
- The operator positions the aluminum in the jig or fixture.
- Afterward, they activate the stretch forming machine.
- The jig or fixture applies pressure to stretch the aluminum into the desired shape.
Benefits of Stretch Forming Aluminum
In this process, you can replicate the angle of the bend. Also the tension during the process will ensure constant control on the entire aluminum length.
Disadvantages of Stretch Forming Aluminum
The need for specialized equipment makes it expensive. In addition, it may not be suited for thin and small aluminum pieces.
Applications of the Aluminum Sheet Bending Process
The aluminum bending process plays a crucial role in a variety of industries, enabling the creation of lightweight, strong, and durable components. Here are some of the most common applications:
- Automotive Industry: Aluminum’s combination of strength and low weight makes it an ideal material for automotive components. Through bending, manufacturers can shape aluminum into car body panels, fuel tanks, chassis parts, and other essential automotive components.
- Construction Sector: In construction, aluminum is used for structural elements such as window frames, door frames, and other architectural components. The bending process helps create precise shapes and designs for both functional and aesthetic purposes.
- Aerospace Industry: Aluminum’s exceptional strength-to-weight ratio is why it is heavily used in aerospace applications. Bending is employed to form critical structural components, including airplane wings, fuselages, and other parts that require both durability and reduced weight.
- Furniture Manufacturing: The flexibility and lightweight nature of aluminum make it a popular material in the furniture industry. Bending techniques are used to form frames for chairs, tables, and other furniture pieces that need to combine sturdiness with a sleek design.
- Electrical Industry: Aluminum is commonly used to produce electrical conductor bars, busbars, and other electrical components due to its excellent conductivity and lightweight characteristics. Bending processes help create these essential parts.
- Signage and Display Manufacturing: Aluminum’s lightweight properties and ease of manipulation make it an ideal choice for making signs and displays. Whether for outdoor advertising or retail purposes, aluminum bending helps create durable and aesthetically appealing signage solutions.
These diverse applications highlight the versatility of aluminum bending in shaping materials for a wide range of industries and products.
How to Select the Right Aluminum Bending Technique for Your Project
Choosing the right aluminum bending technique is crucial to ensuring that your project meets both technical specifications and budgetary constraints. Different techniques are suited for different types of shapes, material thicknesses, production volumes, and timelines. Here are some key factors to help you select the most appropriate bending method for your needs:
1. Shape Complexity
The complexity of the shape you need to create is a primary consideration when choosing a bending technique. For simpler, straightforward bends, a press brake is often sufficient and efficient. However, if your project requires intricate or highly detailed bends, more advanced techniques such as hand bending or custom tooling may be necessary. These methods allow for greater precision and can handle more complicated geometries that automated processes might not be able to achieve as easily.
2. Sheet Thickness
The thickness of the aluminum sheet directly influences the bending method you should choose. Press brake and folding machines are better suited for bending thicker sheets, as these machines can apply the necessary force to manipulate the material effectively. For thinner sheets, hand folding or lighter machines might be more appropriate since they provide better control and prevent the material from being over-stressed.
3. Production Volume
The volume of parts you need to produce plays a significant role in the decision-making process. For high-volume production, automated bending techniques (such as robotic bending or CNC press brakes) are generally more efficient. These methods can quickly produce large quantities of identical parts with minimal human intervention. On the other hand, if you’re working on a small batch or one-off custom pieces, manual bending techniques, such as hand folding, may be a better choice, as they allow for flexibility and fine-tuned control over the finished product.
4. Production Time
The amount of time available for production is another important factor. Automated bending processes can significantly reduce production time by handling multiple parts at once and requiring less operator input. This is particularly beneficial in large-scale production or when fast turnaround is required. In contrast, hand folding typically takes longer due to its manual nature but can be more suitable for projects that demand precision, quality, and individualized attention to detail.
5. Cost Considerations
Cost is often a deciding factor when choosing between different bending techniques. Automated machines and CNC press brakes tend to have a higher upfront cost due to the need for specialized equipment and machinery. However, for large-scale production, the per-piece cost tends to decrease as the process becomes more efficient. Hand bending, on the other hand, may involve lower initial costs, especially if labor is available and the production volume is low. However, the cost of labor, time, and potential for errors should also be factored in when estimating the total cost of the project.
Choosing the right aluminum bending technique depends on balancing these factors—shape complexity, sheet thickness, production volume, time, and cost. By carefully considering these elements, you can determine which method is best suited for your specific aluminum bending project, ensuring both quality results and cost-effectiveness. Whether you opt for automated solutions for high-volume runs or manual methods for custom, detailed work, selecting the appropriate bending technique is key to achieving the desired outcome.
Summary
Aluminum sheet bending is a versatile production process that offers significant advantages in terms of flexibility, adaptability, and cost-efficiency. This technique enables the creation of custom parts tailored to meet the specific requirements of various industries, while also providing enhanced durability and superior corrosion resistance compared to other materials.
The selection of the appropriate aluminum sheet bending technique depends on multiple factors, such as the part’s design, budget constraints, quality standards, and production timelines.
At Krrass, we specialize in aluminum sheet bending and are dedicated to helping you make informed decisions to achieve your production goals. Reach out to us today to discover how our services can meet your needs!
