When it comes to investing in a plate rolling machine, navigating the myriad options available can be a daunting task. However, in the realm of plate rolling machines, China stands out as a hub of manufacturing excellence, offering a wide array of choices to suit various needs and budgets. Plate rolling machine China has become synonymous with innovation, precision, and cost-effectiveness, making it a prime destination for businesses seeking quality machinery. Whether you’re a seasoned industry professional or a newcomer exploring the world of plate rolling, understanding how to choose the right rolling machine is essential for achieving optimal results and maximizing productivity.
Table of Contents

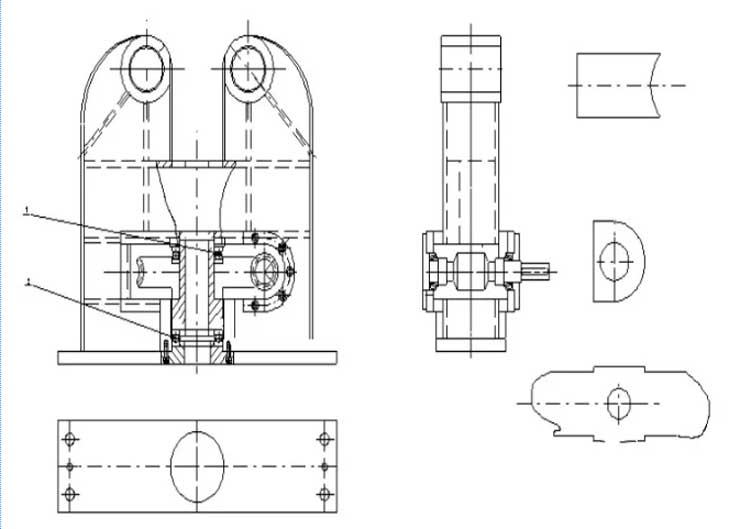

Principle of Plate Rollers
The principle behind the operation of a plate bending machine is rooted in hydraulic mechanics and precision engineering. In a symmetrical plate rolling machine, the upper roller moves vertically at the midpoint between two lower rollers, driven by hydraulic pressure exerted on the piston within the cylinder. This hydraulic force, facilitated by hydraulic oil, is regulated to control the movement of the upper roller.
As the upper roller descends, the main reducer’s final reduction gear drives the two lower rollers into rotary motion, generating torque essential for rolling the metal plate. The metal sheet, in a flattened state, is fed between the three work rolls—comprising two lower rollers and one upper roll. Through a combination of the upper roller’s pressing force and the lower rollers’ rotational movement, continuous bending occurs.
This bending process induces plastic deformation within the metal sheet, characterized by compression deformation on the inner layer, retention of the middle layer’s shape, and stretch deformation on the outer layer. As a result, the metal sheet gradually transforms into the desired shape, whether it be a cylinder, cone, or other forms required for various applications.
Despite its efficiency, the hydraulic three-roller bending machine has limitations, particularly regarding the pre-bending of the plate’s end, which often necessitates additional equipment for assistance.
Plate rolling machines excel in handling large-scale bending tasks, especially those involving thick plates of 50mm or more. To enhance precision and overall machine performance, some models feature a row of fixed rollers added to the bottom part of the lower roller. This addition serves to reduce the span between the two rollers, thereby improving the accuracy of the resulting workpiece.
How To Choose A Proper Plate Rolling Machine
Determine your Application Requirements
Begin by clearly outlining your application requirements when selecting a plate rolling machine. Here are some crucial factors to consider:
Plate Thickness and Width:
Start by determining the maximum and minimum plate thickness and width typically involved in your projects. This data will guide you in determining the necessary capacity and size specifications of the machine.
Material Type
Identify the primary types of materials you work with, such as steel, aluminum, or stainless steel. Different plate rolling machines may excel in handling specific material types more effectively than others.
Bending Radii and Shapes:
Evaluate the range of bending radii and shapes required for your projects. Determine whether the machine needs to handle simple curves or complex profiles. This assessment will impact the machine’s capabilities, including the number of rolls and their configurations.
Evaluate Machine Types
There are different types of plate rolling machines available, each with its advantages and limitations. Evaluate the following options to determine which one suits your needs:
- Three-Roll Plate Bending Machine: This traditional machine features three rolls, with the top roll providing the primary force for bending. It is suitable for simpler bending applications and is relatively cost-effective.
- Four-Roll Plate Bending Machine: The four-roll machine incorporates an additional pinch roll, offering enhanced precision and control during the bending process. It is ideal for complex bending operations and provides superior accuracy.
- Variable Geometry Plate Rolling Machine: These machines have the capability to adjust the distance between the top and bottom rolls, enabling the bending of conical or variable curvature shapes. They are suitable for specialized applications requiring high flexibility.
Consider Machine Specifications
Once you have determined the machine type, evaluate the following specifications to ensure they align with your application requirements:
- Capacity: Consider the maximum plate thickness and width the machine can handle. Ensure that it can accommodate your typical project sizes while leaving room for future expansion.
- Roll Diameter: The roll diameter determines the machine’s bending capacity. Larger roll diameters allow for bending thicker plates and achieving tighter radii. Assess whether the machine’s roll diameter meets your bending requirements.
- Drive System: Evaluate the machine’s drive system, which powers the rolls’ rotation. Opt for machines with reliable and efficient drive systems that ensure smooth and synchronized movement.
- Control System: Consider the control features and capabilities of the machine. Advanced control systems allow for precise adjustment of parameters such as roll pressure, speed, and material positioning, enabling better accuracy and repeatability.
Assess Machine Build Quality and Durability
Investing in a plate rolling machine is a significant decision, so it is crucial to assess the machine’s build quality and durability. Look for machines constructed with robust materials, such as high-quality steel, to ensure long-term reliability and stability. Consider the reputation and track record of the manufacturer to ensure they have a history of producing reliable and durable machines.
Evaluate Safety Features and Support Services
Safety should always be a top priority in any manufacturing environment. Assess the machine’s safety features, such as emergency stop buttons, safety interlocks, and guards, to ensure they meet or exceed industry standards. Additionally, consider the availability of technical support, training, and after-sales services provided by the manufacturer or supplier.
Benefits of Plate Rolling Machines China
- Cost-Effectiveness: Plate rolling machines from China often offer a cost-effective solution compared to machines from other regions. With competitive pricing, they provide excellent value for money without compromising on quality.
- Advanced Technology: Many plate rolling machines manufactured in China incorporate advanced technology and innovative features to enhance performance and efficiency. These machines are designed to meet international standards and are equipped with modern control systems for precision bending.
- Diverse Options: China-based manufacturers offer a wide range of plate rolling machines to suit various applications and industries. Whether you need a three-roll or four-roll machine, manual or CNC-controlled, China provides diverse options to meet your specific requirements.
- Customization Capabilities: Chinese manufacturers often offer customization services, allowing you to tailor the plate rolling machine according to your unique needs. From adjusting the machine’s capacity to incorporating specialized features, customization ensures optimal functionality for your applications.
- Robust Construction: Plate rolling machines from China are known for their sturdy construction and durability. Built using high-quality materials and stringent manufacturing processes, these machines are capable of withstanding heavy-duty usage and provide long-term reliability.
- Comprehensive Support: China-based manufacturers typically offer comprehensive support services, including technical assistance, installation guidance, and after-sales support. This ensures smooth integration of the machine into your operations and timely resolution of any issues that may arise.
- Global Presence: Many Chinese manufacturers have established a global presence, with distribution networks spanning across various countries. This enables easy accessibility to plate rolling machines and facilitates efficient logistics and service delivery.
- Continuous Innovation: China’s manufacturing sector is characterized by continuous innovation and improvement. Manufacturers constantly strive to enhance their products’ performance, efficiency, and user-friendliness, ensuring that customers benefit from the latest advancements in technology.
How To Select A Prominent Pate Rolling Machine China Supplier
1. Define Your Requirements
Before you start searching for a plate rolling machine manufacturer, it’s crucial to have a clear understanding of your specific requirements. Consider factors such as:
- Plate Thickness: Determine the range of plate thicknesses you will be working with. Different plate rolling machines are designed for different thicknesses.
- Plate Width: Consider the maximum width of plates you need to bend. Machines vary in terms of their capacity for handling wide plates.
- Plate Material: Know the types of materials you’ll be working with, such as carbon steel, stainless steel, or aluminum. Some machines are better suited for certain materials.
- Rolling Accuracy: Depending on your application, you may require high precision in bending. Make note of any specific tolerances you need to meet.
- Production Volume: Think about the volume of plates you’ll be processing. This can impact the size and capacity of the machine you’ll need.
2. Research and Shortlist Manufacturers
Now that you have a clear understanding of your requirements, it’s time to research and shortlist plate rolling machine manufacturers in China. Here are some effective ways to do this:
- Online Search: Start with a web search using relevant keywords. Look for manufacturers with a strong online presence and informative websites.
- Industry Forums: Visit industry-specific forums and discussion boards where professionals share their experiences and recommendations regarding machine manufacturers.
- Trade Shows: Attend trade shows and exhibitions related to metalworking and fabrication. These events often feature Chinese manufacturers showcasing their products.
- Ask for Recommendations: If you have contacts in the industry or within your network who have purchased plate rolling machines from China, don’t hesitate to ask for recommendations.
3. Evaluate the Manufacturer’s Reputation
Once you have a list of potential manufacturers, it’s time to evaluate their reputation. Consider the following factors:
- Experience: Look for manufacturers with a long-standing track record in producing plate rolling machines. A manufacturer with years of experience is likely to have a better understanding of quality and customer needs.
- Customer Reviews: Seek out customer reviews and testimonials. This firsthand feedback can provide valuable insights into the manufacturer’s product quality and customer service.
- Certifications: Check if the manufacturer holds relevant certifications, such as ISO 9001, which indicates a commitment to quality management.
- References: Don’t hesitate to ask the manufacturer for references from past customers. Contacting these references can give you a better idea of the manufacturer’s performance.
4. Assess Product Quality
The quality of the plate rolling machine is paramount. Here’s how to assess it:
- Machine Specifications: Examine the technical specifications of the machine, including its rolling capacity, diameter of rolls, and bending speed. Ensure that the machine aligns with your requirements.
- Material Quality: Inquire about the materials used in the construction of the machine. High-quality materials are essential for durability and long-term performance.
- Build and Finish: Inspect the build quality and finish of the machine. It should be well-constructed, free from defects, and finished to a high standard.
- Testing and Quality Control: Ask the manufacturer about their testing and quality control processes. Ensure that each machine undergoes rigorous testing before delivery.
5. Consider After-Sales Support
The relationship with the manufacturer shouldn’t end with the purchase. Consider the availability of after-sales support:
- Warranty: Inquire about the warranty offered for the machine. A comprehensive warranty can provide peace of mind.
- Technical Support: Ensure that the manufacturer offers technical support and assistance when needed. Quick and efficient support can minimize downtime.
- Spare Parts: Check the availability of spare parts. It’s essential that you can easily source replacement parts if necessary.
6. Price and Payment Terms
While price is a critical factor, it should not be the sole determinant in your decision-making process. Obtain quotes from multiple manufacturers and compare them. Pay attention to payment terms, including down payments and installment options.
7. Visit the Manufacturer
If possible, consider visiting the manufacturer’s facility in China. This firsthand visit can provide valuable insights into their manufacturing processes, quality control measures, and overall professionalism.
8. Communication and Language
Effective communication is key to a successful partnership. Ensure that the manufacturer has English-speaking representatives or employs translators who can facilitate clear communication throughout the procurement process.
Famous Plate Rolling Machine China Brands
Baileigh Industrial
Baileigh Industrial is known for its extensive range of metalworking machinery, including plate rolling machines. With a focus on quality construction and precision engineering, Baileigh’s plate rollers are widely used in various industries for bending and shaping metal sheets.
JMT
Jiangsu Jingwei Conveying Equipment Co., Ltd., commonly known as JMT, is a leading manufacturer of plate rolling machines in China. JMT’s products are renowned for their robustness, versatility, and advanced features, making them a popular choice among metal fabricators worldwide.
Accurl
Accurl is a prominent brand specializing in the design and production of sheet metal fabrication machinery, including plate rolling machines. With a commitment to innovation and customer satisfaction, Accurl’s products are known for their high precision, efficiency, and durability.
Shenchong
Anhui Shenchong Forging Machine Co., Ltd., known as Shenchong, is a well-established manufacturer of plate rolling machines and other metal forming equipment. Shenchong’s plate rollers are highly regarded for their superior performance, ease of operation, and long-term reliability.
Durmapress
Nanjing TMA Machine Co., Ltd., operating under the Durmapress brand, specializes in manufacturing sheet metal processing machinery, including plate rolling machines. Durmapress products are known for their precision engineering, advanced technology, and competitive pricing.
ACCURL
ACCURL CNC Machine Tools (Anhui) Co., Ltd., commonly referred to as ACCURL, is a leading manufacturer of CNC machinery, including plate rolling machines. ACCURL’s plate rollers are renowned for their high efficiency, accuracy, and innovative features, catering to diverse industrial applications.
Durmazlar
Durmazlar Machinery Industry and Trade Inc., based in China, is recognized for its high-quality plate rolling machines and other metalworking equipment. Durmazlar’s products are characterized by their robust construction, precise performance, and user-friendly design.
Haco
Haco Group is a global manufacturer of CNC machinery, including plate rolling machines, with a significant presence in the Chinese market. Haco’s plate rollers are known for their cutting-edge technology, versatility, and reliability, meeting the needs of various metalworking industries.
Bodor
Jinan Bodor CNC Machine Co., Ltd., trading as Bodor, specializes in the production of CNC laser cutting machines and other metalworking equipment. Bodor’s plate rolling machines are valued for their exceptional performance, efficiency, and durability, making them a preferred choice for metal fabricators.
Nantong Brillante
Nantong Brillante Industrial Enterprise Co., Ltd., commonly known as Brillante, is a reputable manufacturer of plate rolling machines and other metal fabrication equipment. Brillante’s products are distinguished by their high precision, stability, and cost-effectiveness, catering to a wide range of industrial applications.
Conclusion
In conclusion, selecting the right plate rolling machine China involves careful consideration of various factors such as your application requirements, machine types, specifications, build quality, and supplier reputation. By thoroughly evaluating these aspects and conducting thorough research, you can make an informed decision that aligns with your specific needs and ensures optimal performance and productivity in your metalworking operations.
Remember to prioritize reliability, precision, and after-sales support when choosing a plate rolling machine, as these factors are crucial for long-term success and efficiency in your manufacturing processes. With the right plate rolling machine in place, you can enhance your production capabilities, streamline your workflow, and achieve superior results in bending and shaping metal plates to meet your exact specifications and standards.
