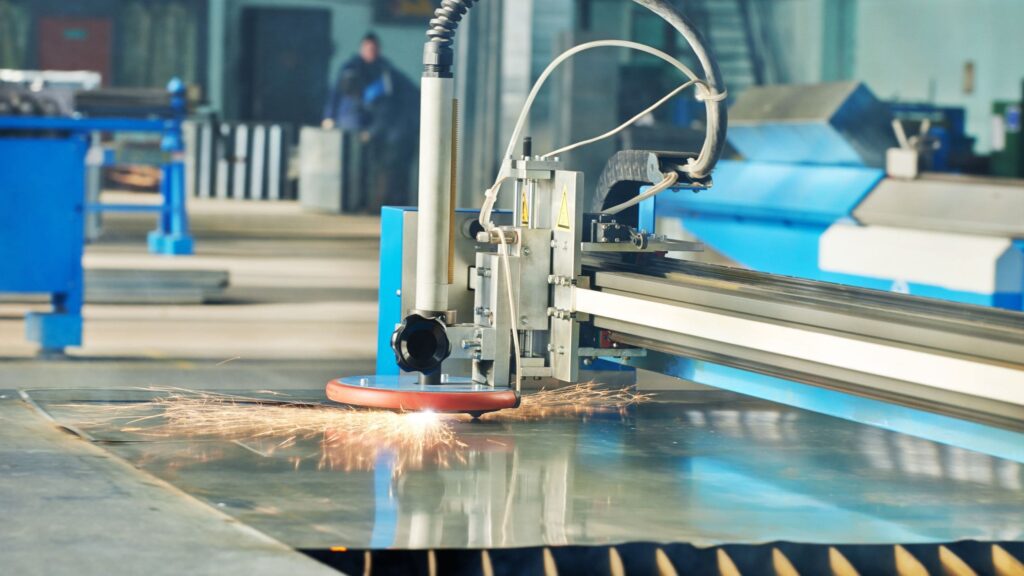

Fiber Laser Cutter for Stainless Steel: Ultimate Guide

With the right tools, many grades of stainless steel can be cut quickly and accurately using a fiber laser cutter for stainless steel. This method brings several advantages over traditional cutting techniques: it minimizes heat application, avoids work hardening, and often eliminates the need for additional finishing processes. However, cutting stainless steel properly requires careful handling, precise knowledge, and high-quality equipment. This article serves as a guide to getting it right and steering clear of common mistakes.

Stainless steel is a broad term for austenitic, ferritic, precipitation, martensitic, and duplex (those with both austenitic and martensitic components) alloys. These alloys contain iron, carbon, chromium, and a range of other metallic alloying agents such as nickel, molybdenum, copper, niobium, titanium, and aluminum. Intentional additions can also be non-metallic, such as silicon, carbon, and sulfur.

The result is a spectrum of properties. Some alloys are strongly magnetic while others are only weakly so or entirely non-magnetic. Some such steels are easy to work-harden while others barely change. And though “stainless steel” is rhetorically synonymous with corrosion resistance, some versions actually do not fare well on that front.

Different Types of Stainless Steel Suitable for Laser Cutting

All stainless steel alloys can be laser-cut given the proper machine settings, sufficient power, and the right controlled atmosphere. In general, the types of cuttable stainless steel are:

Austenitic Stainless Steel

Known for their exceptional corrosion resistance, austenitic stainless steels feature a face-centered cubic structure. Unlike other types, they cannot be heat treated, and they are non-magnetic. The well-known 300 series gains its austenitic structure primarily from a high nickel content, contributing to its durability and resistance to chemicals. In contrast, the 200 series achieves its austenitic properties through a combination of manganese and nitrogen, offering a more cost-effective alternative while retaining good corrosion resistance. These steels tend to work-harden at varying levels, which can make them challenging to machine but highly suitable for applications demanding durability in harsh environments.

Martensitic Stainless Steel

Typically classified under the 400 series, martensitic stainless steels are available in both high and low-carbon variations. Unlike austenitic types, these steels can be hardened and tempered through heat treatment and quenching, allowing for greater strength and hardness. While they are generally less tough and offer lower corrosion resistance compared to austenitic grades, they compensate with excellent machinability due to their lower nickel content and reduced tendency to work-harden. This makes them ideal for applications requiring high strength and moderate corrosion resistance, such as cutlery, medical tools, and pump shafts.

Ferritic Stainless Steel

Another member of the 400 series, ferritic stainless steels are known for their unique characteristics. These steels are heat-treatable and harden with relative ease, without excessive effort or complex processes. One notable example is 430 stainless steel, often referred to as “blade steel” for its sharpness and utility in cutting tools. Ferritic steels are capable of maintaining their properties at high temperatures but struggle in cryogenic conditions, making them less suitable for extremely low-temperature environments. Additionally, they have limited weldability, which can restrict their use in certain fabrication applications. However, they remain a popular choice for automotive parts, industrial components, and kitchenware where high-temperature stability is needed.

How Lasers Interact with Stainless Steel

Laser technology offers several advantages over traditional 2D processing methods when it comes to stainless steel. One of the key benefits is that laser cutting eliminates the need for physical force, preventing any material distortion or work hardening. Under optimal conditions, laser cutting yields smooth, fused edges that often require no additional finishing. This precision allows for cuts up to 100 mm deep in a single pass, making it an efficient choice for processing large stainless steel components.

There are two main techniques for laser marking stainless steel: laser ablation and laser annealing. In laser ablation, material is vaporized and removed from the surface, creating precise marks. Laser annealing, on the other hand, focuses on altering the metal beneath the surface without disrupting the chromium oxide layer. This results in cleaner and more durable markings, although it requires significant skill to avoid unintentional material removal. The controlled heating process minimizes distortion and staining in the heat-affected zone (HAZ). In contrast, mechanical cutting methods can cause considerable hardness changes around the cut and may lead to heat distortion and discoloration in the surrounding areas.

Laser engraving is another effective technique for stainless steel. However, it can sometimes lead to discoloration since the engraving process removes portions of the protective oxide layer. While functionally similar to laser cutting, engraving demands strict control over cut depth to ensure a high-quality finish.

Laser etching offers a more refined approach. This method involves annealing or melting the subsurface of the metal without stripping away the protective oxide layer, which remains largely unaffected by most cutting lasers. The process allows slight oxygen diffusion through the transparent oxide layer, resulting in coloration beneath it. Depending on the laser’s intensity, the metal can display shades of yellow or brown, creating a distinctive and precise marking. This technique is also commonly referred to as laser annealing due to the controlled nature of the process.

Types of Lasers Suitable for Cutting Stainless Steel

The two primary types of lasers effective for cutting stainless steel are fiber lasers and CO2 lasers.

Fiber lasers are known for their precision, producing a narrower beam that is roughly half the diameter of a CO2 laser’s cutting dot. This results in about four times the effective power for the same energy output, allowing fiber lasers to cut more quickly and accurately. In addition, fiber lasers have lower operational costs due to their higher electrical efficiency—typically 4 to 6 times better than CO2 lasers—and their solid-state construction, which eliminates the need for costly maintenance. However, fiber lasers do require more nitrogen shielding gas during the cutting process to ensure clean and precise cuts.

CO2 lasers, on the other hand, generally produce a cutter beam width of about 600 µm. They can reach higher power levels than fiber lasers, making them ideal for cutting thicker materials where absolute precision is less critical. While the capital expense (CAPEX) of CO2 laser equipment tends to be lower than that of fiber lasers, the operating expenses (OPEX) are higher on a per-cut basis. This makes CO2 lasers a cost-effective choice for projects requiring less detailed cuts on thicker stainless steel parts.

Which Are the Best Fiber Laser Cutter for Stainless Steel

Selecting the right laser cutting machine is crucial for the success of your stainless steel cutting projects. A high-quality laser cutter should exhibit the following key characteristics:

• Precision: The machine must provide highly accurate cuts, ensuring that the design’s dimensions are maintained.
• Speed: It should offer high cutting speeds without compromising quality to enhance productivity.
• Power: The machine needs adequate power to effectively cut the specific type and thickness of stainless steel required.
• Reliability: Choose a machine known for its dependable and consistent performance.
• Ease of Use: A user-friendly interface and software simplify the management of cutting tasks.
• Maintenance: Machines with lower maintenance costs and straightforward maintenance routines are highly advantageous.

Consider the following types of fiber laser machines for stainless steel cutting:

• Small Fiber Laser Machines (1kW – 3kW): These machines are designed for speed and flexibility, excelling in ultra-high-speed cutting of thin sheet metal and similar materials. They boost productivity while lowering operating costs.
• Medium Fiber Laser Machines (2kW – 4kW): Equipped with user-friendly features, these machines deliver exceptional efficiency and superior quality results. They are versatile and suitable for a variety of materials used in metal fabrication, including highly reflective metals and thicker mild steel.
• High-Power Fiber Laser Machines (6kW – 15kW): These machines are some of the most comprehensive, compact, and configurable sheet metal laser cutting systems available. Designed to adapt to evolving needs, they can handle a broad range of materials, including highly reflective metals and high-thickness mild steel.

4o mini

Achieving Optimal Results When Laser Cutting Stainless Steel

Laser cutting stainless steel can yield highly precise results with clean edges and minimal heat damage, provided the settings are carefully optimized. A gas-assist system is crucial to keeping the laser’s path clear of debris and ensuring high-quality cuts. However, the process isn’t without challenges. Some common issues can arise, but they can be easily corrected once identified:

• Large, Irregular Dripping on Both Sides of the Cut’s Lower Edge: This indicates that the laser is running too hot. To address this, increase the feed rate to reduce localized heating, enhance the air assist for better cooling, or adjust the focal point slightly higher above the cut.
• Large, Irregular Dripping on One Side of the Lower Edge: Similar to the issue above, this often results from an off-center air assist nozzle. Properly aligning the nozzle can resolve this problem.
• Small Drips Along the Lower Edge of the Cut: This suggests that the focal point is set too low or that the feed rate is too high. Adjusting the focal point upwards or reducing the feed rate should improve the cut quality.
• Visible Upward Splashing of Melt: This typically means the feed rate is too high, and sometimes the air assist is overly intense. Slowing down the feed rate or reducing the air assist can prevent this issue.
• Yellow or Brown Discoloration Around the Cut: This occurs when the nitrogen feed is insufficient or contaminated with oxygen. Increasing the nitrogen flow and ensuring it is pure can help maintain a clean, oxidation-free edge.

Essential Tips for Laser Cutting Stainless Steel

Laser cutting stainless steel requires careful setup and operation due to the material’s unique properties. Here are some important tips to ensure high-quality results:

1. Optimize Blower Settings: Proper blower adjustment is critical. Watch for splashback, where material is blown upwards—this usually means the airflow is too strong. Insufficient airflow can lead to occluded optics, reducing the laser’s effectiveness. Additionally, ensure the blower nozzle is perfectly centered to avoid uneven air distribution, which can cause asymmetric cuts.
2. Set the Correct Focal Depth: Accurate focus is essential for achieving a clean cut. Measure the kerf width and shape to ensure optimal focus. If the cut’s edges are uneven or the kerf is too wide, the focal point may be misaligned, leading to poor-quality cuts. Fine-tune the focal depth to match the thickness and type of stainless steel you are working with.
3. Keep Optics Clean: Dirty or obstructed optics can drastically reduce laser efficiency and cut quality. Regularly inspect and clean lenses, mirrors, and other optical components to maintain clarity. A clear optical path allows the laser to perform at its best, ensuring precision cuts with minimal defects.
4. Monitor Nitrogen Usage: If using nitrogen as a shielding gas, check for any oxidation along the cut edges. Yellow or brown staining can indicate that the nitrogen flow rate is too low, allowing oxygen to contaminate the cut. Increasing the nitrogen feed can help prevent oxidation and maintain a bright, clean finish.
5. Inspect the Heat-Affected Zone (HAZ): Examine the cut for signs of excessive heat impact, such as a wide HAZ with melted or discolored edges. If you notice bluish discoloration or melt buildup on the underside, it may mean the feed rate is too slow or the laser power is too high. Adjust these settings to minimize unwanted heat damage.
6. Follow Manufacturer’s Guidelines: Start with the recommended settings provided by the machine manufacturer for the specific grade and thickness of stainless steel. Make incremental adjustments to the laser’s parameters, observing how each change affects the outcome. This systematic approach allows you to fine-tune the settings for optimal performance without risking damage to the material.

By paying attention to these variables, you can effectively manage the challenges of laser cutting stainless steel, leading to high-quality, precise cuts with minimal post-processing required.

Prices of Fiber Laser Cutter for Stainless Steel

There is no standard price for laser-cutting machines capable of handling stainless steel, as costs vary widely based on the machine’s specifications and features. Entry-level models, can be found for around $300, catering to very light-duty projects. In contrast, mid-range machines with more robust capabilities typically start around $3,000. For high-performance industrial machines, prices usually exceed $30,000.

Fiber lasers are notably more expensive upfront, often costing 5 to 10 times the price of CO2 lasers. However, they offer higher productivity, with lower maintenance and power expenses over time. For light-duty applications, the benefits of fiber lasers may not justify the higher cost, as they still can’t reach the extreme peak power levels that CO2 lasers can deliver.

Comparing CO2 and Fiber Lasers for Cutting Stainless Steel

When it comes to cutting stainless steel, CO2 and fiber lasers each have their strengths and limitations. CO2 lasers are known for producing a broader beam, but they have the advantage of reaching much higher power levels, often in the 100+ kW range. They are more affordable initially but tend to have higher maintenance requirements compared to fiber lasers.

Fiber lasers, on the other hand, are typically limited to power outputs of 15-20 kW. However, they can cut much faster—about 3 to 5 times the feed rate of CO2 lasers—thanks to their narrower beam, which focuses more energy directly at the cutting point. This increased precision and speed make fiber lasers ideal for applications that demand efficiency and accuracy. For further insights, check out our comprehensive comparison of CO2 and fiber laser technologies.

KRRASS offers a diverse range of advanced manufacturing solutions, including laser cutting machines. Whether you’re looking for high-speed fiber laser systems or robust CO2 laser options, KRRASS has you covered. Get in touch today to explore your options and receive a customized quote tailored to your manufacturing needs.

Alternatives to Laser Cutting for Stainless Steel

Laser cutting is a popular choice for stainless steel, but it’s not the only option. Here are some alternative technologies and machines that can be used for cutting stainless steel, each with distinct advantages and disadvantages:

Waterjet Cutting: This method employs a high-pressure stream of water or a mix of water and abrasive materials to cut through stainless steel. It’s highly versatile and can handle a variety of materials, including those sensitive to heat. However, waterjet cutting tends to be slower and more costly than laser cutting, particularly for intricate designs.

Plasma Cutting: Plasma cutting utilizes a jet of heated plasma to slice through electrically conductive metals. It excels in cutting thicker stainless steel quickly, often outperforming both waterjet and laser cutting in terms of speed. However, it may not match the precision and edge quality that laser cutting provides.

Mechanical Cutting (e.g., Shearing, Sawing, Punching): Traditional mechanical methods are effective for simpler, less precise cuts and are often more economical for straightforward jobs. However, they lack the flexibility and precision of laser cutting, making them less suitable for complex or detailed projects.

Overall, laser cutting remains a top choice for stainless steel due to its superior speed, accuracy, and ability to handle intricate designs, particularly in thinner materials.

Conclusion

Laser cutting stainless steel is a sophisticated and efficient technique that provides numerous benefits, including high precision, speed, and versatility. This method supports intricate designs and delivers smooth finishes, making it a preferred choice across various industries, including automotive, aerospace, and medical sectors. However, it is crucial to have a comprehensive understanding of the laser cutting process, the types of lasers utilized, the different grades of stainless steel, and the potential challenges that can arise during cutting.

The decision between CO2 and fiber lasers will largely depend on the specific job requirements. While CO2 lasers tend to be more affordable and better suited for thicker materials, fiber laser cutters for stainless steel are known for their precision and energy efficiency, which can result in lower operating costs over time.

By considering these factors and harnessing the capabilities of advanced laser cutting machines, such as those provided by KRRASS, you can achieve outstanding results in stainless steel laser cutting.
