In the world of metal fabrication, achieving precise bends is paramount to ensuring the quality and integrity of finished products. One of the fundamental factors that influence the bending process is press brake tonnage—the force required to bend a given thickness of metal.

Understanding how to determine the appropriate tonnage for your specific bending needs is essential for achieving accurate and efficient results. In this comprehensive guide, we delve into the intricacies of press brake tonnage calculation, providing you with the knowledge and tools necessary to make informed decisions and elevate your metal fabrication capabilities.

Whether you’re a seasoned professional or new to the field, mastering the art of press brake tonnage determination is key to unlocking the full potential of your bending operations.

What is Press Brake Tonnage

Press brake tonnage refers to the amount of force exerted by a press brake during the bending process. It’s a measure of the machine’s capability to bend a specific material thickness and type. Tonnage represents the maximum force the press brake can apply to the workpiece. The Delem software, like that found on our MB8 series of press brakes, comes ready to help automate calculations.

Understanding Force in Bending

When a press brake bends a metal sheet or plate, it applies force to deform the material. This force is transmitted through the upper punch and lower die, collectively known as tools or tooling of the press brake. The amount of force required depends on various factors, including:

• Material Type: Different metals have varying strengths and elasticity, which influence the amount of force needed for bending. For instance, bending stainless steel typically requires more force compared to bending aluminum of the same thickness.
• Material Thickness: Thicker materials require higher tonnage to bend effectively. As the thickness increases, so does the resistance to deformation, necessitating greater force.
• Bend Angle: The angle at which the material is bent also affects the required force. Sharp bends or tighter radii demand more force than gradual bends.
• Tooling Selection: The selection of appropriate tooling, including punches and dies, is crucial in determining the force distribution during bending. Proper tooling ensures uniform bending and reduces the risk of material distortion.

Factors Influencing Tonnage Requirements

Tonnage requirements vary based on several key factors. Understanding these will guide you in making an informed decision about the tonnage needed for your specific application.

Material Thickness and Type

Different materials behave differently under stress. For instance, stainless steel requires more tonnage to bend than mild steel of the same thickness. The thicker the material, the higher the tonnage required.

Length of Bend

The length of the bend affects the tonnage requirement. Longer bends need more force evenly distributed across the length of the die.

Press Brake Type and Specifications

Press brakes themselves vary. Hydraulic, mechanical, and electric press brakes each have unique characteristics that influence the tonnage calculation.

Tooling

The tooling type selected also plays a critical roll in selecting the right press brake tonnage as the wider the V-Die chosen the lower the tonnage required. However the offset of a wider V-Die is the radius on the formed edge becomes larger and the flange length required also increases.

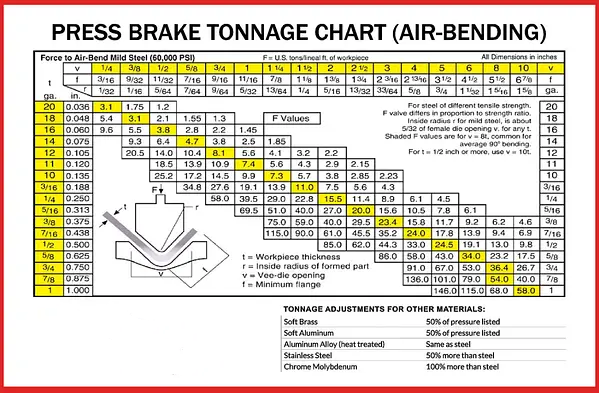

How To Calculate Required Press Brake Tonnage

Determining the required tonnage for a bending operation involves considering several factors:

• Material Type and Thickness: Understand the material’s properties, including its tensile strength and thickness.
• Bend Length: The length of the bend influences the distribution of force along the material.
• Bend Angle: Sharper angles typically require higher tonnage compared to gentler bends.
• Material Support: Ensure proper material support and alignment to prevent deflection and inaccuracies.

The formula is as follows:

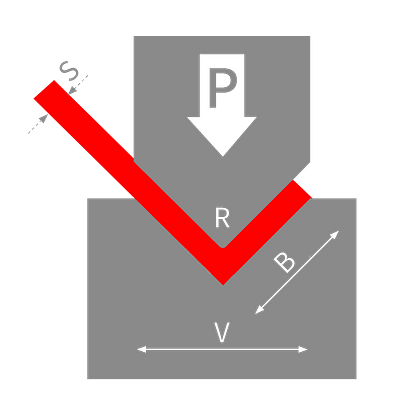

P=650S²L/V (σb＝450N/mm²)

Where:

P=Bending force

S=Thickness of metal plate

V=Opening of the bottom die

B=Min bending flange

R=Inside radius

Conclusion

Press brake tonnage and force are critical parameters in metal bending operations, influencing the quality, accuracy, and efficiency of the process. By understanding the relationship between material properties, bending parameters, and tonnage requirements, fabricators can optimize their manufacturing operations for superior results. Investing in the right equipment, tooling, and expertise ensures that each bend meets the highest standards of precision and quality. By working with Krrass Machine Tools, you are setting yourself up for future success in your industrial machinery needs.
