Hydraulic Guillotine Shearing Machine
Sheet metal hydraulic guillotine shears, precise and high-quality cutting with automatic gap adjustment, excellent cutting, and perfect speed. KRRASS QC11K Hydraulic Guillotine Shears can cut metal sheets to maintain the highest production capacity with maximum precision and quality.
Get in touch
If you have any questions, please contact us, we will get back to you as soon as possible.
Get in touch
If you have any questions, please contact us, we will get back to you as soon as possible.

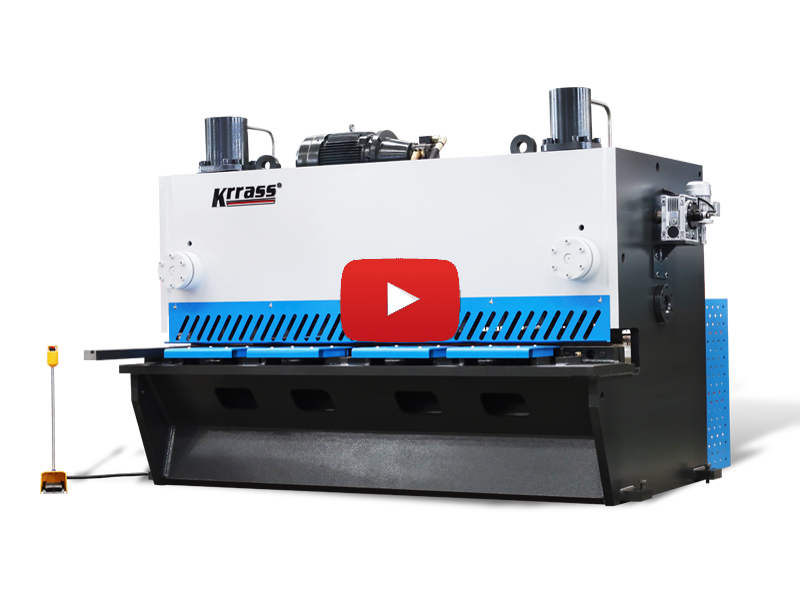

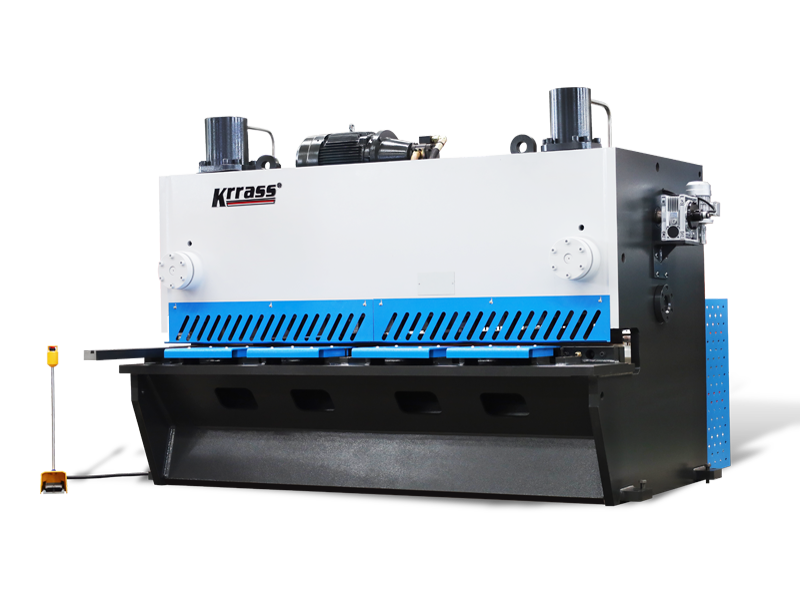

Hydraulic Guillotine Shearing Machine(QC11K Series)
Features & Configuration
Main Features
Imported configuration, stable and reliable
High strength frame with thick plate and sufficient material High precision rear retaining system
The maximum shearing thickness can reach 30mm
Maximum working width up to 8 meters
Universal High-End Intelligent Hydraulic Guillotine Shearing Machine

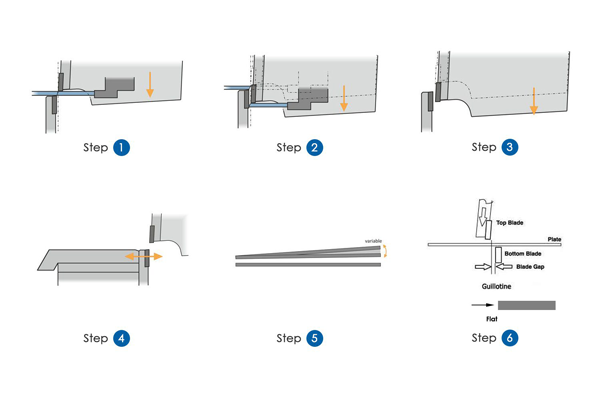

What's Hydraulic Guillotine Shearing Machine?
The upper blade penetrates the metal sheet above the lower edge. A pivoting movement cuts the swing beam. After the amount is made, the upper blade moves away from the lower blade. The upper knife moves away from the lower edge after cutting. The upper and lower blade do not rub on each other. A pivoting movement cuts the swing beam. After the amount is made, the upper edge moves away from the lower blade. The blade clearance can be easily adjusted by turning the cutting gap eccentric. The upper edge moves away from the lower blade after cutting. The upper and lower blade do not rub on each other. Swing beam cutting requires a riding shear design. The reason is the low rake angle, which is the fix for any material thickness.
CNC Controller
Personalize the Controller to Unleash the Full Potential of Your KRRASS QC11K Series Hydraulic Guillotine Shearing Machine!

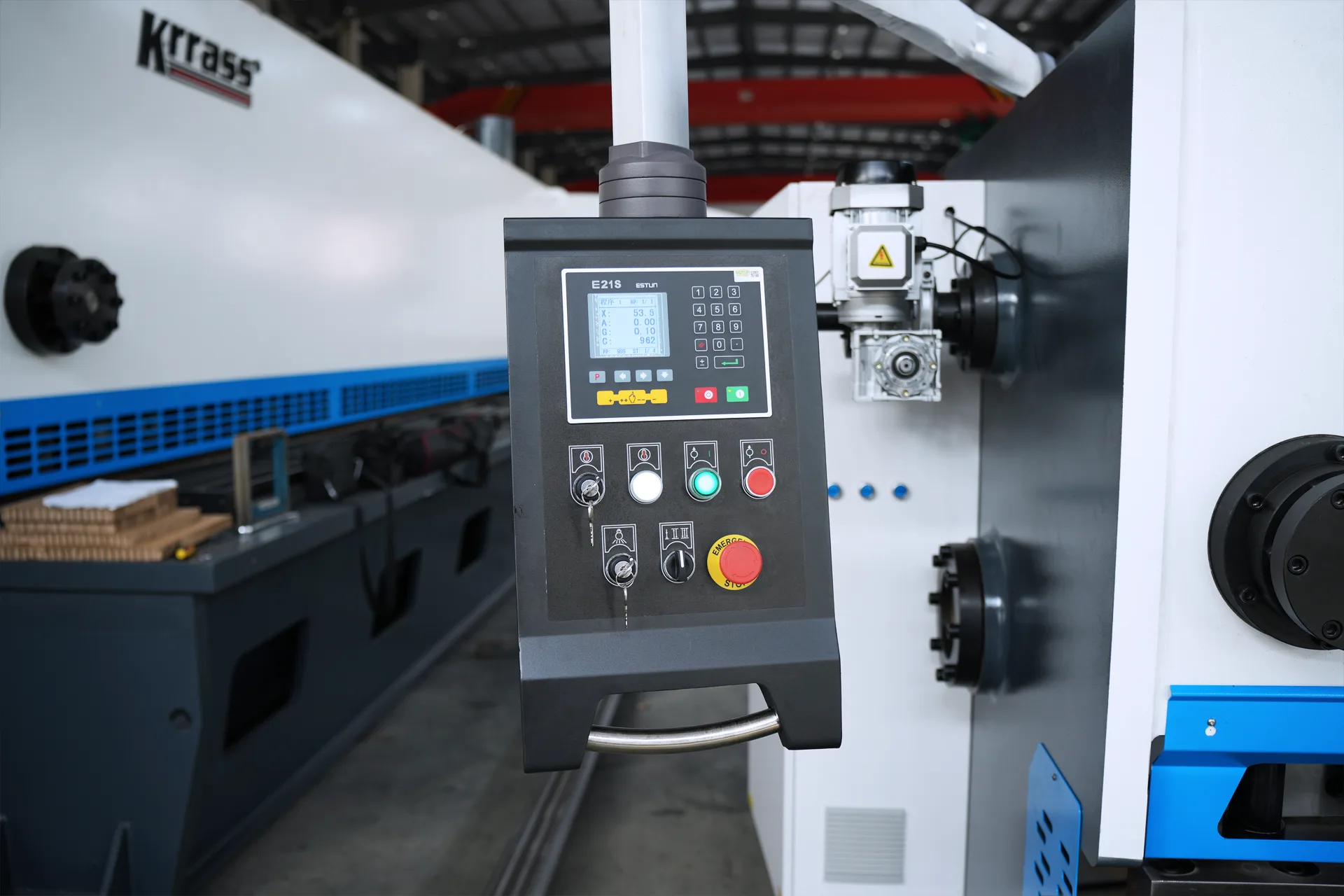

ESTUN E21S Control
- High-definition hydraulic display
- Control common motors and frequency converters
- X-axis intelligent positioning
- Multi-step programming, 40 programs, each program 25 steps
- Built-in time relay function
- One-button function switching
- Unilateral positioning function
- A key backup and restore of parameters
- Chinese and English
- Metric system
Standard Configuration
Stress Analysis & Finite Element Analysis
The CAE software SOLIDWORKS used as the method to analyze the linear static construction, stress and deformation for press break and laser cutting machine frames. So for complicated structures, highly complex loading’s, transient modelling and combination of the above, FEA makes sense.

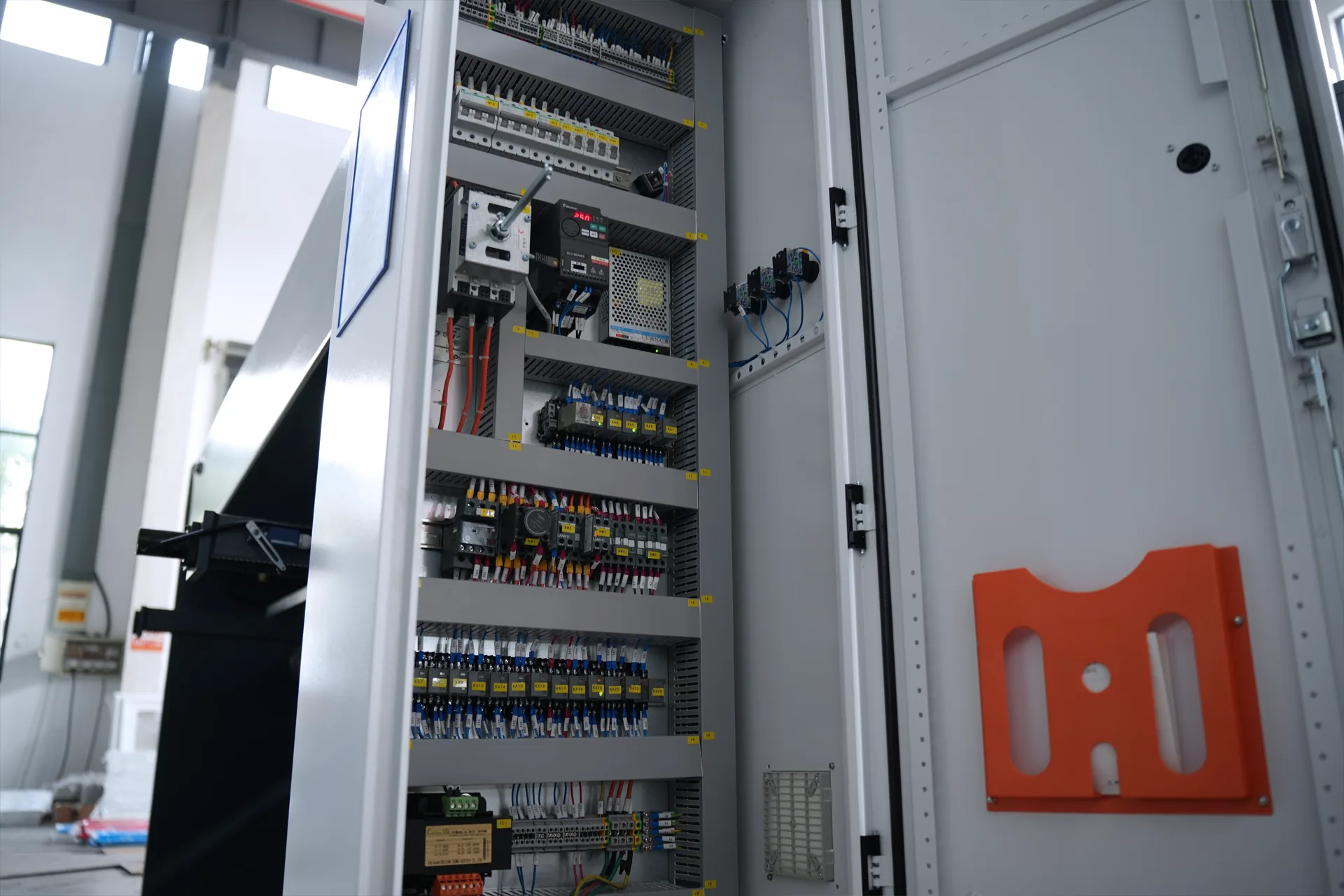

Schneider Electric
High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the word.

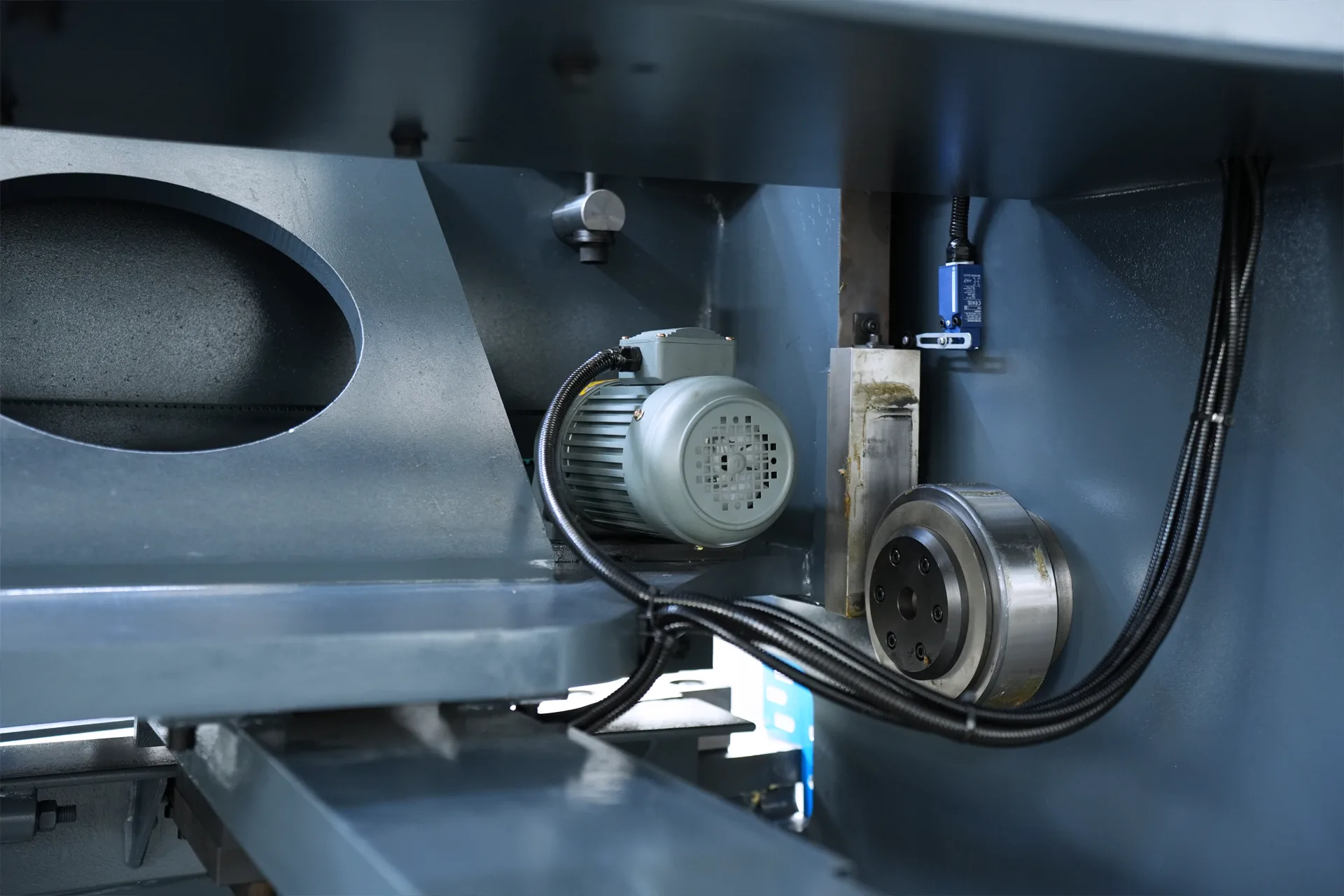

X-axis Motor and Screw
X axis back gauge clearance are controlled by E21s which ensures a higher cutting accuracy, Backgauge with Optional ball screw and line guide rail.

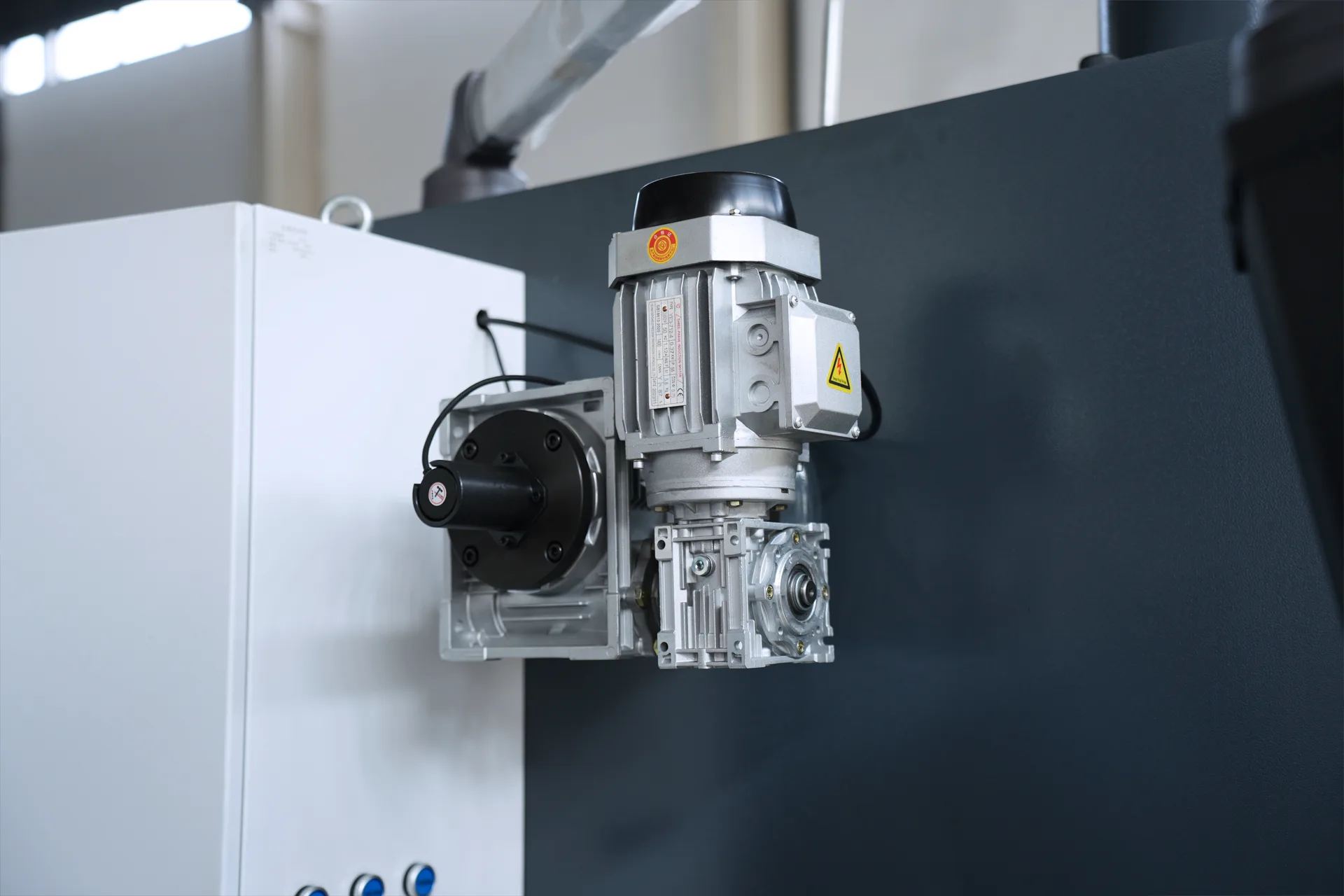

Electric Clearance Adiustment
Adjust the cutting blades gap by moto!according the cutting thickness of themetal sheet can get better cutting performance.

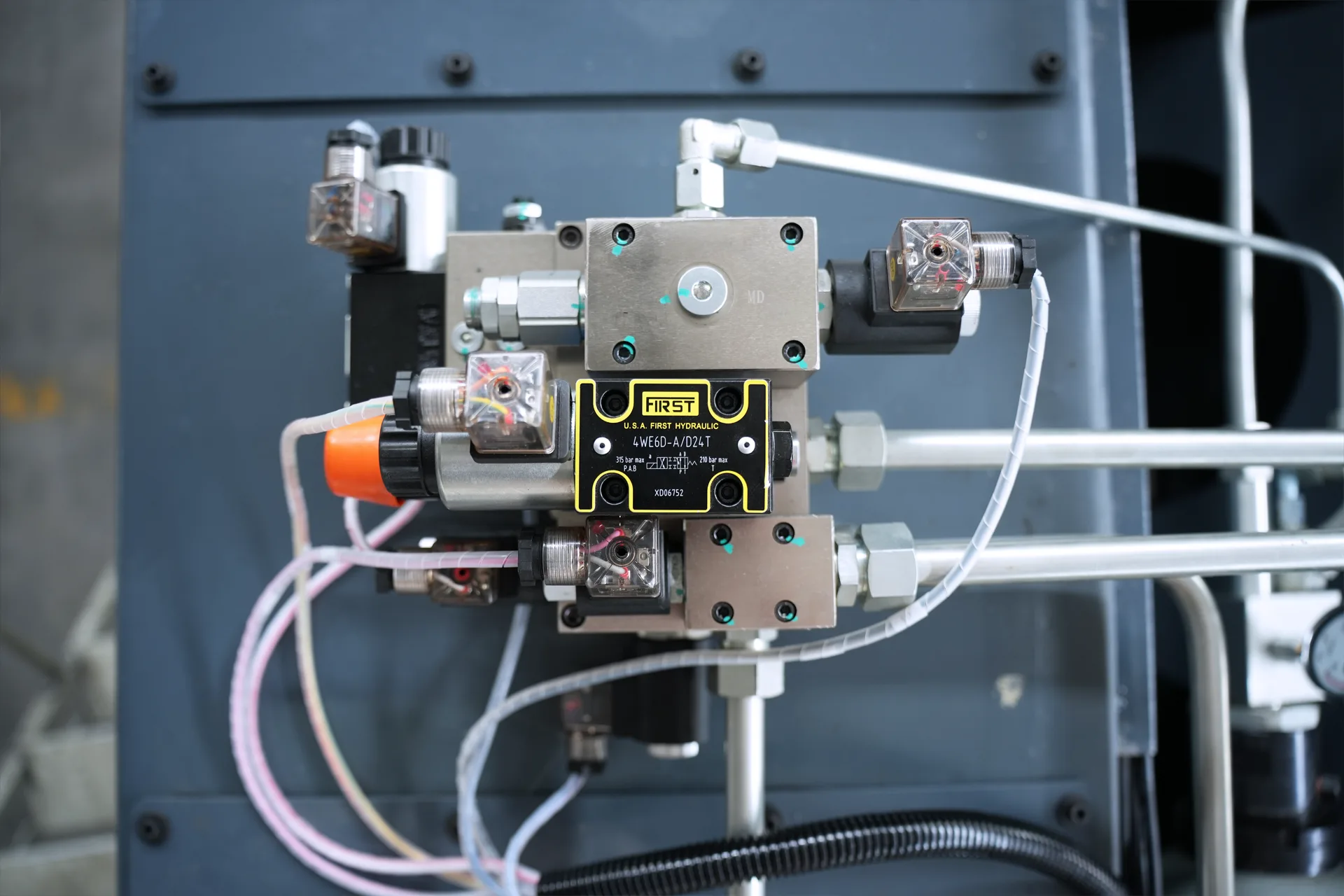

FIRST Hydraulic Valve
The world famous brand FIRST, Is a professional hydraulic valve supplier.
The EMB oil pipe joint has a beautiful structure and reduces the possibility of oil leakage.

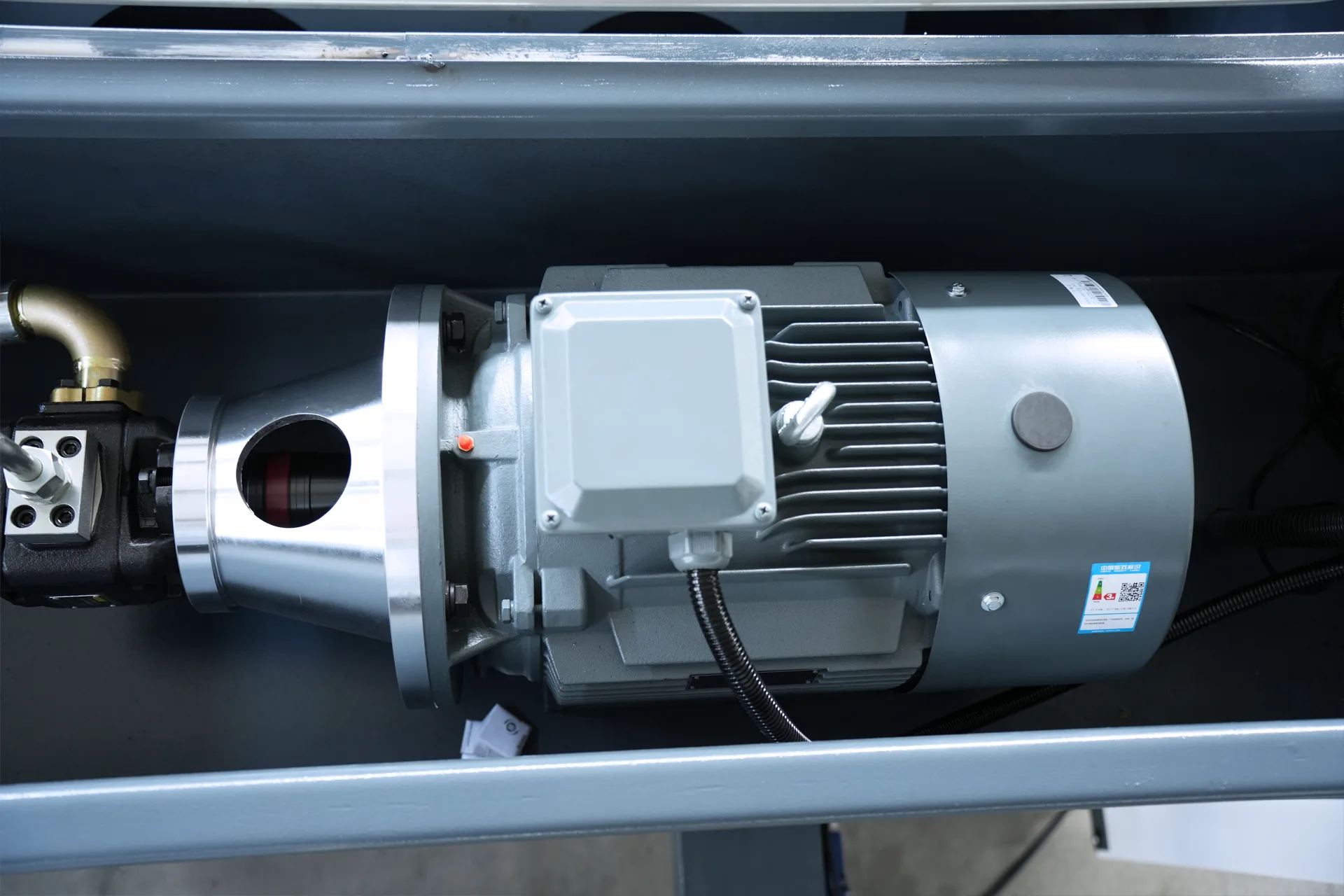

German Siemens Main Motor
The German famous brand motor increases the service life of the machine and keeps the machine working in a low-noise environment.

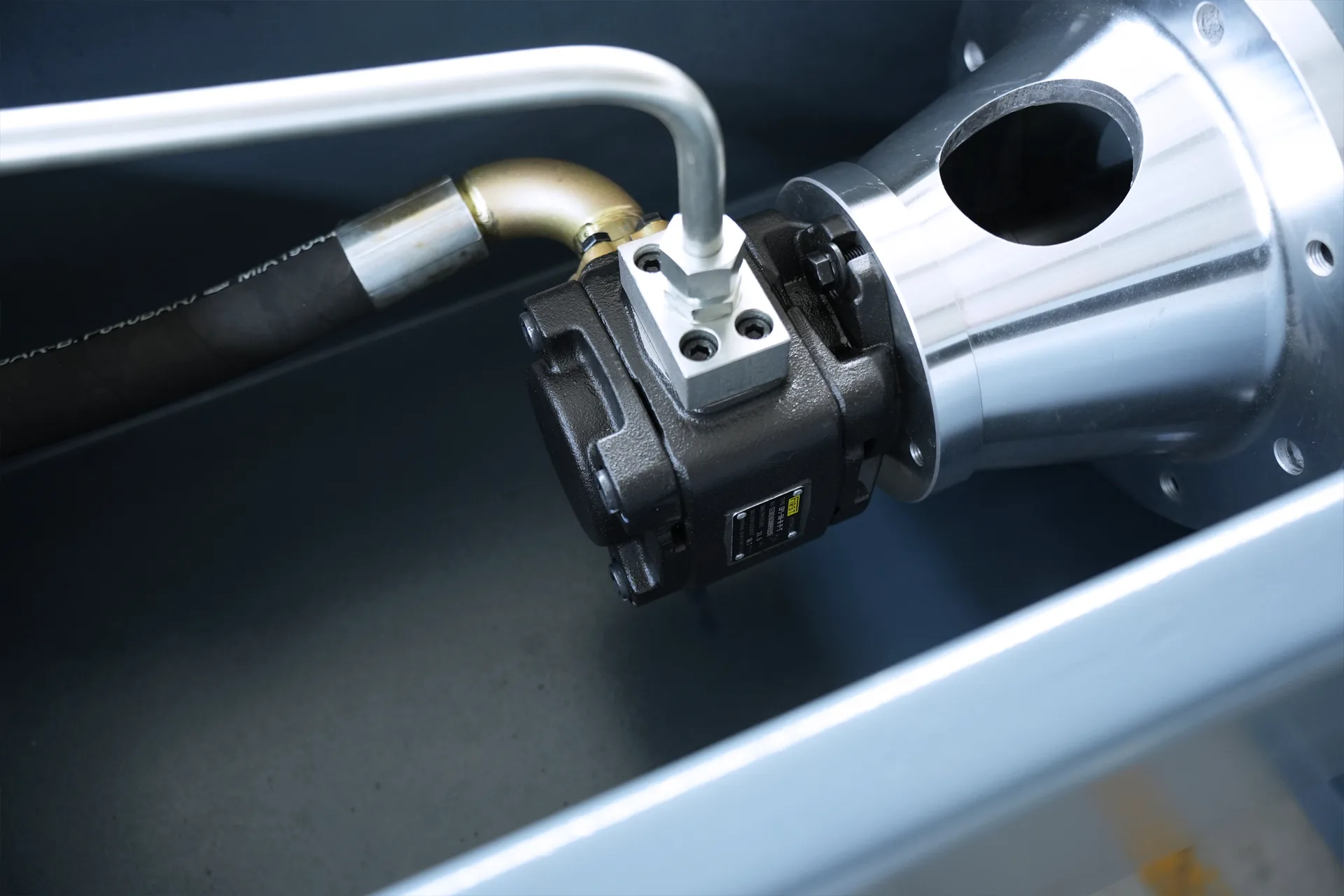

FIRST Hydraulic Oil Pump
The oil pump is highly regarded for its exceptional performance, known for its quiet operation and remarkable longevity, making it a reliable choice for various applications.

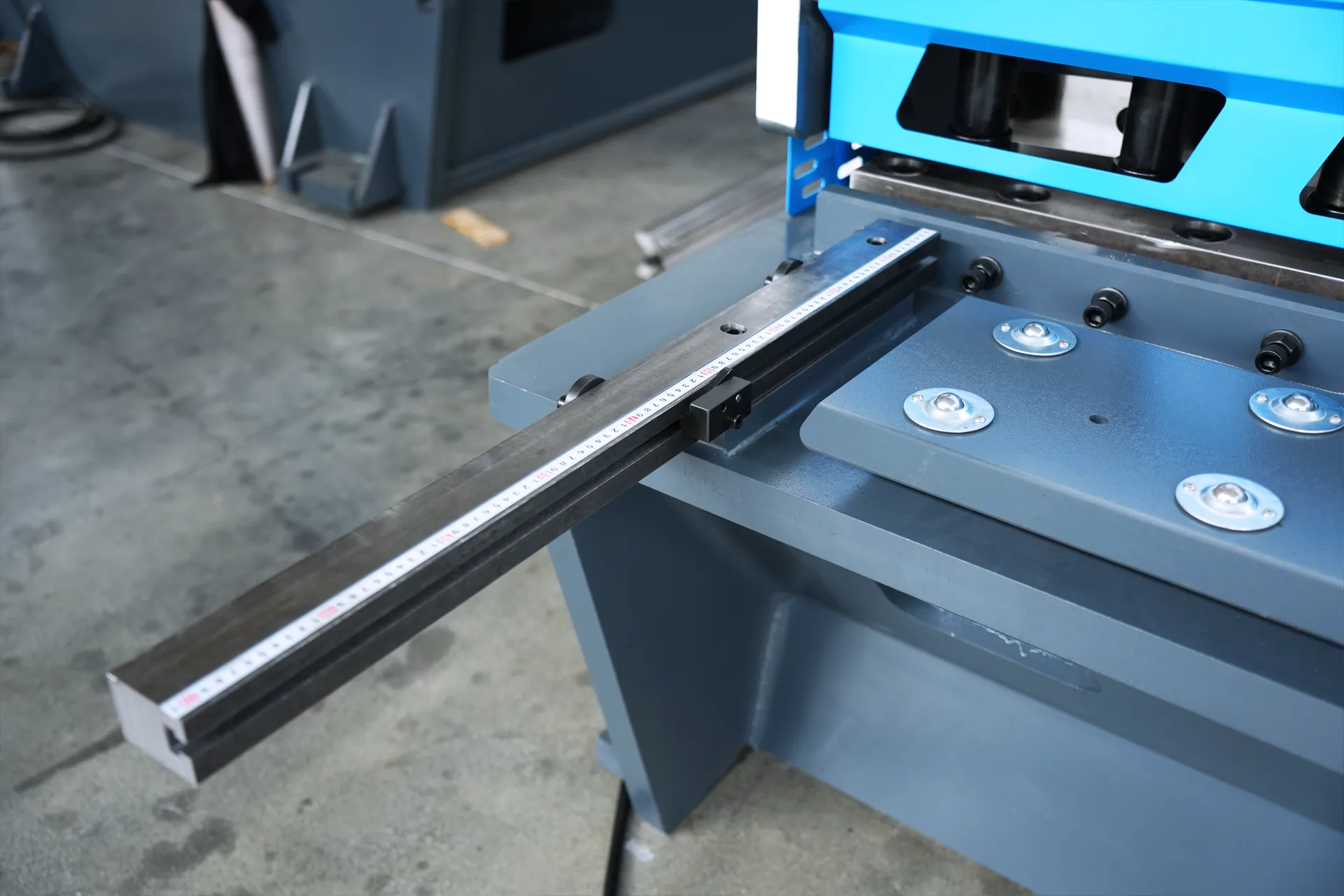

Front Material Support
The front material rack can effectively help you reduce the work pressure when you are cutting larger metal sheets, making it easier for you to support and move the sheets.

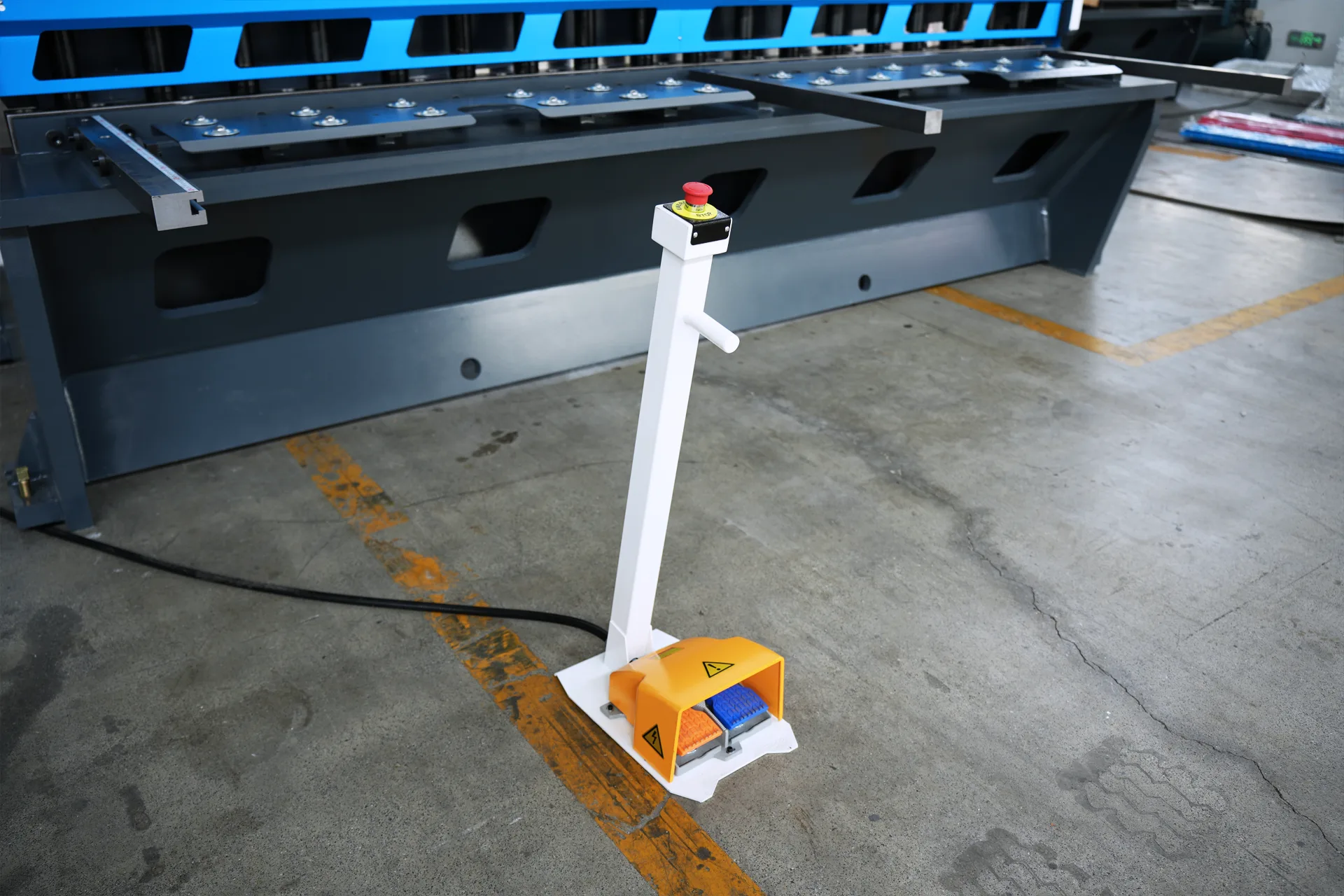

South Korea KACON Foot Switch
South Korea brand foot switch ismovableand can stop the machineanytime by theemergency button.
Powerful CNC Controller System
Several innovative patented technologies
A variety of controller are available
Delem DAC-362T Control
- Panel based housing
- Bright LCD screen
- Back / front gauge control
- Retract function
- Cutting angle and gap control
- Stroke length limitation
- Manual movement of all axes
- Force control
- Sheet thickness measurement
- Return to Sender function
- Second and third servo axis (DAC-362T)
- Sheet support
ELGO P40 Control
- One- or two-axis version
- LCD display
- Easy handling
- Multi-lingual menu navigation
- Option PID analog output available
- Reference run
- Manual-, single- and program mode
Other Optional Configuration
Photoelectric safety protection
The quick-response protection system can effectively protect the safety of equipment operators and avoid accidental injuries.
Pneumatic back support
The storage position of the finished plate products is adjusted by a pneumatic device to improve work efficiency.
FAQ
What is Hydraulic guillotine shearing machine?
A hydraulic guillotine shear is a type of shearing machine that uses hydraulic power to cut materials, primarily sheet metal, with precision and efficiency. Jiangsu Chuangheng Machinery Technology. Operation: Hydraulic guillotine shears work by applying hydraulic pressure to a set of blades.
What was the Hydraulic guillotine machine used for?
Historically a guillotine was a machine that uses a blade that drops along a vertical track, the most well known of course being the one was used for beheadings in the bad old days. The same principle is used in a 'variable rake guillotine' to cut sheet metal.
What is the difference between a shear and a guillotine?
The first is a swing beam shear, which moves with the upper blade in a circular arc. The second is a sheet metal guillotine, where the upper beam moves up and down in a straight line.
