What Is A Hydraulic Guillotine Shearing Machine – Ultimate Guide

A hydraulic guillotine shearing machine utilizes hydraulic force for precise and efficient cutting of sheet metal. Comprising two fixed blades adjustable to various angles, it resembles oversized scissors. Sheets are positioned between the blades and compressed to facilitate clean cuts.

Hydraulic guillotine shearing machines are used in the metal-fabrication world to cut metal to size without creating excess waste or damaging the edge. The metal being worked can be in the form of plates, sheets, or, less commonly, rods. The machines come in different sizes, making them suitable for both small-scale and large-scale metal fabrication tasks.

Hydraulic guillotine shearing machines can cut metal sheets made from a variety of alloys, including: Bronze, Aluminum, Brass, and Mild steel.

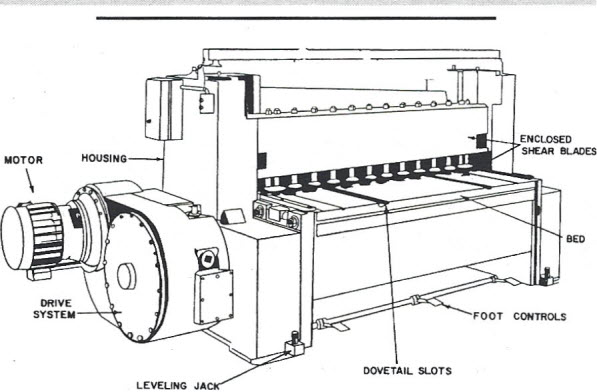

The machine is made up of three systems: Electric system, Hydraulic system, and Back gauge system.

How Does A Hydraulic Guillotine Shearing Machien Works

A hydraulic guillotine shearing machine operates by harnessing hydraulic power to execute precise and efficient cuts on sheet metal. Here’s how it typically works:

Sheet Placement: The sheet metal to be cut is positioned on the machine’s work surface, also known as the cutting bed.

Blade Alignment: The operator adjusts the position and angle of the two stationary blades according to the required cutting specifications. These blades are usually made of high-strength steel and are designed to withstand the immense pressure exerted during cutting.

Clamping: Hydraulic cylinders or clamps secure the sheet metal firmly in place between the blades to prevent movement during cutting.

Hydraulic Pressure Buildup: The hydraulic system of the machine builds up pressure, typically through the activation of a hydraulic pump. This pressurized hydraulic fluid is then directed to the hydraulic cylinders responsible for moving the cutting blade.

Cutting Action: When the operator initiates the cutting process, the hydraulic cylinders drive the upper blade downwards with tremendous force. The sharp edge of the upper blade makes contact with the sheet metal, exerting significant pressure.

Shearing Process: The pressure applied by the descending blade exceeds the metal’s shear strength, causing it to yield and separate along the line of contact between the blades. This results in a clean and precise cut through the sheet metal.

Release and Removal: Once the cutting action is completed, the hydraulic system releases pressure, and the upper blade returns to its initial position. The cut piece of sheet metal is then removed from the machine, and the process can be repeated as necessary.

Advantages of Hydraulic Guillotine Shearing Machine

Precision: Hydraulic systems provide precise control over the cutting process, allowing for accurate cuts with minimal deviation. This precision is essential for applications that demand high-quality finished products.

Efficiency: Hydraulic guillotine shearing machines are capable of cutting through large volumes of sheet metal quickly and efficiently. Their fast cycle times and high cutting speeds contribute to increased productivity in manufacturing settings.

Versatility: These machines can handle a wide range of materials and thicknesses, making them suitable for diverse industrial applications. Whether cutting thin sheets or thick plates, hydraulic guillotine shearing machines can accommodate various materials with ease.

Ease of Operation: With user-friendly controls and automated features, hydraulic guillotine shearing machines are relatively straightforward to operate. Minimal operator intervention is required once the cutting parameters are set, reducing the likelihood of errors and improving overall efficiency.

Safety: Many hydraulic guillotine shearing machines are equipped with safety features such as safety light curtains, two-handed operation, and emergency stop buttons. These features help ensure a safe working environment for operators and minimize the risk of accidents.

Clean Cuts: The shearing action of hydraulic guillotine machines results in clean, burr-free cuts, eliminating the need for additional finishing processes. This saves time and reduces material waste, ultimately leading to cost savings for manufacturers.

Durability: Constructed with robust materials and components, hydraulic guillotine shearing machines are built to withstand the rigors of industrial use. With proper maintenance, they can provide years of reliable service, making them a cost-effective investment for businesses.

How to Choose A Hydraulic Guillotine Shears

KRRASS is Leading Hydraulic Shearing Machine Manufacturer in China. KRRASS is your trusted partner, offering a range of highly efficient Guillotine Shears to clients worldwide. Our commitment goes beyond delivering machinery; we specialize in tailoring solutions that precisely align with your unique requirements. KRRASS provides global customers with more productive Guillotine Shears, new customized solutions, and easy-to-use option suites designed to meet the customer’s actual needs.

Our Guillotine Shears are engineered for enhanced productivity, equipped with advanced features that enable you to achieve optimal results. Whether you’re working on precision cuts or tackling high-volume tasks, our shearing machines are designed to perform consistently and reliably.
