Why Choose KRRASS Hydraulic Ironworker Machine
When considering an hydraulic ironworker machine for sale for your metalworking needs, choosing KRRASS can offer several advantages:
Quality and Reliability: KRRASS is known for producing high-quality ironworker machines that are durable and reliable. Their machines are built to withstand heavy-duty use in industrial environments, ensuring long-term performance and productivity.
Wide Range of Models: KRRASS offers a diverse range of ironworker models to suit various applications and requirements. Whether you need a compact machine for small-scale operations or a heavy-duty model for industrial production, KRRASS has options to meet your needs.
Advanced Features: KRRASS hydraulic ironworker machines come equipped with advanced features and functionalities to enhance efficiency and versatility. From multi-station capabilities to hydraulic system upgrades, KRRASS machines are designed to optimize performance and productivity.
Ease of Use: KRRASS prioritizes user-friendly design and intuitive operation in their ironworker machines. With ergonomic controls, easy-to-access components, and simple setup procedures, KRRASS machines are easy to use for operators of all skill levels.
Exceptional Support: KRRASS provides excellent customer support, including technical assistance, training, and after-sales service. Their team of experts is committed to ensuring that customers get the most out of their ironworker machines and are available to address any questions or concerns.
Competitive Pricing: Despite offering high-quality machines with advanced features, KRRASS maintains competitive pricing in the market. This makes their ironworker machines a cost-effective investment for businesses of all sizes.
Q35Y Series Hydraulic Ironworker Machine For Sale
Product Description
This series of products are ideal equipment for cutting all kinds of angle steel, I-beam, U- shape steel, right angle or 45 degree angle steel. Multi-workstations make it possible to finish series operations simultaneously on one machine, such as punching, shearing and notching, Dual-piston-type combined punching and shearing machine allows two-man operation at the same time (stamping +another work station), German Rexroth’s integrated hydraulic valve block ensures the stability of the machine, Through Thermal Effect of annealing processing, the entire rack is able to keep its shape forever, without deformation.
The introduction of imported brand accessories ensures the parts’ service life and use precision.
Punching: effective punching can be achieved with the machine, and stamping die is easy to be replaced.
Bar cutting:
you can quickly cut the round bar and square steel, if you want to cut U-shaped, I-beam or T-profile section steel only by exchanging the cutting blade and the operation procedure is very simple.
Angle cutting:
You can cut several 90 ° and 45 ° angles with the help of special dies.
Sheet Bending:
it is very easy to fulfill the daily metal sheet bending work by making the bending moulds.
Notching: The machine is equipped with a large-shaped slotting blade head, which can meet your general use, as to, special shaping blade head can be customized.
Main functions
More efficient stroke-control functions of piston rod.
Central lubricating system
Motor-driven rear stopper
Lighting devices for work

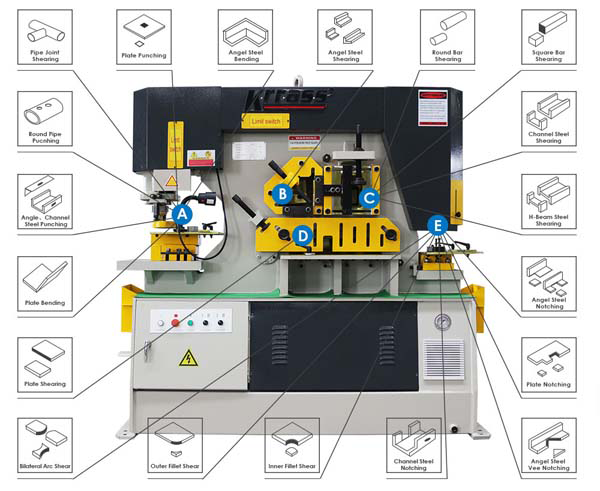

5 independent work-positions: punch pin and die (standard punching dies),cutting blade group for round and square steel, shearing blades for steel plate, slotting and angle-cutting blade.
Technical Parameters
Technical Specification | Q35Y-12 | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 | Q35Y-50 | |||
Punching Pressure(T) | 35T | 60T | 90T | 120T | 160T | 200T | 250T | |||
Depth of throat(mm) | 115 | 300 | 355 | 400 | 600 | 600s | 600 | |||
Standard Die | Punching | Dia.X Max.Thickness | mm | 25X12 | 25X16 | 30X20 | 35X25 | 38X26 | 40X35 | 40X40 |
Dia.X Thickness | mm | 25X12 | 25X16 | 30X20 | 35X25 | 38X26 | 40X35 | 40X40 | ||
Max.Diameter | mm | 12 | 25 | 30 | 35 | 38 | 40 | 40 | ||
Travel | mm | 35 | 80 | 80 | 80 | 80 | 80 | 80 | ||
Working Travel | mm | X18 | X20 | X25 | X25 | X30 | X35 | X40 | ||
Throat Depth | mm | 115 | 300 | 355 | 400 | 600 | 600 | 600 | ||
Steel Bar | Round | mm | 35 | 45 | 50 | 60 | 65 | 70 | 80 | |
Square | mm | 30X30 | 40X40 | 50X50 | 50X50 | 55X55 | 60X60 | 65X65 | ||
Steel Angle | Angle Size | mm | 86X86X8 | 125X125X12 | 140X140X12 | 160X1160X14 | 180X180X16 | 200X200X18 | 200X200X20 | |
Cutting Angle | ° | 50X50X5 | 50X50X5 | 50X50X5 | 60X60X6 | 60X60X6 | 100X100X10 | 120X120X10 | ||
Angle Section | mm | 5.5 | 5.5 | 6.5 | 9 | 11.5 | 12 | 12 | ||
Slotting | Thickness | mm | 100 | 126 | 160 | 210 | 280 | 300 | 320 | |
Width | mm | 30 | 53 | 60 | 75 | 86 | 89 | 92 | ||
Optional Die | U-I Shaped Profile | Size | mm | 100X100X8 | 125X125X12 | 140X140X12 | 160X160X14 | 180X180X16 | 160X160X14 | 180X180X16 |
T-shaped Profile | Size | mm | 40X40X6 | 60X60X8 | 70X70X10 | 80X80X10 | 80X80X10 | 80X80X10 | 80X80X10 | |
I-Beam | Size | mm | 40X60X4 | 126X74X5 | 160X86X6 | 200X102X9 | 280X124X10.5 | 300X126X11 | 320X130X10 | |
V-Bending | Length | mm | 600 | 600 | 600 | 600 | 600 | 600 | 600 | |
V-Bending | Thickness | mm | 4 | 10 | 15 | 20 | 26 | 33 | 40 |
