Hydraulic Press Brake: A Comprehensive Guide to Calibration

Introduction

The hydraulic press brake is an essential tool for bending and forming metal sheets.

The accuracy and precision of the press brake depend on the calibration.

Hydraulic Press Brake calibration is a machine’s adjusting process to ensure the materials can be bent accurately to your required angles and sizes.

So, how to calibrate a press brake? The following steps can offer you some reference

Steps of Hydraulic Press Brake Calibration

Prepare the Hydraulic Press Brake: Start by ensuring that the press brake is turned off and disconnected from the power source. This is essential for safety during the calibration process.

Check the Hydraulic System: Inspect the hydraulic system for any leaks, damage, or irregularities. Address any issues found before proceeding with calibration.

Inspect the Ram and Tooling: Examine the ram and tooling for any signs of wear or damage. Replace any worn-out or damaged tooling to ensure accurate bending.

Set Up Measuring Tools: Install precision measuring tools, such as dial indicators or laser measurement devices, on the press brake. These tools will be used to measure the accuracy of the bending process.

Check Parallelism: Verify that the ram and bed of the press brake are parallel to each other. Use precision measuring tools to check for any deviations from parallelism.

Adjust Ram Position: If necessary, adjust the position of the ram to ensure parallelism with the bed. Use the press brake’s adjustment mechanisms to make fine adjustments as needed.

Check Bending Angle: Set up a test piece of material and bend it to the desired angle. Measure the angle of the bend using precision measuring tools and compare it to the desired angle.

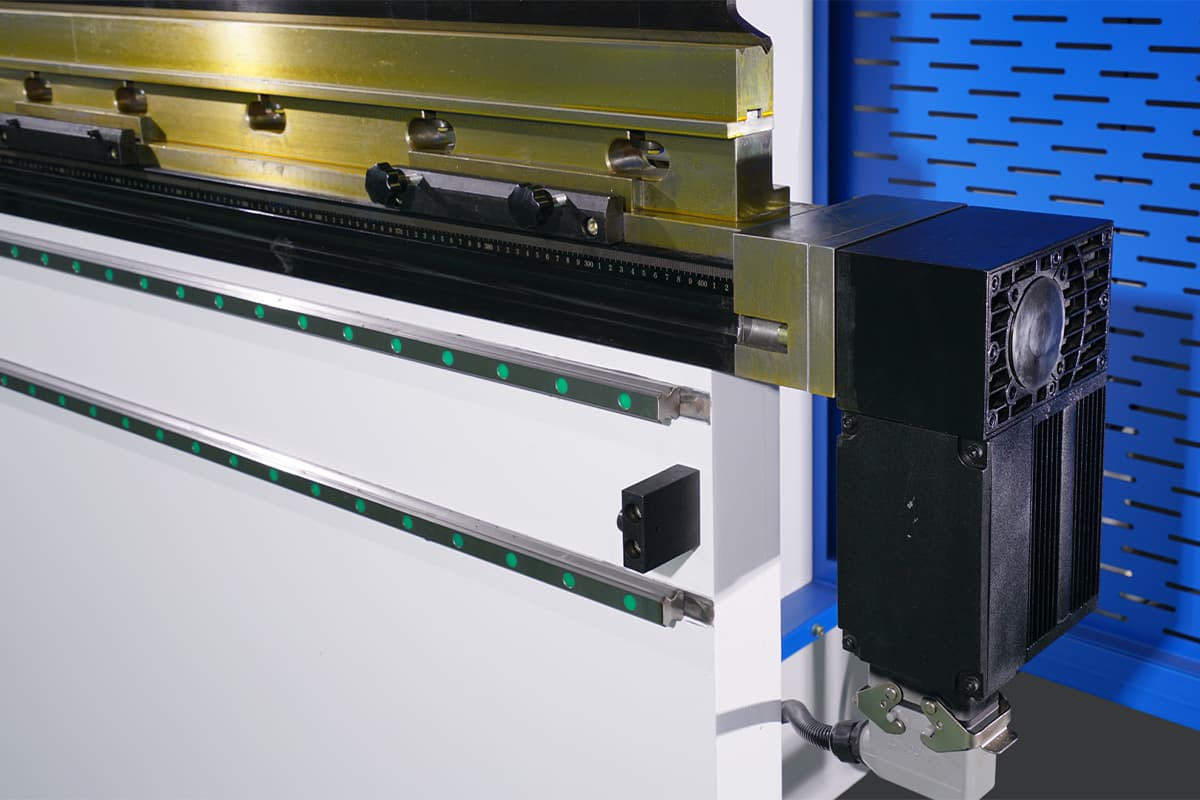

Adjust Bending Angle: If the angle of the bend is not accurate, adjust the press brake’s settings accordingly. This may involve fine-tuning parameters such as tonnage, stroke length, or back gauge position.

Repeat Calibration: After making adjustments, repeat the bending process and measurement steps to verify that the calibration is accurate. Make further adjustments as needed until the desired accuracy is achieved.

Document Calibration: Once the press brake is properly calibrated, document the calibration process, including any adjustments made and the final bending parameters. This documentation will serve as a reference for future use.

Test Run: Before resuming regular production operations, perform a test run with scrap material to ensure that the press brake is functioning correctly and producing accurate bends.

Regular Maintenance: Schedule regular maintenance checks and calibration sessions to keep the press brake in optimal condition and ensure consistent accuracy over time.

Importance of Press Brake Calibration

The calibration of the hydraulic press brake is of vital importance because it directly affects the quality of metal bending, accuracy, and safety. And here are the main reasons:

Precision and Consistency
Press brake calibration can ensure the machine can bend the metal sheet at a precise and consistent angle.

Accurate bending can generate even parts. Thus the waste parts and the change in the final product can be decreased.

Quality Insurance
the correct calibration can ensure the final bending workpiece can meet the requirement of specification and quality standards.

This is essential for providing products that meet customer expectations and industry regulations.

Safety Insurance
If the press brake is calibrated well, the risk of accidents and injury can be decreased.

In the measuring process, if the press brake is not calibrated or calibrated inexactly, the tool’s unexpected movement may be generated, thus bringing danger to the operator.

Cost Saving
A calibrated hydraulic press brake can reduce the waste of material owing to the small part of defective components.

Besides, accurate bending can decrease the requirement for rework, thus improving efficiency and saving costs.

Prolong the Lifespan
A calibrated press brake can reduce the wear of critical parts, thus prolonging the machine’s lifespan. This help avoids expensive failure and downtime.

Optimize Performance
The calibration can ensure the excellent performance and function of the press brake, which is very important for a mass productivity environment.

Customer Satisfaction
Offering continuous, high-quality, and precise components can satisfy customers and establish customer confidence.

Also, it can improve the company’s reputation and bring repeatable business and recommendations.

Improve Efficiency
The correct calibration can benefit the productivity process, reducing downtime caused by reworking and adjusting, which can improve productivity and efficiency.

Conclusion

The press brake calibration is a task that requires professional knowledge and precision.

The paramount thing is to prioritize safety when using an industrial mechanism like a press brake.

If you need more confidence in calibration, it is better to seek help from qualified operators or contact the manufacturer’s service department.
