Hydraulic Shearing Machine 4 Major Methods For Metal Fabrication – Ultimate Guide

What Is A Hydraulic Shearing Machine

A hydraulic shearing machine, also known as a hydraulic guillotine shear, is a mechanical device used in metal fabrication to precisely cut sheet metal with straight, clean edges. It operates on the principle of using hydraulic pressure to apply force to a sharp blade, thereby shearing or cutting through the metal.

4 Processing Methods Used In Hydraulic Press Brake

Hydraulic shearing machines are crucial tools in sheet metal fabrication, providing efficient and precise cutting capabilities. There are indeed various methods used to shape sheet metal, and hydraulic shearing is one of the primary methods. Here are four major methods commonly employed in shaping sheet metal:

Shearing:

Hydraulic shearing involves the use of a shearing machine equipped with a sharp blade to cut through sheet metal along a straight line. The sheet metal is placed between the upper and lower blades, and hydraulic force is applied to the upper blade to exert a cutting action against the stationary lower blade. This method is ideal for straight cuts and is commonly used to separate large sheets into smaller pieces or to trim excess material.

Bending:

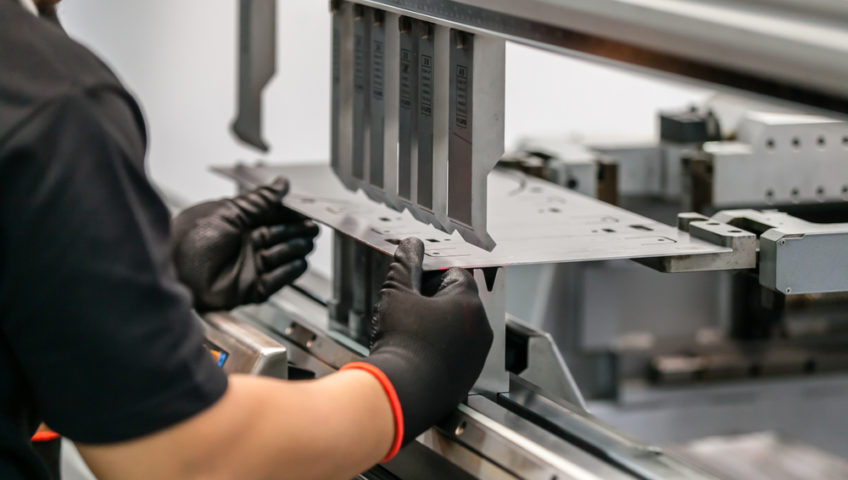

Bending is another fundamental method used in sheet metal fabrication to create bends, angles, and shapes in metal workpieces. Hydraulic press brakes are commonly employed for bending operations. The sheet metal is placed between a punch and a die, and hydraulic force is applied to the punch to bend the metal to the desired angle. This method allows for the creation of complex shapes and is widely used in the production of components such as brackets, enclosures, and panels.

Rolling:

Rolling is a process used to gradually shape sheet metal into cylindrical or curved forms. Hydraulic plate rolling machines are utilized for this purpose. The sheet metal is passed through a series of rollers that apply pressure to gradually bend it into the desired shape. This method is commonly used in the production of cylindrical components such as pipes, tubes, and tanks, as well as curved panels and enclosures.

Punching:

Punching involves the use of a hydraulic punching machine equipped with a punch and die set to create holes, slots, and other cutouts in sheet metal. The sheet metal is positioned under the punch, and hydraulic force is applied to the punch to penetrate and cut through the material. This method is commonly used for creating holes for fasteners, ventilation, cable routing, and other purposes in sheet metal components.

Conclusion

These four methods—shearing, bending, rolling, and punching—form the foundation of sheet metal fabrication and are essential processes in the manufacturing of a wide range of products across various industries. Each method offers unique capabilities and advantages, allowing manufacturers to achieve precise shapes and dimensions in sheet metal components.
