Hydraulic shearing machines play a pivotal role in the metalworking industry, offering precise cutting capabilities for various materials such as steel, aluminum, and stainless steel. Understanding the working principle of these machines is crucial for optimizing their performance and ensuring efficient operation.
Working Principleof Hydraulic Shearing Machine
The working principle of a hydraulic shearing machine revolves around utilizing hydraulic power to generate the force required for cutting through metal sheets or plates. Here’s a detailed explanation of how these machines operate:
- Hydraulic System: At the heart of a hydraulic shearing machine is its hydraulic system, which consists of a hydraulic pump, hydraulic cylinders, valves, and a hydraulic fluid reservoir. When the machine is activated, the hydraulic pump generates pressure by forcing hydraulic fluid into the cylinders.
- Clamping: Before the cutting process begins, the metal workpiece is securely clamped in place on the machine’s worktable or cutting bed. This ensures stability and prevents any movement during cutting, allowing for precise and accurate results.
- Cutting Mechanism: The cutting mechanism of a hydraulic shearing machine typically comprises a sharp blade or shear mounted on a moving ram or beam. As hydraulic pressure is applied to the cylinders, the ram moves downward, bringing the cutting blade into contact with the metal workpiece.
- Shearing Action: Once the cutting blade makes contact with the workpiece, it applies a shearing force, exerting pressure along the length of the material. This shearing action causes the metal to yield and eventually fracture along the desired cutting line.

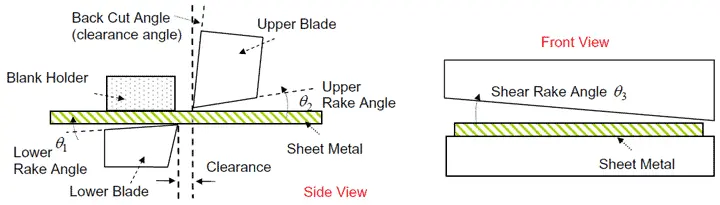

- Clearance Adjustment: Hydraulic shearing machines allow for adjustment of the cutting clearance, which refers to the gap between the cutting blade and the stationary blade or support surface. By controlling the clearance, operators can optimize cutting performance and achieve clean, burr-free edges.
- Control System: Modern hydraulic shearing machines are equipped with advanced control systems that provide operators with precise control over cutting parameters such as blade speed, cutting angle, and backgauge position. This allows for greater flexibility and customization to meet specific cutting requirements.
- Safety Features: Hydraulic shearing machines are equipped with various safety features to protect operators and prevent accidents. These may include safety guards, emergency stop buttons, and interlocking mechanisms that ensure safe operation at all times.
In summary, hydraulic shearing machines utilize hydraulic power to deliver the force required for cutting through metal sheets or plates. By understanding the working principle of these machines and optimizing their operation, manufacturers can achieve efficient and precise cutting results for a wide range of applications in the metalworking industry.
