Hydraulic Swing Beam Shearing Machine

Hydraulic Swing Beam Shears adopts high technology standards, design, and a user-friendly interface. We have reduced the cutting angle to achieve straight precision and minimum twist tolerance. QC12K Hydraulic Shearing Machine provides perfection with high-standard safety and efficient solutions that strengthen your skills and add value to your company.

Certificates 1

Rating:

Get in touch

If you have any questions, please contact us, we will get back to you as soon as possible.

Please enable JavaScript in your browser to complete this form.
=
QC12K Swing Beam Shearing Machine
Years experience
Export country
Production capacity
Year warranty
MB8 series Press Brake pdf Cover
Download the Swing Beam Shearing Machine catalog now!

Get in touch

If you have any questions, please contact us, we will get back to you as soon as possible.

Please enable JavaScript in your browser to complete this form.
=

Hydraulic Swing Beam Shearing Machine(QC12K Series)

Features & Configuration​​​​​​​

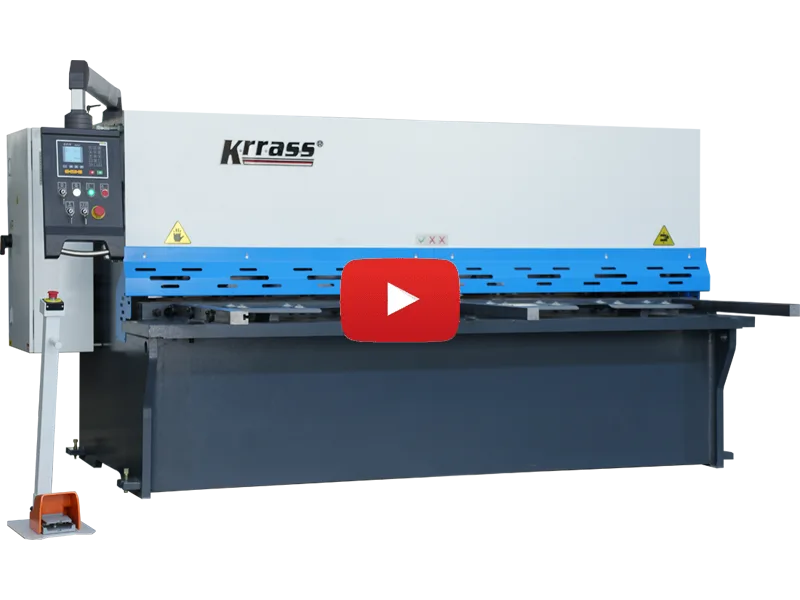

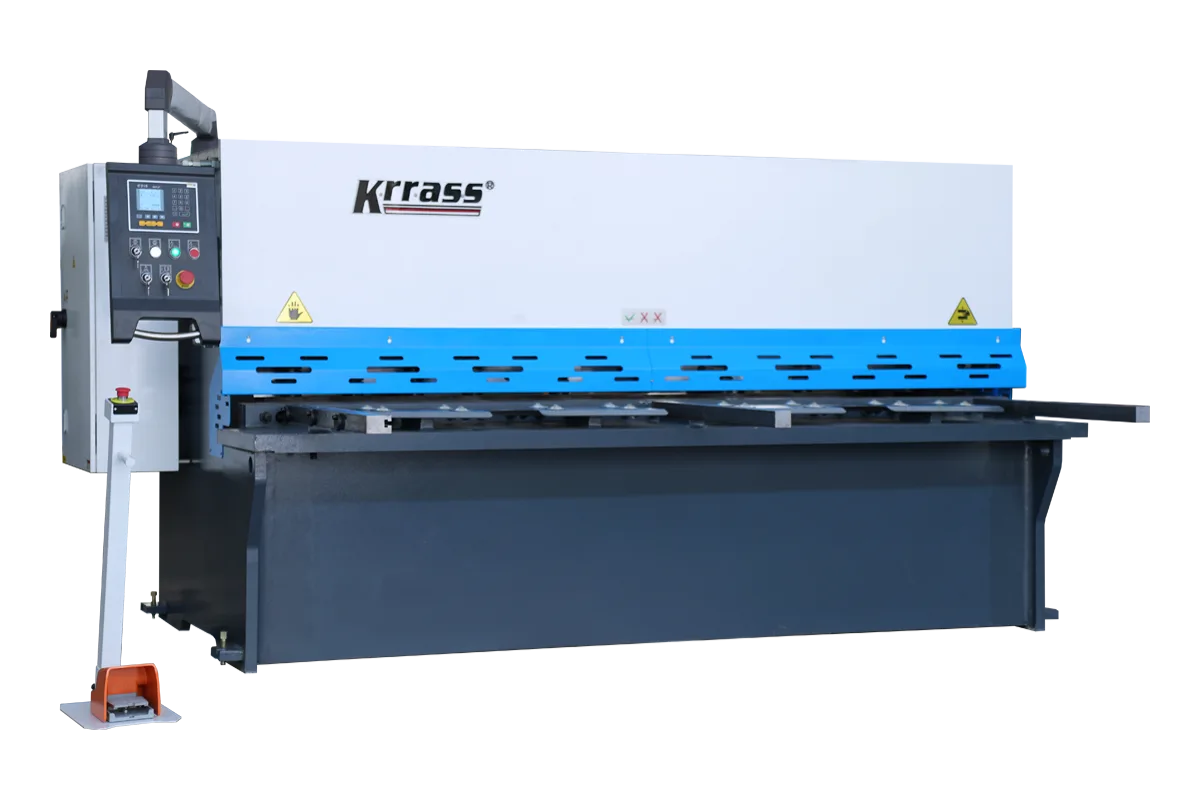

QC12K Swing Beam Shearing Machine

Main Features

Imported configuration, stable and reliable

High strength frame with thick plate and sufficient material High precision rear retaining system

The maximum shearing thickness can reach 30mm

Maximum working width up to 8 meters

Universal High-End Intelligent Swing Beam Shearing Machine

What’s Swing Beam Shearing machine?

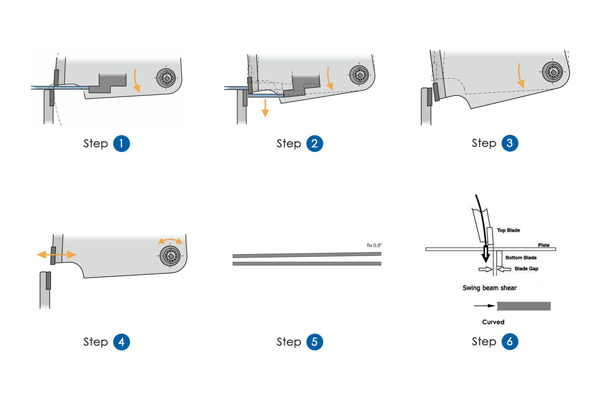

principle of swing beam shearing machine

The upper blade penetrates the metal sheet above the lower edge. A pivoting movement cuts the swing beam. After the amount is made, the upper blade moves away from the lower blade. The upper knife moves away from the lower edge after cutting. The upper and lower blade do not rub on each other. A pivoting movement cuts the swing beam. After the amount is made, the upper edge moves away from the lower blade. The blade clearance can be easily adjusted by turning the cutting gap eccentric. The upper edge moves away from the lower blade after cutting. The upper and lower blade do not rub on each other. Swing beam cutting requires a riding shear design. The reason is the low rake angle, which is the fix for any material thickness.

CNC Controller

Personalize the Controller to Unleash the Full Potential of Your KRRASS QC12K Series Swing Beam Shearing Machine!

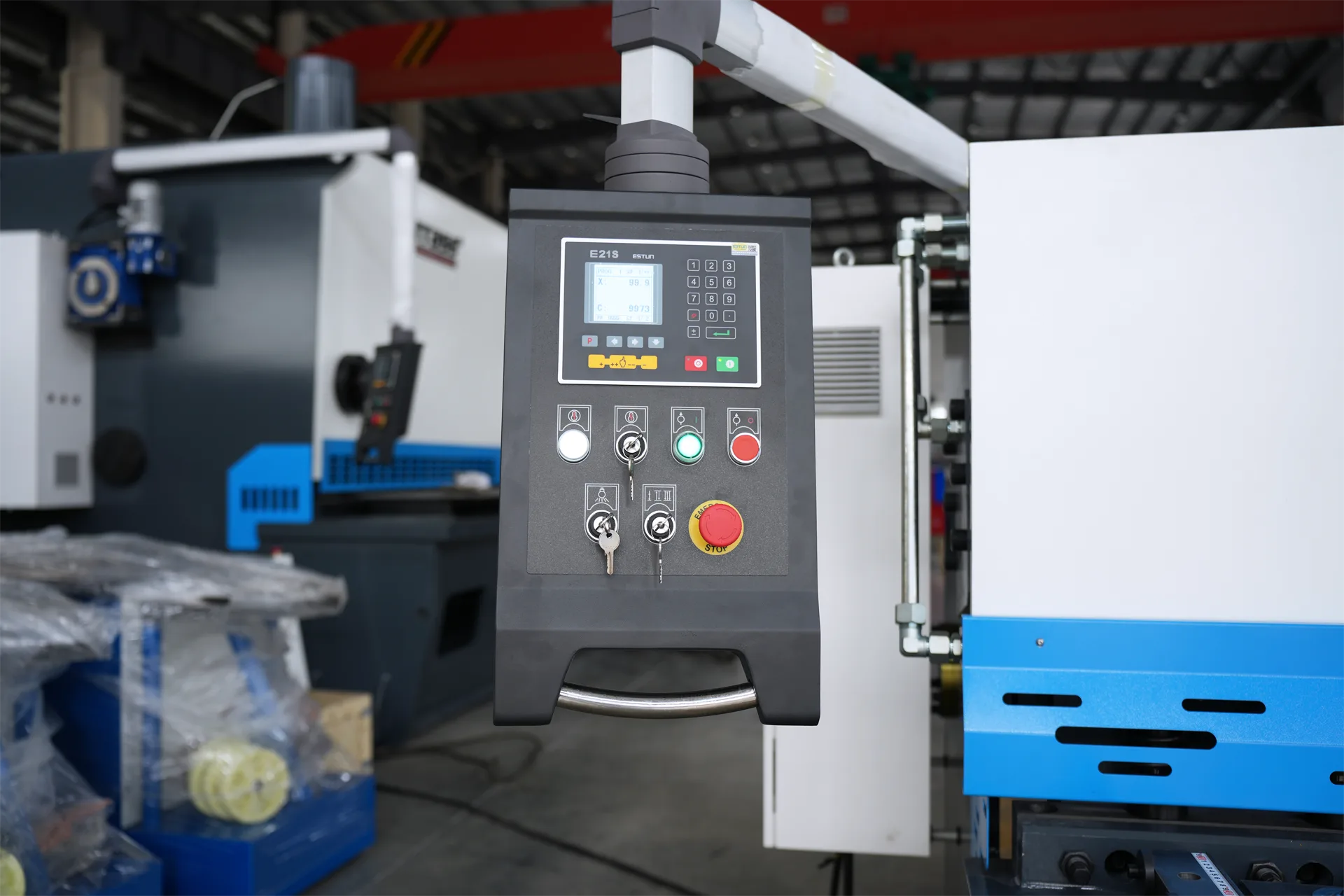

ESTUN E21S Control

  • High-definition hydraulic display
  • Control common motors and frequency converters
  • X-axis intelligent positioning
  • Multi-step programming, 40 programs, each program 25 steps
  • Built-in time relay function
  • One-button function switching
  • Unilateral positioning function
  • A key backup and restore of parameters
  • Chinese and English
  • Metric system

Standard Configuration

stress analysis finite element analysis

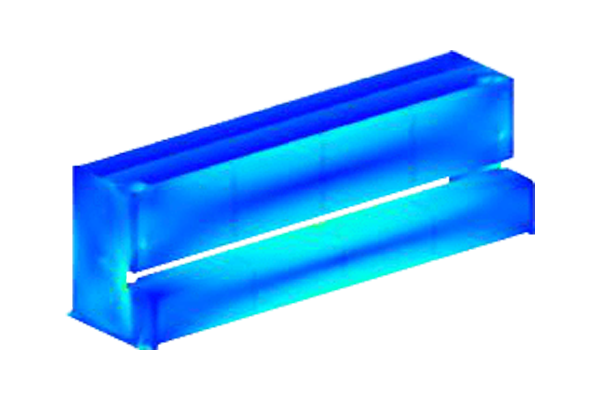

Stress Analysis & Finite Element Analysis

The CAE software SOLIDWORKS used as the method to analyze the linear static construction, stress and deformation for press break and laser cutting machine frames. So for complicated structures, highly complex loading’s, transient modelling and combination of the above, FEA makes sense.

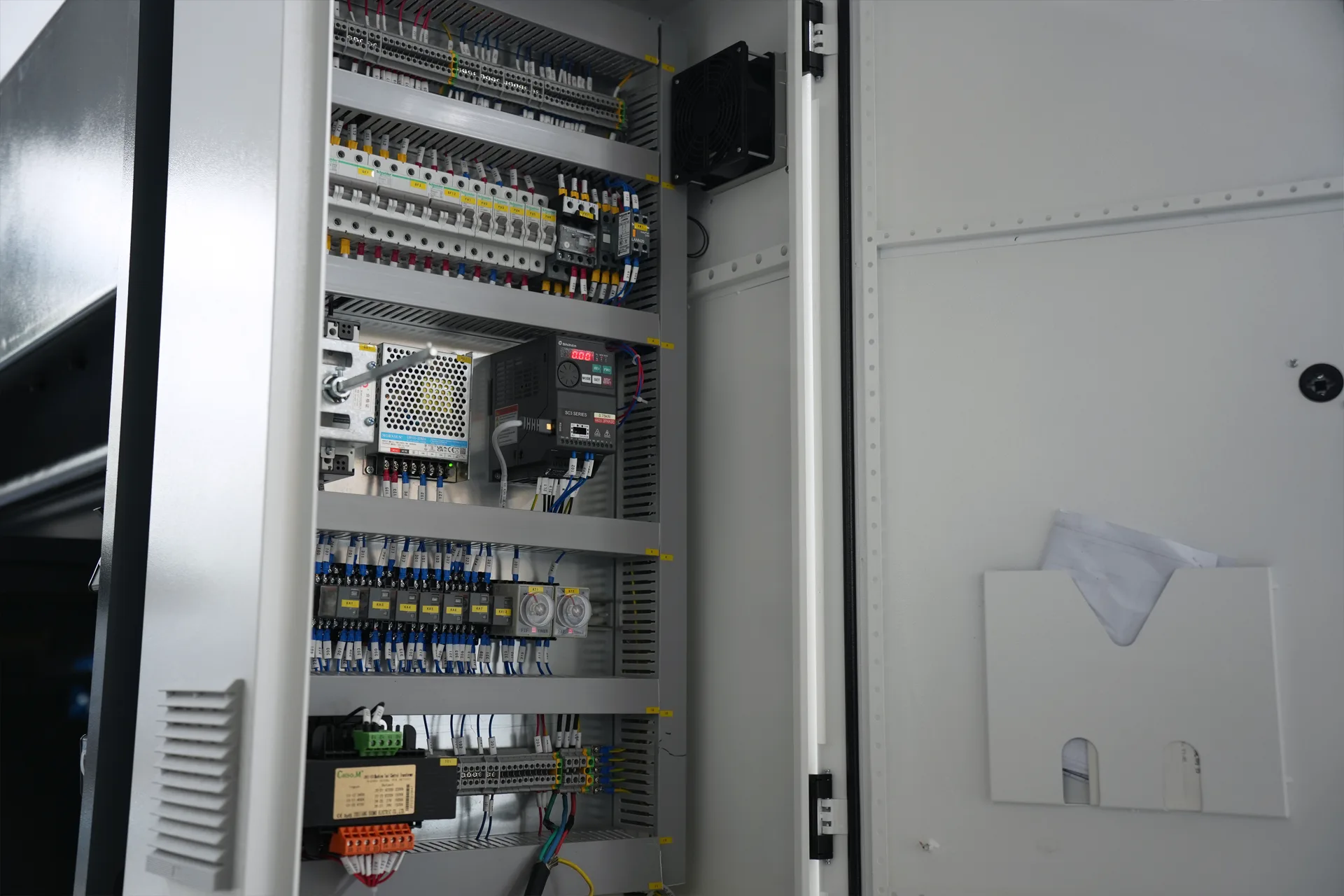

Schneider Electric

High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the word.

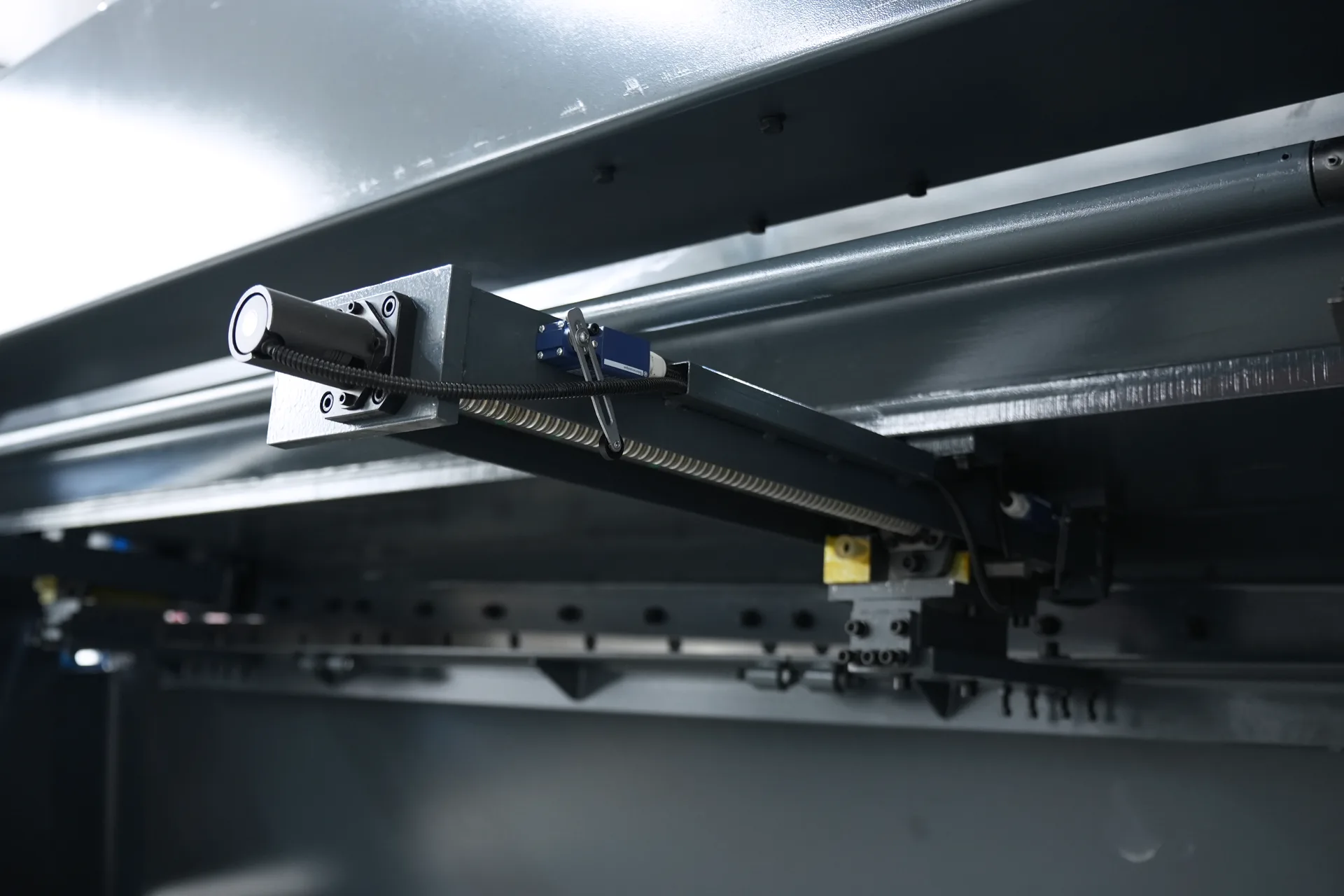

X-axis Motor and Screw

X axis back gauge clearance are controlled by E21s which ensures a higher cutting accuracy, Backgauge with Optional ball screw and line guide rail.

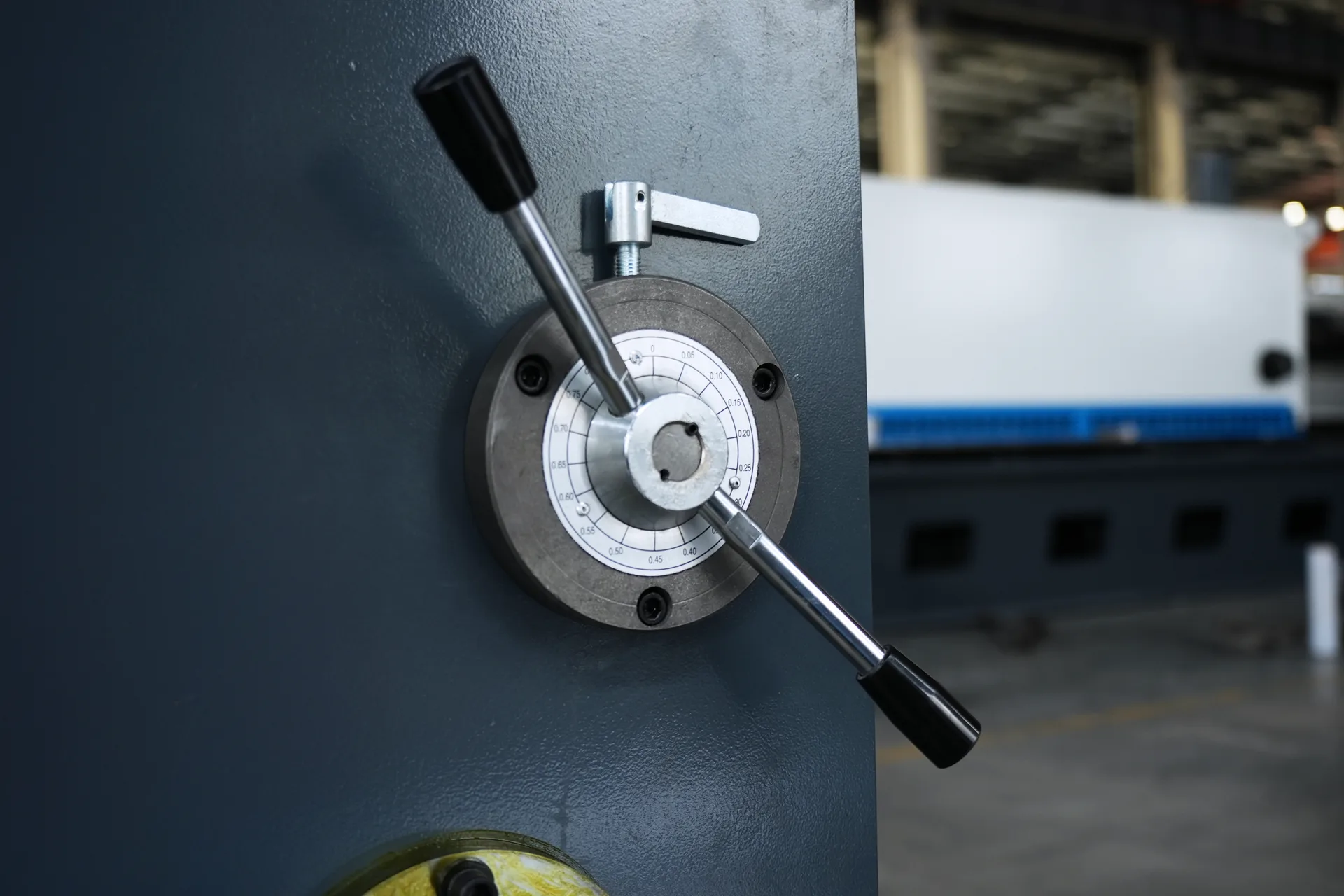

Blade Clearance Adiustment

Adjust the cutting blades gap by moto!according the cutting thickness of themetal sheet can get better cutting performance.

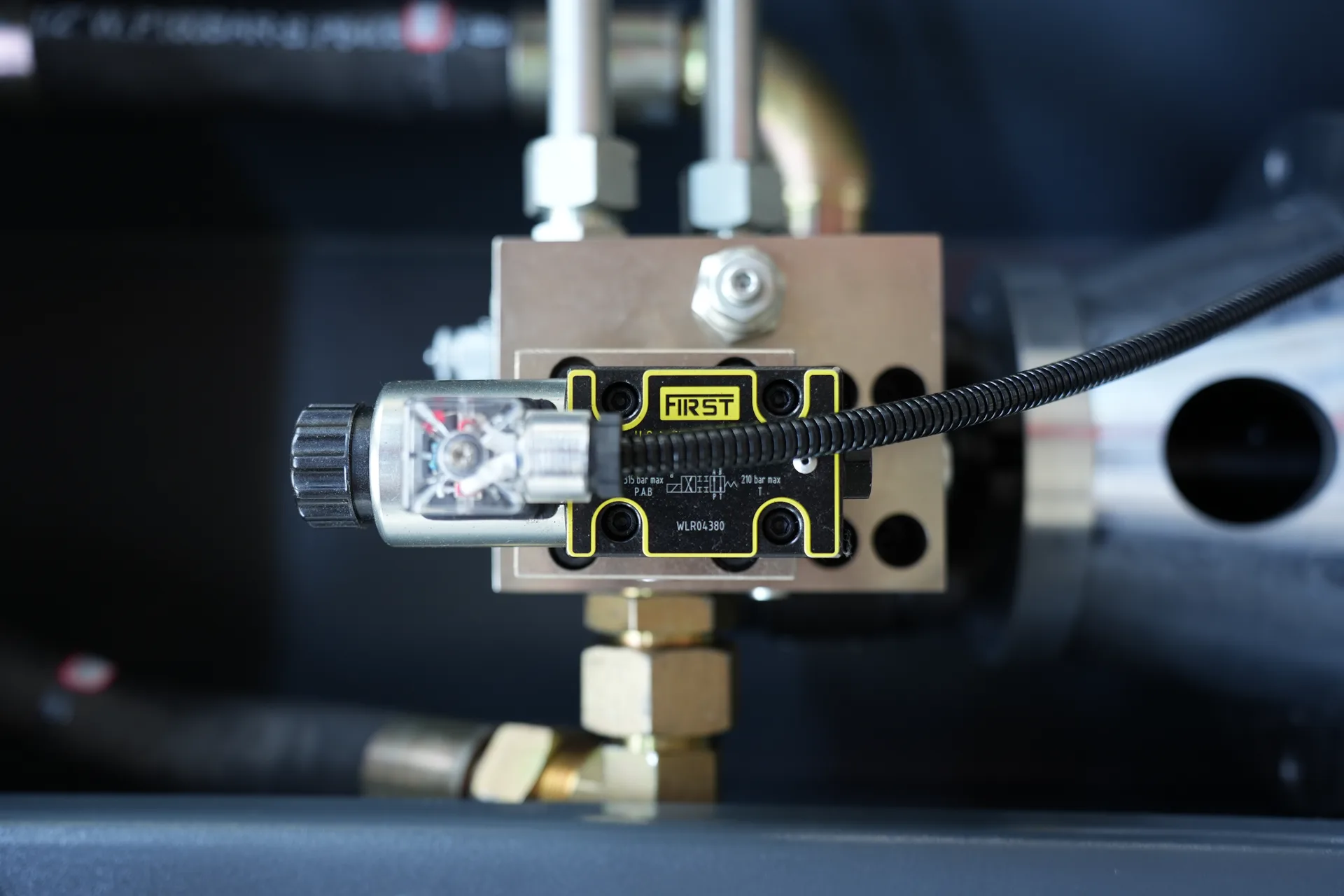

FIRST Hydraulic Valve

The world famous brand FIRST, Is a professional hydraulic valve supplier.

The EMB oil pipe joint has a beautiful structure and reduces the possibility of oil leakage.

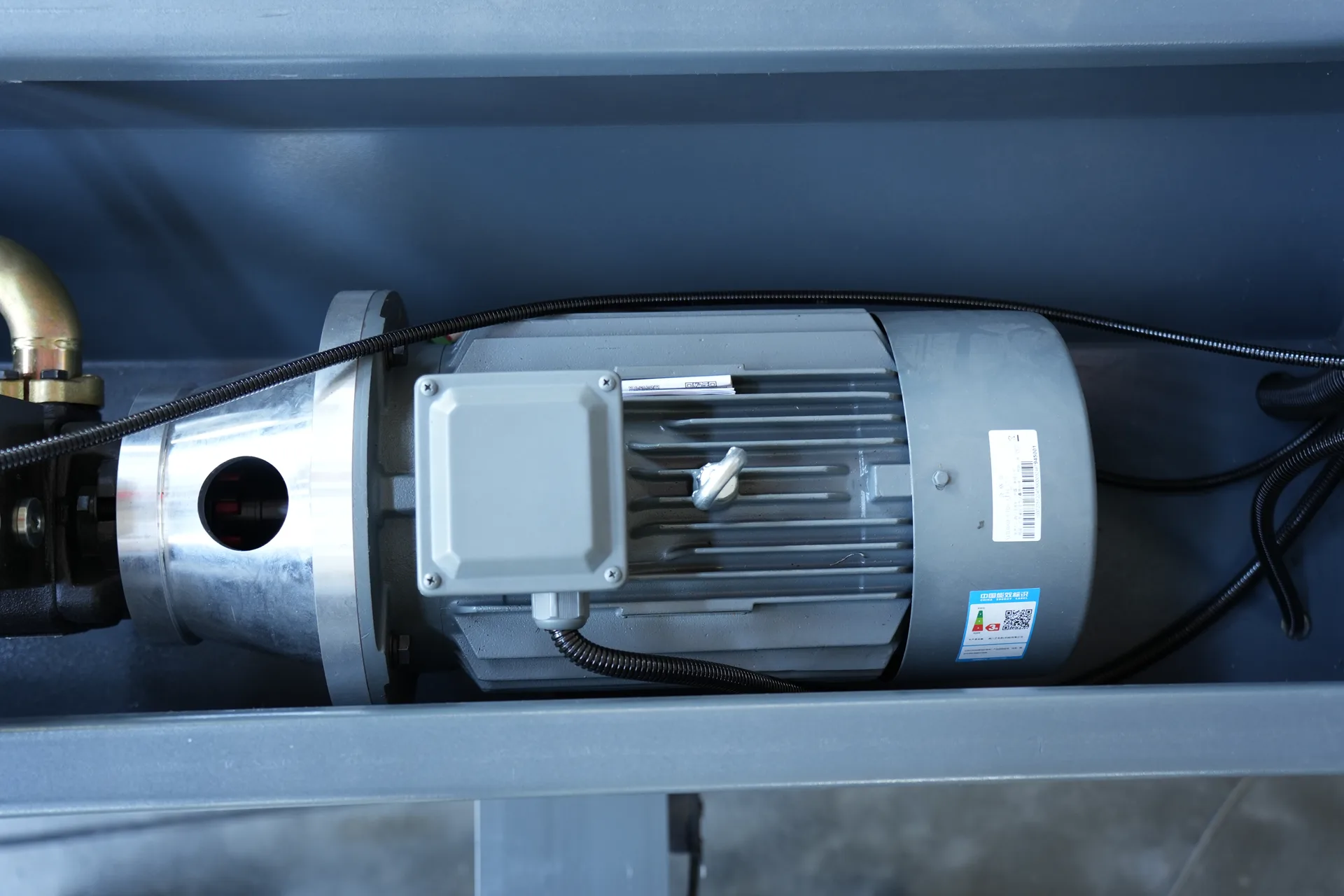

German Siemens Main Motor

The German famous brand motor increases the service life of the machine and keeps the machine working in a low-noise environment.

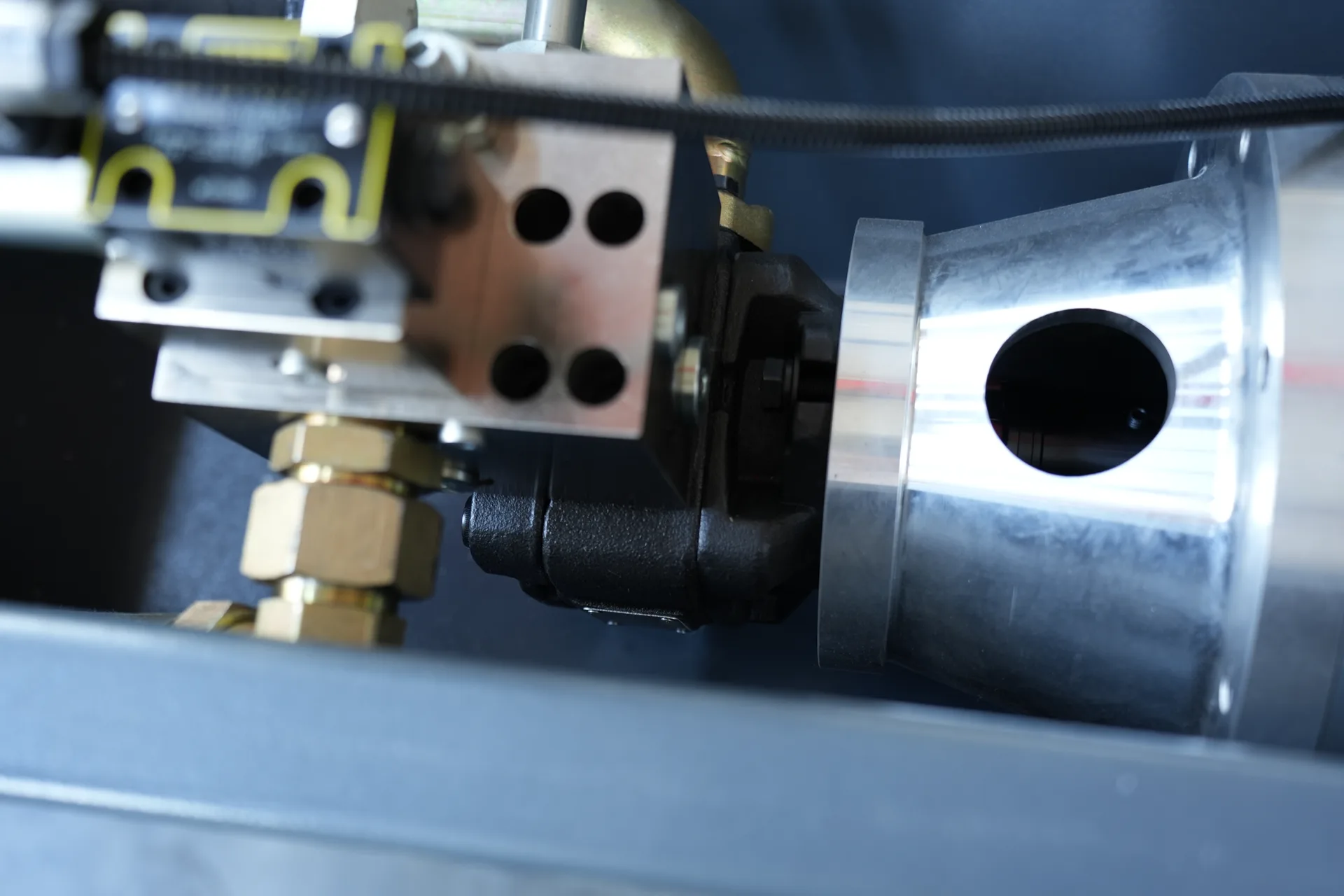

FIRST hydraulic oil pump

The oil pump is highly regarded for its exceptional performance, known for its quiet operation and remarkable longevity, making it a reliable choice for various applications.

Front Material Support

The front material rack can effectively help you reduce the work pressure when you are cutting larger metal sheets, making it easier for you to support and move the sheets.

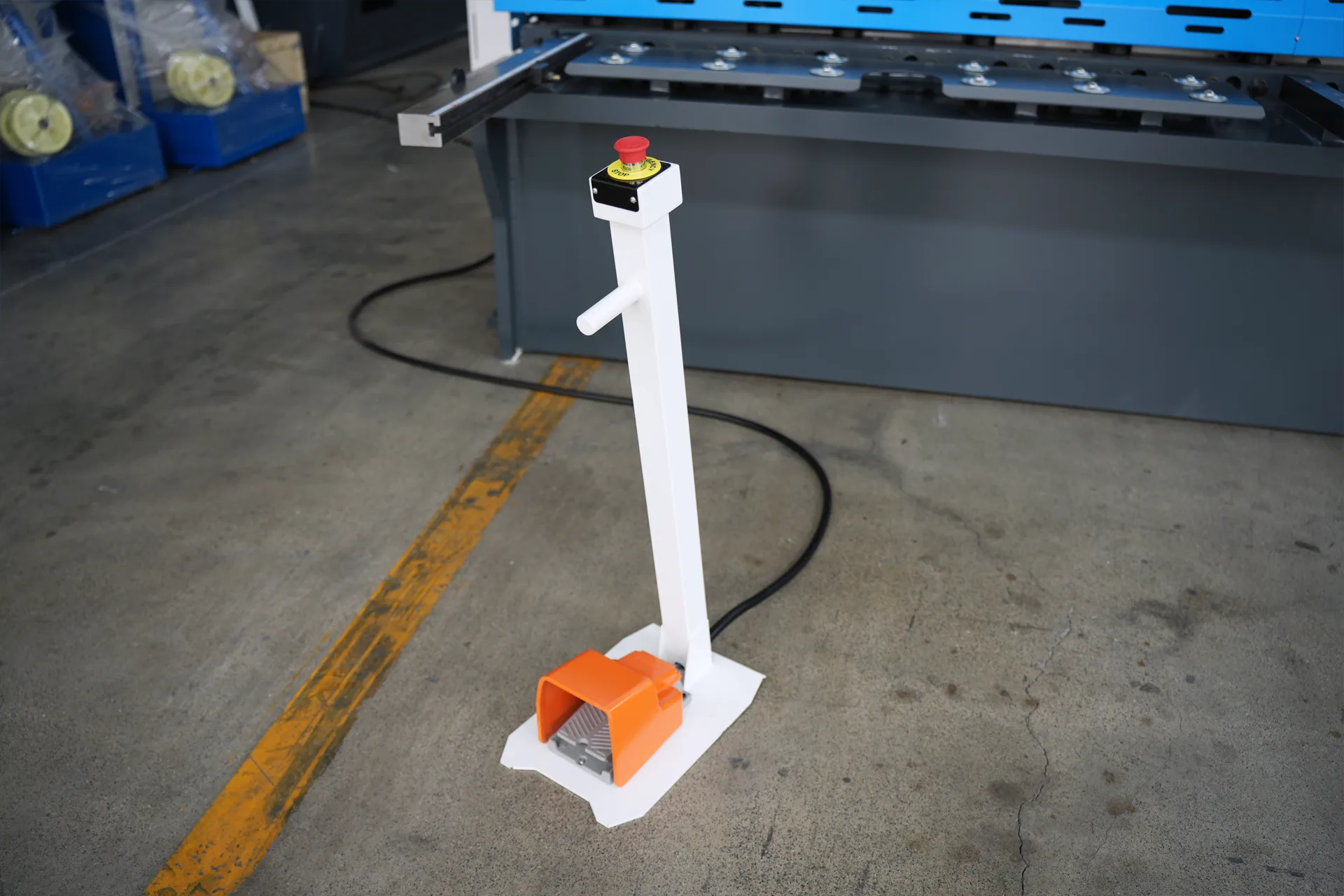

Pedal Switch

South Korea brand foot switch ismovableand can stop the machineanytime by theemergency button.

Powerful CNC Controller System

Several innovative patented technologies

A variety of controller are available

Delem DAC-362T Control

  • Panel based housing
  • Bright LCD screen
  • Back / front gauge control
  • Retract function
  • Cutting angle and gap control
  • Stroke length limitation
  • Manual movement of all axes
  • Force control
  • Sheet thickness measurement
  • Return to Sender function
  • Second and third servo axis (DAC-362T)
  • Sheet support

ELGO P40 Control

  • One- or two-axis version
  • LCD display
  • Easy handling
  • Multi-lingual menu navigation
  • Option PID analog output available
  • Reference run
  • Manual-, single- and program mode

Other Optional Configuration

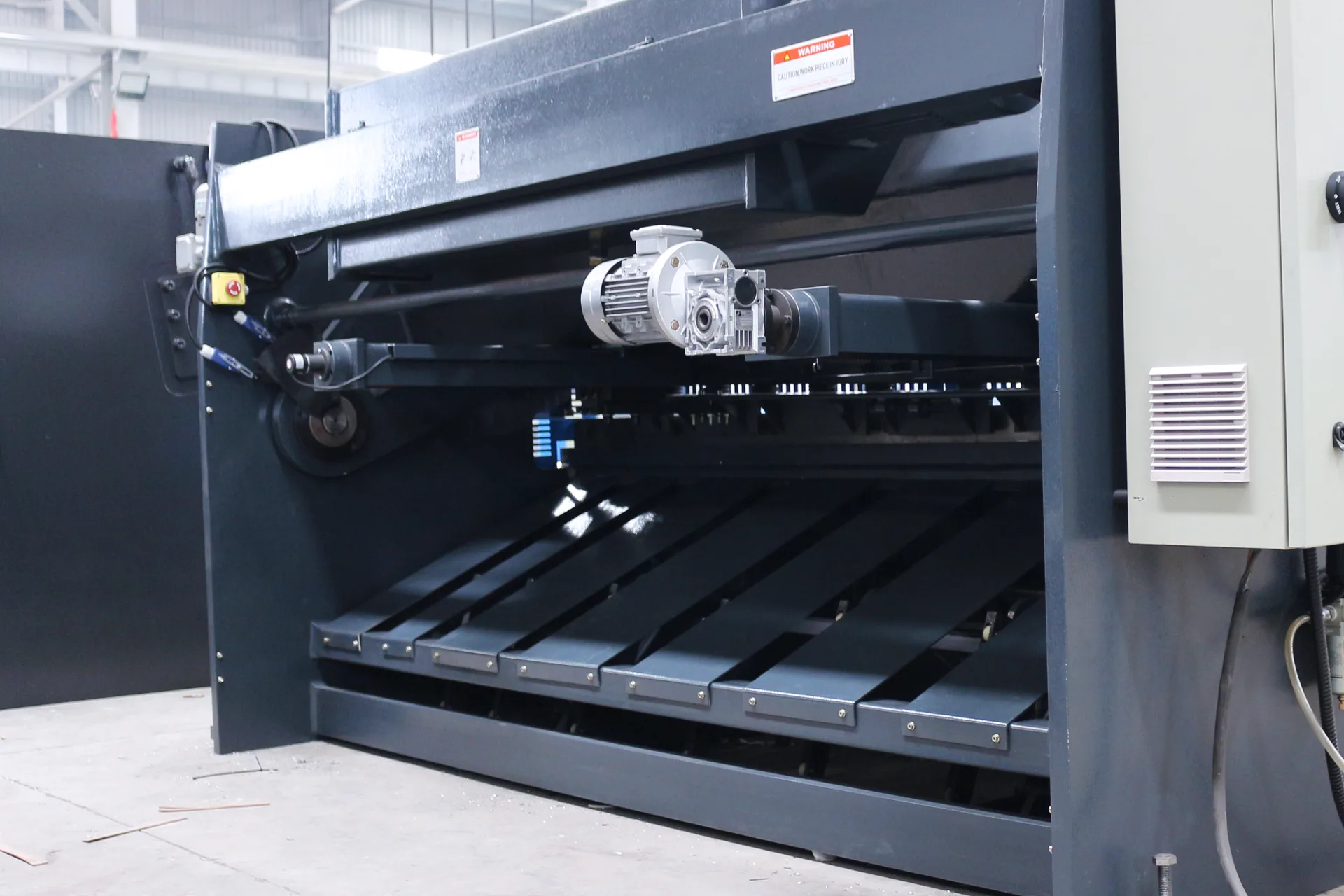

Pneumatic back support

The storage position of the finished plate products is adjusted by a pneumatic device to improve work efficiency.

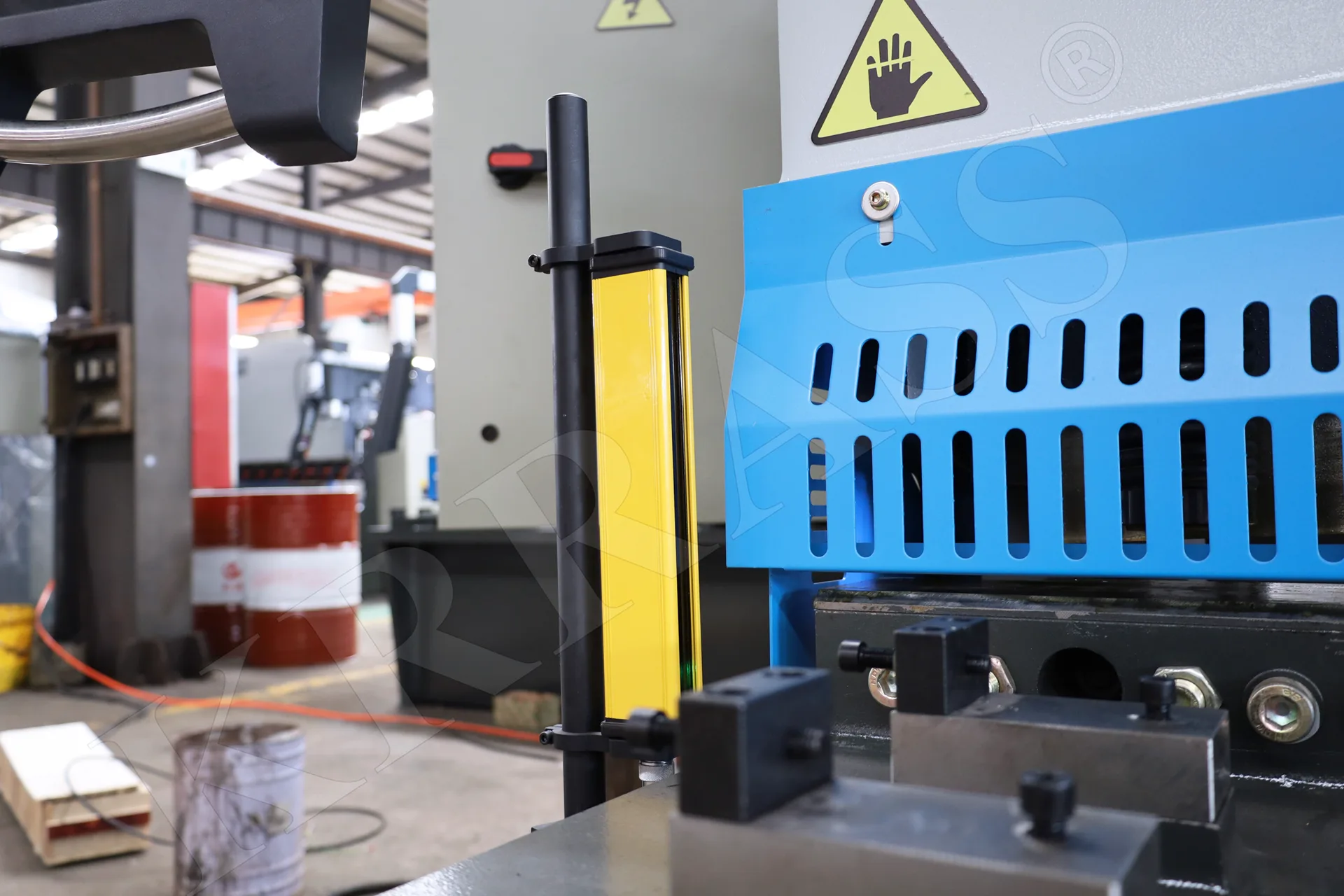

Photoelectric safety protection

The quick-response protection system can effectively protect the safety of equipment operators and avoid accidental injuries.
