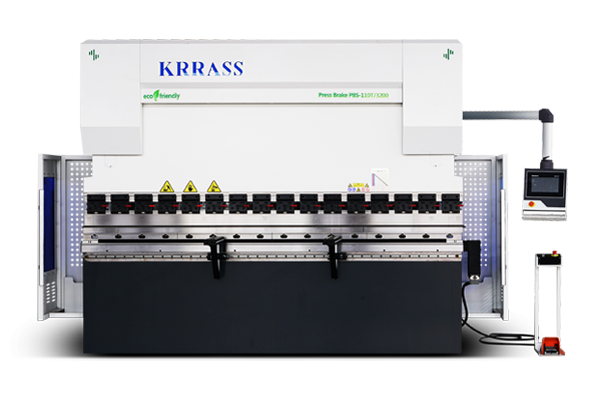

MB8 Series press brake for sale, it’s designed with high technology to increase efficiency on precise part bending. With Easy to use control unit, stabile body structure, perfect design, low operating cost, different tool usage options, maximum safety standards, KRRASS bending machine is the best in the world in its segment.
Bending performance is increased by using high quality European clamping system and easiness to use. KRRASS is your solution partner with various tool options.
MB8 Series Sheet Metal Press Brake, it’s an affordable Sheet Metal Press Brake with an impressive number of features and options. Competitive pricing with advanced DELEM DA-53T or DA-58T 2D capable graphical controls. Advanced Series is your first choice in Y1/Y2 machine technology.
Standard Equipment
REQUEST INFORMATION
- Controller: DELEM DA-53T
- Electrics: Schneider Electric – France
- Main Motor: Siemens Motor – Germany
- Servo Motor: ESTUN
- Foot Switch: KACON – South Korea
- Hydraulic System: Bosch Rexroth – Germany
- Oil Pump: Sunny – USA
- Sealing Ring: PARKER – America
- High Efficiency Motor – Class IE3
- Tube Connector: EMB – Germany
- Backgauge: Hiwin – Taiwan
- Grating Ruler: Fagor
Introduction to Configuration (Some Parts)

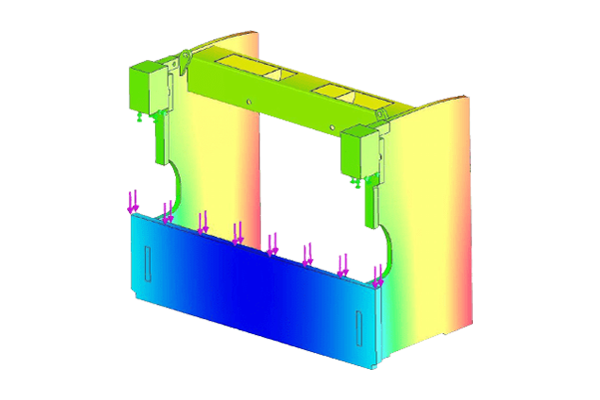

Stress Analysis & Finite Element Analysis
The CAE software SOLIDWORKS used as the method to analyze the linear static construction, stress and deformation for press break and laser cutting machine frames. So for complicated structures, highly complex loading’s, transient modelling and combination of the above, FEA makes sense.

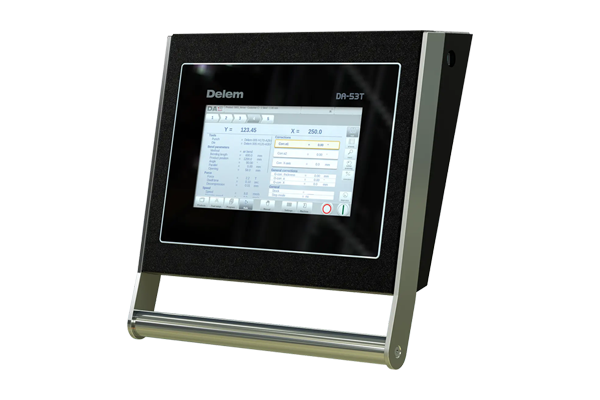

DELEM DA-53T Control
- “Hot-key” touch navigation
- 10.1″ high resolution colour TFT
- Up to 4 axes (Y1, Y2 + 2 aux. axes)
- Tool / material / product library
- Servo and frequency inverter control
- Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
- TandemLink (option)
- USB memory stick interfacing
- Profile-T offline software

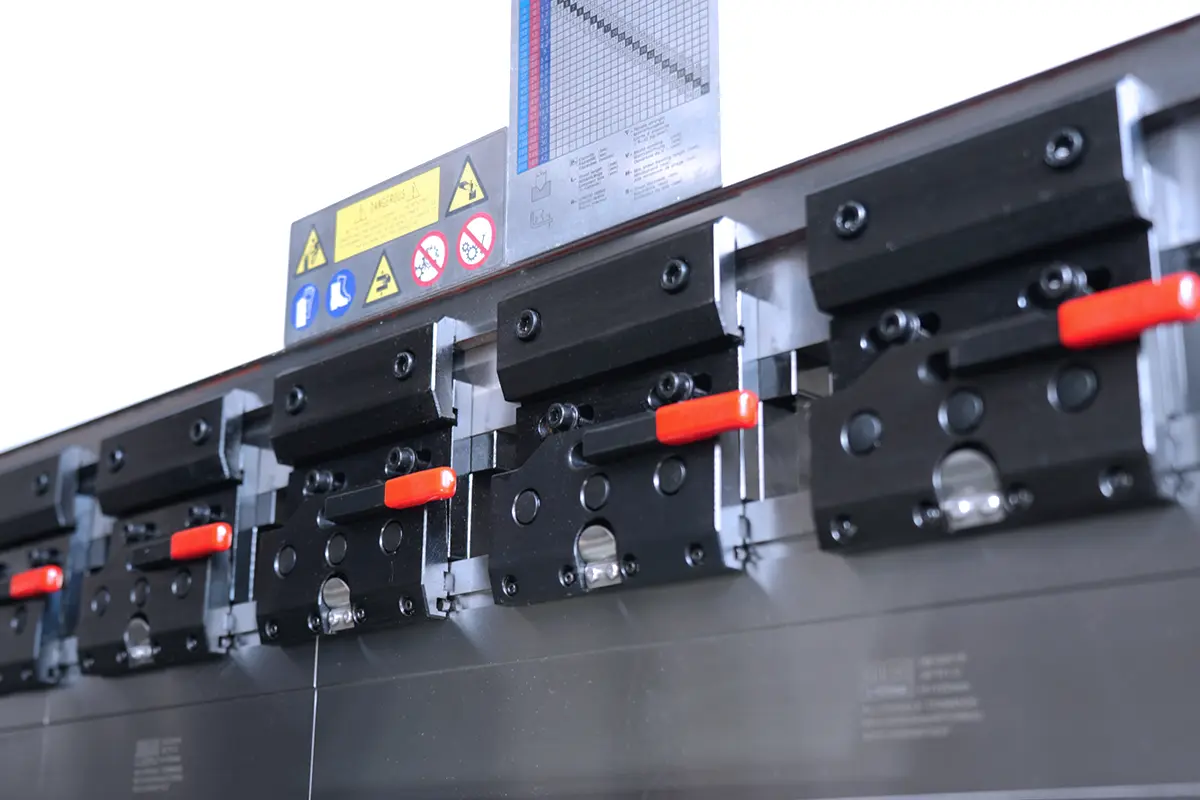

Manual Upper Tool Clamping:
KRRASS CNC press brake use all Raw material is provided by qualified suppliers and chemical composition corresponds to international standards. Therefore, raw material yield and tensile strength are guaranteed, are standardized with a 8.4 x 3.5 mm safety groove, which keeps the tool from falling out.
Advantage:
- Safe and fast tool change
- Can be used without modifying Europe type punches
- Front clamp – vertical tool change
- Rear clamp – horizontal tool change
KRRASS® BGA-2 BackGauge
Sheet Metal Press Brake 2-Axis CNC BackGauge with X, R-Axis
- Hiwin Ball screws and linear guide on X, R-axis
- Axis X speed 500 mm/s
- Manual Z1, Z2-axis with HIWIN linear guide
- Mechanical accuracy ± 0.01 mm
- Fingers with double stop and micrometric adjustment
Advantage of MB8 Press Brake for sale
- High dynamic for a higher productivity of the machine.
- Compliance with EU Directives.
- Lower energy for a green Machine.
- Lowered sound pressure level at 50 dB.
- The servo-motor, with closed loop speed control.
- Energy efficiency of up to 35 % compared to conventional systems.
- Operating cost is min due to low energy consumption. Thus, it gives advantages to the user with high efficiency & low operation cost.
Technica Parameter of Press Brake For Sale
Model | Bending Pressure (kn) | Bending Length (mm) | Column Distance (mm) | Throat Depth (mm) | Slider Stroke (mm) | Max. Opening Height (mm) | Y1,Y2-axis Down Speed (mm/sec) | Y1,Y2-axis Back Stroke Speed (mm/sec) | X-axis Max.Distance (mm) | Main Motor (kw) |
---|---|---|---|---|---|---|---|---|---|---|
50T1600 | 500 | 1600 | 1250 | 205 | 160 | 540 | 230 | 140 | 600 | 4 |
80T/2500 | 800 | 2500 | 2000 | 350 | 170 | 570 | 230 | 140 | 600 | 7.5 |
100T/2500 | 100 | 2500 | 2000 | 410 | 200 | 570 | 220 | 140 | 600 | 7.5 |
100T/3200 | 1000 | 3200 | 2700 | 410 | 200 | 570 | 220 | 140 | 600 | 7.5 |
100T/4000 | 1000 | 4000 | 3500 | 410 | 200 | 570 | 220 | 140 | 600 | 7.5 |
110T/3200 | 1100 | 3200 | 2700 | 410 | 200 | 570 | 220 | 140 | 600 | 7.5 |
110T/4000 | 1100 | 4000 | 3500 | 410 | 200 | 570 | 220 | 140 | 600 | 7.5 |
125T/3200 | 1250 | 3200 | 2700 | 410 | 200 | 570 | 200 | 140 | 600 | 11 |
125T/4000 | 1250 | 4000 | 3500 | 410 | 200 | 570 | 200 | 140 | 600 | 11 |
135T/3200 | 1350 | 3200 | 2700 | 410 | 200 | 570 | 200 | 140 | 600 | 11 |
135T/4000 | 1350 | 4000 | 3500 | 410 | 200 | 570 | 200 | 140 | 600 | 11 |
160T/3200 | 1600 | 3200 | 2700 | 410 | 200 | 570 | 200 | 140 | 600 | 11 |
160T/4000 | 1600 | 4000 | 3500 | 410 | 200 | 570 | 200 | 140 | 600 | 11 |
160T/5000 | 1600 | 5000 | 4100 | 410 | 200 | 570 | 160 | 90 | 600 | 11 |
160T/6000 | 1600 | 6000 | 5100 | 410 | 200 | 570 | 160 | 90 | 600 | 15 |
175T/3200 | 1750 | 3200 | 2700 | 410 | 200 | 570 | 160 | 140 | 600 | 11 |
175T/4000 | 1750 | 4000 | 3500 | 410 | 200 | 570 | 160 | 140 | 600 | 11 |
175T/5000 | 1600 | 5000 | 4100 | 410 | 200 | 570 | 160 | 90 | 600 | 11 |
175T/6000 | 1600 | 6000 | 5100 | 410 | 200 | 570 | 160 | 90 | 600 | 15 |
200T/3200 | 2000 | 3200 | 2700 | 410 | 200 | 570 | 160 | 140 | 600 | 15 |
200T/4000 | 2000 | 4000 | 3500 | 410 | 200 | 570 | 160 | 140 | 600 | 15 |
200T/5000 | 2000 | 5000 | 4100 | 410 | 200 | 570 | 160 | 90 | 600 | 15 |
200T/6000 | 2000 | 6000 | 5100 | 410 | 200 | 570 | 160 | 90 | 600 | 15 |
210T/3200 | 2100 | 3200 | 2700 | 410 | 200 | 570 | 160 | 140 | 600 | 15 |
210T/4000 | 2100 | 4000 | 3500 | 410 | 200 | 570 | 160 | 140 | 600 | 15 |
210T/5000 | 2100 | 5000 | 4100 | 410 | 200 | 570 | 130 | 90 | 600 | 15 |
210T/6000 | 2100 | 6000 | 5100 | 410 | 200 | 570 | 130 | 90 | 600 | 15 |
250T/3200 | 2500 | 3200 | 2700 | 410 | 250 | 420 | 160 | 140 | 600 | 18.5 |
250T/4000 | 2500 | 4000 | 3500 | 410 | 250 | 620 | 160 | 140 | 600 | 18.5 |
250T/5000 | 2500 | 5000 | 4100 | 410 | 250 | 620 | 130 | 90 | 600 | 18.5 |
250T/6000 | 2500 | 6000 | 5100 | 410 | 250 | 620 | 130 | 90 | 600 | 18.5 |
320T/3200 | 3200 | 3200 | 2700 | 450 | 300 | 670 | 150 | 130 | 600 | 22 |
320T/4000 | 3200 | 4000 | 3500 | 450 | 300 | 670 | 150 | 130 | 600 | 22 |
320T/5000 | 3200 | 5000 | 4100 | 450 | 300 | 670 | 130 | 90 | 600 | 22 |
320T/6000 | 3200 | 6000 | 5100 | 450 | 300 | 670 | 130 | 90 | 600 | 22 |
400T/3200 | 4000 | 3200 | 2700 | 500 | 300 | 670 | 150 | 130 | 600 | 30 |
400T/4000 | 4000 | 4000 | 3500 | 500 | 300 | 670 | 150 | 130 | 600 | 30 |
400T/5000 | 4000 | 5000 | 4100 | 500 | 300 | 670 | 130 | 90 | 600 | 30 |
400T/6000 | 5000 | 6000 | 5100 | 500 | 300 | 670 | 130 | 90 | 600 | 30 |
500T/4000 | 5000 | 4000 | 3500 | 500 | 300 | 670 | 150 | 130 | 600 | 30 |
500T/5000 | 5000 | 5000 | 4100 | 500 | 300 | 670 | 130 | 90 | 600 | 30 |
500T/6000 | 5000 | 6000 | 5100 | 500 | 300 | 670 | 130 | 90 | 600 | 30 |
