Plate Rolling Machine Roller Fracture: Causes, Prevention, and Solutions

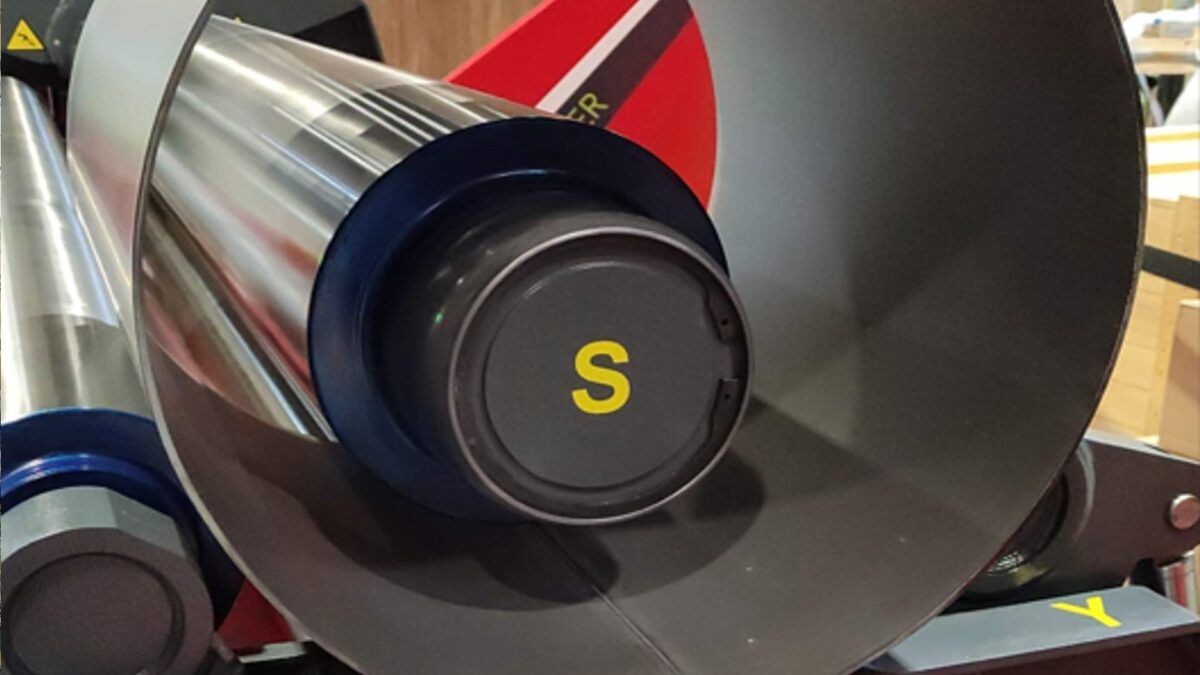

What is A Plate Rolling Machine

A plate rolling machine, also known as a plate roll or a rolling machine, is a mechanical device used in metalworking to bend flat plates or sheets of metal into curved or cylindrical shapes. These machines are commonly used in industries such as manufacturing, construction, shipbuilding, and metal fabrication.

The primary function of a plate rolling machine is to apply force to a flat metal plate or sheet, causing it to bend around a central axis. This process involves passing the metal between a series of rollers that exert pressure on the material, gradually shaping it into the desired form. Plate rolling machines can produce a variety of shapes, including cylinders, cones, and arcs, depending on the configuration of the rollers and the specifications of the machine.

Plate rolling machines come in different types and sizes to accommodate various applications and material thicknesses. Some machines are manually operated, requiring the operator to adjust the rollers and feed the material by hand, while others are fully automated or semi-automated, featuring hydraulic or electric controls for precise bending and shaping.

These machines are essential in industries where curved or cylindrical metal components are required, such as in the fabrication of tanks, pipes, pressure vessels, and structural components. Plate rolling machines enable manufacturers to produce complex shapes with high accuracy and efficiency, making them indispensable tools in modern metalworking operations.

However, roller fractures can disrupt operations and lead to costly downtime. Understanding the causes, preventive measures, and solutions is essential for maintaining machine efficiency and productivity.

Introduction:

Plate rolling machines are crucial equipment in various industries, facilitating the shaping of metals into desired forms. However, roller fractures can disrupt operations and lead to costly downtime. Understanding the causes, preventive measures, and solutions is essential for maintaining machine efficiency and productivity.

Causes of Roller Fracture:

Material Quality: Substandard materials used in roller construction can lead to premature fractures. Quality rollers made from durable materials like hardened steel are less susceptible to fractures.

Overloading: Excessive pressure or load on the rollers beyond their capacity can cause stress and eventual fracture. Adhering to recommended load limits is crucial to prevent overloading-related fractures.

Fatigue: Continuous usage over time can weaken the rollers, leading to fatigue fractures. Regular maintenance and inspection help identify fatigue-related issues before they escalate.

Misalignment: Improper alignment of rollers can cause uneven stress distribution, leading to fractures. Regular alignment checks and adjustments are necessary to prevent this issue.

Corrosion: Exposure to corrosive elements can degrade roller materials, increasing the risk of fractures. Proper storage and protection measures, such as coatings or lubricants, can mitigate corrosion-related damage.

Preventive Measures:

Quality Inspection: Prioritize rollers made from high-quality materials and conduct thorough inspections before installation to ensure their integrity.

Load Management: Adhere to recommended load capacities and avoid overloading the machine to prevent stress-related fractures.

Regular Maintenance: Implement a scheduled maintenance routine, including lubrication, alignment checks, and visual inspections, to identify potential issues early.

Alignment Checks: Routinely inspect and adjust roller alignment to ensure even stress distribution and minimize the risk of fractures.

Corrosion Protection: Implement measures to protect rollers from corrosion, such as applying coatings or using corrosion-resistant materials.

Solutions to Roller Fracture:

Replacement: In cases of severe fractures or damage, replacing the affected rollers with high-quality replacements is necessary to restore machine functionality.

Repair: Minor fractures may be repairable through welding or machining techniques. However, ensure that repairs meet safety and quality standards to prevent further issues.

Upgrades: Consider upgrading to stronger or more durable roller materials to mitigate the risk of future fractures and enhance machine longevity.

Training: Provide operators with proper training on machine operation, maintenance, and safety protocols to prevent misuse or mishandling that could lead to fractures.

Conclusion:

Plate rolling machine roller fractures can disrupt operations and incur significant costs if not addressed promptly. By understanding the causes, implementing preventive measures, and employing appropriate solutions, businesses can minimize downtime, enhance productivity, and prolong the lifespan of their equipment. Prioritizing quality, maintenance, and safety protocols is key to mitigating the risk of roller fractures and ensuring smooth operations in industrial settings.
