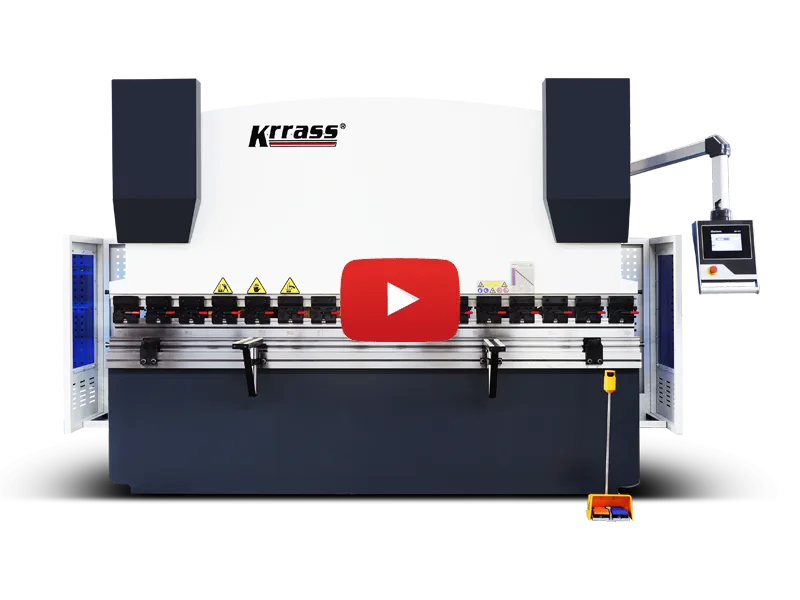

WC67K Press Brake Machine With DA-41T Controller

Economical Press Brake Machine with DA-41T Controller, easy-to-use control unit, rigid body frame, flawless design, high efficiency, multiple tool usage solutions, top CE safety standards, and a suitable price range make it the best-in-class world leader. It is ideal for bend-sensitive, energy-efficient solutions.

Rating:

★★★★★

Years experience

Export country

Production capacity

Year warranty

Download the Press Brake Machine catalog now!

CALL: +86-189-5208-7956

Download

WC67K Press Brake Machine(DA-41T Controller)

Features & Configuration

Main Features

The imported configuration is stable and reliable.

High-strength frame with thick plates and sufficient materials. High-precision rear retaining system.

The work area can be customized, and all types of tool clamping can be installed.

Tailor-made Hydraulic Press Brake.

Universal High-End Intelligent Press Brake Machine

The WC67K range offers high versatility and includes a large number of optional accessories and equipment.

Standard Configuration

Delem DA-41T Controller

Display: Colour LCD display
Type: 7" widescreen TFT, high brightness
Backlight: LED backlight
Resolution: 1024 x 600 pixels, 32 bit colour
Touch sensor: Full touch screen control (PCT-touch)
Storage capacity: Program memory for 100 programs
Program steps: 25 steps per program

Learn More

Y-axis Stroke Limit Switch

The high-precision, fast-response Y-axis stroke limit switch can quickly and accurately provide feedback on Y-axis stroke data to the controller, enhancing your workpiece production efficiency.

Furthermore, increased operational cycles also result in a longer service life, ensuring that your hydraulic press brake runs more smoothly.

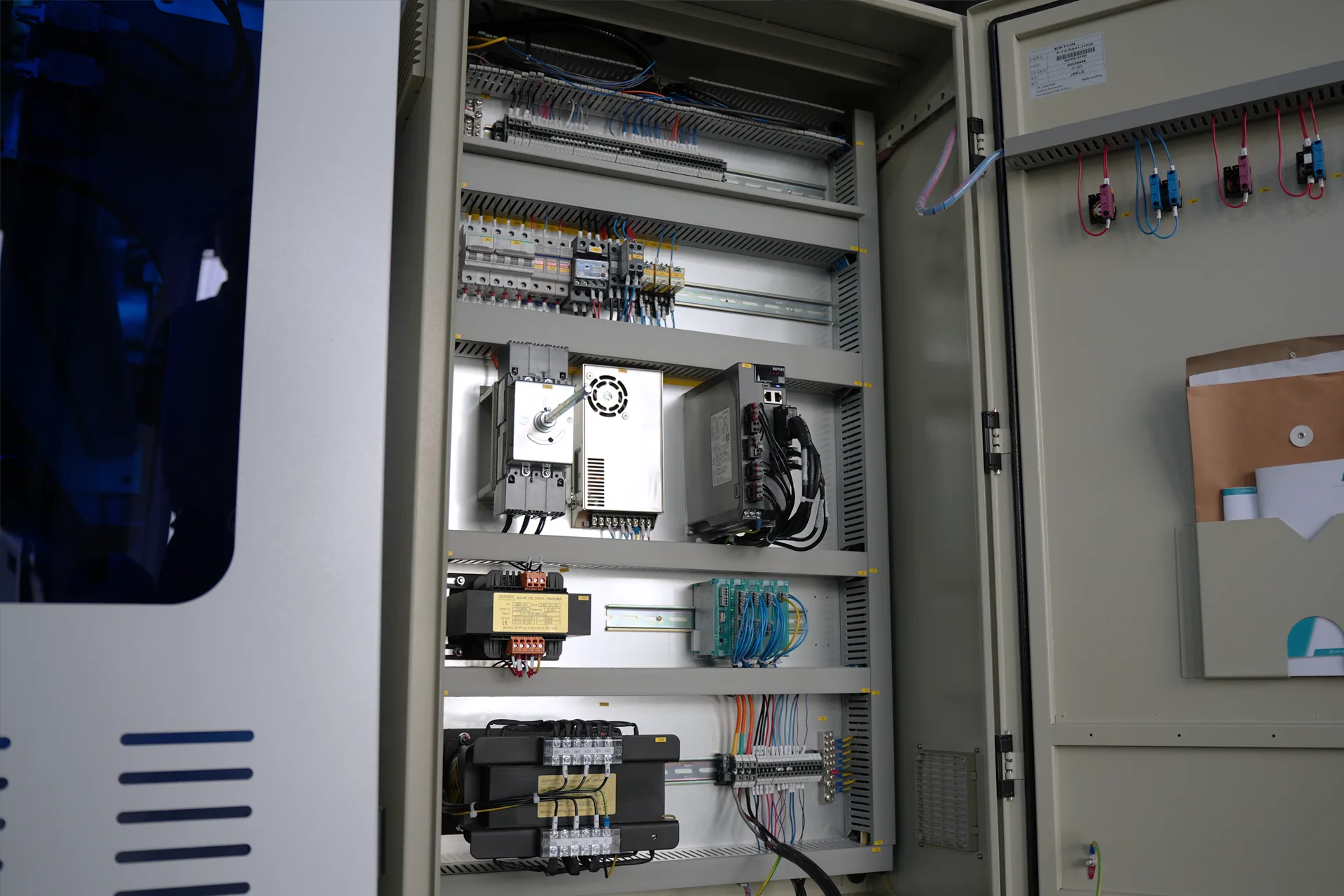

Schneider Electric

High-quality electrical components can perform well even when the electricity supply is unstable, and customers can easily obtain replacements anywhere in the world.

Y-axis Servo Motor

Servo motors have several advantages, including:

High efficiency: Can approach 90% at light loads
High output power: Relative to their size and weight
Closed-loop control: Ensures greater accuracy
Quiet operation: Little sound noise

X-axis Servo Motor

In addition, the advantages of servo motors include:

High reliability: Highly reliable
High ratio of torque to inertia: Can provide as much as 50% more torque in many applications
High precision: Can precisely actuate, hold, and speed up positions, torque, and speeds in fractions of seconds

FIRST Hydraulic Valves

The valve group from USA FIRST is used to ensure greater bending accuracy and longer service life.

The hydraulic pipes are made by the German brand EMB, which is guaranteed to never leak oil.

German Siemens Main Motor

The reputable and highly acclaimed German brand motor not only extends the operational lifespan of the machine but also maintains its efficient functioning in a serene environment with reduced noise levels, thereby enhancing overall productivity and user experience.

FIRST Hydraulic Oil Pump

The American FIRST oil pump is highly regarded for its exceptional performance, known for its quiet operation and remarkable longevity, making it a reliable choice for various applications.

X-axis Ball Screw Linear Guide

Precision: Ball screws offer enhanced precision, reduced energy consumption, and lower maintenance requirements.
Responsiveness: Ball screws deliver exceptionally smooth motion.
Friction: Ball screws rely on recirculating balls to reduce friction instead of lubricants.

Hight-Precision Fine-tuning Back Finger Stoper

High-precision backstop means that customers can input the size into the system according to the product's dimensions, and it can be positioned accurately with an accuracy of 0.01mm.

The crossbeam is designed with double linear guide rails, allowing the blocking fingers to move both left and right along them.

Manual Upper Tool Clamping

Our press brake uses raw material provided by qualified suppliers, and the chemical composition corresponds to international standards. Therefore, the raw material yield and tensile strength are guaranteed. The materials are standardized with an 8.4 x 3.5 mm safety groove, which prevents the tool from falling out.

Learn More

Front Material Support

The front material support can be lifted and lowered freely. When you need to bend larger metal sheets, it can effectively assist in reducing your workload.

Pedal Switch

The South Korean brand foot switch is designed to be movable, allowing for immediate machine stoppage with the emergency button. This feature enhances safety and operational control.

Punches & Dies

Press Break Machine punches and dies will be one of the most important topics we discuss before you place the order. Any bending shape will be completed by a suitable set of punch and die. We can provide appropriate tooling according to different bending requirements of customers.

Optional Configuration

CybTouch 8 Controller

Intuitive user-friendly interface.
Simple pages, clear display, large keys.
Large, vivid and high-contrast fully touchscreen.
Complete programming for efficient mass-production with multiple bends.
Easy single bends with EasyBend page.
On-line help and interactive warning pop-ups.

ESTUN E310P Controller

4 axes are supported, viz, X-axis, Y-axis, R-axis and C-axis.
The back gauge can be controlled in a high-accuracy since the servo systems control X-axis and R-axis.
Automatic calculation of the block position, according to the bending angle, material, thickness and mold parameters.
The back gauge can be controlled in a high-accuracy since the servo systems control X-axis and R-axis.

Manual Crowning System

The elastic deformation produced in the middle of the slider of the NC press brake and in the middle of the worktable causes inconsistencies in the angle along its entire length during bending, which is an important factor affecting bending accuracy. Therefore, our 300T press brake comes equipped with this function as standard.

Learn More

Photoelectric Safety Protection System

The entire machine is equipped with photoelectric safety protection systems at the front and rear to ensure efficient production and the personal safety of operators.
