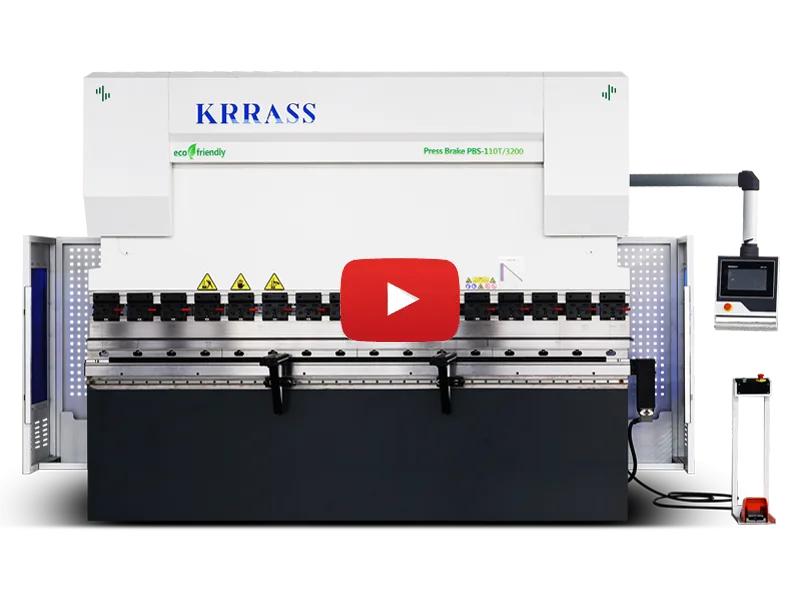

Sheet Metal Bending Machine With DA-53T
MB8 Series Sheet Metal Bending Machine, it’s an affordable Sheet Metal Bending Machine with an impressive number of features and options. Competitive pricing with advanced DELEM DA-53T or DA-58T 2D capable graphical controls.
Get in touch
If you have any questions, please contact us, we will get back to you as soon as possible.
Get in touch
If you have any questions, please contact us, we will get back to you as soon as possible.
Sheet Metal Bending Machine(MB8 Type)
Features & Configuration
Main Features
Imported configuration, stable and reliable
High strength frame with thick plate and sufficient material High precision rear retaining system
Standard 4+1 Axis (X, Y1, Y2, R+W)
Closed loop control and worktable auto mechanical deflection compensation
Universal High-End Intelligent Sheet Metal Bending Machine
The MB8 range offers high versatility and has a large number of optional accessories and equipment
Standard Configuration

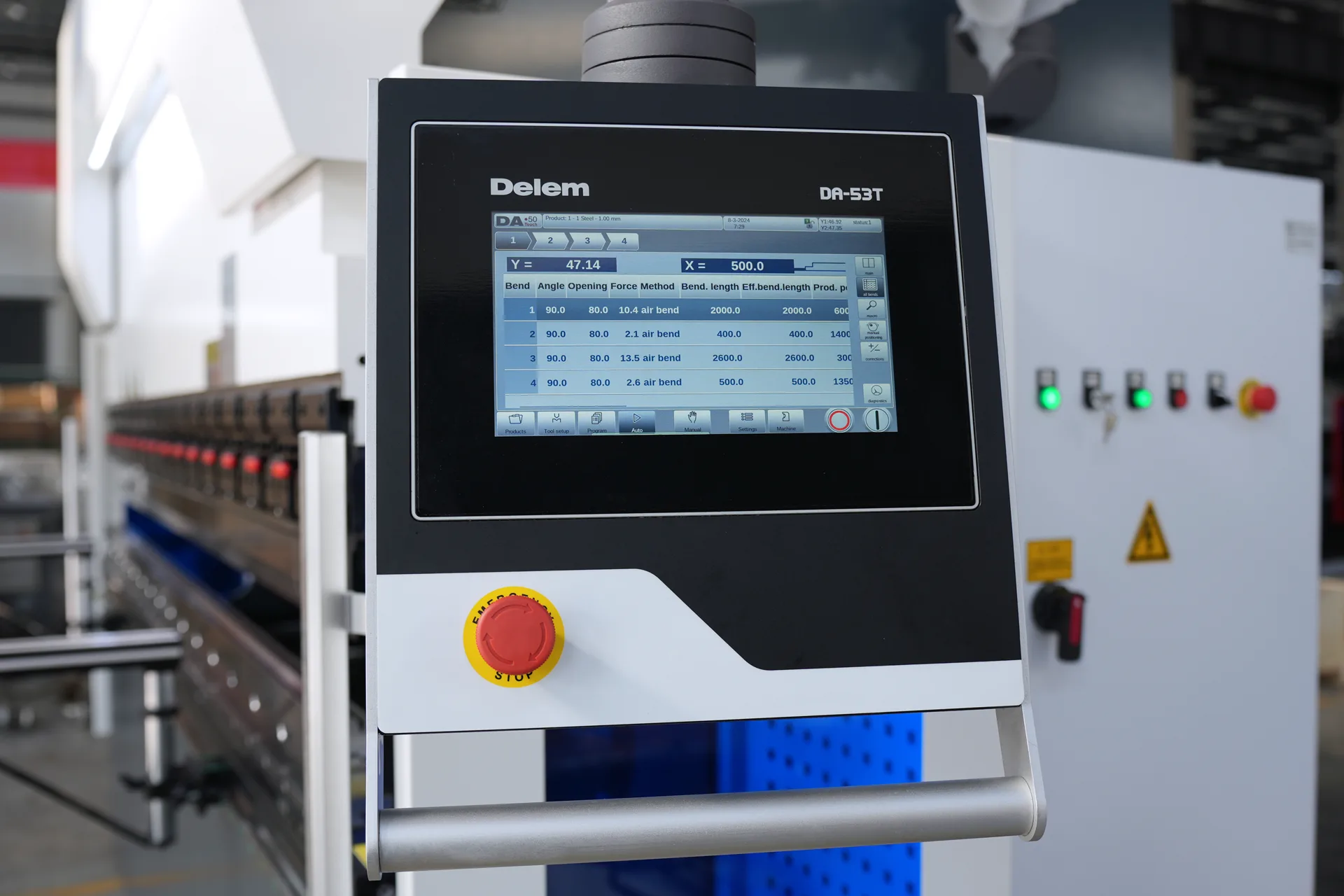

Delem DA-53T Controller
- “Hot-key” touch navigation
- 10.1″ high resolution colour TFT
- Up to 4 axes (Y1,Y2 + 2 aux. axes)
- Crowning control
- Tool / material / product library
- Servo and frequency inverter control
- Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.

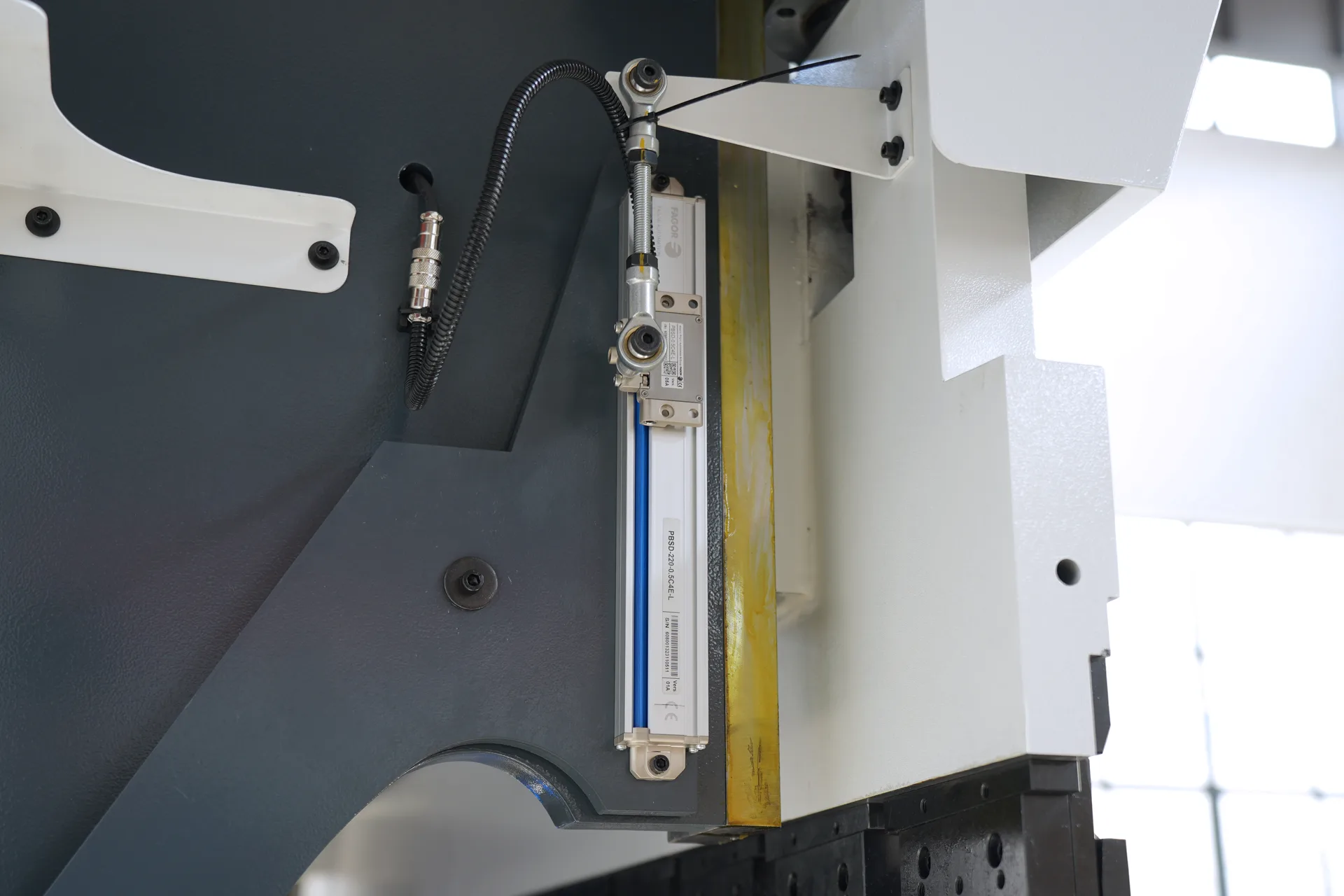

C-type Throat Deformation Compensation Device
Fagor grating ruler can accurately measure the small deformation caused by bending force of machine tool,then feedback compensation, to ensure the bending accuracy of plates of any thickness and materia.
Schneider Electric
High-quality electrical components can perform well even when the electricity supply is unstable, and customers can easily obtain replacements anywhere in the world.

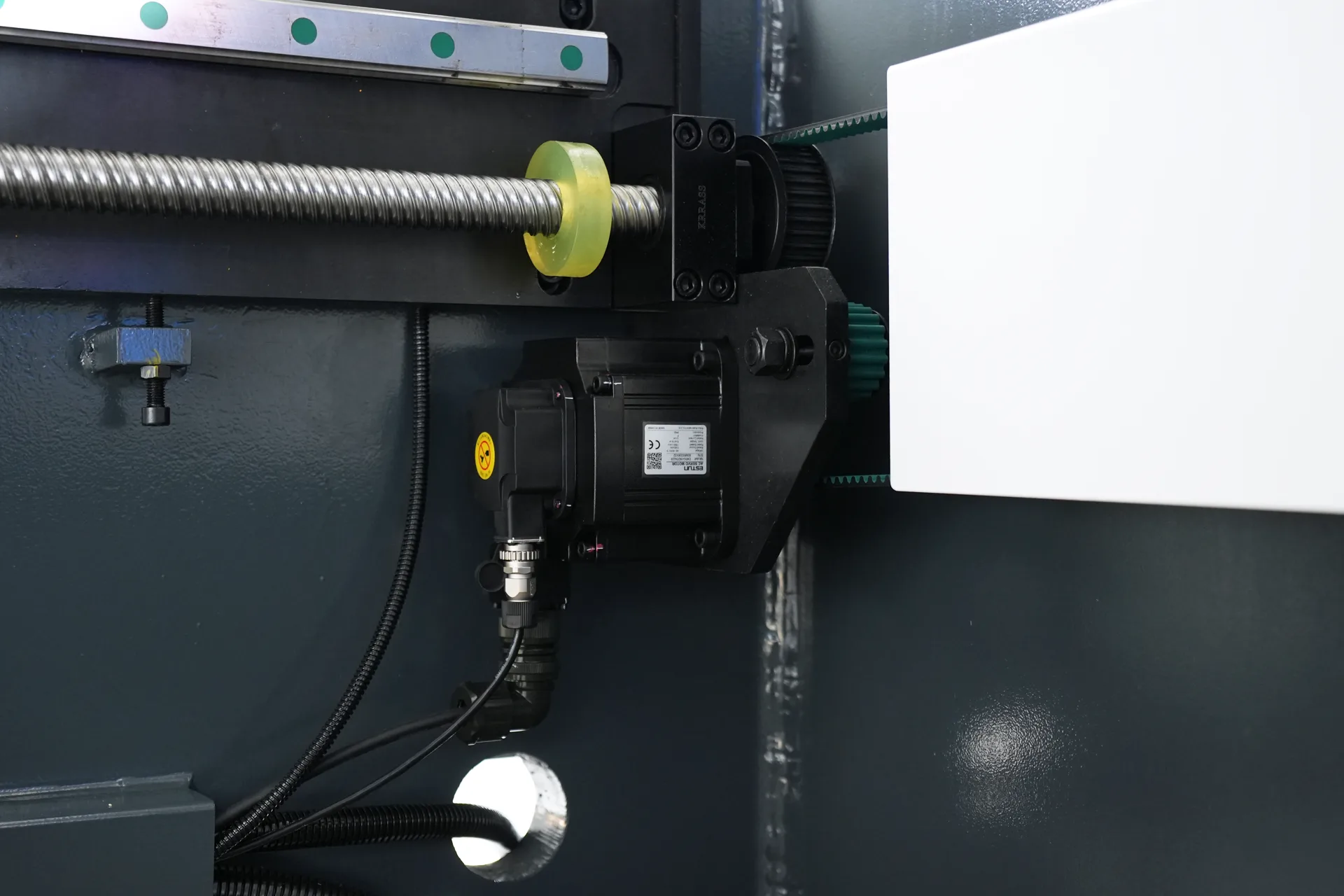

X-axis Servo Motor
In addition, the advantages of servo motors include:
- High reliability: Highly reliable
- High ratio of torque to inertia: Can provide as much as 50% more torque in many applications
- High precision: Can precisely actuate, hold, and speed up positions, torque, and speeds in fractions of seconds

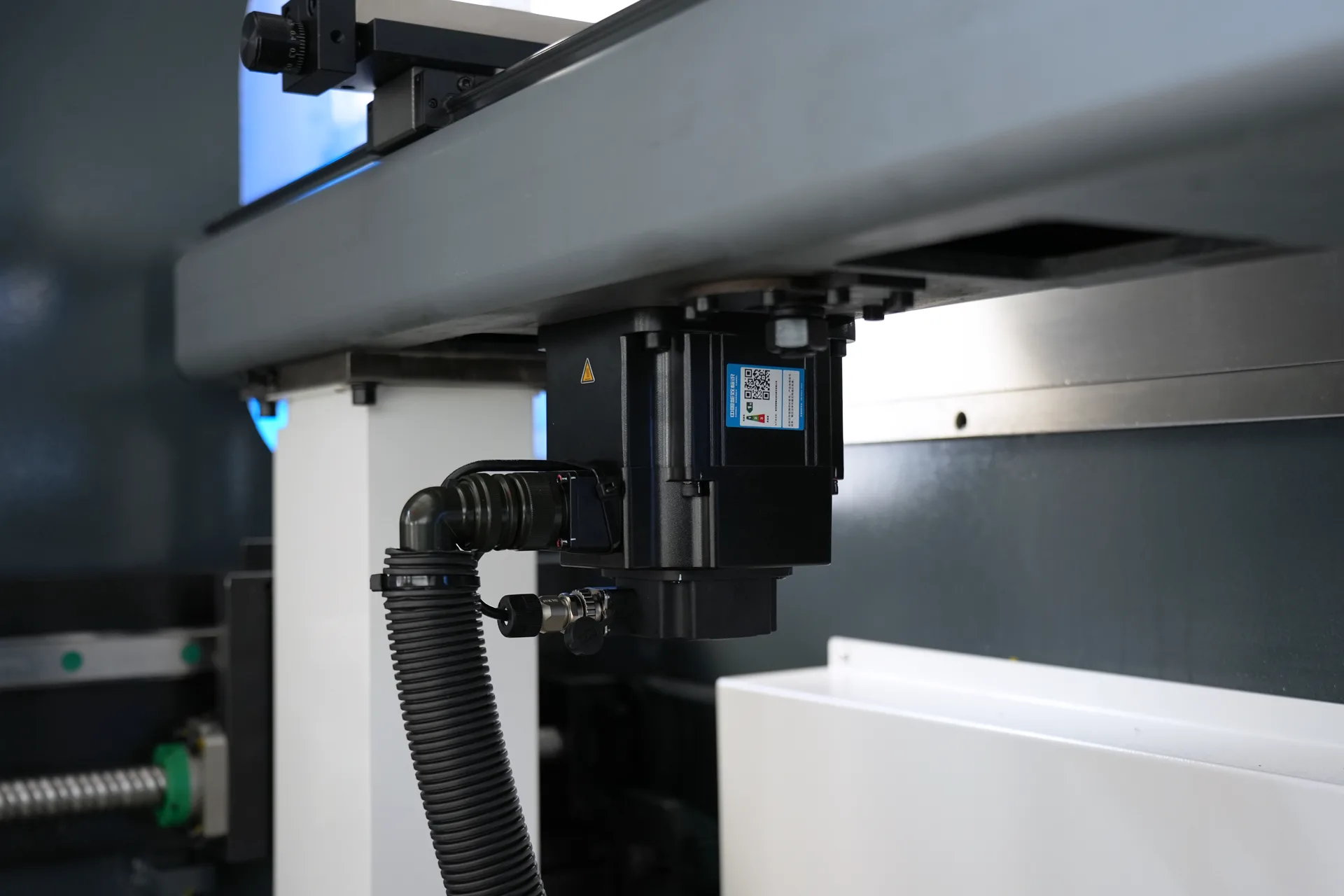

R-axis Servo Motor
Servo motors have several advantages, including:
- High efficiency: Can approach 90% at light loads
- High output power: Relative to their size and weight
- Closed-loop control: Ensures greater accuracy
- Quiet operation: Little sound noise
High Performance Hydraulic System
Improved machine performance
67%

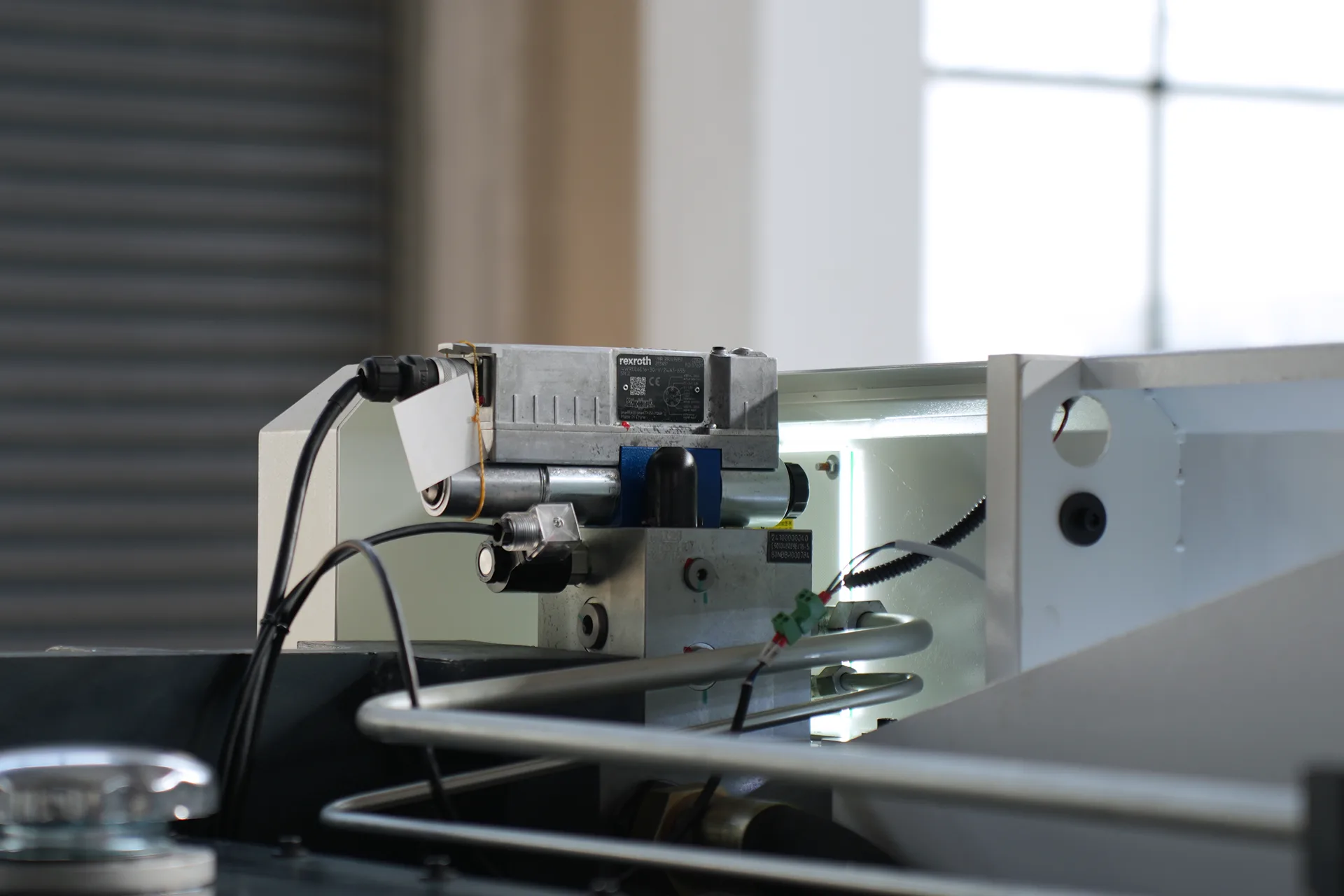

High Performance Servo Valve System:
REXROTH / HAWE, Germany
Fully closed-loop synchronous control,
machine working with high-speed and stable
Siemens Motor
As a well-known brand in Germany, Siemens motor has the advantages of high efficiency, energy saving, large startingtorque, good performance, low noise, low vibration, high reliability, power level and installation size in line with IEC standards and convenient use and maintenance. We can customize the power and voltage according to the customer’s local voltage.

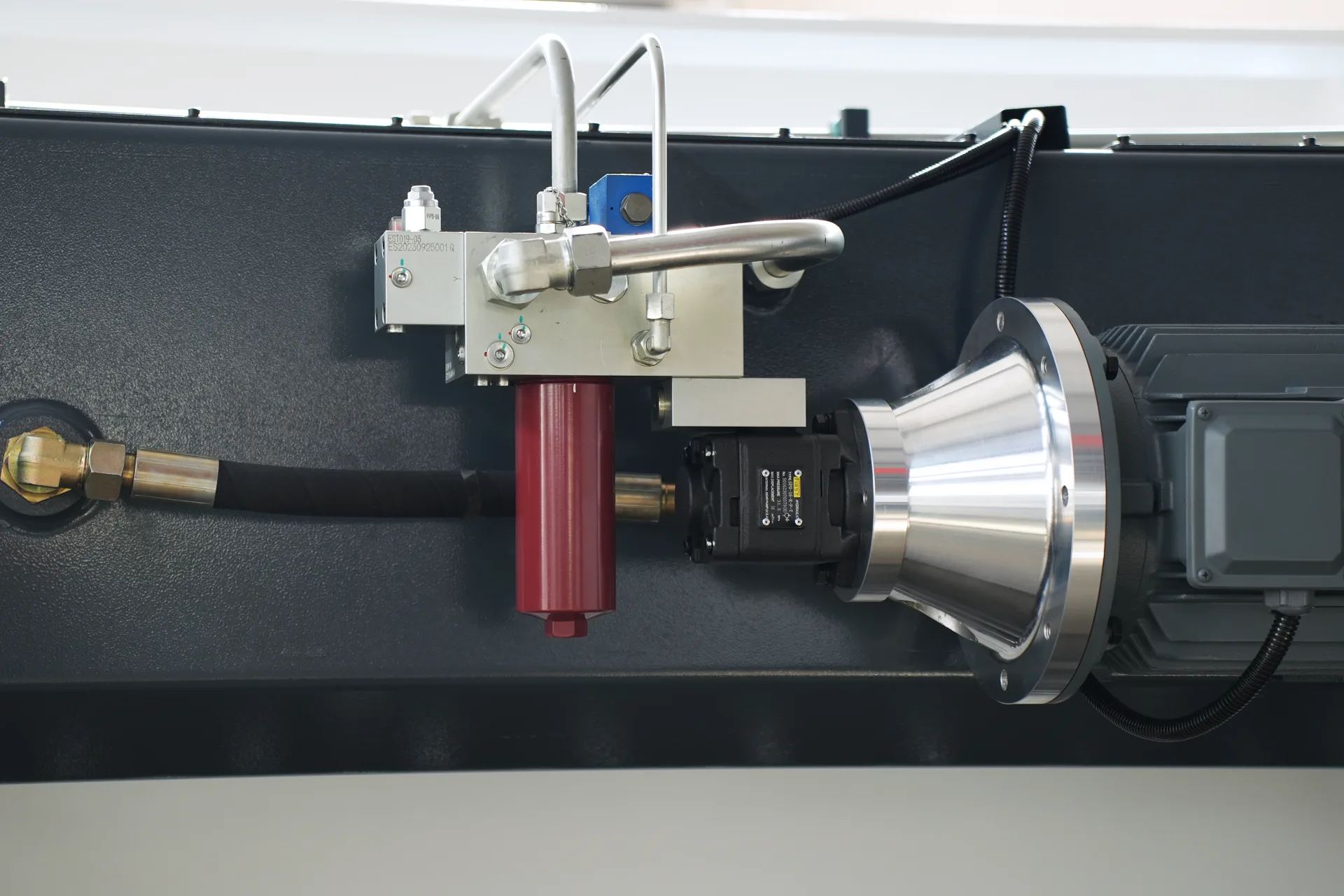

Hydraulic Oil Pump
The oil pump is highly regarded for its exceptional performance, known for its quiet operation and remarkable longevity, making it a reliable choice for various applications.

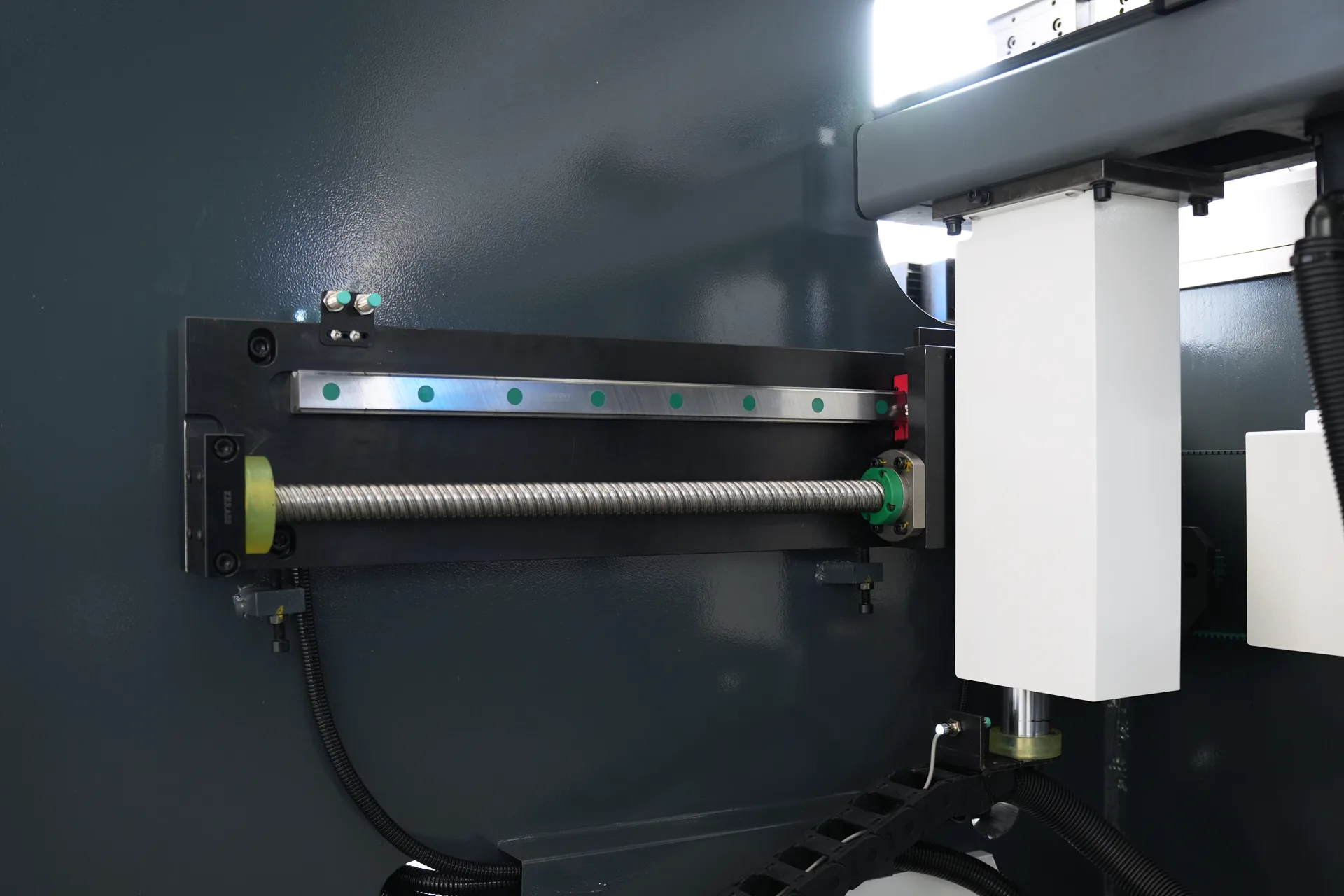

X-axis Ball Screw Linear Guide
- Precision: Ball screws offer enhanced precision, reduced energy consumption, and lower maintenance requirements.
- Responsiveness: Ball screws deliver exceptionally smooth motion.
- Friction: Ball screws rely on recirculating balls to reduce friction instead of lubricants.

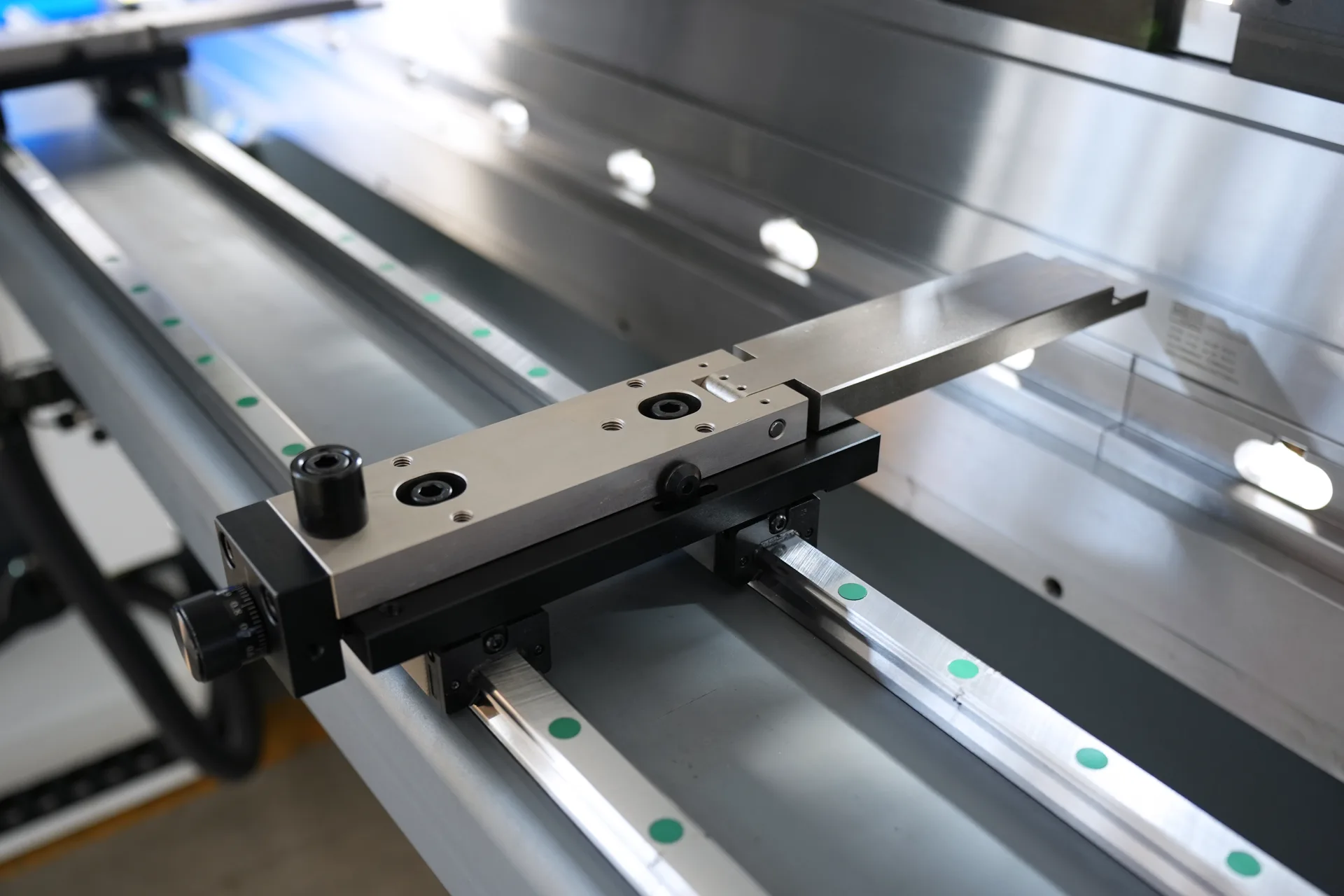

Back Finger Stoper
High-precision backstop means that customers can input the size into the system according to the product’s dimensions, and it can be positioned accurately with an accuracy of 0.01mm.
The crossbeam is designed with double linear guide rails, allowing the blocking fingers to move both left and right along them.

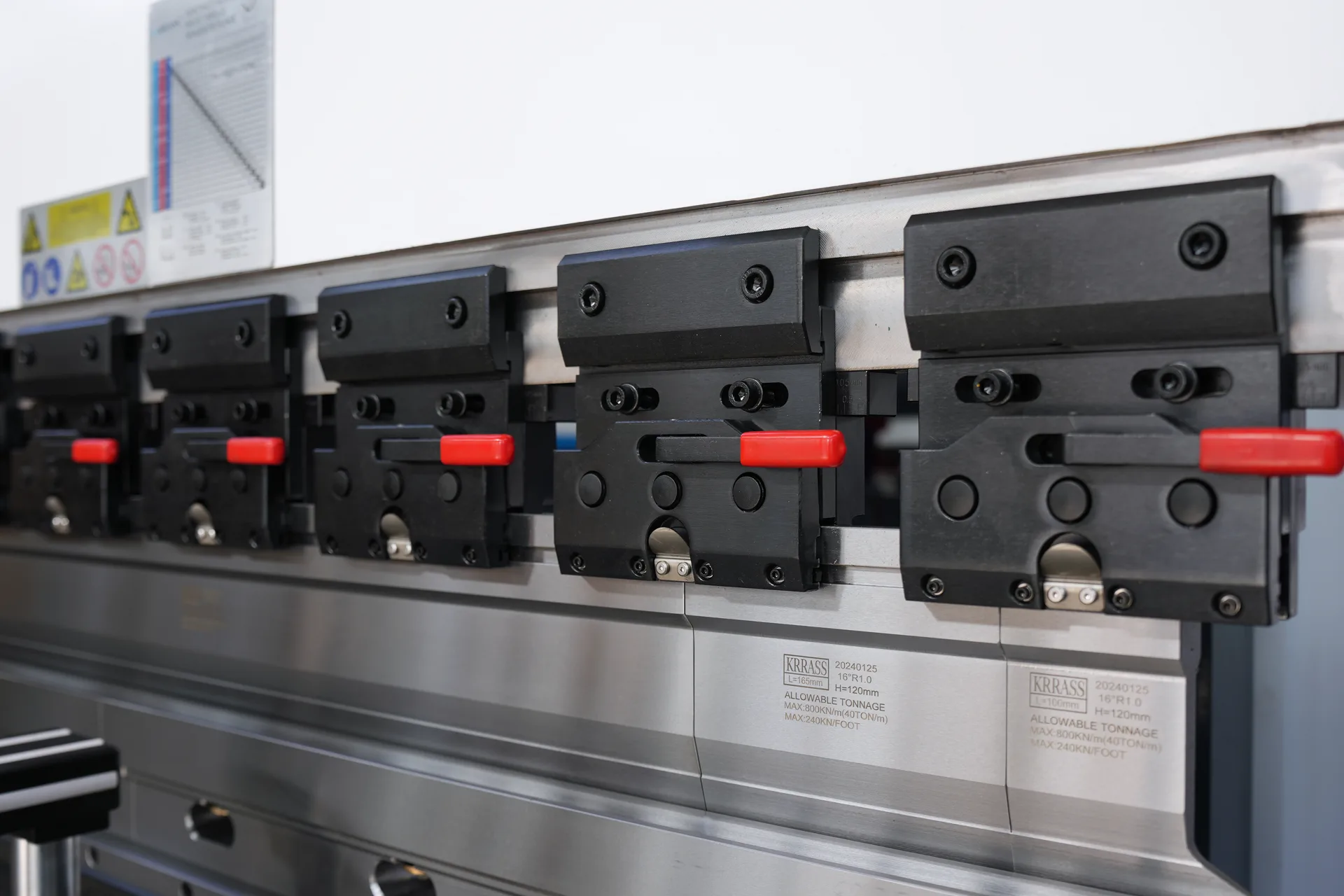

Precision Quick Clamping Device
It is convenient to quickly clamp the upper die, reduce labor intensity and improve production efficiency. The utility model has the advantages of high precision, easy clamping, no loosening, no tool dropping, etc.
CNC Motorized Crowning System
Low worktable has an automatic crowning compensation uint; compensation amount is automatically set up by CNC system, with guarantee a same bending angel on full length.
The worktable adopts the particular design, reducing the crowning distortion amount of lower tool effectively.
Front Material Support
The front material support can be lifted and lowered freely. When you need to bend larger metal sheets, it can effectively assist in reducing your workload.
Pedal Switch
The South Korean brand foot switch is designed to be movable, allowing for immediate machine stoppage with the emergency button. This feature enhances safety and operational control.

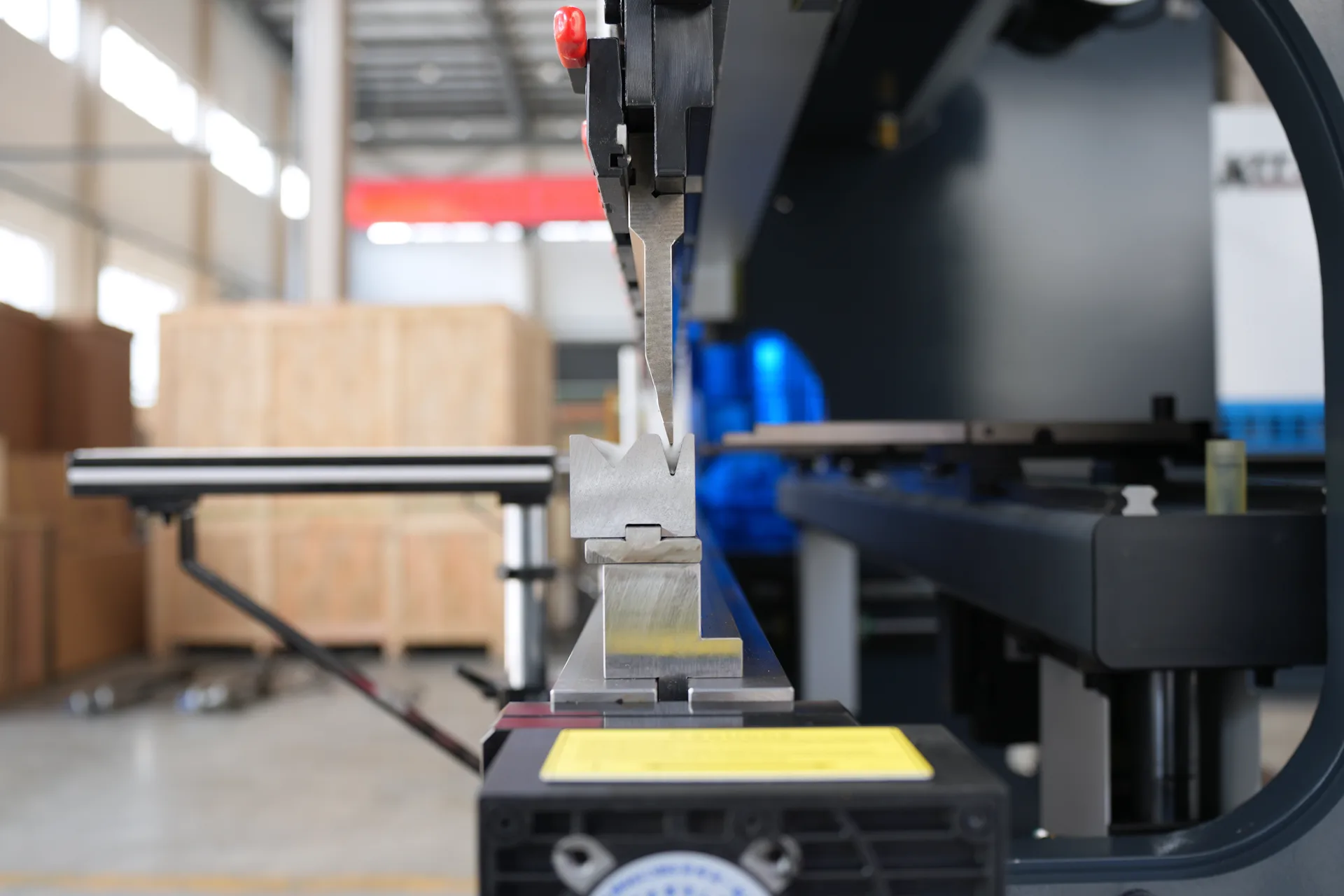

Punches & Dies
Hydraulic Press Brake punches and dies will be one of the most important topics we discuss before you place the order. Any bending shape will be completed by a suitable set of punch and die. We can provide appropriate tooling according to different bending requirements of customers.
Powerful CNC Controller and Back Gauge System
Several innovative patented technologies
A variety of back gauge are available
CNC Controller:

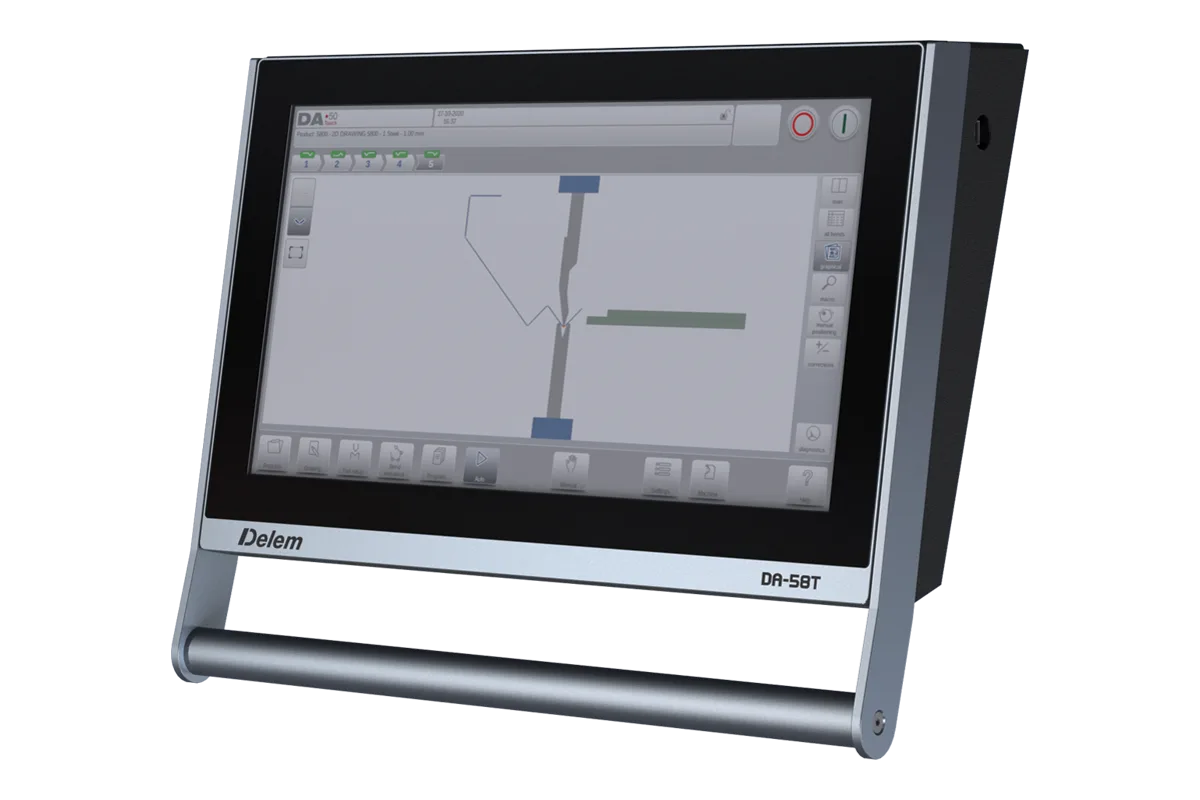

Delem DA-58Tx Controller
- 2D graphical touch screen programming
- 18.5″ high resolution color TFT
- Bend sequence calculation
- Crowning control
- Servo and frequency inverter control
- Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
- USB, peripheral interfacing
- Profile-T offline software
Delem DA-66S Controller
- 2D graphical touch screen programming mode
- 3D machine representation, in simulation and production
- 24″ high resolution color TFT
- Delem Modusys compatibility (module scalability and adaptivity)
- USB, peripheral interfacing
- User specific application support within the control’s multitasking environment
- Sensor bending & correction interface
- Profile-SL offline software
Delem DA-69S Controller
- 3D and 2D graphical touch screen programming mode
- 3D visualization, including 3D machine representation, in simulation and production
- 24″ high resolution color TFT
- Delem Modusys compatibility (module scalability and adaptivity)
- USB, peripheral interfacing
- User specific application support within the control’s multitasking environment
- Sensor bending & correction interface
- Profile-S3D offline software
Backgauge solution:

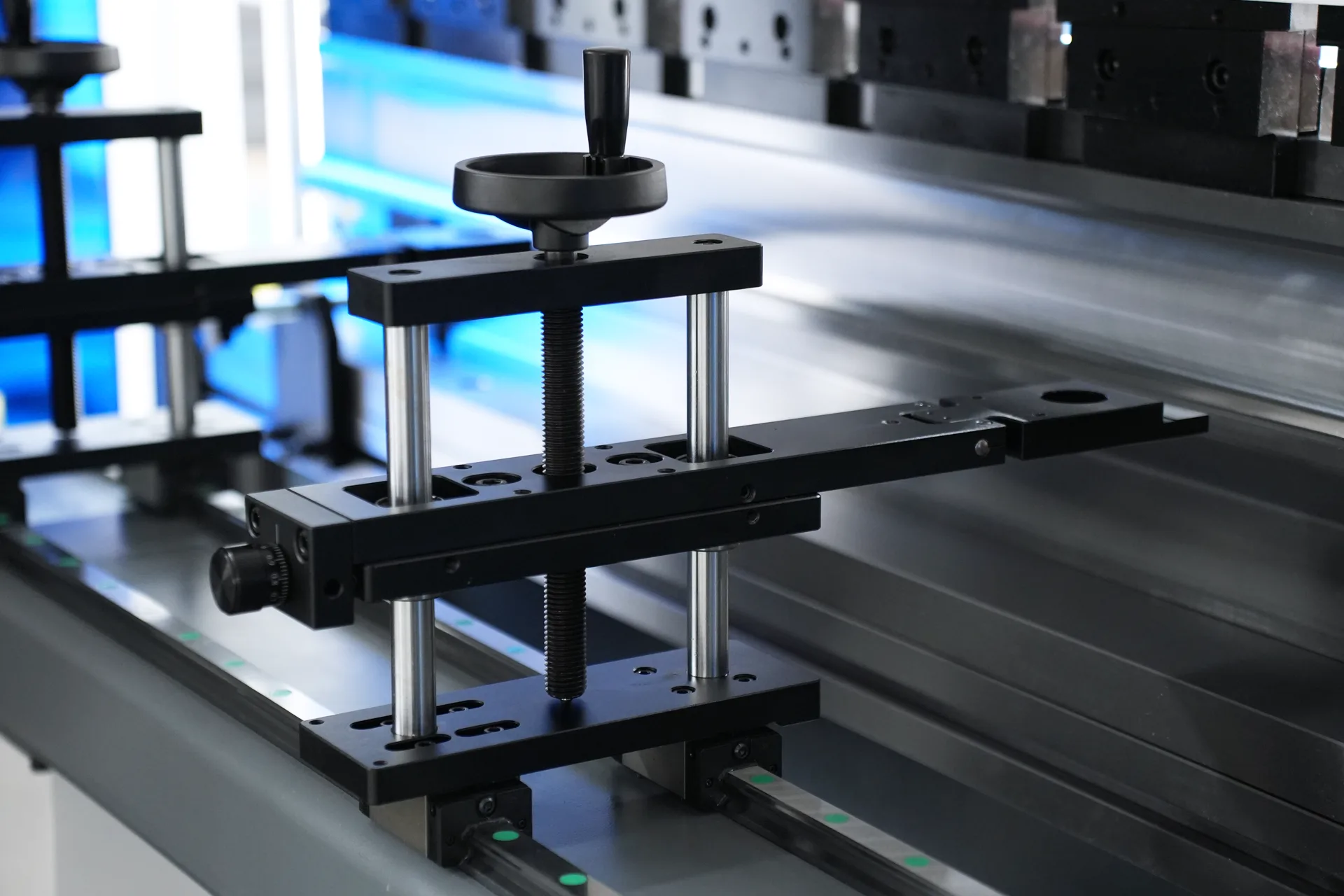

3+1 Axis Back Gauge
The height of the backgauge can be adjusted manually, making it easier for you to operate some customized accessories when using the sheet metal bending machine.

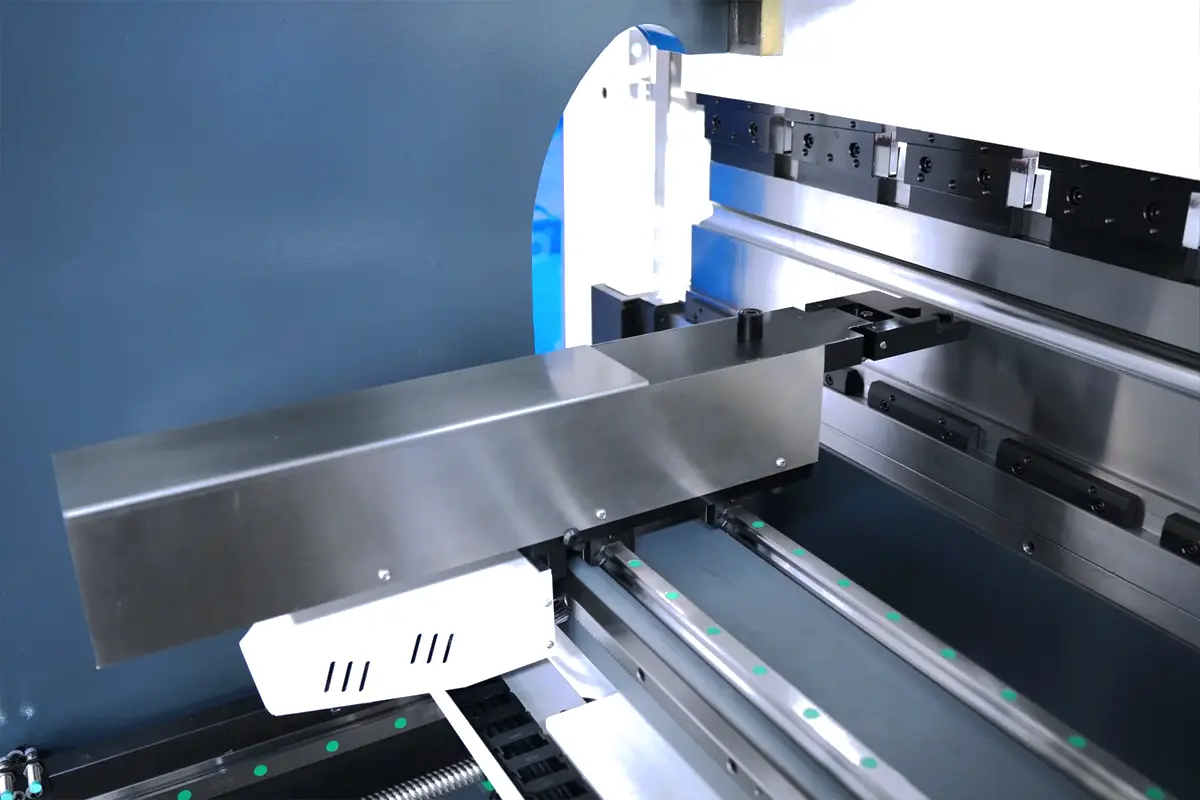

4+1 Axis Back Gauge
The high-precision backgauge with fine-tuning function can ensure that your bending process is more efficient and the workpiece is bent more accurately.

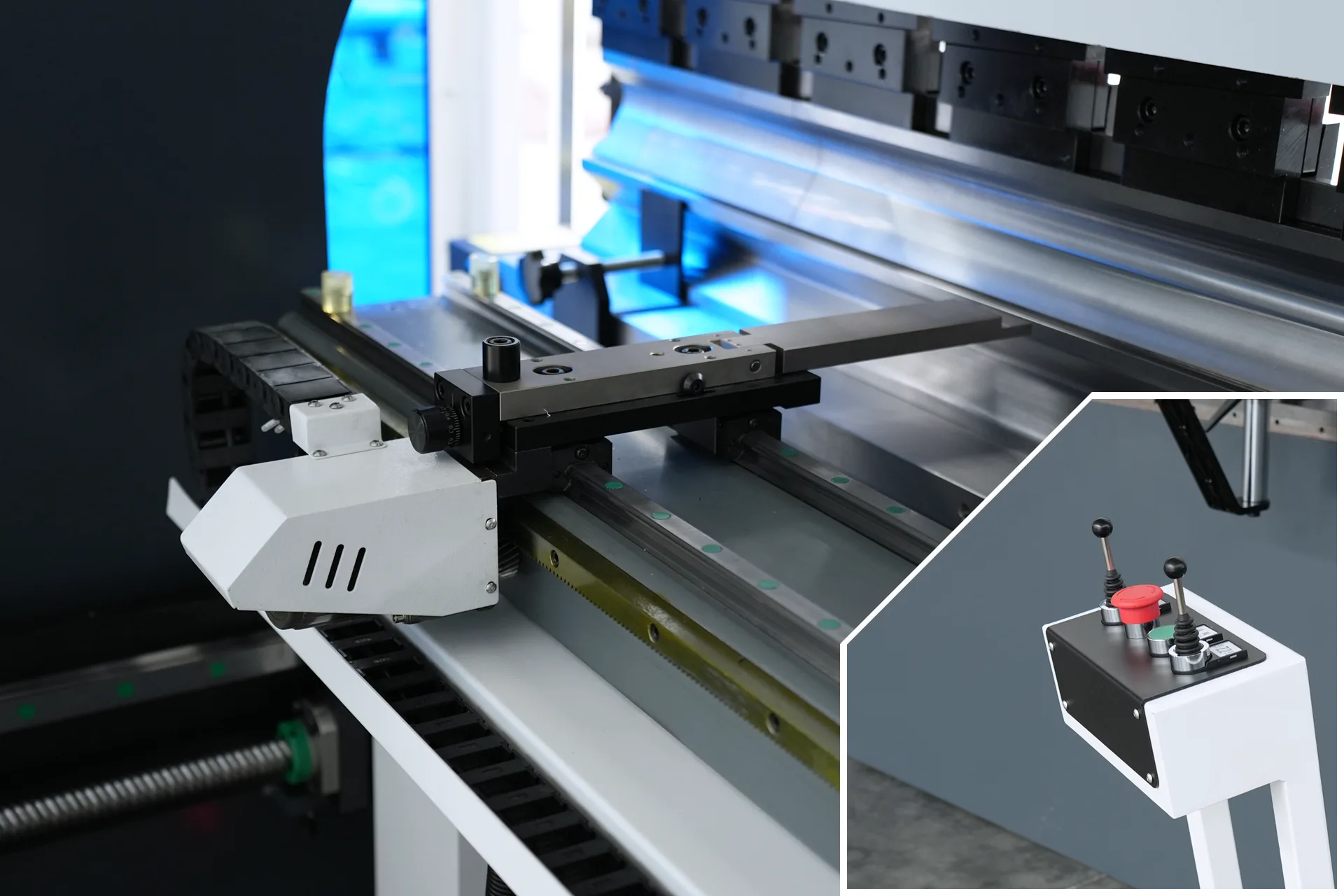

4+1+2 Axis Back Gauge
Electric Z1, Z2-axis is independently controlled, making operation more convenient. Widened and extended custom stop fingers, Finger support frame with double linear guide, Meet your reguirements.

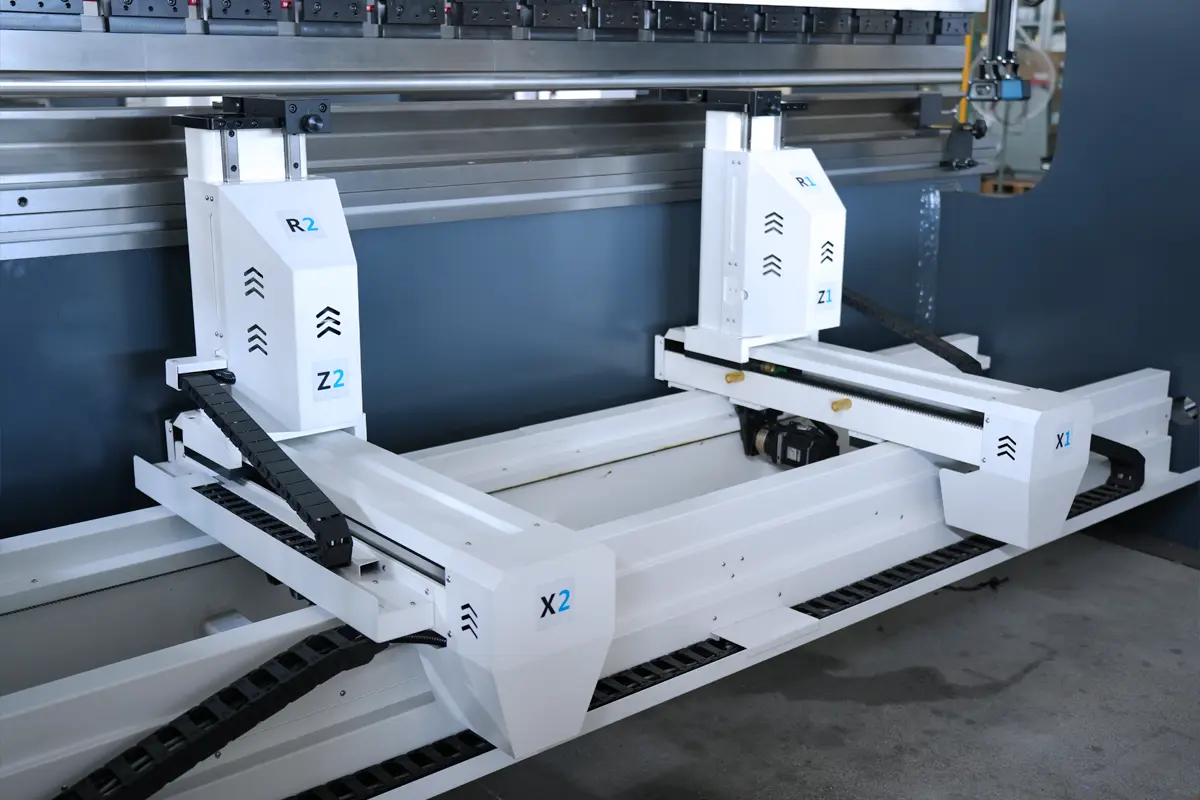

6+1 Axis Back Gauge *
X axis adopts ball screw and linear quide, ensure high synchronization accuracy and very long life. Widened and extended custom stop fingers, Finger support frame with double linear guide, Meet your reguirements.
7+1 Axis Back Gauge *
X axis move front and rear, R axis move upward and downward, Z1 axis and Z2 axis are two finger stops move left and right, X1 axis is finger stop moving front and rear, 5 axis controlled by CNc controller to make linkage positioning precisely.
8+1 Axis Back Gauge *
The back gauge includes high rigidity big base, X-axis drive mechanism, R-axis drive mechanism and z-axis drive mechanism; according to the needs of processing parts, the stopper finger can be automatically adjusted to the required accurate position to ensure the accurate positioning of the workpiece, so as to process the qualified workpiece.
* If you choose the 6+1 axis, 7+1 axis, or 8+1 axis backgauge configuration, you must be equipped with a DA-66S or DA-69S controller.
Other Optional Configuration

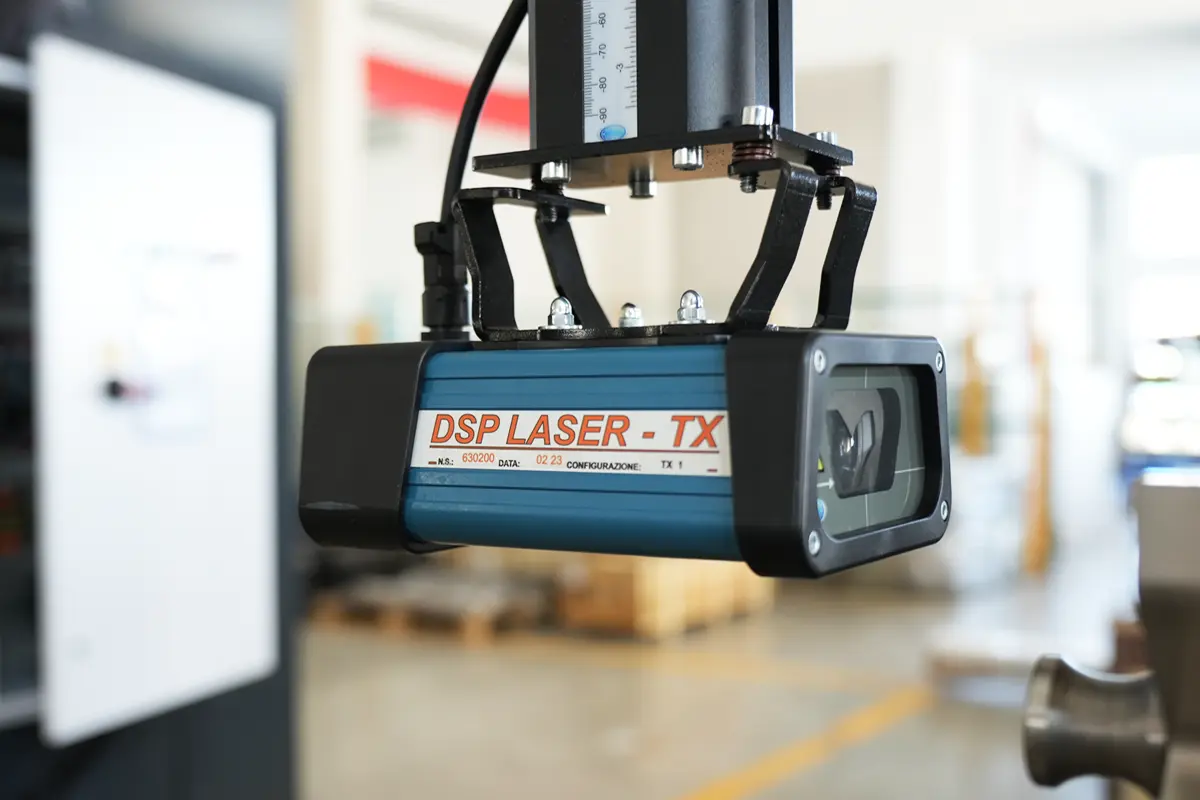

Laser Protection
The DSP laser protection device imported from ltaly can comprehensively and effectively provide the safety protection of the press brake and protect the personal safety of the operator.

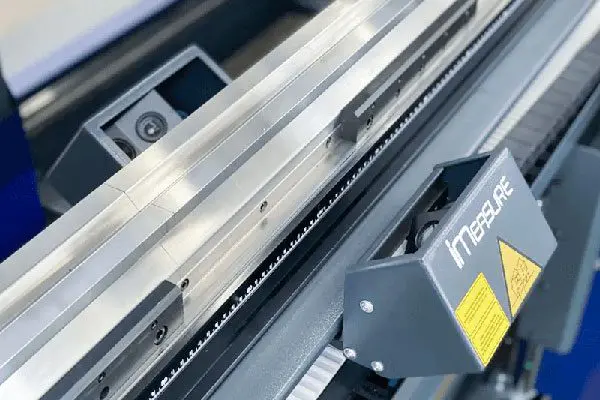

Laser Angle Detection System
The use of laser angle measurement system can ensure a stable workpiece bending angle and improve the efficiency and stability of automatic machining.

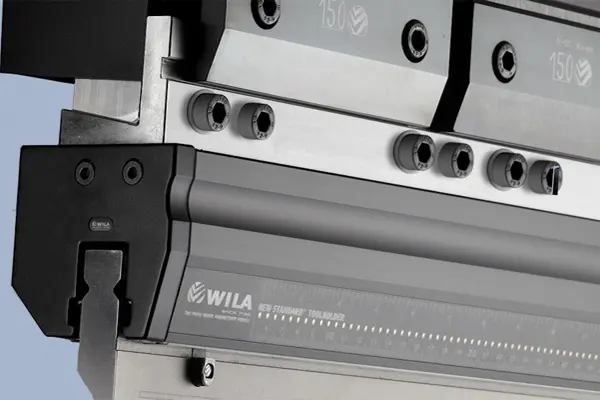

WlLA Tool Clamping and Holders
The upper die is hydraulically clamped, and the clamping and loosening action is automatically controlled by electricity. The clamping force is large and reliable, and the die change is easy and efficient.
Lower die hydraulic clamping device, clamping and loosening action is automatically controlled by electricity, and die change is easier and more efficient.

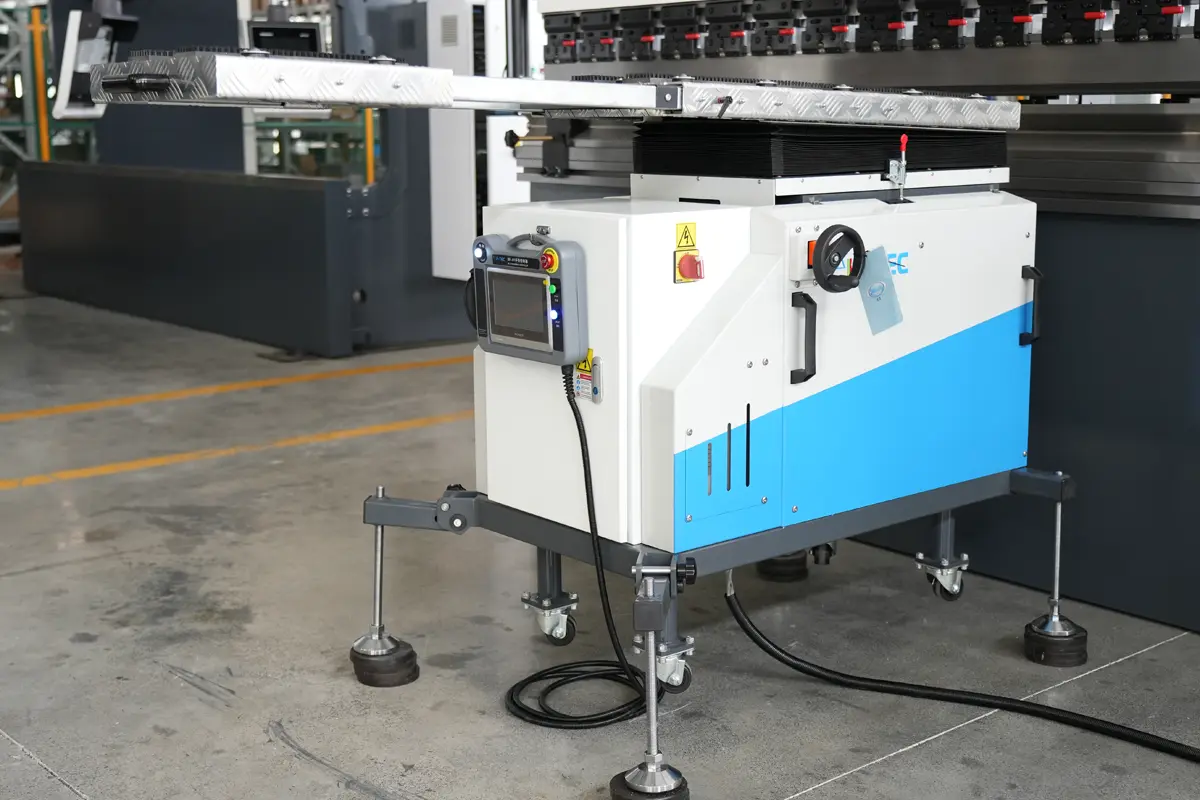

CNC Front Follower Supports
When the workpiece is bent, the support plate can realize the turning following function. The following angle and speed are automatically calculated and controlled by the Nc system, and can move left and right along the linear guide rail.

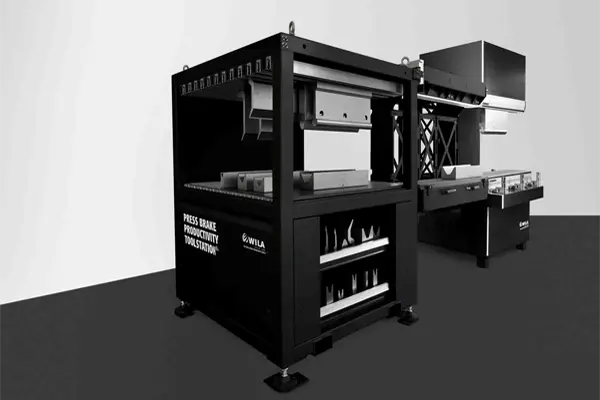

WILA Tool Storage System
To answer these custom press brakes needs, Krrass provides innovative tool storage solutions dedicated to press brake standard & custom tooling : the Tool Station (modular tooling storage & changing system) and standard tooling cabinets.

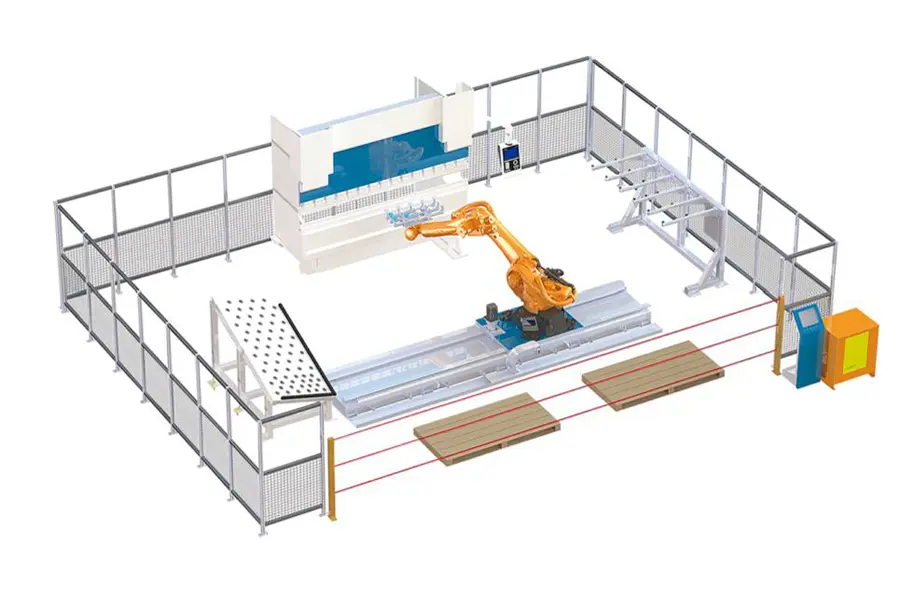

Bending Flexible Processing Unit
According to your production and processing needs,provide flexible automation solutions for sheet metal.
Tooling (Optional)
