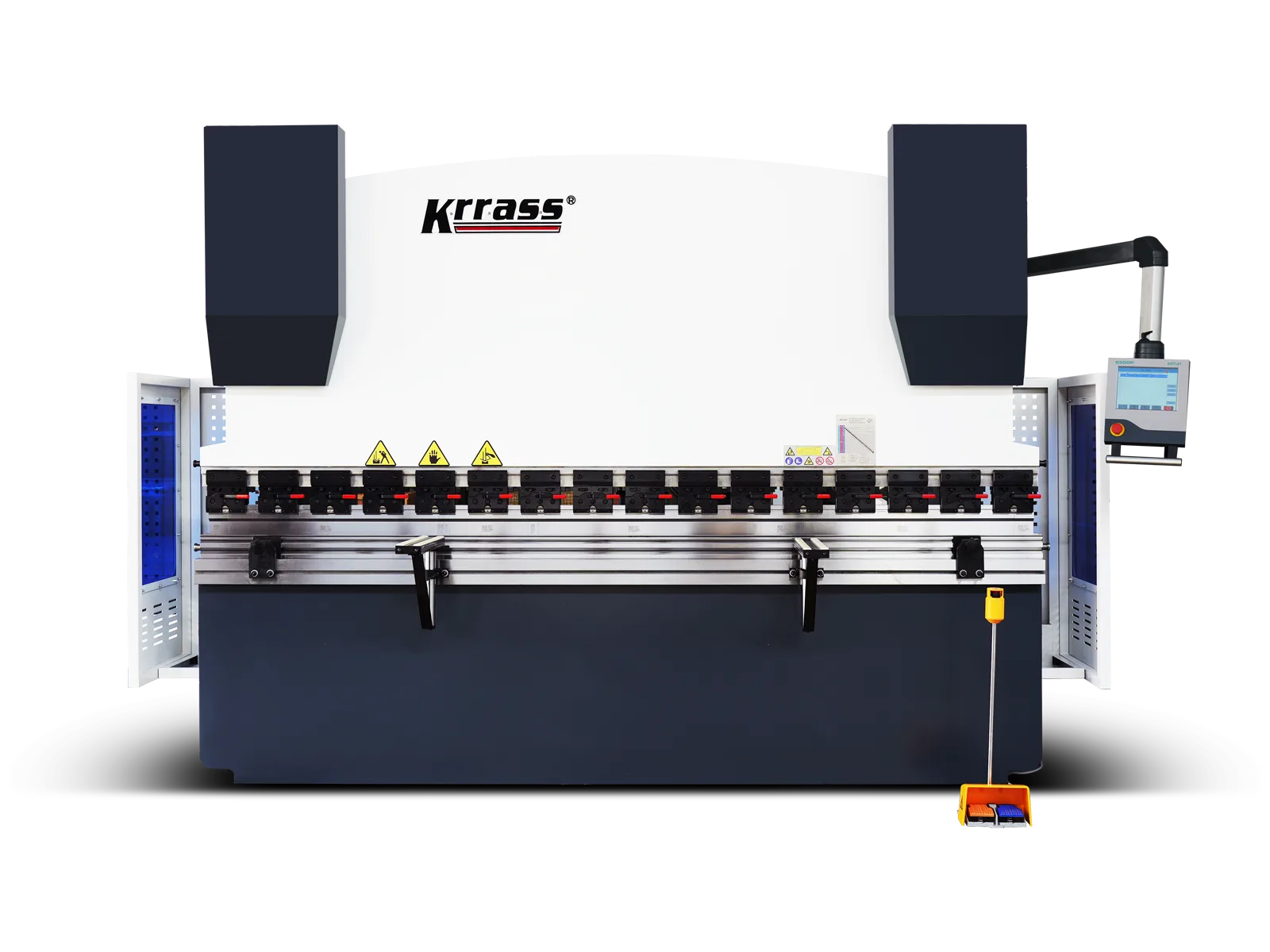

WC67K Sheet Metal Press Brake With E310P Controller
With its easy-to-use control unit (touchscreen E310P controller), rigid body frame, perfect design, high efficiency, multiple solutions for tool use, top CE safety standards, and a suitable price range, the economical nc press brake servo 2 Axis with E300P controller is the world leader in its category. The nc press brake 2 Axis with E300P controller is well-equipped; simultaneously, the nc press brake 2 Axis with E310P controller can pair it with a flexible, energy-efficient solution.
Get in touch
If you have any questions, please contact us, we will get back to you as soon as possible.
Get in touch
If you have any questions, please contact us, we will get back to you as soon as possible.
WC67K Sheet Metal Press Brake(E310P Controller)
Features & Configuration
Main Features
The imported configuration is stable and reliable.
High-strength frame with thick plates and sufficient materials. High-precision rear retaining system.
The work area can be customized, and all types of tool clamping can be installed.
Tailor-made Hydraulic Press Brake.
Universal High-End Intelligent Sheet Metal Press Brake Machine
The WC67K range offers high versatility and includes a large number of optional accessories and equipment.
Standard Configuration

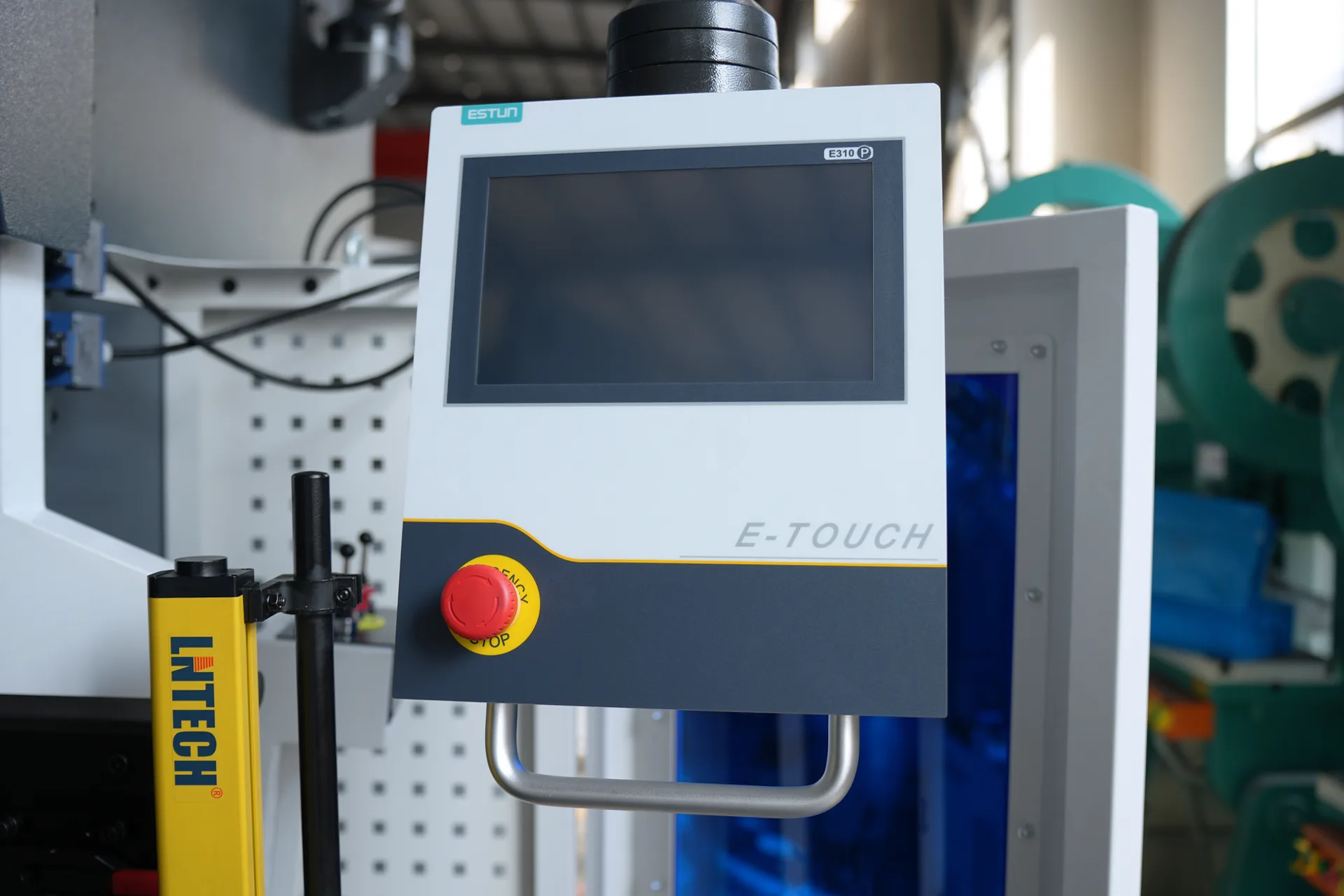

ESTUN E310P Controller
- 4 axes are supported, viz, X-axis, Y-axis, R-axis and C-axis.
- The back gauge can be controlled in a high-accuracy since the servo systems control X-axis and R-axis.
- Automatic calculation of the block position, according to the bending angle, material, thickness and mold parameters.
- The back gauge can be controlled in a high-accuracy since the servo systems control X-axis and R-axis.
- Optional hydraulic or mechanical to control the C-axis.
Y-axis Stroke Limit Switch
The high-precision, fast-response Y-axis stroke limit switch can quickly and accurately provide feedback on Y-axis stroke data to the controller, enhancing your workpiece production efficiency.
Furthermore, increased operational cycles also result in a longer service life, ensuring that your hydraulic press brake runs more smoothly.

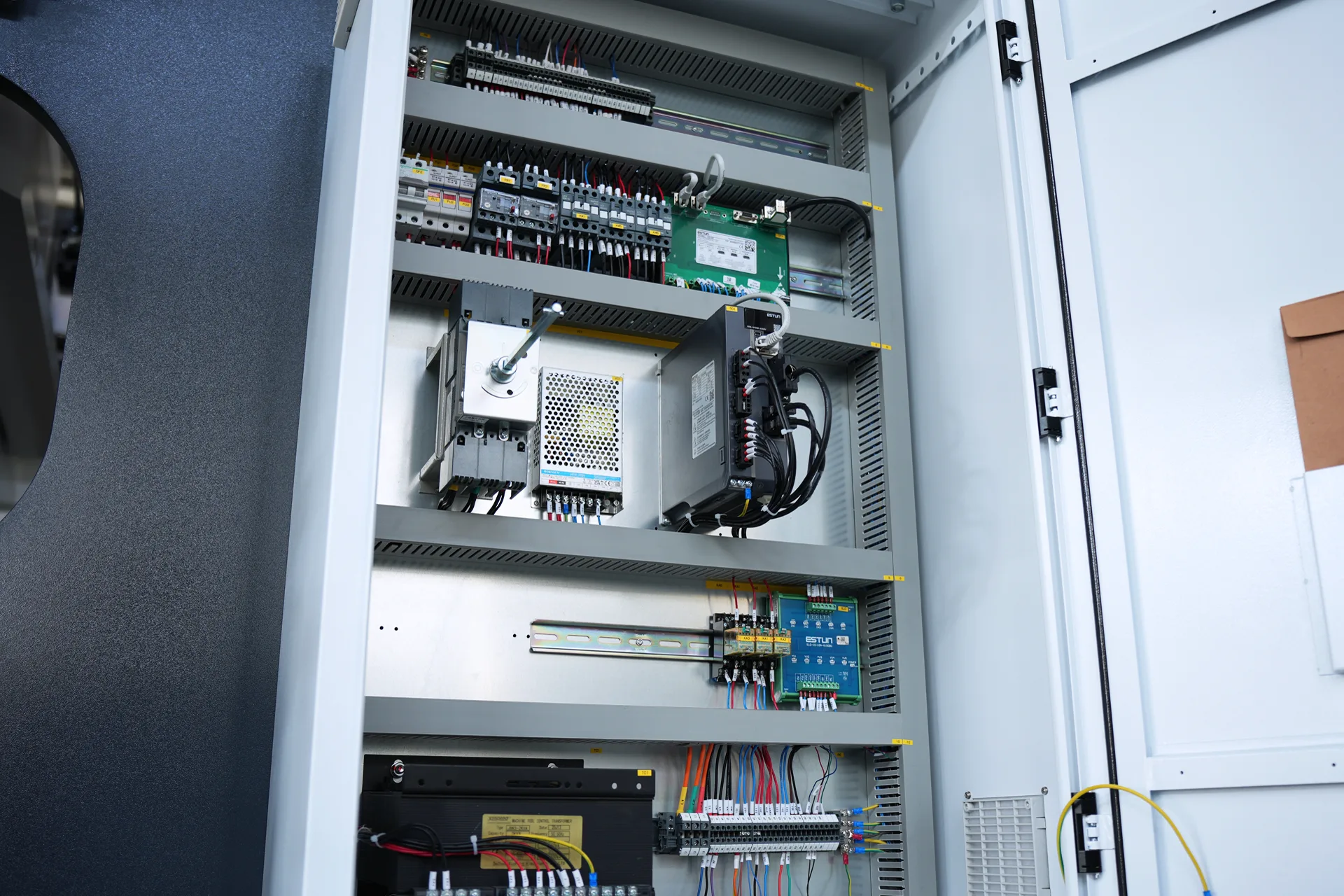

Schneider Electric
High-quality electrical components can perform well even when the electricity supply is unstable, and customers can easily obtain replacements anywhere in the world.

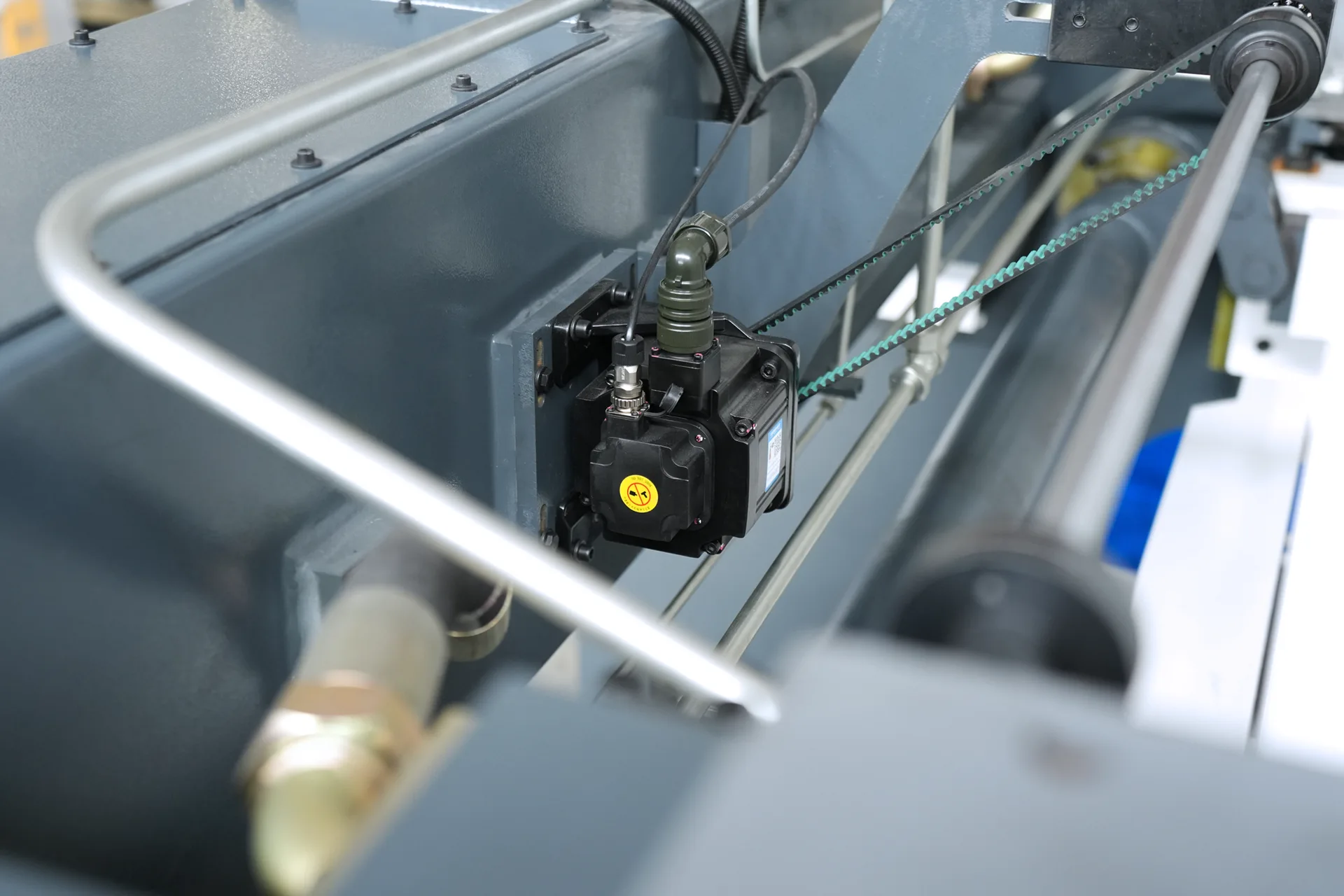

Y-axis Servo Motor
Servo motors have several advantages, including:
- High efficiency: Can approach 90% at light loads
- High output power: Relative to their size and weight
- Closed-loop control: Ensures greater accuracy
- Quiet operation: Little sound noise

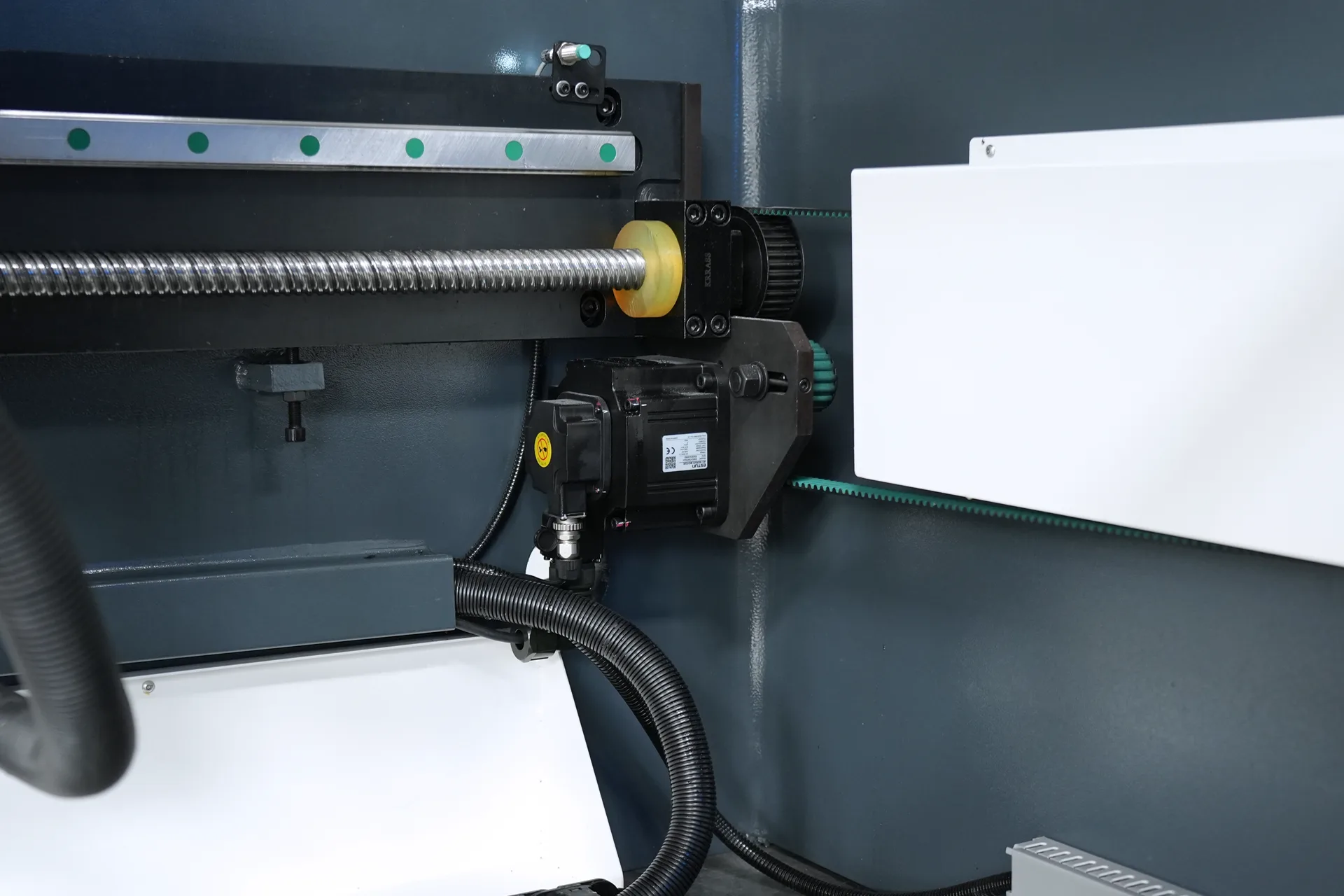

X-axis Servo Motor
In addition, the advantages of servo motors include:
- High reliability: Highly reliable
- High ratio of torque to inertia: Can provide as much as 50% more torque in many applications
- High precision: Can precisely actuate, hold, and speed up positions, torque, and speeds in fractions of seconds
FIRST Hydraulic Valves
The valve group from USA FIRST is used to ensure greater bending accuracy and longer service life.
The hydraulic pipes are made by the German brand EMB, which is guaranteed to never leak oil.
German Siemens Main Motor
The reputable and highly acclaimed German brand motor not only extends the operational lifespan of the machine but also maintains its efficient functioning in a serene environment with reduced noise levels, thereby enhancing overall productivity and user experience.
FIRST Hydraulic Oil Pump
The American FIRST oil pump is highly regarded for its exceptional performance, known for its quiet operation and remarkable longevity, making it a reliable choice for various applications.

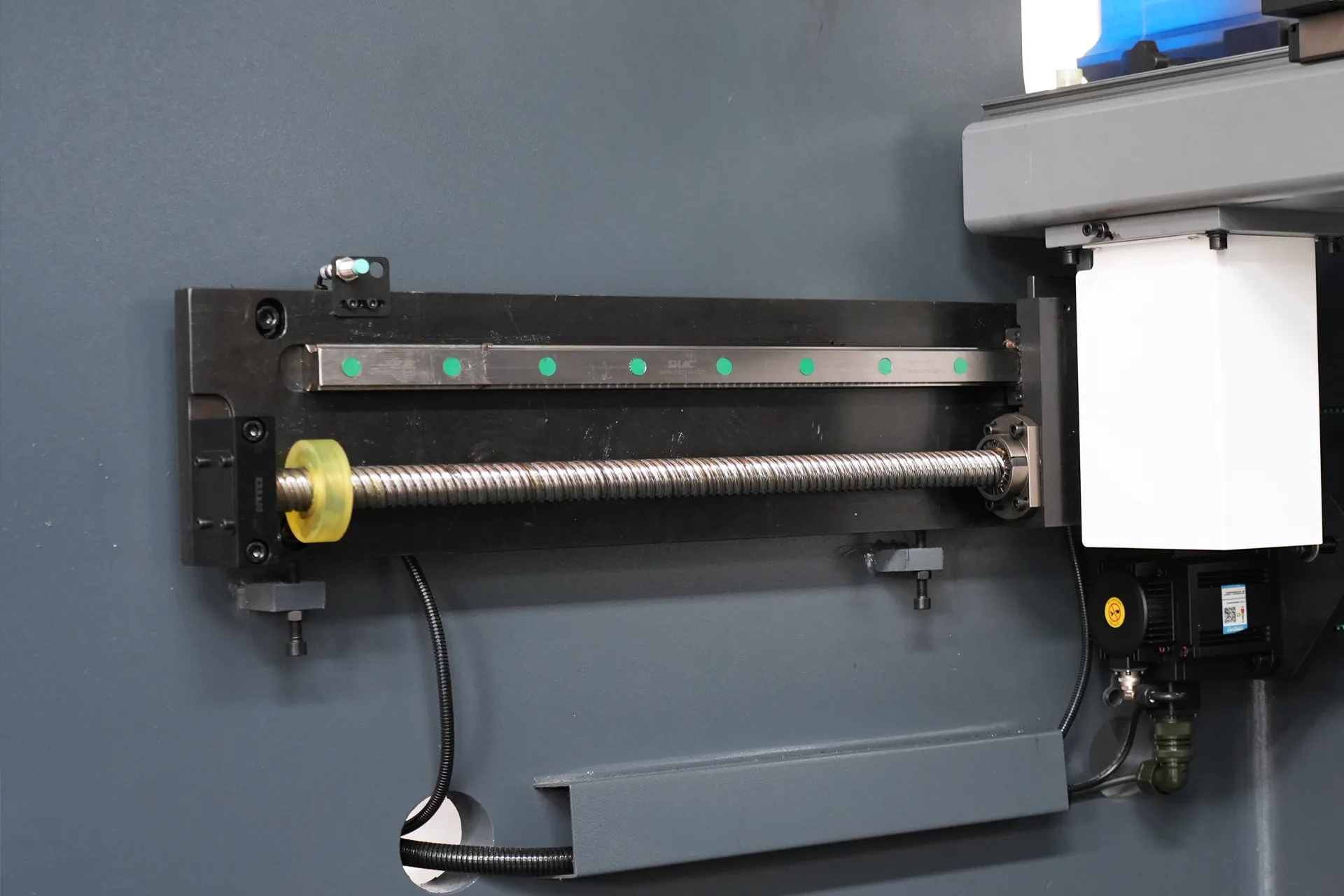

X-axis Ball Screw Linear Guide
- Precision: Ball screws offer enhanced precision, reduced energy consumption, and lower maintenance requirements.
- Responsiveness: Ball screws deliver exceptionally smooth motion.
- Friction: Ball screws rely on recirculating balls to reduce friction instead of lubricants.
Hight-Precision Fine-tuning Back Finger Stoper
High-precision backstop means that customers can input the size into the system according to the product’s dimensions, and it can be positioned accurately with an accuracy of 0.01mm.
The crossbeam is designed with double linear guide rails, allowing the blocking fingers to move both left and right along them.
Manual Upper Tool Clamping
Our press brake uses raw material provided by qualified suppliers, and the chemical composition corresponds to international standards. Therefore, the raw material yield and tensile strength are guaranteed. The materials are standardized with an 8.4 x 3.5 mm safety groove, which prevents the tool from falling out.
Front Material Support
The front material support can be lifted and lowered freely. When you need to bend larger metal sheets, it can effectively assist in reducing your workload.
Pedal Switch
The South Korean brand foot switch is designed to be movable, allowing for immediate machine stoppage with the emergency button. This feature enhances safety and operational control.
Punches & Dies
Hydraulic Press Brake punches and dies will be one of the most important topics we discuss before you place the order. Any bending shape will be completed by a suitable set of punch and die. We can provide appropriate tooling according to different bending requirements of customers.
Optional Configuration

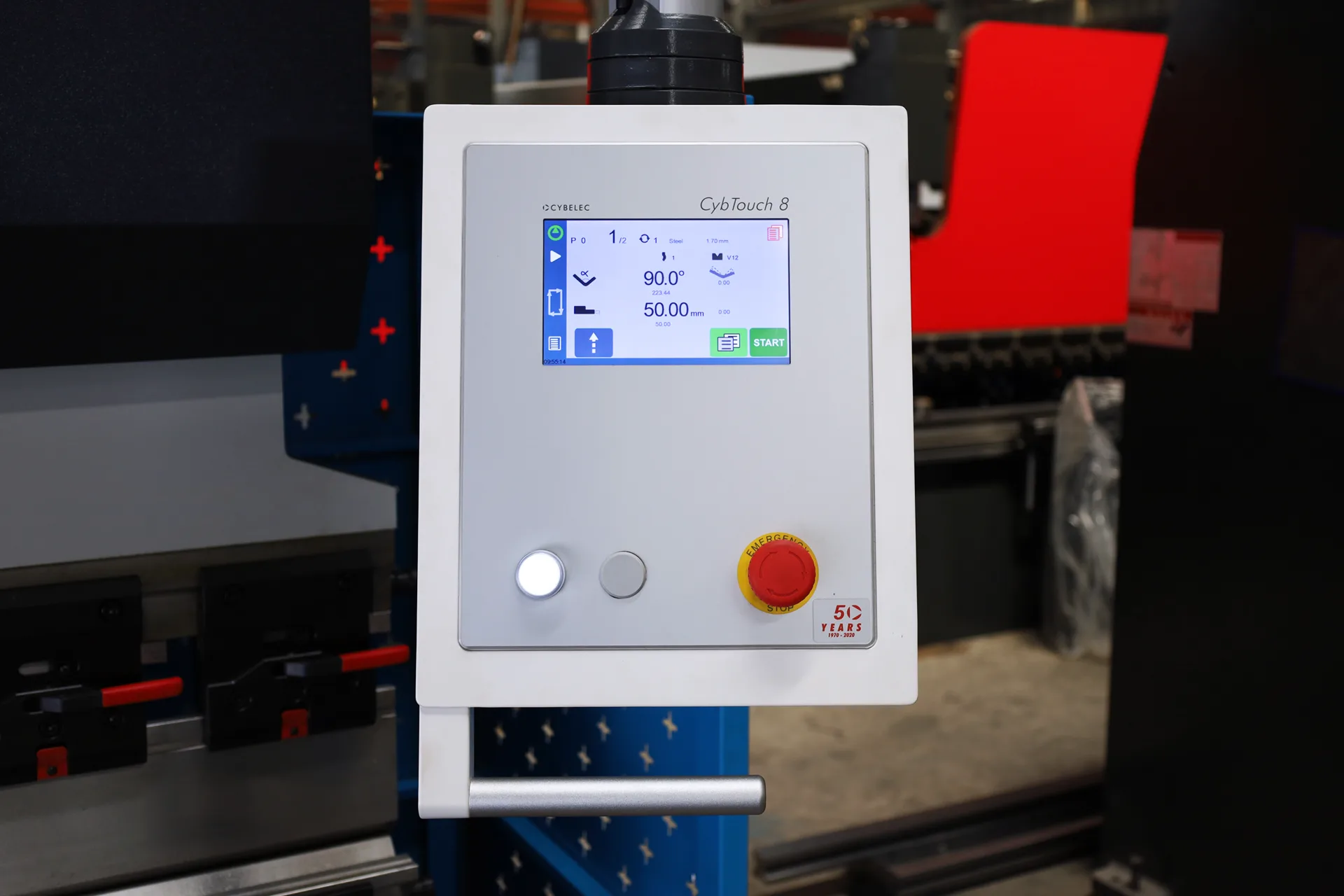

CybTouch 8 Controller
- Intuitive user-friendly interface.
- Simple pages, clear display, large keys.
- Large, vivid and high-contrast fully touchscreen.
- Complete programming for efficient mass-production with multiple bends.
- Easy single bends with EasyBend page.
- On-line help and interactive warning pop-ups.

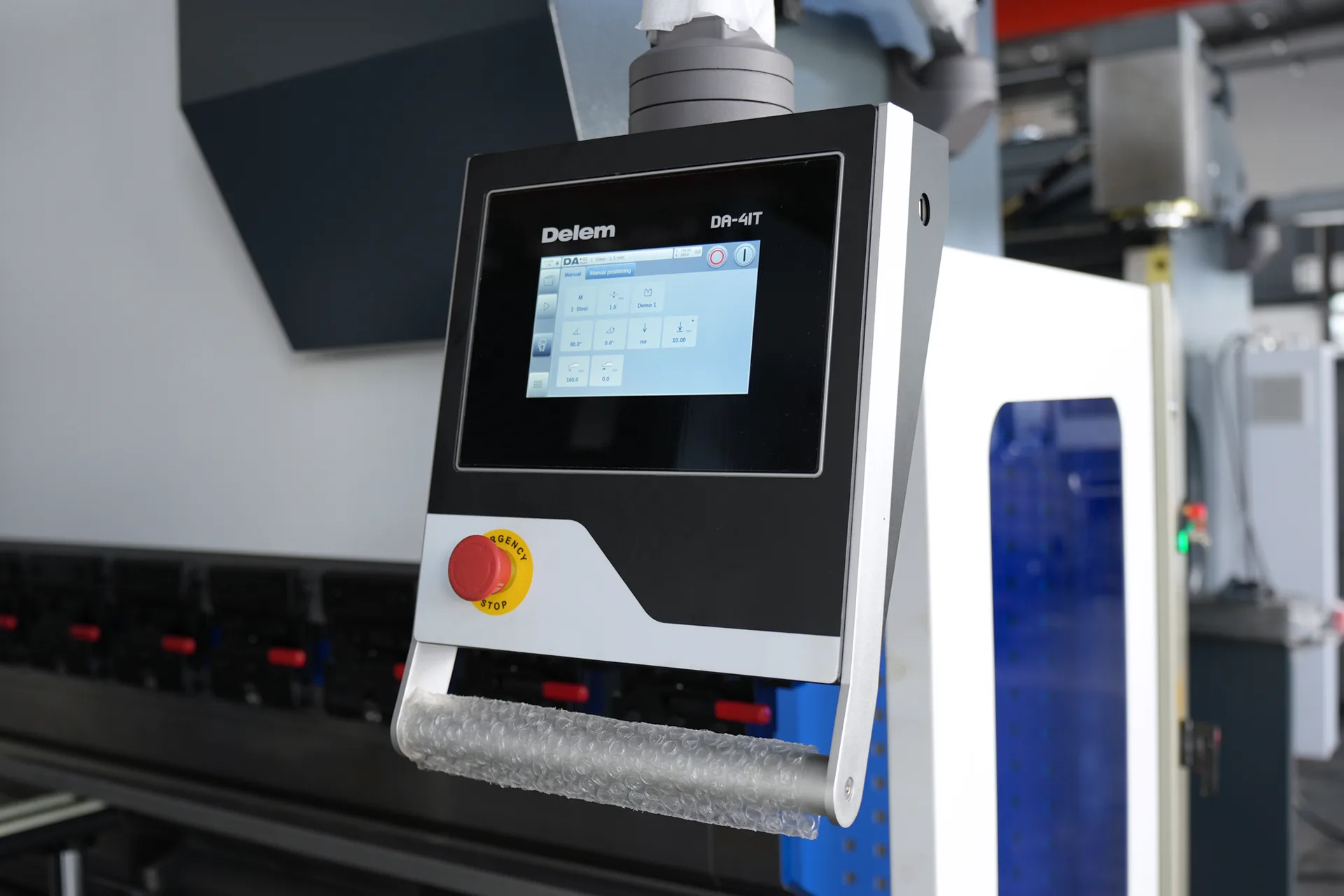

Delem DA-41T Controller
- Display: Colour LCD display
- Type: 7″ widescreen TFT, high brightness
- Backlight: LED backlight
- Resolution: 1024 x 600 pixels, 32 bit colour
- Touch sensor: Full touch screen control (PCT-touch)
- Storage capacity: Program memory for 100 programs
- Program steps: 25 steps per program
Manual Crowning System
The elastic deformation produced in the middle of the slider of the NC press brake and in the middle of the worktable causes inconsistencies in the angle along its entire length during bending, which is an important factor affecting bending accuracy. Therefore, our 300T press brake comes equipped with this function as standard.
Photoelectric Safety Protection System
The entire machine is equipped with photoelectric safety protection systems at the front and rear to ensure efficient production and the personal safety of operators.
Tooling (Optional)
