What Is Sheet Metal V Grooving Machine – Ultimate Guide

The sheet metal V grooving machine stands as a professional tool utilized in the fabrication of sheet metal workpieces. By implementing precise cuts to create V-grooves on the sheet metal, it enables the material to be accurately bent into desired shapes at specific locations. This technology holds significant prominence within the sheet metal processing industry, offering an efficient and meticulous solution for the bending and fabrication of workpieces.

This comprehensive guide offers a detailed examination of sheet metal V-groove machines, exploring their operational mechanisms, application advantages, and essential considerations for selection, operation, and maintenance. Whether you’re a newcomer to this equipment or seeking to enhance your understanding and efficiency in sheet metal processing, this resource furnishes comprehensive insights and practical recommendations to support your endeavors.

What Is Sheet Metal V Grooving Machine

A V-groove machine is a specialized piece of equipment designed for the precise processing of V-grooves on sheet metal. Widely utilized in manufacturing and metalworking industries, it serves as a vital tool for shaping and manipulating metal sheets.

Operating with a dedicated cutting tool, the V-groove machine meticulously cuts V-shaped grooves into the surface of metal sheets. These grooves can vary in shape, either straight or curved, depending on the cutter design and cutting path configuration. The resulting workpieces exhibit characteristics such as a small bending radius, minimal color alteration, and require minimal bending force. Furthermore, the machine aids in reducing the straightness error of narrow and elongated workpieces’ round edges, allowing for the utilization of standard bending machines and tooling for shaping complex cross-sectional profiles.

Capable of processing various metal materials including steel, stainless steel, and aluminum, V-groove machines accommodate sheets of different thicknesses and dimensions. Notably, they boast high cutting accuracy, ensuring precise V-groove cutting to meet design specifications.

Advanced iterations of V-groove machines often incorporate automated features such as CNC control and automatic tool adjustment, streamlining operation and enhancing productivity.

In manufacturing contexts, V-groove machines find critical applications in fabricating metal parts, specialized sheet metal processing, and producing metal components with V-shaped bending structures. These grooves facilitate bending and shaping of metal materials, imparting greater strength and stability to components. Additionally, V-shaped grooves serve as effective means for joining, connecting, and assembling diverse metal parts, resulting in stronger and more durable assemblies.

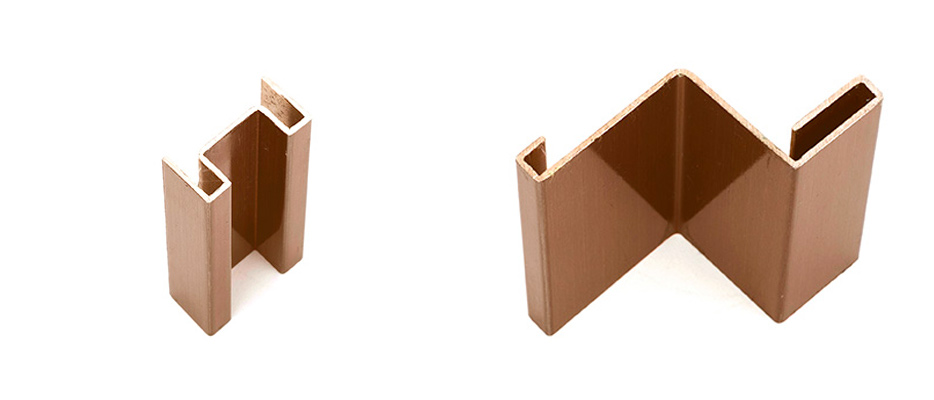

Importance of V Groover In Sheet Metal Fabrication

The V-groove machine can cut V-shaped grooves in sheet metal, which can strengthen and guide when bending. By cutting V-shaped grooves on the bending line of the metal plate, the bending at the bending point is more uniform, reducing the risk of deformation and cracking, thereby improving the bending strength and quality of parts.

It can also be used to join multiple metal sheets, aligning them precisely and fastening them together, e.g. by welding. This method of splicing is especially useful when making large structures and containers, increasing the strength of the joints and improving the stability of the overall structure.

And can be used to cut grooves and trenches that can be used to hide cables, conduits or pipes, making these elements neater and safer in sheet metal structures. In some special designs, V-shaped bending structures are required to achieve specific functions or aesthetic effects. The V-shaped groove machine can cut the metal plate into a V shape, and then process it into a V-shaped bending structure through bending and other processes.

V-shaped groove machines play a key role in sheet metal processing, helping to strengthen the structure of parts, improve bending strength, realize the splicing and connection of metal sheets, and create special V-shaped bending structures to meet various application requirements .

Basic Principles

The fundamental principle of V-groove machining involves several key steps to ensure precise and accurate cuts on metal sheets.

Firstly, the metal sheet to be processed is securely fixed onto the workbench of the V-groove machine. This step is crucial to prevent any movement or vibration during the cutting process, thereby maintaining cut accuracy.

Next, the appropriate cutting tool is selected based on the size and shape of the V-groove to be machined. This tool could be a cutting blade or a specialized tool with a V-shaped edge that matches the desired groove.

The cutting depth and angle of the V-groove machine are then adjusted according to specific processing requirements. The depth of cut determines the depth of the V-groove, while the angle determines the opening angle of the groove.

Once the machine is set up, the cutting tool is set into motion along the predetermined path. As it moves, it cuts into the surface of the metal sheet, gradually forming the V-shaped groove. During this process, metal material is removed by the cutting action of the tool, shaping the groove as desired.

Upon completion of the cutting process along the designated path, the operation of the V-groove machine is halted. The cut metal plate is then removed from the machine, completing the V-groove machining process.

Types of Sheet Metal V-Groove Machines

1. Manual V-groove machine: Operated manually by the operator to control tool movement and cutting depth, suitable for simpler V-groove processing tasks.
2. Semi-automatic V-groove machine: Combines manual control with automation features such as automatic tool adjustment or feeding, enhancing processing efficiency and accuracy.
3. Fully automatic V-groove machine: Offers a high level of automation with features like automatic tool adjustment and feeding, often equipped with CNC control systems for complex V-groove processing, improving production efficiency and accuracy.
4. CNC V-groove machine: Utilizes computer numerical control systems to precisely control tool movement and cutting parameters, ideal for complex V-groove processing requirements.
5. Hydraulic V-groove machine: Driven by a hydraulic system, providing greater cutting force and stability, suitable for processing thicker metal sheets or applications requiring increased cutting force.
6. Mechanical V-groove machine: Operates using mechanical transmission mechanisms such as gears and belts, suitable for small to medium-scale V-groove processing tasks.

Application Prospects of V-Groove Bending

The application prospects of V-groove bending forming technology are promising, driven by its evident advantages and compatibility with existing bending methods and equipment. By simply integrating sheet metal V-groove machines, this technology has found widespread adoption in the emerging middle and high-end decoration industries.

Furthermore, it has been successfully implemented in the elevator manufacturing sector, offering enhanced efficiency, precision, and aesthetics in shell production.

Interest in V-groove bending technology has also emerged within the medical device manufacturing and electric control cabinet industries. In medical device production, it improves product quality and performance by enabling the processing of various parts with greater precision. Similarly, in electric control cabinet manufacturing, V-groove bending facilitates the creation of refined and intricate bending structures, enhancing cabinet strength and durability.

As understanding of V-groove bending technology deepens, its application scope is expected to broaden. Beyond the aforementioned sectors, it holds potential in aerospace, automobile manufacturing, rail transit, engineering, architectural decoration, and more. With ongoing technological development and innovation, V-groove bending forming technology is poised to make significant contributions across diverse fields, delivering increased convenience and benefits to sheet metal processing operations.
