Stamping Press Machine Types

A stamping press machine is a type of metalworking equipment used to shape or cut metal sheets by applying pressure through a die. It operates by forcing a piece of metal into the desired shape or size using a combination of pressure and precision-made dies. Stamping press machines come in various types and configurations, including mechanical, hydraulic, and servo-driven presses, each offering unique advantages and capabilities. These machines are commonly used in industries such as automotive, aerospace, electronics, and appliance manufacturing for processes like blanking, forming, piercing, bending, and coining.

What Is Metal Stamping

Metal stamping is a manufacturing process that involves shaping flat sheet metal into a desired final shape using heavy-duty pressing machines equipped with upper and lower halves of a die set. These dies can perform a variety of operations such as shearing, bending, blanking, trimming, piercing, drawing, or stretching the starting material to achieve the correct dimensions for the final product.

The versatility of stamping allows for the creation of a wide range of products, from simple brackets to complex automotive vehicle frames.

This efficiency-focused strategy is fundamental to high-volume, cost-effective production across multiple industries. By streamlining manufacturing processes and reducing the need for additional equipment, labor, and time, metal stamping offers significant cost savings for large-scale production. Compared to machining, which involves material removal to create parts, stamping is generally more material-efficient and quicker for high-volume production runs.

Conversely, in comparison to forging, stamping can be more cost-effective for certain intricate and precise part geometries, offering advantages in terms of speed and consistency.

6 Types of Metal Stamping Process

Punching

This process involves using a punch and die to cut holes or create openings in the sheet metal. It is widely used for creating perforations, slots, and openings in various products, such as automotive parts and electronics applications. Punching can create holes with precise size tolerances, with accuracy depending on the material kind and thickness, the hole size, and the quality and wear condition of the tooling.

Blanking

Blanking is akin to punching but focuses on cutting out the desired shape from the sheet metal rather than creating holes within a desired final shape. Steel blanking is a cost-efficient process for tailoring metal parts to specific needs, with continuous material feed-reducing setup and part handling. It minimizes waste through efficient part nesting and cuts shipping costs by sending just the net weight. Initially catering to the automotive and fabricating sectors, its adaptability to various industries is expanding due to the blanks’ capacity to conform to the final part shape, making it increasingly attractive to a broader industrial spectrum.

Bending

Bending is the process of shaping sheet metal by applying force to deform it at specific angles. In press brake forming, a workpiece is placed over a die block, which molds the sheet into a shape by exerting both tensile and compressive stresses. Springback occurs post-bending, requiring over-bending to achieve the desired angle. Material type and forming method influence springback. Bending elongates sheet metal, measured as bend deduction from outer edges and bend radius on the inside, influenced by: die choice, material properties, and thickness. Additionally, items like tabs and channels are crafted through bending.

Coining

Coining is a metal-forming process that employs pressure to shape and harden the surface of a workpiece, creating precise forms and smoothing edges. This method reduces the need for secondary processes like deburring and grinding, saving time and costs. Coining finds applications in various industries, especially when intricate details and fine features are essential, such as in: coin production, badges, buttons, and precision components.

Embossing

Embossing involves creating raised or recessed designs on the surface of sheet metal. It is commonly used for decorative purposes on items like ornate panels. Precision in embossing ensures the desired aesthetic and tactile qualities.

Flanging

Flanging is the process of forming a raised edge or lip on a sheet metal component. It is employed in applications such as automotive panels and ductwork. The accuracy of flanging is to ensure proper sealing and structural integrity.

3 Main Types of Stamping Press Machine

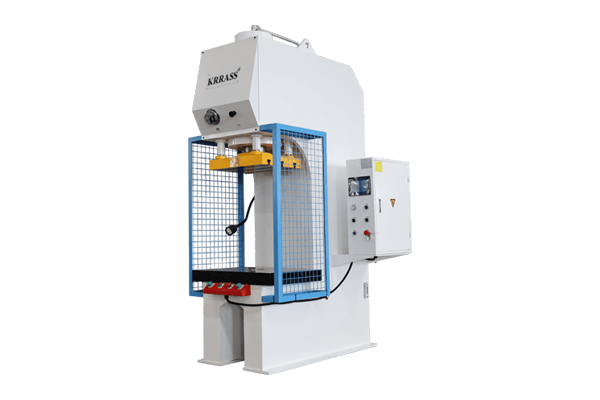

Hydraulic stamping press machine

Hydraulic stamping press machines play a vital role across various industries, offering immense power for shaping and forming materials. These machines utilize hydraulic systems to generate substantial force, facilitating the creation of intricate designs and precise shapes during manufacturing processes.

Their versatility stands out as a key advantage, enabling them to handle a diverse range of materials such as metals, plastics, and rubber. This adaptability makes hydraulic stamping press machines indispensable in industries like automotive, aerospace, construction, and packaging.

Available in various sizes and configurations, these machines cater to different production needs. Whether for small-scale operations or heavy-duty industrial tasks, their size and capacity determine their capabilities, accommodating materials of different thicknesses and complexities.

Precision and efficiency characterize hydraulic stamping press machines, thanks to their hydraulic systems allowing for precise pressure control. This control ensures consistent results while minimizing the occurrence of defects or inaccuracies in the final products.

Moreover, their durability and robust construction make them resilient to the demands of continuous operation, leading to reduced downtime and maintenance costs. However, regular maintenance remains essential to uphold their performance standards. This involves inspecting and lubricating hydraulic systems, identifying wear or damage, and replacing worn parts to ensure safe and efficient operation over time.

Mechanical Stamping Press Machine

Mechanical Stamping press machines, a cornerstone of manufacturing, wield significant influence in shaping and forming materials like metal sheets and plates. Across automotive, aerospace, and construction sectors, they hold indispensable roles.

Operated by mechanical power, these machines intricately carve designs onto materials by applying pressure through a mechanical system. Placing materials between two dies, they execute this process, crafting anything from simple cuts to intricate patterns.

Versatility emerges as a hallmark trait of mechanical stamping press machines. Their adeptness spans various materials, encompassing steel, aluminum, and even plastics. This adaptability empowers manufacturers to diversify their product range, spanning automotive components to household appliances.

Precision and repeatability stand out as notable virtues of these machines. Their mechanical systems guarantee consistent outcomes with each press, crucial in industries that demand pinpoint accuracy to uphold product quality and functionality.

Efficiency and productivity further bolster the appeal of stamping press machines. Leveraging mechanical power, they facilitate swift and continuous production, elevating output rates. This proves invaluable for meeting tight deadlines and production quotas.

Sustaining optimal performance necessitates regular maintenance and prudent operation. Lubrication, inspection, and calibration emerge as critical practices to uphold the durability and efficiency of stamping press machines, ensuring prolonged service life and minimized downtime.

Pneumatic stamping press machine

Pneumatic stamping press machines are highly valued across industries for their efficiency and precision, particularly in repetitive tasks. Powered by pneumatic force, these machines imprint various materials with remarkable accuracy. Their widespread use spans industries such as automotive, aerospace, and manufacturing.

Versatility stands as a prominent advantage of pneumatic stamping press machines. Capable of embossing, debossing, punching, and forming, they offer a broad spectrum of applications. Leveraging pneumatic power, these machines execute stamping tasks swiftly and accurately, ensuring consistent outcomes.

Speed and productivity further underscore the appeal of stamping press machines. Their automated operation enables the completion of multiple stamping tasks within short timeframes, thereby slashing production durations and enhancing overall efficiency. Moreover, adjustable pressure and speed settings cater to diverse material types and thicknesses, allowing for customization to meet specific requirements.

User-friendly design is another hallmark feature of pneumatic stamping press machines. Equipped with intuitive controls and interfaces, operators can easily set up and operate these machines. Safety mechanisms incorporated into their design prioritize operator protection, mitigating the risk of accidents or injuries.

Maintenance-wise, pneumatic stamping press machines demand relatively minimal upkeep compared to their counterparts. Routine cleaning and lubrication of machine components are imperative to sustain optimal performance and longevity. Periodic inspections and repairs conducted by trained technicians preemptively identify and resolve potential issues, ensuring seamless operation.

Summary

In the manufacturing industry, hydraulic, mechanical, and pneumatic stamping press machines stand as indispensable assets. These machines are prized for their versatility, efficiency, accuracy, and productivity, serving as vital tools for manufacturers.

By adhering to regular maintenance schedules and servicing, hydraulic stamping press machines uphold their capability to deliver top-notch results over extended periods. Similarly, manufacturers can safeguard smooth operations and uphold superior product standards by investing in premium-grade stamping press machines and implementing stringent maintenance protocols.

Pneumatic stamping press machines present a host of advantages, including rapid operation, user-friendly interfaces, and minimal maintenance requirements. They prove particularly advantageous for businesses seeking to streamline production workflows and elevate overall productivity and profitability.
