Single Press Brake – Elevating Precision with Compact Design
Among the myriad types of press brakes available, the single press brake has garnered considerable attention for its distinct advantages. Renowned for its compact structure, user-friendly operation, and outstanding processing performance, the standalone press brake has found widespread application in bending various types of sheet metal. Comprised of essential elements such as the body, table, bending axis, and control system, the single press brake excels in achieving diverse angles and shapes through the precise control of the bending axis by the advanced control system.
The single press brake, renowned for its compact structure and intuitive user interface, emerges as a beacon of excellence in the realm of sheet metal bending. Comprising essential elements such as the body, table, bending axis, and control system, this equipment seamlessly blends precision with user-friendly operation to redefine the standards in metal fabrication.
Compact Brilliance
At the core of its appeal is the single press brake’s ingenious and space-efficient design. Its compact structure not only optimizes spatial utilization but also enhances maneuverability within the workspace, making it an exemplary choice for projects with limited operating space.
User-Friendly Operation
The single press brake takes pride in its user-centric design, offering an interface that is both intuitive and efficient. Operators, regardless of their experience levels, can navigate the equipment effortlessly. This characteristic ensures a streamlined workflow, minimizing downtime and maximizing productivity.
Crucial Components Unveiled
- Body: A robust and durable foundation, the body of the single press brake provides stability, ensuring consistent performance under varying operational demands.
- Table: Purposefully designed to complement the bending process, the table serves as a dependable platform for manipulating sheet metal with precision.
- Bending Axis: The nucleus of precision bending, the bending axis undergoes meticulous control, allowing the creation of intricate angles and shapes with unparalleled accuracy.
- Control System: Serving as the intelligent core, the advanced control system orchestrates the operation, ensuring seamless coordination of the bending axis and delivering optimal results.

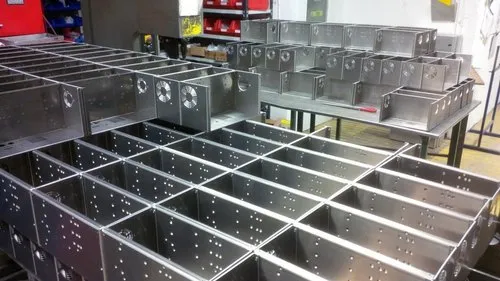

Versatile Precision in Fabrication
The single press brake’s defining feature lies in its capacity to exert precise control over the bending axis. This precision translates into the fabrication of diverse angles and shapes, catering to a broad spectrum of design requirements in sheet metal bending.
Efficiency in Every Bend
From intricate designs to complex geometries, the single press brake excels in delivering results with unparalleled efficiency and accuracy. Its precise control mechanism not only upholds the integrity of the material but also contributes to cost-effectiveness in sheet metal processing.
In essence, the single press brake stands as a paragon of compact design seamlessly intertwined with precise functionality. As a stalwart in sheet metal bending, it continues to redefine excellence, offering a reliable solution that marries form and function within the constraints of limited workspace.

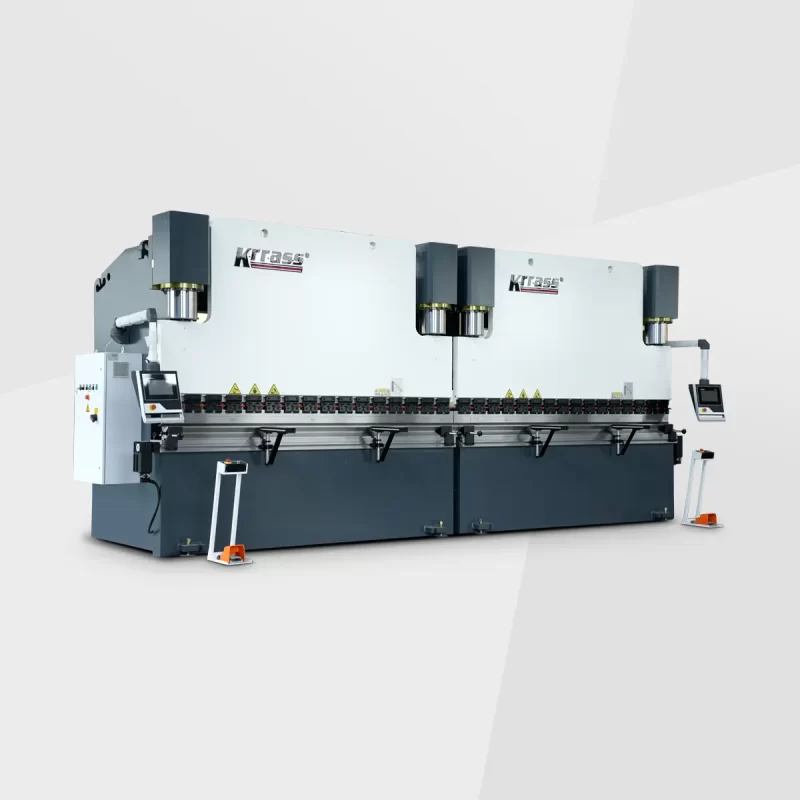

Tandem Servo CNC Press Brake
Krrass’ Tandem Servo CNC Press Brake utilizes an advanced servo control system to achieve precise control of the bending process. The high-speed, high-precision servo drive ensures consistency and accuracy in every bend. Innovative design increases throat depth, stroke, and daylight to enhance performance while reducing operating noise, providing users with a stronger, faster operating experience.
The Tandem Servo CNC inline press brake is equipped with an efficient tool change and alignment system that speeds up operation and increases productivity. This technology also helps to reduce production costs and achieve greater cost-effectiveness. The use of components from globally recognized and reliable brands ensures the reliability and stability of the equipment.
At the same time, the design of this press brake focuses on simplifying the maintenance and repair process, making it easier for users to maintain and repair the equipment. These features make the Tandem Servo CNC press brake a state-of-the-art, efficient, reliable, and easy-to-maintain metal processing that meets the high demands for accuracy, speed, and reliability in the modern manufacturing environment.
Rack Side Quick Clamps
The rack-side quick clamp is a device for fixing workpieces, widely used in metal processing, tools, and other fields. It can quickly clamp and loosen the workpiece in a short period to improve production efficiency. The design and selection of quick clamps should consider factors such as clamp rigidity, clamping force, ease of operation, etc., to meet the needs of different machining processes.

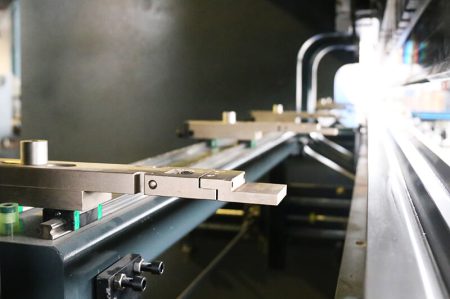

Backstop
The backstop is a device used to control the cutting position of metal, commonly used in punching machines, cutting machines, and other equipment. The backstop device can precisely control the feeding speed and cutting length of the sheet to ensure the stability and consistency of the product size. In the process of sheet metal processing, the role of the backstop is crucial, directly affecting the quality and precision of the product.
CNC Sheet Follower
The CNC sheet follower is an equipment component controlled by CNC technology, capable of realizing the automatic processing of the sheet. CNC sheet followers have characteristics such as high precision, high efficiency, and high stability. They are widely used in the cutting, engraving, bending, and other processing of various metal sheets. By combining with computer programming, CNC sheet followers can realize mass production of complex parts to meet various engineering needs.
Engine Electrical Parts
As the core component of automobiles, machine tools, and other equipment, the electrical parts of the engine are vital to the operation of the whole equipment. Engine electrical parts mainly include the ignition system, fuel injection system, sensors, generator, starter motor, etc. These parts ensure that the engine can work efficiently and stably by cooperating with each other. During engine repair and maintenance, it is important to check and replace damaged electrical parts to ensure the normal operation of the engine.

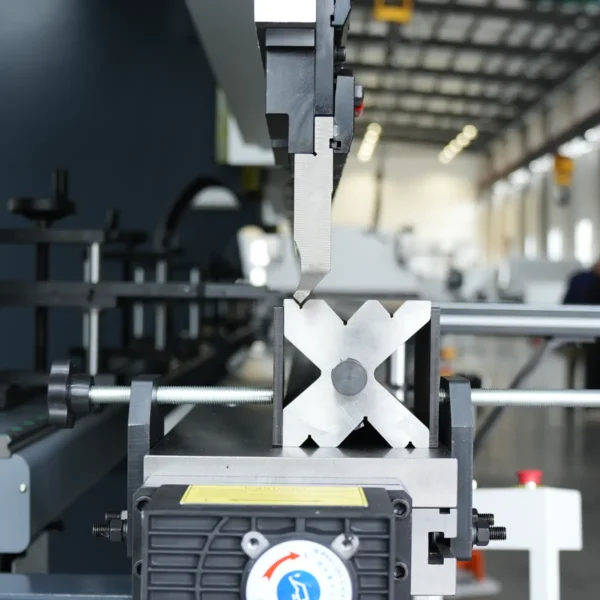

Punch and Mold
Punch and die are crucial components in stamping equipment, primarily used to achieve the deformation and forming of metal plates. The design and manufacturing level of punches and dies directly impact the quality and productivity of stamped products. During the stamping process, factors such as material, hardness, durability, and others related to punches and dies must be strictly controlled to meet the processing needs of different products.
DSP Laser Protection
DSP (Digital Signal Processing) laser protection is a laser safety measure realized through digital technology. During laser processing, DSP laser protection monitors the position and intensity of the laser beam in real time to ensure the safety and stability of laser processing. Through real-time adjustment of laser parameters, DSP laser protection can effectively avoid failures and accidents during laser processing, improving the service life of laser equipment.

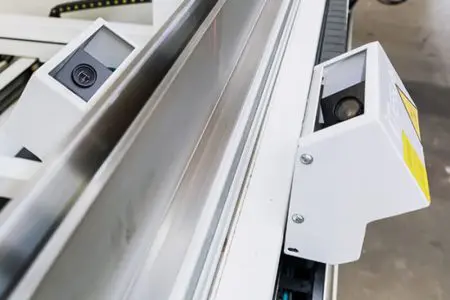

Laser Check Bending Angle Measurement
Laser Check is a state-of-the-art bending angle measurement system for the bending of various metal sheets. Utilizing laser technology, Laser Check accurately measures the bending angle of a sheet to ensure that the product meets the design requirements. The use of Laser Check in metal processing contributes to improving product quality and machining accuracy across a wide range of engineering needs.
In summary, these technical components play a vital role in modern manufacturing, enhancing productivity and product quality. Understanding and mastering the principles and applications of these technical components are crucial for enhancing the competitiveness of China’s manufacturing industry.
Emphasizing Cases for Tandem Servo CNC (Precision and Efficiency)
Tandem Servo CNC press brake demonstrates superiority in precision and efficiency in specific production scenarios. The synchronized operation of Tandem press brakes can significantly enhance productivity and accuracy, especially in scenarios where complex or large-scale parts require precise and efficient bending. The coordinated efforts of Tandem press brakes can reduce processing time, improve bending precision, and contribute to overall manufacturing efficiency.
1. Specific Production Scenarios And Requirements Suitable For Tandem Press Brake
Large-scale production of complex parts: Tandem Servo CNC press brake is well-suited for scenarios involving the mass production of intricate components, where synchronized operation enhances efficiency.
High precision requirements: Applications demanding high precision in bending angles and shapes benefit from the coordinated efforts of Tandem press brakes, ensuring accuracy in the final products.
2. Complex Shapes And Angles
Tandem press brake is advantageous when dealing with parts that require bending at multiple angles or intricate shapes, providing flexibility and precision in the manufacturing process.

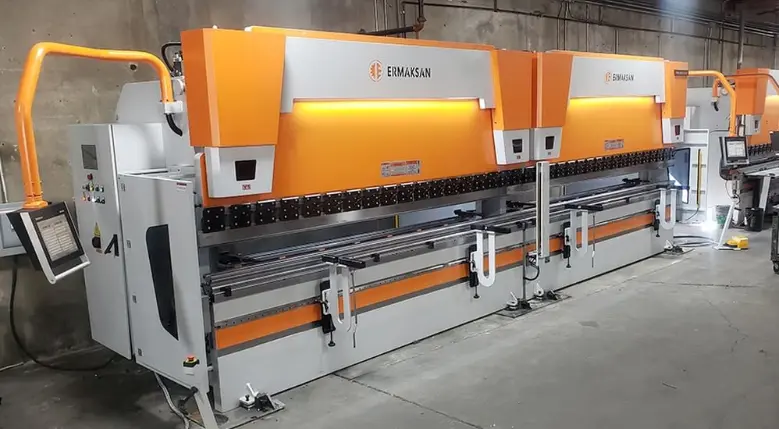

Tridem Press Brake
The tridem press brake stands out as an efficient and flexible bending equipment highly favored by enterprises in the modern metal processing industry. This discussion will delve into the structure and production mode of the tridem press brake, comparing its performance and flexibility with single press brake and Tandem Servo CNC press brake press brakes. Additionally, examples will illustrate its application in large-scale production, along with insights into the equipment, work interactions, and content involved in quadrem Press Brake . Industry applications and case studies from durmapress will be shared to highlight the benefits and results of different press brakes in actual industries.
Structure And Production Method Of Tridem Press Brake
A tridem press brake comprises a loading mechanism, a bending mechanism, a lowering mechanism, and a control system. Through the cooperative operation of these tridem press brake, high-speed, high-precision bending processing is achieved. The production modes include continuous bending (suitable for large quantities of single-shaped parts processing), step bending (suitable for diversified small-batch parts processing), and multi-station bending (allowing for various shapes and angles in complex parts processing).
Tridem Press Brake In Large-Scale Production
Illustrating with an example from an automotive parts manufacturer, the enterprise employs a tridem linked press brake for processing body parts. The efficient and flexible processing of the tridem linked press brake enables mass production to meet market demand. Coordinated operation with automatic loading and unloading equipment, robotic welding equipment, and other automated systems further enhances production efficiency and reduces costs.
Comparative Brilliance: Tridem Press Brake vs. Single Press Brake and Tandem Press Brake
Performance Pinnacle:
In the arena of performance, the tridem press brake emerges as a trailblazer, outshining both the single press brake and tandem press brake in terms of productivity. The tridem press brake operates in a mode where loading, bending, and material processing unfold concurrently, effectively slashing the processing cycle. This synchronized approach results in higher throughput, making it a formidable choice for projects demanding swift and efficient fabrication.
Flexibility Redefined:
The tridem press brake takes the lead in flexibility, showcasing unparalleled adaptability in its operational repertoire. Notably, it excels in automatic station switching, seamlessly catering to diverse processing needs for parts of varying shapes and sizes. This automatic adaptability stands as a testament to its engineering sophistication, providing a dynamic solution for a spectrum of manufacturing requirements.
Single Press Brake and Tandem Press Brake Dynamics
In contrast, the single press brake and tandem press brake, while commendable in their own right, exhibit relatively lower flexibility. The single press brake, with its compact precision, is ideal for specific projects but may face limitations in handling varied processing needs. On the other hand, the tandem press brake, with its synchronized operation, excels in precision but may lack the dynamic station-switching prowess that defines the tridem press brake.
Versatility Unleashed
The tridem press brake’s prowess lies in its ability to seamlessly transition between stations, accommodating the intricacies of different parts efficiently. This capability significantly broadens its scope of application, making it a versatile solution for manufacturers dealing with a diverse range of components.
Efficiency Amplified
Beyond its adaptability, the tridem press brake’s simultaneous operation of loading, bending, and material processing translates into a drastic reduction in the processing cycle. This efficiency boost contributes not only to time savings but also enhances overall operational efficacy.
In summary, the tridem press brake stands tall as a paradigm of superior performance and flexibility in the realm of metal processing. Its ability to synchronize operations and adapt dynamically sets it apart, marking a new standard for efficiency and versatility in bending technology.
