5 Key Advantages of Vertical V Grooving Machines Over Horizontal Machines

Explore the nuanced differences between horizontal and vertical V grooving machines, essential tools in sheet metal processing. This guide delves into their processing range, power loss, precision, processing technology, safety aspects, and installation considerations to help you make informed decisions for your specific needs.

1. Distinct Features and Capabilities:

1.1 Processing Range:

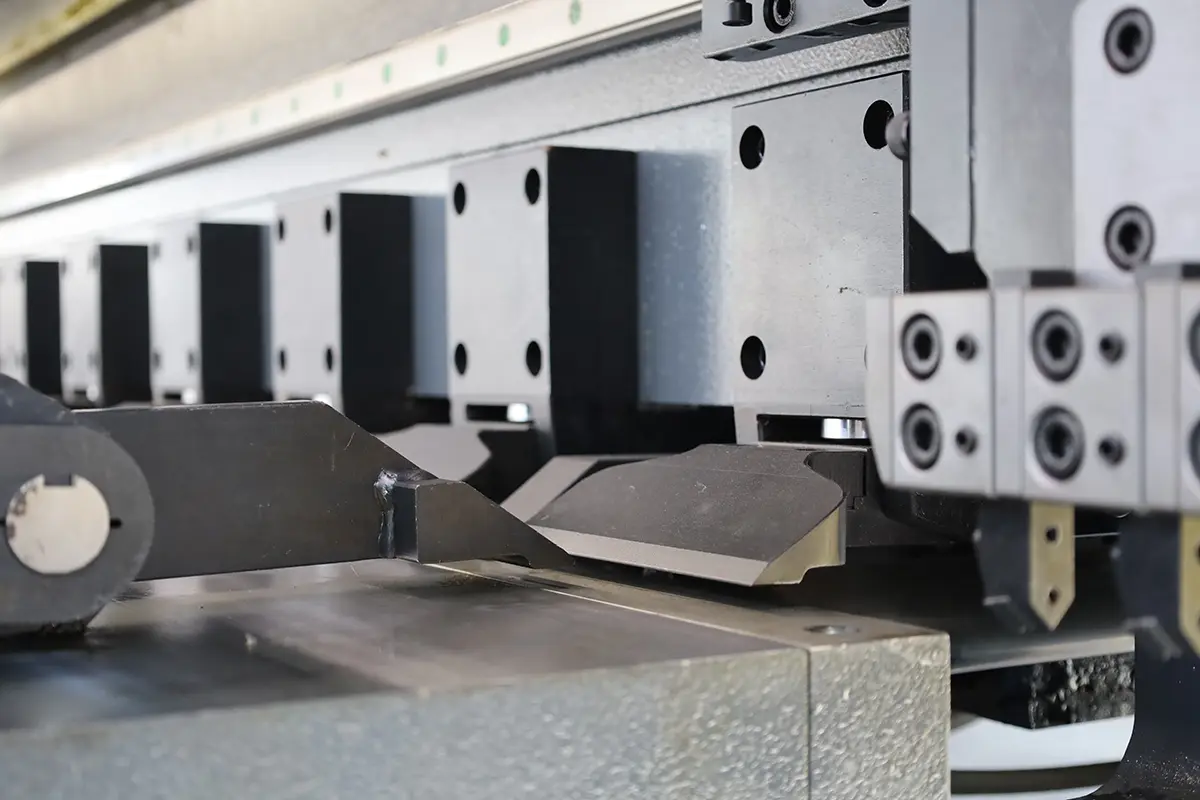

• Vertical V Grooving Machine:
  • Features multiple pressure plates and clamps, facilitating automatic sheet clamping for various sizes.
  • Processes sheets ranging from 3 to 5 mm thickness.
  • Handles both horizontal and vertical grooving for workpieces as small as 80*80mm.
• Horizontal V Grooving Machine:
  • Primarily designed for grooving large thin sheets, typically less than 3 mm in thickness.
  • Challenges arise when attempting horizontal grooving after longitudinal grooving due to sheet deformation.

1.2 Power Loss:

• Vertical V Groover: Reciprocating motion involves a tool holder of approximately 60kg.
• Horizontal V Grooving Machine: Gantry and tool holder reciprocate together, weighing about 1000kg, resulting in energy loss ten times that of the vertical counterpart.

1.3 Precision:

• Vertical V groover: Fixed planer provides precise control within 0.02mm.
• Horizontal V Grooving Machine: Challenges in controlling accuracy within 0.1mm due to the wide platform.

1.4 Processing Technology:

• Vertical V groover: Boasts a fine-to-mirror-effect surface made of die steel.
• Horizontal V Grooving Machine: Uses welded ordinary iron plates, susceptible to damage during grooving of stainless steel.

1.5 Security:

• Vertical V groover: Employs hydraulic automatic clamping, automatic positioning, and automatic operation, enhancing operator safety.
• Horizontal V Grooving Machine: Poses safety concerns due to the fast-moving gantry and potential operator proximity to machine parts.

1.6 Installation:

• Vertical V groover: Welded with high-strength steel plates, ensuring stability on a flat concrete floor.
• Horizontal V Grooving Machine: Requires reinforcement due to high-impact forces during gantry operation.

2. Advantages of Vertical V Grooving Machine:

2.1 Suitable for Aluminum Plates:

Horizontal placement of aluminum plates often results in uneven surfaces, making the vertical machine more practical and effective.

2.2 Energy Efficiency:

Vertical V Groover save more energy, with energy loss over ten times less than horizontal counterparts.

2.3 Wider Processing Range:

Vertical machines prove more versatile, efficiently handling plates of any size compared to horizontal machines.

2.4 Enhanced Machining Process:

The use of high-quality die steel for the working table in vertical machines results in a better machining process.

2.5 Safety:

Vertical machines keep operators away from moving parts, providing a safer working environment compared to horizontal machines.

In conclusion, the choice between vertical and horizontal V-grooving machines depends on specific processing needs, safety considerations, and the desired precision. Vertical Machines offer superior versatility, energy efficiency, and safety, making them a preferred choice for various sheet metal processing applications. Customers can make informed decisions based on their specific requirements and priorities. Krrass stands ready to provide professional guidance and services for those seeking CNC grooving machines.
