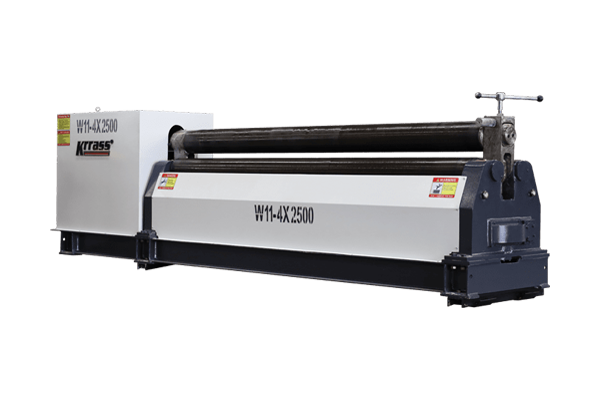

The W11 plate roller is a three-roller plate rolling machine widely used in metal processing and manufacturing fields. It is mainly used to roll metal sheets into different shapes, such as circles, cones or other curved shapes. The model designation “W11” of the W11 plate bending machine usually indicates that it is a three-roller plate bending machine, but the specific specifications and models may vary.
Key features and uses include:
Three-roller design:
W11 plate bending machine usually includes one upper roller and two lower rollers. One of the lower rollers is a driving roller, controlled by a mechanical transmission system, and the other lower roller is used to adjust the position of the rolling plate to achieve rolling of metal plates of different diameters and thicknesses.
Flexibility and applicability:
This type of plate rolling machine is suitable for small and medium-sized metal processing tasks and can handle a variety of metal materials, such as steel plates, aluminum plates, etc.
Scope of application:
Mainly used for manufacturing pipes, containers, cylinders, cones and other metal components. It is widely used in construction, shipbuilding, petrochemical and other fields.
Mechanical transmission system:
Most W11 plate rolling machines use a mechanical transmission system to realize the rotation of the roller through gear transmission to ensure high precision and reliability.
Digital control options:
Some advanced models may be equipped with digital control systems, providing greater levels of automation and precision
Technical Parameter of W11 plate roller
Mode | max rolling thickness(mm) | max rolling width(mm) | yield limit (mpa) | speed(m/min) | min diameter (mm) | Upper shaft diameter(mm) | Lower shaft diameter(mm) | Center distance between two lower axles(mm) | main motor power(kw) | dimension(L×W×H)(mm) |
6×1500 | 6 | 1500 | 265 | 7.16 | 380 | 180 | 160 | 210 | 5.5 | 3310×1210×1330 |
6×2000 | 6 | 2000 | 265 | 7.16 | 380 | 180 | 160 | 210 | 5.5 | 3810×1210×1330 |
6×2500 | 6 | 2500 | 265 | 7.16 | 500 | 190 | 170 | 260 | 7.5 | 4310×1210×1330 |
6×3200 | 6 | 3200 | 265 | 6.46 | 500 | 240 | 200 | 310 | 11 | 5200×1400×1200 |
8×2000 | 8 | 2000 | 265 | 7.16 | 450 | 190 | 170 | 260 | 7.5 | 3810×1210×1330 |
8×2000 | 8 | 2000 | 265 | 6.46 | 500 | 310 | 200 | 310 | 11 | 4500×1420×1610 |
12×2000 | 12 | 2000 | 265 | 6.46 | 500 | 240 | 200 | 310 | 11 | 4050×1420×1610 |
12×2500 | 12 | 2500 | 265 | 5 | 750 | 260 | 220 | 330 | 15 | 5000×1500×1300 |
12×3000 | 12 | 3000 | 265 | 5 | 650 | 280 | 240 | 360 | 22 | 5500×1500×1300 |
16×2000 | 16 | 2000 | 265 | 5 | 750 | 260 | 220 | 330 | 15 | 4500×1500×1300 |
16×2500 | 16 | 2500 | 265 | 5 | 750 | 280 | 240 | 360 | 12 | 5000×1500×1300 |
16×3000 | 16 | 3000 | 265 | 5 | 900 | 340 | 280 | 440 | 30 | 6300×1600×1900 |
20×2000 | 20 | 2000 | 265 | 5 | 750 | 280 | 240 | 360 | 22 | 4500×1500×1300 |
20×2500 | 20 | 2500 | 265 | 5 | 850 | 280 | 280 | 440 | 30 | 5600×1600×1900 |
25×2000 | 25 | 2000 | 265 | 5 | 850 | 300 | 280 | 440 | 30 | 5100×1600×1900 |
25×2500 | 25 | 2500 | 265 | 4.5 | 900 | 300 | 300 | 490 | 37 | 6000×4600×2150 |
30×2000 | 30 | 2000 | 265 | 4.5 | 900 | 380 | 300 | 600 | 37 | 5500×1460×2150 |
30×2500 | 30 | 2500 | 265 | 4.34 | 1100 | 460 | 380 | 600 | 45 | 6900×2300×2800 |
30×3000 | 30 | 3000 | 265 | 5 | 1200 | 480 | 400 | 600 | 45 | 7400×2300×2600 |
30×3200 | 30 | 3200 | 265 | 5 | 1200 | 500 | 400 | 600 | 45 | 7600×2300×2600 |
40×2000 | 40 | 2000 | 265 | 5 | 1200 | 480 | 400 | 600 | 45 | 6400×2300×2800 |
40×2500 | 40 | 2500 | 265 | 5 | 1400 | 500 | 400 | 600 | 45 | 6900×2300×2800 |
40×3000 | 40 | 3000 | 265 | 4.37 | 1600 | 500 | 425 | 650 | 60 | 8000×1980×2250 |
50×3000 | 50 | 3000 | 265 | 4 | 2000 | 600 | 480 | 700 | 75 | 9900×3100×3500 |
60×3000 | 60 | 3000 | 265 | 4 | 2000 | 700 | 560 | 800 | 90 | 9700×3200×2700 |
Before using the W11 plate rolling machine, operators should read the machine’s technical specification sheet and operation manual in detail to understand its specific parameters, usage methods and maintenance requirements.
