What Is 3-Roller Bending Machine – Definition, Application, Features ＆ More

A 3-roller bending machine is a type of plate rolling equipment utilized for shaping metal sheets, plates, and profiles into cylindrical or conical forms. These machines are distinguished by their utilization of three rollers in the bending process.

Typically, a 3-roller bending machine consists of two bottom rollers and one adjustable top roller. This configuration allows for precise control over the bending angle. The top roller’s adjustability facilitates achieving the desired curvature in the bent metal.

The primary advantage of employing a 3-roller bending machine lies in its superior control over the bending process when compared to machines with fewer rollers. By working in unison, the three rollers apply gradual pressure to the metal, ensuring precise and accurate bending.

Available in various sizes and capacities, 3-roller bending machines can accommodate a wide range of materials and applications. They find extensive use in the metalworking industry for manufacturing cylindrical tanks, pipes, tubing, and other curved metal components.

3-Roller Bending Machines in Metal Fabrication：Versatility and Efficiency

In the field of metal fabrication, 3-roller bending machines play a crucial role in shaping and bending metal sheets and plates. These machines provide a versatile and efficient solution for achieving precise and complex bends in a wide range of applications. In this article, we will explore the advantages and applications of 3-roller bending machines, highlighting their significance in the metal fabrication industry.

Versatility and Flexibility of 3-Roller Bending Machines:

Multi-Directional Bending: One of the key advantages of 3-roller bending machines is their ability to perform multi-directional bending. With three driven rollers, these machines can produce various bending shapes, including cylinders, cones, and more. This versatility allows for the creation of complex components with different curvatures and profiles.

Adjustable Roller Positions: 3-roller bending machines typically feature adjustable roller positions, which enable operators to achieve different bending radii and angles. This flexibility is essential for accommodating diverse design requirements and producing components with precise specifications.

Suitable for Different Materials: Whether it’s mild steel, stainless steel, aluminum, or other metals, 3-roller bending machines can effectively handle a wide range of materials. This adaptability makes them suitable for various industries, including automotive, construction, aerospace, and more.

Efficiency and Precision of 3-Roller Bending Machines:

High Production Speed: 3-roller bending machines are known for their fast production speed. With three driven rollers, they can quickly and efficiently bend metal sheets, reducing production time and increasing overall productivity.

Consistent Bending Results: These machines offer excellent precision and repeatability in bending operations. The synchronized movement of the rollers ensures consistent and accurate bending throughout the entire length of the workpiece. This precision is crucial for achieving uniformity in the final product.

Ease of Use and Automation: Many modern 3-roller bending machines come equipped with advanced control systems and automation features. These include digital displays, programmable settings, and hydraulic or electronic controls, which enhance ease of use and allow for precise control over the bending process.

Applications of 3-Roller Plate Bending Machine:

Pipe and Tube Manufacturing: 3-roller bending machines are widely used in the production of pipes and tubes. They can efficiently create curved sections and round shapes with different radii, meeting the requirements of industries such as HVAC, plumbing, and structural engineering.

Sheet Metal Fabrication: From architectural elements to industrial machinery components, 3-roller bending machines play a significant role in sheet metal fabrication. They can bend metal sheets into curved or cylindrical shapes, allowing for the creation of various parts and structures.

Metal Furniture and Decorative Items: 3-roller bending machines are also employed in the production of metal furniture and decorative items. By utilizing the versatility of these machines, manufacturers can create unique and aesthetically pleasing designs with curved or bent metal elements.

Summary

3-roller plate bending machines are indispensable tools in the metal fabrication industry, offering versatility, efficiency, and precision in bending operations. Their ability to handle various materials, produce complex bends, and deliver consistent results makes them valuable assets in different sectors. With the advancements in automation and control systems, the future of 3-roller bending machines promises even greater efficiency and accuracy, further enhancing their role in metal fabrication processes.

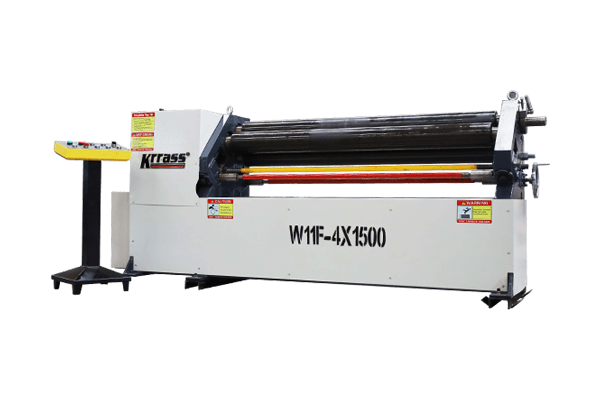

Krrass W11F series 3 roll plate bending machine adopts a strong electric welding structure, equipped with a super large steel roller. The side roller moves on a linear guide, bending the material near the tight point, thus ensuring that the device’s performance is comparable to that of the more expensive four-roller plate bending machine.

In addition, the bending roll motion of the series three-roller plate bending machine ensures optimal traction. For asymmetric geometry and thin sheet, it can effectively prevent it from sliding during the pre-bending process.
