What Is A Box and Pan Brake?

A sheet metal box and pan brake has many aliases, some of which you may already know. They are terms used by many still today in the industry, but may be new to some of us. We’re going to run through some of these box pan folder terms, as well as what a sheet metal box and pan folder actually is and why your business could benefit from investing in one.

We’ve also highlighted some common areas to watch out for when it comes to inviting in a box and pan sheet metal folder.

What Is A Sheet Metal Box and Pan Brake?

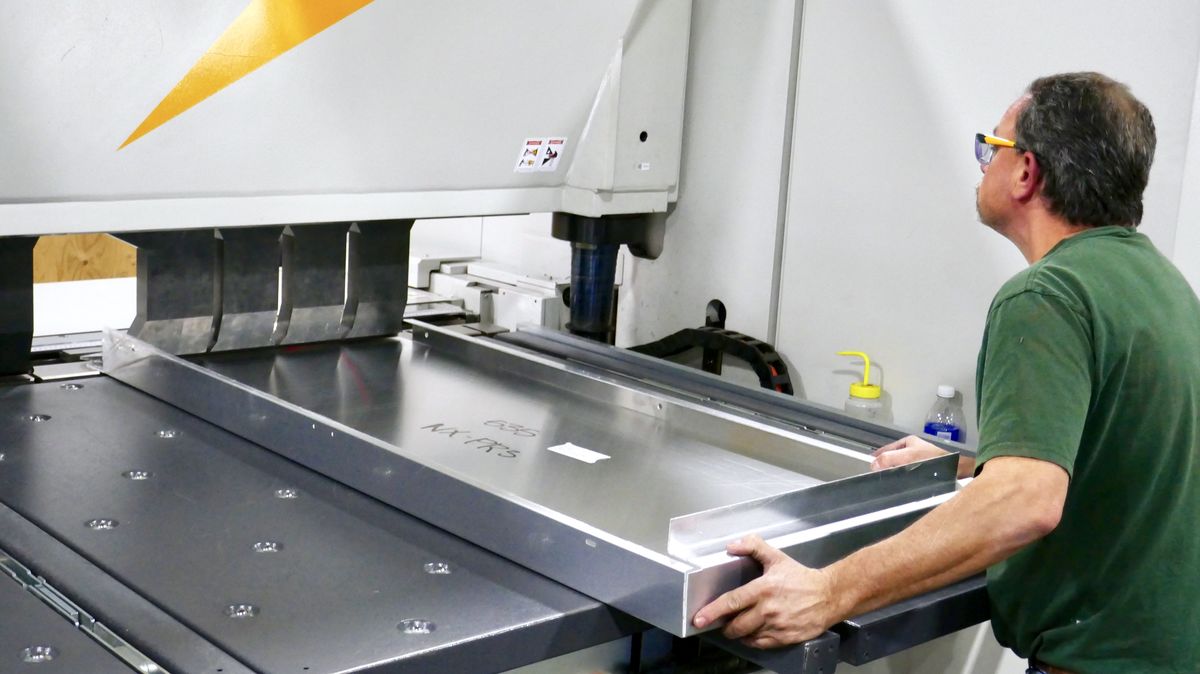

A sheet metal box and pan brake, also known most often as a box and pan brake, box pan folder,  or a sheet metal finger brake, is a machine tool used for bending sheet metal. It is designed to allow sheet metal to be bent into boxes and pans, as well as other complex shapes.

These box pan folder machines normally consist of a flat surface, called the bed, and a clamping bar that is hinged at one end. The clamping bar holds the sheet metal in place as it is being bent, while a series of fingers, or dies, are used to shape the metal.

Many new innovations in bending and folding mean new box pan folder systems are constantly being released, which improves the efficiency and quality of these bends. It its this reason we advise keeping up to date on the latest news from the industries leading manufacturers. They might just come out with a solution that solves a problem specific to you!

Some box and pan folders also have a backstop that can be adjusted to help ensure accurate and consistent bends. These machines are commonly used in the fabrication of sheet metal enclosures, cabinets, and other components.

Why Is a Box and Pan Brake Known by Other Names?

What you call your sheet metal folding machine can depend on the type you own, who trained you and how you use it. A lot of the difference have come over time. For example box and pan was often the description used when talking about the earlier models of the RAS System type of sheet metal folders.

We’ve broken down the common reasons behind some of the most popular names below. In general though they are quite literal. Are you using the right one?

Box and pan brake

It is called a box and pan brake because it is used to bend sheet metal into boxes and pans, as well as other shapes. This logic follows for many of the names, sometimes adding the material used at the beginning or end.

Sheet metal finger brake (or finger brake)

This name came about because the sheet metal folding machines have a series of fingers, or dies, that are used to shape the metal. These fingers are typically mounted on the clamping bar and can be adjusted to create different bends and shapes in the sheet metal. It is worth knowing the term “sheet metal finger brake” is often used to describe a smaller, hand-held version of this machine that is used for making smaller bends and folds in sheet metal. It might be searching this does not bring up the right results for you.

What Does the “Box and Pan” Part Refer to?

Let’s go one step further and look at the specific types of shapes we mean when referring to a box and pan sheet metal folder.

The term “box” refers to a three-dimensional enclosure with a top, bottom, and sides that is made from sheet metal. A “pan” is a similar type of enclosure, but it has a more shallow depth and is often used for things like trays.

It really is as obvious as it sounds, but due to the variety of terms used in the industry it can leave some people unsure. The important part is ensuring that no matter what you call it, you invest in a machine that its capable for your business. How do you do this?

Why Should You Invest In a Sheet Metal Box and Pan Folder?

There are several reasons why you might want to invest in a sheet metal box and pan folder:

1. Increased productivity: A sheet metal box and pan folder can help increase productivity by allowing you to quickly and accurately bend sheet metal into complex shapes. This can save you time and effort compared to using other methods such as hand folding or cutting and welding.
2. Improved accuracy: A sheet metal box and pan folder can help improve the accuracy of your sheet metal bends. This is because the machine allows you to make precise, repeatable bends using a series of adjustable fingers or dies.
3. Increased versatility: A sheet metal box and pan folder is a versatile tool that can be used to bend sheet metal into a wide range of shapes and sizes. This can allow you to create a wider variety of products and components.
4. Cost savings: Investing in a sheet metal box and pan folder can ultimately save you money by reducing the amount of time and effort required to bend sheet metal, as well as reducing the amount of scrap metal generated.

Overall, a sheet metal box and pan folder can be a valuable investment for any business that works with sheet metal and needs to create complex shapes and enclosures.

What is the difference between pan brake and press brake?

What to Consider When Buy a Sheet Metal Box and Pan Brake

It is important that you make a highly considered decision before choosing your new box and pan folder. We’ve highlighted some key areas to consider below:

• Cost: Sheet metal box and pan folders can be expensive, especially for high-end models with advanced features. Be sure you are getting the best deal and paying only for the capabilities you business needs. You could also look into pre-used and ex-demonstration machines to save more. We offer a great range of box and pan sheet metal brakes to suit all budgets.
• Capacity: Some sheet metal box and pan folders have limited capacity and may not be able to bend larger sheets of metal or handle thicker gauges. Ensure the machine you invest in suits you requirements. It also helps to think about what your future capacities might look like to ensure you’re not having to turn away potential jobs.
• Complexity: These machines can be complex and require training and experience to use effectively. Ensure you are confident in the box and pan sheet metal folder you own, how it works and what to do if it goes wrong. Press and Shear remain on hand to help from installation through to your first bend.
• Maintenance: Like any machine, a sheet metal box and pan folder will require regular maintenance and may need to be repaired or replaced over time. Regular servicing will increase the productivity and lifecycle of your machine, essentially paying for itself. Press and Shear are on-hand to help with all servicing and spares.

Are You Using the Right Name for Box and Pan Brake?

Whether you’re in the research phase, ready to grab a new folding machine, or training your team on how to use a machine, getting the right name for your box and pan sheet metal folder and knowing the differences is critical.

It will help you to make the right investment in a capable machine and ensure your team are able to explain clearly to customers your businesses capabilities.

How to Test A Box and Pan Folder

We’re here to help you, whether it’s some reading materials you’re after or getting hands on with a box and pan sheet metal folder. You can download our latest brochure, which contains a full range of box and pan folding machines right now. You can also browse these online where you’ll find plenty of videos of these machines in action.

Sometimes the easiest thing to do is get hands on though, and that is where our showroom comes in. You can book a visit to see a sheet metal box pan brake in action and even bring your own sheet metal pieces to test out. We find this is the ultimate way to know you’re making the right investment and get the most from your trip to see us.

What Is the Difference between Pan Brake and Press Brake?

In metal fabrication, bending metal sheets into various shapes and structures is essential. This process typically involves using machines like press brakes and pan brakes. Each machine has distinct advantages, making it crucial for manufacturers to understand their differences to make informed choices based on specific requirements. Press brakes, also known as brake presses, are the most common type used in the metal industry. They are capable of handling thicker metals and more complex components than other sheet metal brakes. With both mechanical and hydraulic assemblies, press brakes are versatile tools suitable for a wide range of metal fabrication projects.

On the other hand, a pan brake, also called a box and pan brake or finger brake, is designed to create bends along the edge of a metal sheet. It is particularly useful for forming boxes, trays, and flat pans, offering precise bending for specific applications. This article aims to compare the characteristics and applications of press brakes and pan brakes, helping readers better understand their functions and advantages in the metal fabrication industry. Through this comparison, readers will learn when to choose press brakes, when to opt for pan brakes, and how each machine meets various industrial needs.

Understanding Press Brakes

Definition and Basic Mechanics of Press Brakes

A press brake is a machine used to bend or form metal sheets into required angles and shapes using a punch and die. The process involves placing the metal sheet between the punch and die, where the press brake punch applies force to achieve the desired bend. Press brakes can be operated manually, hydraulically, or by other power sources, with their operation precisely determined by the type of press brake used.

Types of Press Brakes

Press brakes are categorized based on their driving mechanisms:

• Hydraulic Press Brake: This type uses a hydraulic cylinder to control the ram’s movement, offering strong power, controllable speed, and good stability. Its key components include a hydraulic cylinder, ram, clamp, die, and punch.
• Mechanical Press Brake: This type employs a mechanical flywheel to generate force for bending metal sheets, known for its high speed and suitability for mass production. Its main components include a flywheel, ram, clamp, die, and punch.
• Servo Press Brake: Driven by a servo motor, this type provides more precise control and lower energy consumption. Its primary parts are the motor, ram, clamp, die, and punch.

Common Uses and Key Features

Press brakes feature an adjustable back gauge for precise positioning, programmable controls for automatic bending sequences, and safety functions to protect operators during the bending process. They are characterized by high-precision control, strong adaptability to various metal sheet thicknesses and types, and advanced automation capabilities.

Advantages in Metalworking

Press brakes offer numerous advantages in metalworking:

• High Precision: They utilize advanced control systems to accurately manage the bending process, ensuring precise and repeatable results.
• Strong Adaptability: They can handle different types and thicknesses of metal materials.
• High Efficiency: They significantly enhance production efficiency, particularly in mass production settings.
• Customizability: Press brakes can create custom bends and shapes through programmable controls and tooling options to meet specific design requirements.

Exploring Pan Brakes

Definition and Primary Functions

Pan brakes, also known as box and pan brakes or finger brakes, are machine tools used in metal fabrication and sheet metal manufacturing. They are primarily employed to bend and shape thin metal sheets into required angles and forms, such as boxes, trays, and other three-dimensional components. Widely used in industries like HVAC, metal fabrication, and general sheet metal work, pan brakes feature main parts such as the clamp, segmented fingers, dies, and punch. While simpler than press brakes, pan brakes excel at creating tight angles and short edges but lack the precision and control of CNC or NC press brakes.

Variations (Like Finger Brakes)

A finger brake is a type of pan brake that includes segmented fingers or bars, which can be adjusted to create different types of bends and shapes on the metal sheet. This variation offers greater versatility and precision when forming intricate and custom metal sheet components.

Unique Features and Typical Applications

Pan brakes are equipped with clamps to secure the metal sheet, a straight edge for alignment, and a bending leaf to apply pressure and create bends. They are commonly used to produce boxes, flat pans, and trays in specific sizes and shapes. Pan brakes are particularly useful for creating components with complex bends and folds, such as electrical enclosures, piping systems, and specialized metal casings, making them ideal for customized, small-scale production.

Benefits in Specific Projects

In certain projects, pan brakes offer the following advantages:

• Customizable Bending: They are well-suited for producing unique shapes or sizes of metal parts.
• Simple Operation: Pan brakes are easier to operate and set up than press brakes, especially for applications not requiring high precision.
• Cost-Effectiveness: Pan brakes are highly cost-effective for small-scale and custom projects, reducing outsourcing costs and delivery times by allowing in-house production of custom metal parts.
• Compact Size: Unlike large press brakes, pan brakes are smaller and suitable for work areas with limited space.
• Versatility: The adjustable fingers of finger brakes provide flexibility for creating various shapes and sizes, enabling the production of diverse metal products.

Key Differences Between Press Brakes and Pan Brakes

1. Functionality and Design

• Press Brakes: Press brakes are designed for bending and shaping metal sheets using a punch and die system. They can handle thicker metals and produce complex components, making them suitable for a wide range of metal fabrication projects. They typically feature mechanical, hydraulic, or servo-driven systems for precise control and high-speed operation.
• Pan Brakes: Pan brakes, also known as box and pan brakes or finger brakes, are designed for bending thin metal sheets into specific shapes, such as boxes, trays, and three-dimensional components. They use a clamping mechanism and segmented fingers to create bends, making them ideal for applications requiring tight angles and short edges.

2. Precision and Control

• Press Brakes: Press brakes offer high precision and control, especially when equipped with CNC (Computer Numerical Control) or NC (Numerical Control) systems. These machines can achieve accurate and repeatable results, making them suitable for complex and high-volume production tasks.
• Pan Brakes: Pan brakes are generally less precise than press brakes and are better suited for simple bending tasks. While they provide some level of versatility, they lack the advanced control systems found in CNC or NC press brakes.

3. Applications and Uses

• Press Brakes: Due to their ability to handle various metal thicknesses and complexities, press brakes are used in diverse industries, including automotive, aerospace, and construction. They are ideal for producing components with intricate shapes and large-scale production runs.
• Pan Brakes: Pan brakes are commonly used in HVAC, general sheet metal fabrication, and other industries where the production of boxes, trays, and small-scale components is required. They are particularly beneficial for custom and low-volume production projects.

4. Operation and Setup

• Press Brakes: Press brakes require more complex setup and operation, often involving programming and tooling changes. However, they offer greater automation and efficiency, particularly in high-volume manufacturing environments.
• Pan Brakes: Pan brakes are simpler to operate and set up, making them accessible for smaller workshops or situations where frequent setup changes are needed. They are well-suited for projects with lower precision requirements.

5. Cost and Space Requirements

• Press Brakes: Typically larger and more expensive, press brakes require significant investment and space. They are best suited for operations with a need for high capacity and precision.
• Pan Brakes: Generally more cost-effective and compact, pan brakes are ideal for smaller workshops with limited space. They provide an affordable solution for specific bending tasks without the need for large-scale equipment.

Choosing the Right Brake for Your Project

Factors to consider

Project complexity and precision requirement: for projects that need high precision and intricate bending, the press brake is a wise choice.

Types of materials and thickness: the press brake is suitable for thicker and solid materials, while the pan brake is suitable for thinner metal plates below 6 mm.

Production volume: press brakes are suitable for mass production because they offer faster production speed and higher repeatability.

Space and budget restrictions: as for restricted space and budget, the pan brake will be an ideal choice for you.
