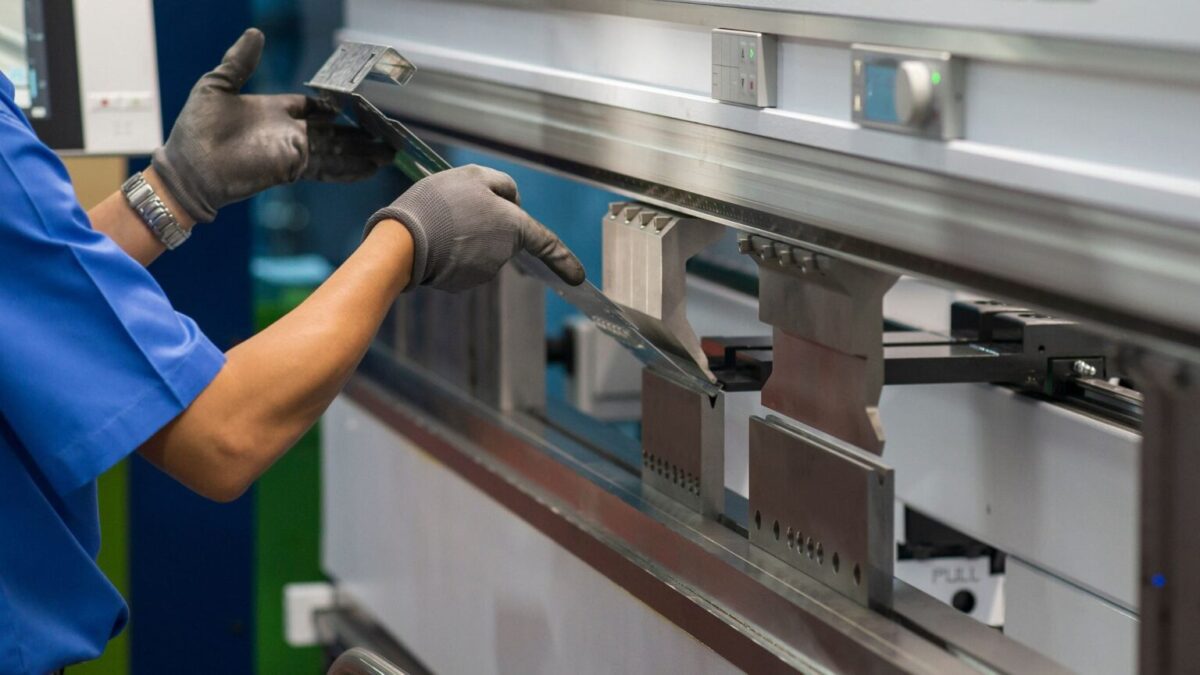

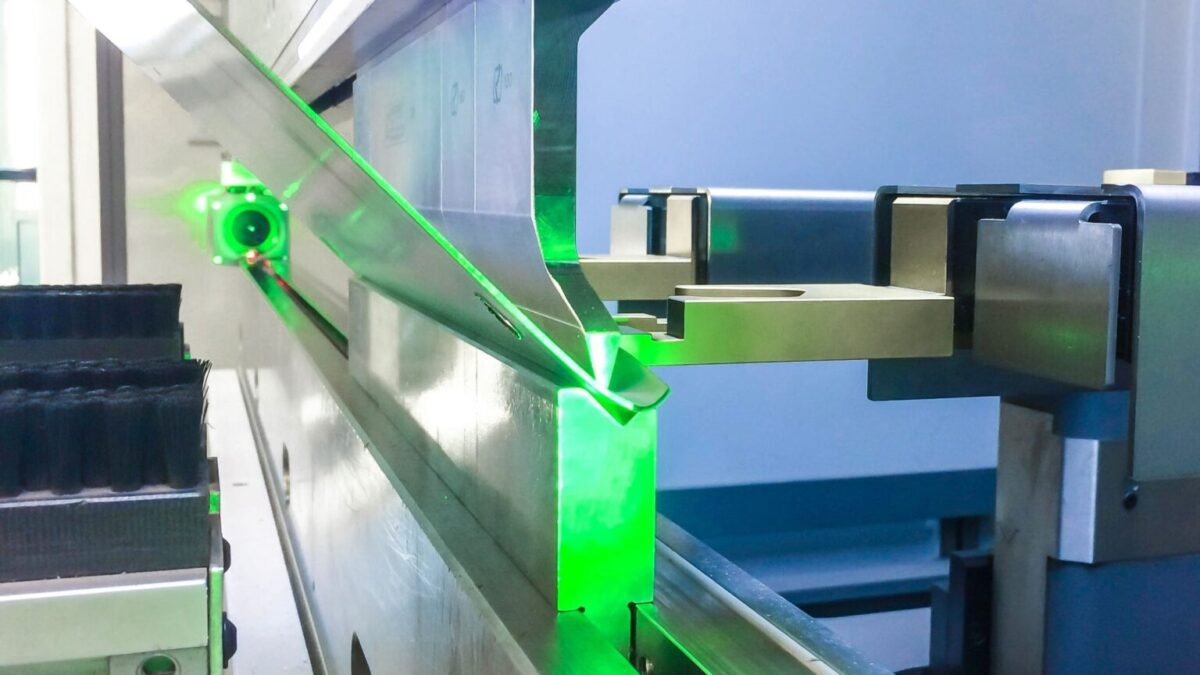

What is a hydraulic press brake?

A hydraulic press brake is a type of press brake machine that uses hydraulic force to bend and shape sheet metal. It is a versatile and widely used tool in metalworking and fabrication industries for forming various components with precision and efficiency. Hydraulic press brakes offer advantages in terms of control, flexibility, and ease of use compared to their mechanical counterparts.

Here are the key features and components of a hydraulic press brake:

1.Hydraulic System:

The heart of a hydraulic press brake is its hydraulic system, which consists of hydraulic cylinders, a hydraulic pump, and a fluid reservoir. Hydraulic fluid is pressurized by the pump and used to actuate the cylinders, generating the force needed for bending.

2.Cylinder and Ram:

Hydraulic press brakes have one or more hydraulic cylinders that drive a ram (also known as the slide) downward. The ram carries the upper tool, often called the punch, which comes into contact with the sheet metal, applying the bending force.

2.Bed and Die:

The bed of the press brake provides the lower support for the sheet metal during the bending process. The die, which is mounted on the bed, serves as the lower tool and helps determine the final shape of the bend.

2.Backgauge:

Many hydraulic press brakes come equipped with a backgauge system, which is a set of adjustable fingers or stops positioned behind the die. The backgauge helps accurately position the sheet metal, ensuring consistent bend angles across multiple pieces.

3.Control System:

Hydraulic press brakes can have manual, semi-automatic, or fully CNC (computer numerical control) systems for controlling the bending process. CNC press brakes offer precision and automation capabilities, allowing for complex bending sequences and quick tool setup.

4.Safety Features:

Hydraulic press brakes are equipped with safety features such as guards, emergency stop buttons, and safety interlocks to ensure the safety of the operator during machine operation.

5.Advantages of Hydraulic Press Brakes:

Versatility: Hydraulic press brakes can handle a wide range of materials and thicknesses, making them versatile for various applications.

Precision: Hydraulic systems provide precise control over the bending force, resulting in accurate and repeatable bending operations.

Ease of Use: Hydraulic press brakes are generally easier to set up and operate compared to mechanical press brakes.

Quiet Operation: Hydraulic systems operate more quietly than mechanical systems, contributing to a quieter working environment.

7Applications:

Hydraulic press brakes are used in industries such as automotive, aerospace, construction, electronics, and metal fabrication. They are suitable for producing a variety of components, including brackets, enclosures, chassis, and other parts with precise bends.

In summary, a hydraulic press brake is a powerful and flexible machine used for bending sheet metal. Its hydraulic system provides controlled force, allowing for precise and efficient metal forming processes in diverse manufacturing applications.

How Does a Hydraulic Press Brake Differ from Other Press Brakes?

A hydraulic press brake differs from other types of press brakes, primarily mechanical press brakes, in terms of its power source and control system. Here are the key differences between a hydraulic press brake and other press brakes:

1.Power Source:

1.1Hydraulic Press Brake:

Hydraulic press brakes use a hydraulic system to generate the force needed for bending. Hydraulic cylinders, powered by hydraulic fluid pressurized by a pump, drive the ram downward to apply force on the sheet metal.

1.2Mechanical Press Brake:

Mechanical press brakes, in contrast, use a mechanical system with a flywheel and clutch to generate force. The flywheel stores energy, and when engaged by the clutch, it drives the ram downward to perform the bending operation.

2.Force Generation:

2.1 Hydraulic Press Brake:

Hydraulic press brakes provide a smooth and consistent application of force throughout the bending process. The hydraulic system allows for precise control and adjustment of force, contributing to accurate and repeatable bends.

2.2 Mechanical Press Brake:

Mechanical press brakes generate force through the kinetic energy stored in the rotating flywheel. While they can provide high force, the force application may not be as precisely controlled as in hydraulic systems.

3.Control System:

3.1 Hydraulic Press Brake:

Hydraulic press brakes can have manual, semi-automatic, or fully CNC (computer numerical control) systems. CNC hydraulic press brakes offer advanced control features, enabling operators to program and automate complex bending sequences.

3.2 Mechanical Press Brake:

Mechanical press brakes typically have manual or semi-automatic control systems. CNC capabilities are less common in mechanical press brakes, and they may require more manual adjustments during operation.

4.Flexibility and Versatility:

4.1 Hydraulic Press Brake:

Hydraulic press brakes are known for their versatility and ability to handle a wide range of materials and thicknesses. They are suitable for various bending applications and are commonly used in modern metal fabrication.

4.2 Mechanical Press Brake:

Mechanical press brakes may have limitations in terms of material versatility and are often preferred for simpler or specific bending tasks.

Ease of Use:

4.3 Hydraulic Press Brake:

Hydraulic press brakes are generally considered easier to set up and operate, especially with the availability of CNC systems. They provide greater flexibility and ease of use for operators.

Mechanical Press Brake:

Mechanical press brakes may require more manual adjustments and careful consideration during setup, making them potentially less user-friendly than hydraulic press brakes.

Noise Level:

4.4 Hydraulic Press Brake:

Hydraulic systems operate more quietly compared to the mechanical components in mechanical press brakes, contributing to a quieter working environment.

4.5 Mechanical Press Brake:

Mechanical press brakes can be noisier due to the operation of the flywheel and other mechanical components.

In summary, the primary difference between a hydraulic press brake and other press brakes, such as mechanical press brakes, lies in the power source (hydraulic vs. mechanical) and the control system. Hydraulic press brakes are often preferred for their precision, versatility, and ease of use in various metal forming applications.

What are the Key Components of a Hydraulic Press Brake?

A hydraulic press brake consists of several key components that work together to bend and shape sheet metal with precision. Understanding these components is crucial for operating and maintaining the machine effectively. Here are the key components of a hydraulic press brake:

1.Hydraulic System:

The hydraulic system is the core of the press brake, responsible for generating and controlling the bending force. It includes components such as:

Hydraulic pump: Pressurizes hydraulic fluid.

Hydraulic cylinders: Actuate the ram (slide) to apply force on the sheet metal.

Hydraulic fluid reservoir: Stores hydraulic fluid and helps dissipate heat.

2.Ram (Slide):

The ram, or slide, is the moving component that carries the upper tool, often called the punch. It descends under hydraulic force to bend the sheet metal against the lower tool (die). The ram’s movement is controlled by the hydraulic system.

3.Bed and Frame:

The bed provides the stationary support for the sheet metal during bending. It is mounted on the frame, which gives the press brake its structural integrity. The frame also houses the hydraulic cylinders and other critical components.

4.Die and Punch:

The die and punch are the upper and lower tools used to shape the sheet metal. The die is mounted on the bed, while the punch is attached to the ram. The space between the die and punch determines the bend angle and radius.

5.Backgauge:

The backgauge is a system of adjustable fingers or stops positioned behind the die. It assists in positioning the sheet metal accurately, ensuring consistent bend angles across multiple pieces. CNC press brakes often have programmable backgauges for increased automation.

6.Control System:

The control system regulates and coordinates the operation of the hydraulic press brake. It can be manual, semi-automatic, or fully CNC (computer numerical control). CNC systems offer advanced features such as programmable bending sequences, angle control, and automation.

7.Safety Features:

Hydraulic press brakes are equipped with safety features to protect operators and ensure safe operation. These features may include:

Emergency stop button: Halts machine operation in case of an emergency.

Safety guards: Provide physical barriers to protect operators from moving parts.

Safety interlocks: Prevent the machine from operating if safety features are not engaged.

8.Control Pedestal or Panel:

The control pedestal or panel houses the controls for operating the press brake. It includes buttons, switches, and a user interface for setting parameters, adjusting settings, and initiating bending operations.

9.Hydraulic Hoses and Fittings:

Hydraulic hoses transport hydraulic fluid between components, such as the pump, cylinders, and valves. Fittings ensure secure connections and prevent leaks.

Oil Cooler:

In some hydraulic press brakes, an oil cooler is used to dissipate heat generated during the hydraulic system’s operation, maintaining optimal fluid temperature and system efficiency.

10.Manifold Block and Valves:

The manifold block distributes hydraulic fluid to different components. Valves control the flow and direction of hydraulic fluid, allowing for precise control over the movement of the hydraulic cylinders.

How Does a Hydraulic Press Brake Work?

A hydraulic press brake works by using hydraulic force to bend sheet metal along a predetermined axis. The machine consists of several key components working together to apply controlled pressure to the sheet metal. Here is an overview of how a hydraulic press brake operates:

1.Sheet Metal Placement:

The process begins by placing the sheet metal workpiece between the upper tool (punch) and the lower tool (die) on the bed of the press brake. The die is mounted on the bed, while the punch is attached to the ram (slide).

2.Clamping:

The sheet metal is securely clamped between the punch and die to prevent any movement during the bending process. Proper clamping is crucial for achieving accurate and consistent bends.

3.Selection of Tools and Setup:

The appropriate punch and die tools are selected based on the desired bend angle, material type, and thickness. The setup includes configuring the backgauge, which helps position the sheet metal accurately for each bend.

4.Control Panel Input (for CNC Press Brakes):

In the case of CNC (computer numerical control) hydraulic press brakes, the operator inputs the bending parameters, including bend angle, bend length, and any specific sequencing requirements, through the control panel or software interface.

5.Hydraulic System Activation:

The operator initiates the hydraulic system, which includes a pump that pressurizes hydraulic fluid. This pressurized hydraulic fluid is then directed to hydraulic cylinders that actuate the ram.

6.Ram Descent:

As hydraulic fluid flows into the hydraulic cylinders, the ram (slide) begins to descend under hydraulic pressure. The descending ram carries the attached punch downward toward the sheet metal.

7.Bending Process:

The punch makes contact with the sheet metal, applying force and bending it against the stationary die. The force exerted by the hydraulic system determines the bend angle and radius.

Springback Compensation:

After reaching the desired bend angle, the hydraulic system allows for a brief hold to compensate for springback. Springback is the tendency of the sheet metal to partially return to its original shape after bending.

8.Ram Ascent:

Once the bending operation is complete, the hydraulic system retracts the ram, lifting the punch away from the sheet metal.

9.Sheet Metal Removal:

The clamps are released, and the operator removes the bent sheet metal from the machine. The process can be repeated for additional bends or with different tooling setups as needed.

Controlled and Programmable Operation (for CNC Press Brakes):

CNC hydraulic press brakes offer the advantage of programmable operation. The control system allows for precise control over multiple bending parameters, facilitating the automation of complex bending sequences and improving efficiency.
