What Is A Hydraulic Press Brake and How Does It Work?

A crucial component in sheet metal fabrication, the hydraulic press brake comes in two common variants: manual and hydraulic-powered. Among these, hydraulic press brakes stand out for their superior safety and control compared to mechanical brakes. They offer multiple speed settings, enabling precise bends and facilitating smooth adjustments for various tasks.

One notable feature of hydraulic brakes is their ability to reverse the stroke at any point, enhancing flexibility during operations. Understanding how hydraulic press brakes function is essential for anyone involved in sheet metal fabrication. Let’s delve into the intricacies of this indispensable machinery to gain a comprehensive understanding of its operation.

What Is A Hydraulic Press Brake

A hydraulic press brake serves as a mechanical apparatus crucial in metalworking processes, particularly for bending sheet metal. Its primary function is to exert controlled force on metal workpieces through a hydraulic system, ensuring precise bending operations.

In operation, the hydraulic press brake harnesses fluid, typically oil, to generate force within hydraulic cylinders. The process begins with the operator activating a control button, prompting the opening of a control valve. Subsequently, fluid is directed into the designated hydraulic cylinder. Finally, the hydraulic cylinder pushes a piston, applying the necessary force to bend the workpiece accurately.

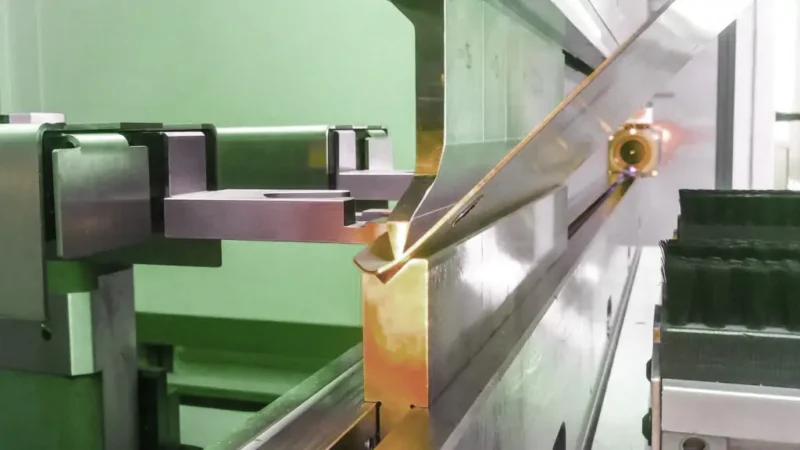

How Does A Hydraulic Press Brake Work

A hydraulic press brake operates through a system of hydraulic cylinders and valves to bend sheet metal with precision and control. Here’s a step-by-step explanation of how it works:

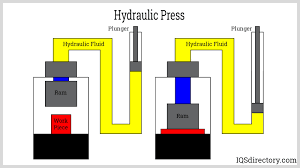

Hydraulic System: The press brake contains a hydraulic system comprising a hydraulic pump, reservoir, valves, and cylinders. The pump generates hydraulic pressure by forcing hydraulic fluid (usually oil) through the system.

Ram Movement: The hydraulic pressure created by the pump is directed to one or more hydraulic cylinders connected to the ram (the moving part of the press brake). As hydraulic fluid is pumped into the cylinders, it pushes the ram downwards, exerting force on the sheet metal placed on the bed of the press brake.

Die and Tooling Setup: Before bending, the appropriate die and tooling are installed on the press brake. The die determines the shape of the bend, while the tooling supports and holds the sheet metal in place during bending.

Bending Process: When the operator initiates the bending process, hydraulic pressure is applied to the cylinders, causing the ram to move downward towards the sheet metal. The sheet metal is forced against the die, creating the desired bend angle.

Control and Precision: Hydraulic press brakes offer precise control over the bending process. The operator can adjust parameters such as the speed of the ram’s descent and the amount of pressure applied, ensuring accurate and consistent bends across different workpieces.

Safety Features: Hydraulic press brakes are equipped with safety features such as guards, emergency stop buttons, and light curtains to protect operators from accidents during operation.

Reverse Stroke: One advantage of hydraulic press brakes is their ability to reverse the stroke at any point during the bending process. This feature allows for fine-tuning and adjustments, improving efficiency and accuracy.

What Are the Advantages of Hydraulic Press Brake

What is the hydraulic brake press’s advantage? Hydraulic press brakes offer several advantages over other types of press brakes, including:

Bending force and control:

Hydraulics provide greater bending force. This allows the press brake to work with thicker sheet metal. The hydraulic system allows for precise control of the output force. Under these conditions, more accurate and consistent bending results can be achieved.

Flexibility:

The press brake is suitable for working with various materials and complex shapes. By adjusting the parameters of the hydraulic system, bending operations with different angles, radii, and shapes can become a reality.

Precision and repeatability:

One of the most important features of the hydraulic brake press is the possibility of reversing the stroke at any time. This feature makes adapting to different workpieces and process requirements more flexible. The different hydraulic brake press can accomplish different shapes, angles, and sizes of sheet metal work.

Productivity:

Reversing the stroke at any time allows the operator to make adjustments and corrections quickly. The most important significance of this function in the sheet metal working production process is to increase the effective time ratio. This significantly reduces the press brake limitation time and increases the output per unit of time.

Safety:

Hydraulic brake presses are usually equipped with safety devices. Devices such as grating protectors and two-handed operation buttons often exist on a hydraulic press brake. This, in a way, provides a great mechanism for press brake operator safety.

Durability and reliability:

Hydraulic systems usually have a long service life. And it required relatively little maintenance. This makes the hydraulic press brake a reliable choice for long-term investments.

Modern Developments of Hydraulic Press Brake

As technology advances, modern hydraulic press brakes are equipped with advanced CNC systems. These systems allow the operator to program the desired bending angle, force, speed, and other parameters. This provides greater precision, repeatability, and operational flexibility.

The development of the hydraulic press brake has made metalworking more efficient, precise, and flexible. It is widely used in various industries. As technology advances, the hydraulic press brake will continue to evolve. It will continue to meet changing market needs and technical requirements.
