What is the difference between folding machine and press brake? This ia a common questions often asked by operaters. Press brakes and folding machines are two common types of equipment used in sheet metal processing. These two machines have similarities in function, but they also differ in many aspects. A folding machine uses a clamping beam and folding beam for precise straight bends, while a press brake uses a punch and die for versatile bending of various thicknesses and shapes. Each has unique features and capabilities that cater to different bending needs. This article will explore the differences between these machines, helping manufacturers make informed decisions based on their specific requirements.
Table of Contents
Introduction
Metal bending is a critical process in manufacturing, involving the deformation of metal sheets into desired shapes. This process is essential in creating components for various industries, including automotive, aerospace, construction, and more. Accurate bending ensures the structural integrity and functionality of metal parts.
Selecting the appropriate bending equipment is crucial for achieving optimal results. Different machines offer distinct advantages and are suited for specific types of bending tasks. The choice of equipment impacts the precision, efficiency, and quality of the final product, making it essential to understand the differences between available options.

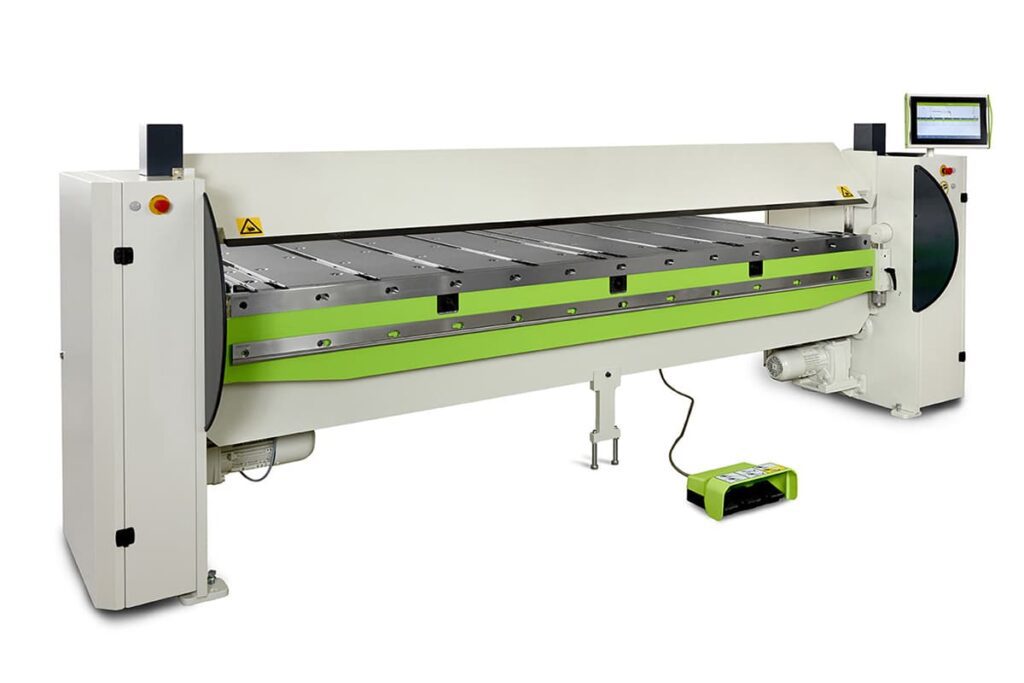

What Is A Folding Machine
A folder is a precision machine tool designed for bending and folding metal, using a unique operational concept compared to traditional press brakes. Unlike press brakes that rely on punches and dies, folding machines employ upper and lower beams to clamp the workpiece, ensuring stability during processing. These beams are positioned above and below the workpiece and are secured by a hydraulic system, keeping the metal firmly in place on the machine’s table.
A key feature of folding machines is the folding beam, which is mounted on the side of the machine and swings along the desired folding line. This movement creates the bend in the metal, with the angle and position of the beam adjustable to meet specific requirements. The control system of the folder allows operators to precisely set parameters such as swing angle, speed, and position of the folding beam, optimizing the folding process to achieve the desired results.
Key Components
Clamping Beam: This component holds the sheet metal securely in place, ensuring it remains stationary during the bending process.
Folding Beam: The folding beam moves to create the bend by lifting or lowering to the required angle, applying the necessary force to shape the metal.
Bending Beam
The bending beam in a folding machine is a crucial component for executing the bending process. It moves against the clamped material, creating a rotational force that results in precise folding. This method minimizes stress on the material, making it possible to work with delicate surfaces without causing damage. As a result, the folding machine is particularly well-suited for handling thinner, coated, or lacquered plates, which are prone to scratching or distortion.
Additionally, the gentle bending motion of the beam helps maintain the integrity of pre-finished surfaces, ensuring high-quality results without compromising the material’s appearance. This capability makes folding machines ideal for applications where aesthetics and precision are critical, such as in the production of high-end architectural panels and customized enclosures.
Features of the Folding Machine
There are various levels of folders, but they all follow the same sequence to airbend to the desired angle: position -> clamp -> bend. The process is ideal for flexible applications, as the tooling is not specific to the desired material thickness or angle. The “universal” cutter geometry allows unlimited angular possibilities and reaches maximum machine capacity and height. Thanks to the unique process of folding the swing beam, these tools should last for many years. Use a flat tool to bend the flange to the correct angle, eliminating scratches or slippage on the workpiece. Not only does this mean higher quality parts, but it also means virtually zero tool wear.
There are many types of folders. On systems equipped with segmented clamping tools, new parts can be set up by rearranging the tool segments on the tool rail. Machines without an automatic tool changer still simplify the setup process by telling the operator where to place the tool stations. This common tool enables quick changeover between parts and makes it easy for a single employee to program, operate and set up machines for any compatible part.
The clamping tool of the folder allows the folding beam to be bent at an acute angle for hemming applications. This acute angle is then positioned under the clamping tool foot to close the hem to a specific height. This height can be selected for parallel hems, teardrop hems, or even open hems used in assemblies.
When a part needs to be formed into a large radius, the same tool can be used on a folded beam to smoothly make incremental bends until the desired radius is reached.
Idea Applications of Folding Machine
Folding machines are highly effective for processing delicate and thin metal sheets, thanks to their precise and gentle bending capabilities.
Architectural Panels: Ideal for creating custom panels and facades with high aesthetic requirements and precise bends.
HVAC Industry: Used to fabricate ductwork and ventilation components, where accuracy and a clean finish are essential.
Roofing: Perfect for producing roofing panels and flashing, where thin and coated materials are common.
Metal Enclosures: Suited for manufacturing enclosures and cabinets that require intricate bends and a pristine finish.
The ability to handle coated, lacquered, and thin materials without damaging them makes folding machines indispensable in industries that demand both precision and quality.
What Is A Press Brake

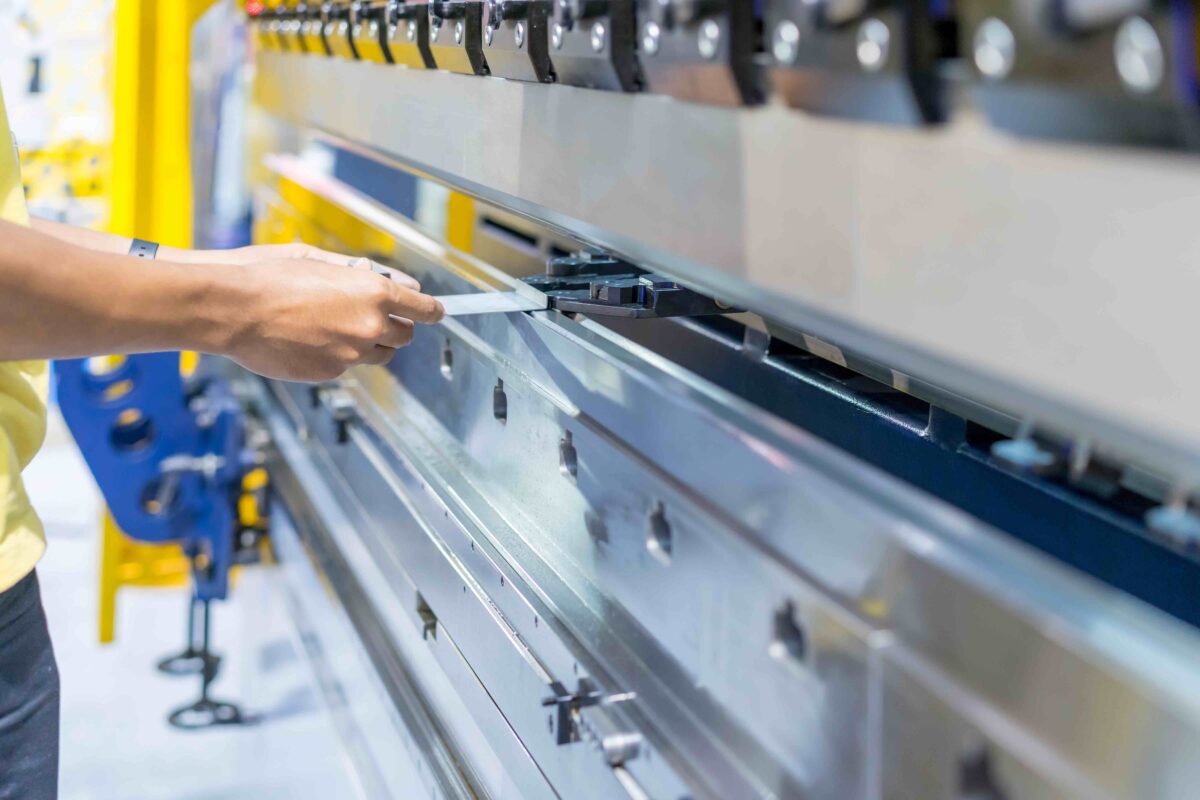

A press brake machine is a specialized mechanical device designed for reshaping and processing sheet metal. Its primary role is to bend, fold, and form metal sheets to accommodate various design and manufacturing specifications.
The machine typically includes several key components. The fuselage, or machine tool, provides structural support for the entire unit. The table serves as a platform for placing and securing the sheet metal, ensuring it remains stable during the bending process. The pressure system, which can be hydraulic or mechanical, applies the force needed to bend the metal. Additionally, the control system oversees and adjusts the bending process to ensure the accuracy and precision of the finished product.
Types of Press Brakes
Press brakes come in several types, each with distinct operating methods and applications. The main types are mechanical, hydraulic, pneumatic, and servo-electric press brakes.
- Mechanical Press Brake: Utilizes a flywheel and crank mechanism to generate pressure. This type is known for its reliability and straightforward operation but may require more maintenance due to its mechanical components.
- Hydraulic Press Brake: Employs hydraulic oil to create pressure, offering smooth operation and high force capabilities. Hydraulic press brakes are favored for their versatility and precision, though they require regular maintenance of hydraulic systems.
- Pneumatic Press Brake: Uses compressed air to exert pressure. This type is suitable for lighter bending tasks and is appreciated for its simplicity and ease of use, but it may lack the force and precision needed for more demanding applications.
- Servo-Electric Press Brake: Driven by a servo motor that mechanically operates the ram. This type provides exceptional accuracy and energy efficiency, with reduced operational costs and maintenance, making it ideal for precise and high-speed bending tasks.
Key Components
Punch: The upper tool that applies force to the metal sheet to create the bend. Punches come in various shapes and sizes, allowing for different bend angles and configurations.
Die: The lower tool that supports the metal sheet and works with the punch to achieve the bend. Dies are available in various profiles, enabling a wide range of bending options and precise angles.
How It Performs Bending Tasks
The press brake operates by positioning the sheet metal on the die, then the punch descends to bend the metal to the desired angle. This method provides substantial force, enabling the machine to bend thick and tough materials with precision. While press brakes require considerable setup time, their versatility makes them indispensable for heavy-duty applications. They can handle a wide range of bends and material thicknesses, from simple right-angle bends to complex shapes. This versatility is particularly beneficial for operations requiring the production of diverse metal parts, despite the longer setup time involved.
What Are the Advantages and Disadvanatges of Press Brakes
press brake machines have the advantages of high efficiency, precision, flexibility, automation, resource saving and safety. They can quickly complete the processing of sheet metal, provide precise bending angles and dimensions, adapt to different processing needs, and improve production efficiency through automation functions. At the same time, the press brake machine can maximize the use of raw materials and reduce waste, while ensuring the safety of operators. These advantages make the press brake machine widely used in the manufacturing industry.
Disadvantages of press brakes include high cost, expertise required, restrictions on shape and size, limited material adaptability, and space and facility requirements. Despite these shortcomings, the press brake machine is still an important processing equipment, and its advantages often make up for these shortcomings, providing efficient and accurate metal processing solutions.
Ideal Applications of Press Brakes
Press brakes are crucial for processing thick metal sheets and generating complex, precise bends. Their ability to handle substantial material thickness and produce tight, accurate bends makes them indispensable in several high-demand industries.
Automotive Manufacturing: Press brakes are essential for creating components with precise bends and strong durability, such as vehicle frames and body panels.
Aircraft Production: They are used to fabricate intricate parts for aircraft, ensuring high precision and reliability in aerospace components.
Heavy Machinery Construction: Press brakes facilitate the production of robust and complex parts for heavy machinery, ensuring strength and accuracy in construction equipment.
Their capability to deliver high precision and consistent power makes press brakes ideal for tasks that require exacting standards and repeatability.
Key Considerations for Operating a Press Brake Machine
When operating a press brake machine, several important considerations must be observed to ensure safety and achieve high-quality results. First, prioritize safety by following all operational guidelines and wearing appropriate protective gear. Familiarize yourself with the machine’s functions and controls to effectively utilize its capabilities.
Choosing the correct molds and processes is crucial for achieving the desired bends and shapes. Adjust the machine’s parameters with precision to ensure accurate results. Before starting the operation, thoroughly inspect and prepare the machine to avoid potential issues during processing.
During operation, continuously monitor the bending process to ensure it aligns with the specified requirements. Regular maintenance of the press brake machine is essential to maintain its performance and longevity. If you encounter any uncertainties or issues, seek advice from a professional or consult the equipment manufacturer to ensure optimal operation and results.

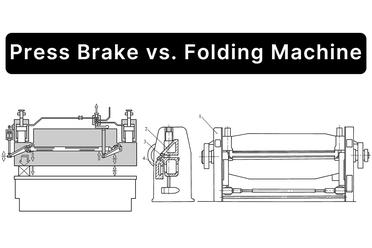

What Is the Difference Between Folding Machine and Press Brake?
Material Type
Press brake machines are designed to bend metal sheets using punches and dies. They are well-suited for processing larger and thicker materials, such as steel and aluminum plates. These machines can achieve various bending shapes and angles, delivering precise bends on sheet metal.
In contrast, folding machines are ideal for folding thin and lightweight materials. They work by clamping the workpiece and utilizing the swinging motion of the folding beam. Folding machines excel in handling thin sheet metals like stainless steel and aluminum alloys, providing consistent, precise folds, which is particularly beneficial in industries requiring high precision and consistency.
Functional Use
Press brake machines are primarily used to bend metal sheets into various shapes and angles. They are suitable for working with larger, thicker metal sheets, such as steel and aluminum plates. These machines are widely employed in manufacturing to produce diverse metal products, including automotive parts, machinery components, furniture, and structural elements. They are essential for meeting complex bending needs and ensuring the accuracy and quality of metal products.
Folding machines, on the other hand, are designed for folding thin and light materials. They achieve this by clamping the workpiece and swinging the folding beam to create precise folds. Common applications in the sheet metal industry include making components like roofs, trays, and lids. The strength of folding machines lies in their ability to provide high precision and consistency in folding operations.
Bend Radii and Flanges
Both folding machines and press brakes can create radii and flanges, but they do so in different ways. Folding machines can produce any radius without the need for special tools, and the bending process is not visible from the outside. Press brake machines, however, require specialized hemming tools, and producing radii can be more challenging through the bending process.
While folding machines and press brakes share similar functions, they differ significantly in their operation, setup, material handling, and tool wear. Understanding these differences is crucial for selecting the appropriate metalworking machine for specific needs.
Working Principle
The folding machine operates by clamping the workpiece and using the swinging motion of the folding beam to achieve the desired fold. The beam oscillates along the specified folding line, allowing the metal sheet to be folded precisely at the intended location. Folding machines typically use hydraulic or electric drive systems to provide the necessary clamping and kinematic forces for accurate folding.
In contrast, press brake machines use a punch-and-die mechanism to bend metal sheets. The punch applies force to the sheet metal, bending it to the desired angle, while the die provides support and shape constraints. These machines generally use hydraulic or mechanical systems to control the movement of punches and dies, ensuring precise bending operations.
Making the Right Choice
When choosing between a folding machine and a press brake, several factors should be considered. For handling heavy or large panels that require significant operator assistance, folding machines are generally more suitable. Press brakes offer greater versatility and can handle heavier materials; for example, they can bend up to .25” mild steel. If precise and complex bends are required with fewer setup and tooling changes, folding machines excel in this area. Additionally, folding machines tend to be more space-efficient and energy-efficient, making them a better choice for workshops with limited space or those aiming to lower operational costs. Ultimately, the decision between the two types of machines depends on the specific requirements and constraints of your projects.
When deciding between a press brake and a folding machine, several critical factors should be evaluated.
1. Key Considerations for Machine Selection
First, assess the nature of your work. For projects requiring the bending of large, thick metal sheets with complex and precise shapes, a press brake might be the more suitable choice. Conversely, if your tasks involve bending lighter, thinner materials with high accuracy and consistency, a folding machine is likely more appropriate.
Cost is another important factor. While a high-quality folding machine may come with a substantial initial investment, its efficiency and productivity can justify the expense over time. On the other hand, operating a press brake might have a lower upfront cost, but it often demands more operators and longer setup times, potentially leading to higher operational costs.
Anticipated return on investment (ROI) should also be considered. Evaluate the potential revenue a machine can generate throughout its lifespan, taking into account its productivity, efficiency, and the demand for the products it can produce.
2. Balancing Job Requirements, Costs, and ROI
The type of work, associated costs, and expected ROI are interconnected factors that should be evaluated together. The nature of your projects will influence the suitability of each machine, the costs will affect the financial viability of the investment, and the ROI will offer insight into the potential profitability of the investment. Balancing these elements is essential for making an informed decision.
3. Benefits of Using Both Machines
In some scenarios, having both a press brake and a folding machine can be advantageous. If your projects involve a range of tasks requiring both complex bending of thick metal sheets and precise folding of lighter materials, using both machines can provide the versatility needed for efficient operations. Additionally, having both machines ensures that if one requires maintenance or repair, the other can serve as a backup, minimizing downtime.
Ultimately, choosing between a press brake and a folding machine involves careful consideration of various factors. By evaluating these aspects and their relationship to your specific needs, you can make a well-informed decision that enhances process efficiency, quality, and overall profitability.
FAQ
Which is more cost-effective, a folding machine or a press brake machine?
The cost-effectiveness of a folding machine versus a press brake depends on your specific needs. Press brakes are generally more cost-effective for complex bends and smaller production runs due to their versatility. They excel in handling intricate designs with precision. In contrast, folding machines are more cost-effective for larger parts and high-volume production. They are designed to efficiently process larger panels and ensure consistent, precise folds, making them ideal for applications requiring uniformity and scale.
Which is faster, a folding machine or a press brake machine?
The speed of a folding machine versus a press brake depends on the complexity of the workpiece and the specific machine tool. Folding machines are typically faster for performing simple bends because they can handle large components and multiple bends in a single cycle. They are optimized for quick processing of straightforward folding tasks. However, press brakes may be faster for complex bends and smaller parts due to their ability to perform detailed and precise bending operations. Your choice of machine should align with whether your work requires high-speed processing of large volumes or intricate, detailed bends.
Conclusion
In metal fabrication, selecting between a press brake and a folding machine hinges on your specific needs, budget, and expected returns. Both types of machines have unique advantages, and understanding these can help you make an informed choice, boosting efficiency, quality, and profitability in your operations. For expert advice and assistance in selecting the right machinery, contact us for more information.
KRRASS is a leading manufacturer of sheet metal machinery with 20 years of industry experience. Our press brakes are a standout product in our lineup. We offer guidance in choosing the ideal press brake and provide comprehensive after-sales support. For details about our press brakes, please reach out to our sales team or visit our press brake product page.
