What types of bending machines are there?

There are several types of bending machines used in metalworking and fabrication, each designed for specific bending tasks and requirements. Here are some common types of bending machines:

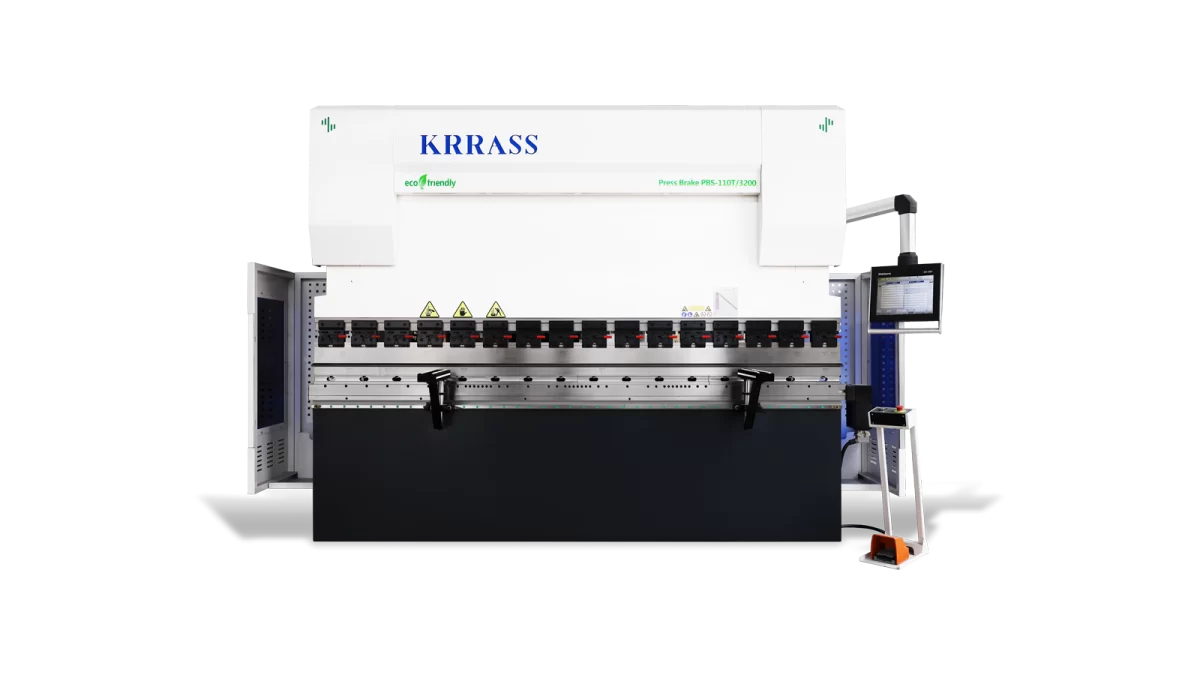

1.Press Brake: Press brakes are versatile machines used for bending sheet metal into various shapes and angles. They typically use a punch and die set to apply force to the metal, causing it to bend. Press brakes come in different configurations, including hydraulic, mechanical, and electric press brakes.

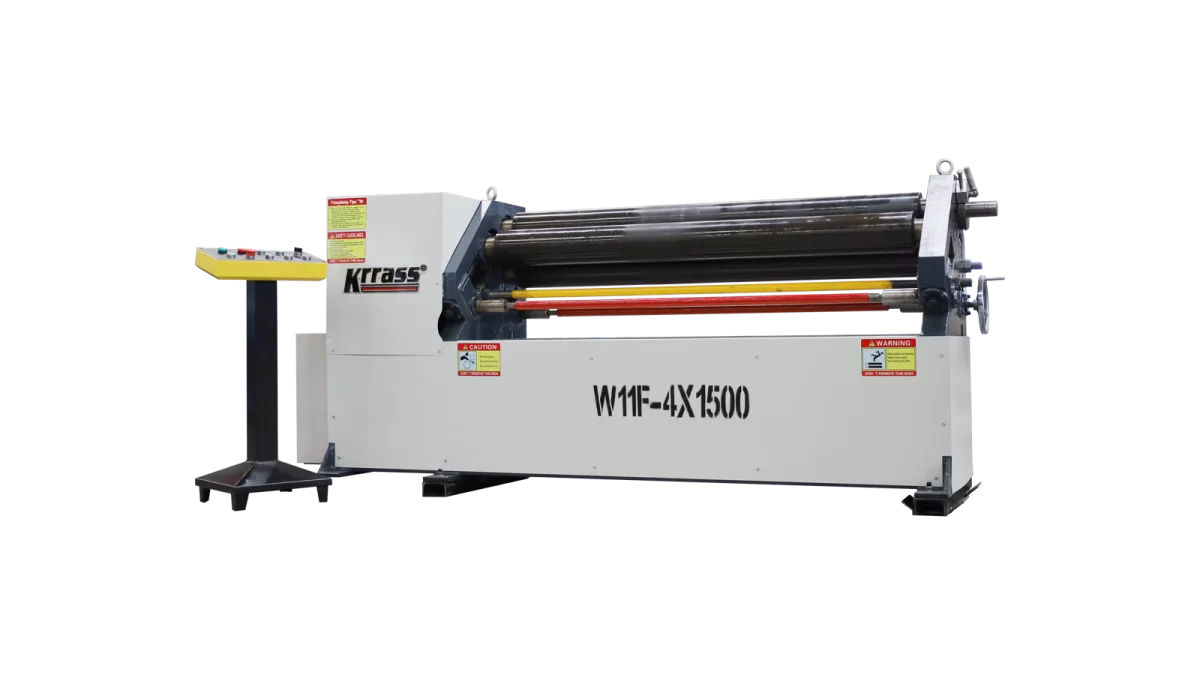

2.Plate bending Machine: Plate bending Machine, also known as plate bending machines or roll formers, are used to bend metal sheets and plates into cylindrical or curved shapes. They consist of three or four rollers arranged in a pyramid formation, with the top roller applying downward pressure to bend the metal as it passes through the rollers.

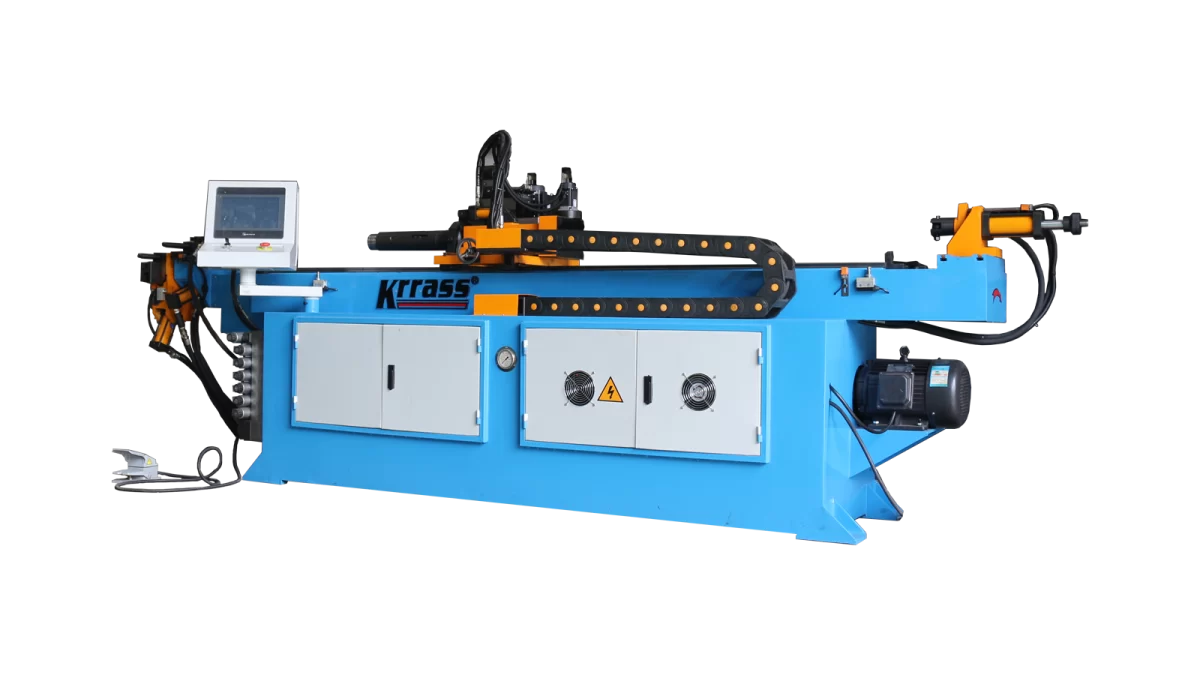

3.Tube Bending Machine: Tube bending machines are specialized equipment used for bending metal tubes and pipes into various shapes and configurations. They utilize mandrels, dies, and bending tools to deform the tubing while maintaining its structural integrity. Tube bending machines can perform different types of bends, including simple bends, compound bends, and multi-radius bends.

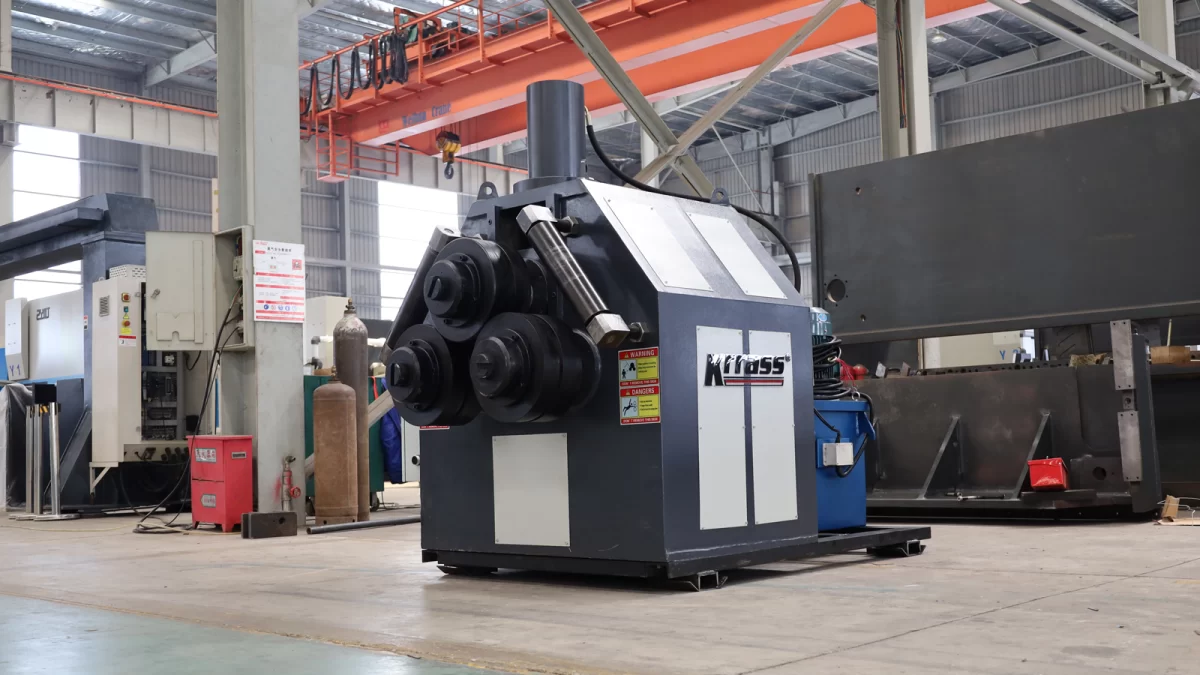

4.Profile Bending Machine: Profile bending machines are designed for bending structural profiles and extrusions, such as beams, channels, angles, and bars. They use rollers or dies to gradually bend the profile along its length, allowing for the creation of curved or arched components used in construction, manufacturing, and architectural applications.

5.Bar Bending Machine: Bar bending machines are used to bend solid bars and rods made of metal or reinforced concrete. They typically feature bending dies or rollers that apply pressure to the bar, causing it to bend around a specific radius. Bar bending machines are commonly used in construction, fabrication, and manufacturing for bending rebar, steel bars, and other materials.

6.Ring Rolling Machine: Ring rolling machines are specialized equipment used for producing seamless rings from metal blanks or preforms. They employ radial and axial forces to gradually deform the blank into a ring shape while maintaining material integrity. Ring rolling machines are used in industries such as aerospace, automotive, and energy for manufacturing components such as bearings, flanges, and gears.

7.Press Forming Machine: Press forming machines, also known as stamping presses or punch presses, are used for forming sheet metal into specific shapes and configurations. They utilize punches and dies to cut, bend, or deform the metal under high pressure. Press forming machines are commonly used in mass production environments for manufacturing automotive body panels, appliance components, and electronic enclosures.

These are just a few examples of the types of bending machines used in metalworking and fabrication. Each type of machine offers unique capabilities and advantages, allowing manufacturers to produce a wide range of bent components and products for various industries and applications.

Which types of bending machines are better?

Determining which type of bending machine is “better” depends on various factors such as the specific bending requirements, material being worked with, production volume, budget, and available space. Each type of bending machine has its advantages and limitations. Here’s a comparative overview:

1.Press Brake:

Advantages: Press brakes are versatile and can handle a wide range of sheet metal bending tasks, including complex shapes and angles. They offer high precision and repeatability, making them suitable for producing high-quality bends. Hydraulic press brakes are known for their high force capabilities, while electric press brakes offer energy efficiency and precise control.

Limitations: Press brakes may have limitations in bending thick or heavy-duty materials compared to roll bending machines or profile bending machines. They may also have slower bending speeds compared to other types of bending machines.

2.Roll Bending Machine:

Advantages: Roll bending machines are ideal for bending large sheets or plates into cylindrical or curved shapes. They can handle thick materials and produce uniform bends along the entire length of the workpiece. Roll bending machines are suitable for producing pipes, tubes, cylinders, and structural components.

Limitations: Roll bending machines may have limited capability for bending complex shapes or producing tight-radius bends compared to press brakes or profile bending machines. They may also require more floor space and have higher initial costs.

3.Tube Bending Machine:

Advantages: Tube bending machines are specialized for bending metal tubes and pipes with precision and consistency. They can produce a wide range of bend shapes and configurations, including compound bends and multi-radius bends. Tube bending machines are widely used in industries such as automotive, aerospace, and construction.

Limitations: Tube bending machines are designed specifically for bending tubes and pipes and may not be suitable for bending sheet metal or solid bars. They may require specialized tooling and setups for different tube diameters and wall thicknesses.

4.Profile Bending Machine:

Advantages: Profile bending machines are designed for bending structural profiles and extrusions, offering flexibility in creating curved components for construction, manufacturing, and architectural applications. They can handle various profiles such as beams, channels, angles, and bars.

Limitations: Profile bending machines may have limitations in bending very thick or heavy profiles compared to other types of bending machines. They may also require skilled operators to set up and adjust the machine for different profile shapes and sizes.

5.Bar Bending Machine, Ring Rolling Machine, and Press Forming Machine:

Advantages and Limitations: These types of bending machines are specialized for specific applications such as bending solid bars, forming seamless rings, or stamping sheet metal components. Their suitability depends on the specific requirements of the intended application and production process.

Ultimately, the “better” type of bending machine is the one that best meets the specific needs and requirements of the application, considering factors such as the type of material, desired bend shapes, production volume, precision requirements, budget, and available space. It’s essential to evaluate each option carefully and choose the most suitable bending machine for the task at hand.
